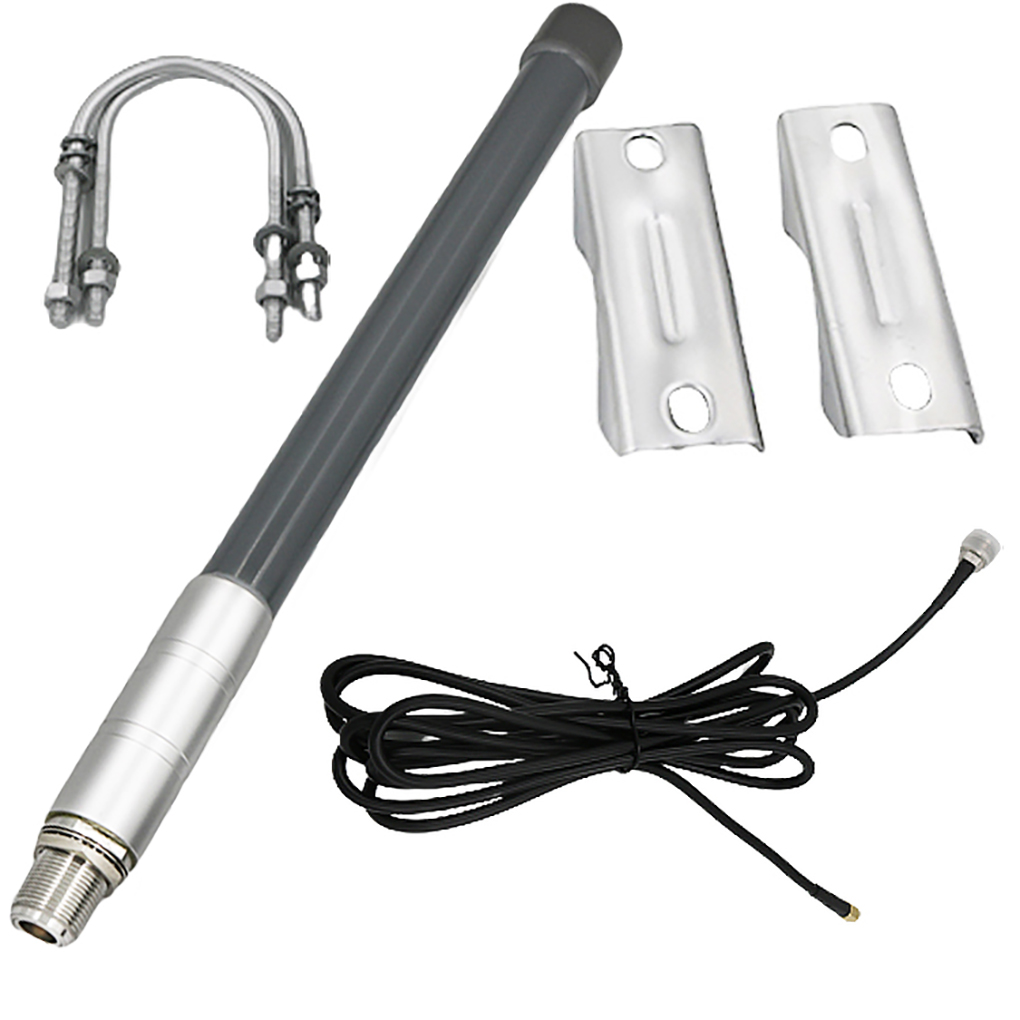

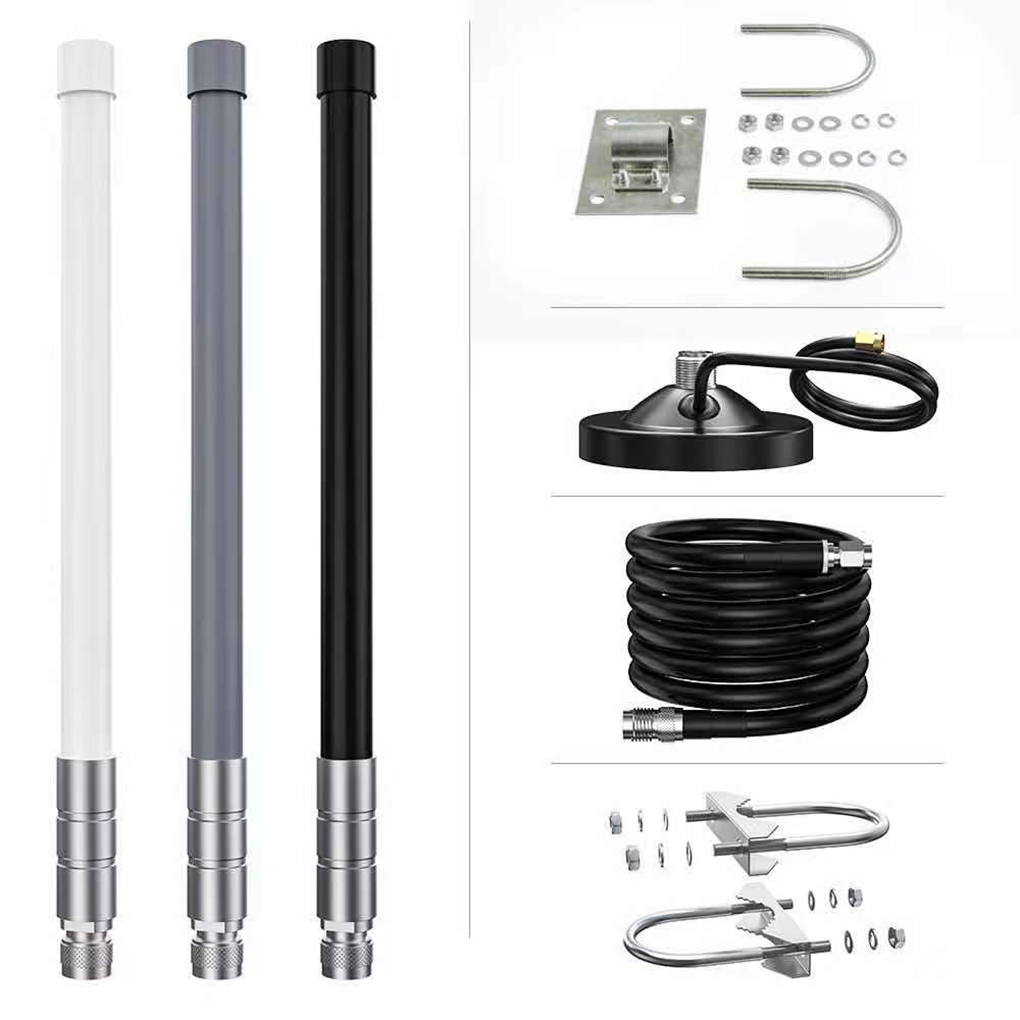

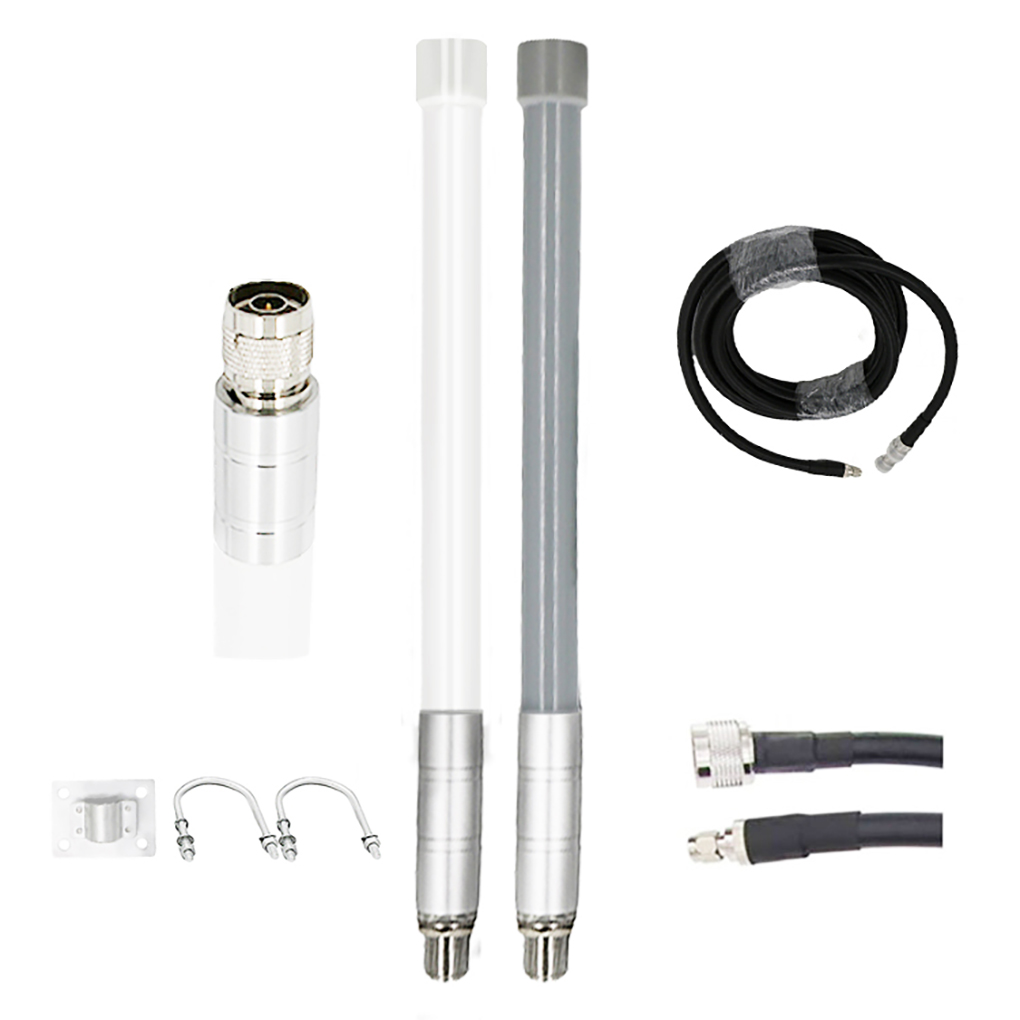

Outdoor 2.4g 5.8g dual band Fiberglass WIFI Antenna

WiFi fiberglass antennas find applications in a wide range of industries and technologies, including but not limited to telecommunications, networking, Internet of Things (IoT), wireless communication systems, mobile devices, smart home technology, industrial automation, automotive industry, aerospace and defense, as well as public safety and emergency services. These antennas play a crucial role in enabling wireless connectivity and data transmission across diverse fields.


245805CA - 202403.doc


Leave a message Contact

Fill in your email address

Or you can continue to download without filling in

Product Description

1.Waterproof and corrosion-resistant: Exhibits excellent resistance to water and corrosion, making it suitable for use in harsh weather conditions.

2.Wide frequency band coverage: Supports multiple WiFi frequency bands, suitable for different wireless network standards.

3.High gain: Provides strong signal reception and transmission capabilities, enhancing WiFi coverage and signal quality.

4.Flexible installation: Can be installed at different angles as per requirements, suitable for various application scenarios.

5.High performance: Offers stable wireless connectivity, suitable for long-distance transmission and high-speed data transfer.


Parameter245805CA
Freq(MHz)2400-25005150-5850
bandwidth(MHz)100700
PolarizationVertical
gain(dBi)5~15
input resistance (Ω)50
VSWR≤2
max power(W)50
connector typeN MALE
antenna length(cm)30
antenna weight(kg)0.2
Cover materialfiberglass
Diameter(mm)23 mm
