1.Reliable and consistent Performance: This antenna features high gain, ultra-low signal loss, wide beamwidth and low elevation satellite tracking capabilities.
2.Easy to install: This antenna adopts magnetic suction and 3M adhesive installation methods, which is easy to operate and install.

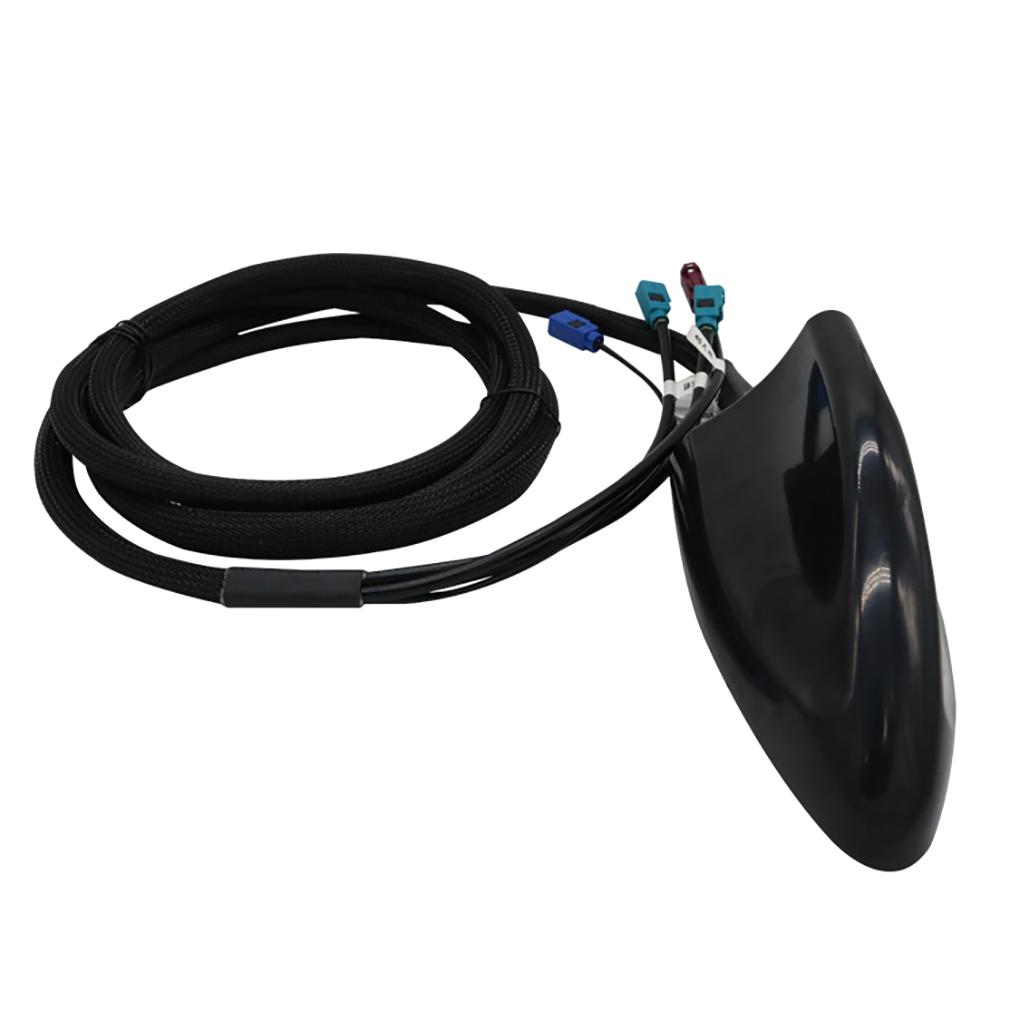

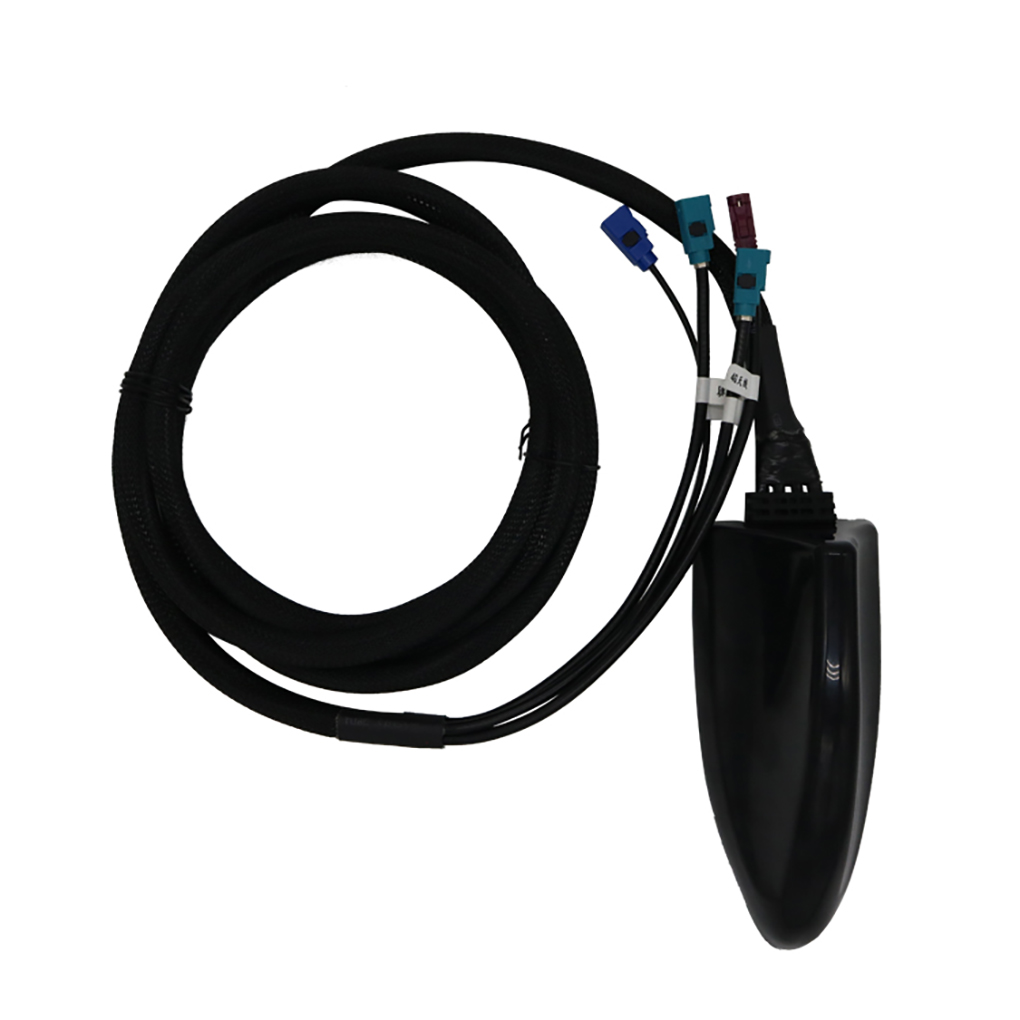

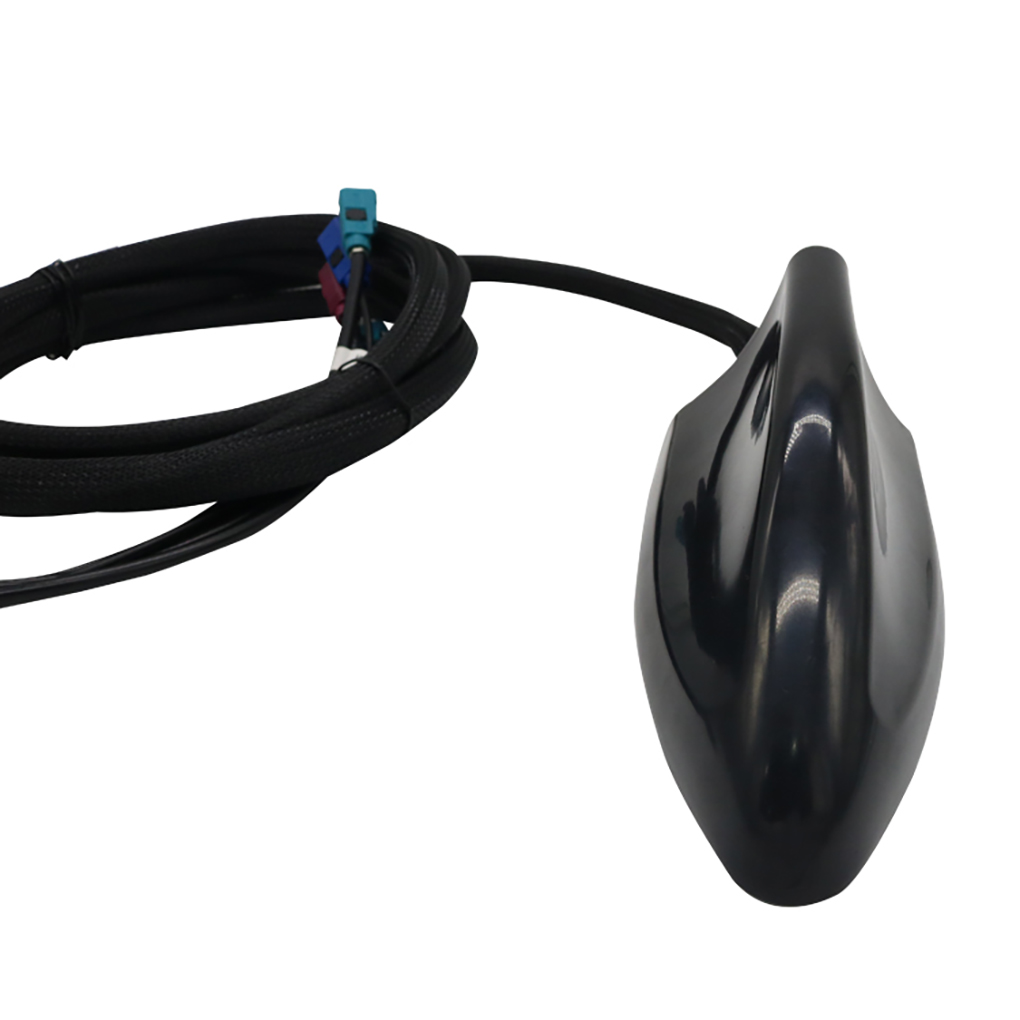

3.Compact Form Factor and Ruggedized Housing: The antenna's compact shape and rugged housing minimizes damage from overhead objects and reduces wind resistance. Its robust housing ensures a long service life and IP65 protection rating.
4.FAKRA Connector, Easy For Integration: This antenna can use FAKRA connectors, which meet automotive grade requirements and are easy to connect. Additionally, it can accommodate flexible customizable requests. Such as SMA, MCX and other connectors
| Characteristics | Specification |
| Band | LTE+GNSS+AM/FM+WIFI |
| Frequency Range | 4G:690-960/ 1710-2690MHz GNSS:1561/1575.42MHz AM/FM:530-1710KHz/ 76-109.9MHz WIFI:2400-2500MHz |
| VSWR | 4G: 690-960MHZ @2.2 1710~2690 @1.5 WIFI: 2.4~2.5GHZ@1.35 GNSS: 1561MHZ@1.8 1575MHZ@1.35 |
| Characteristics | Specification |
| Frequency Range | 560MHz~1576MHz |
| Gain | 28±3dB |
| Noise Figure | <2.0 dB |
| Output V.S.W.R | <2.0 |
| Operation Voltage | 3.3~5 V |
| Current | <25 mA |
| Storage Temperature | -40 ~ +85°C |
| Relative Humidity | 20 ~ 95% RH |
| Recommended Storage condition | Store in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max. |
