Overview

The TOXU TX-A193 is a 2400–2500MHz fiberglass omnidirectional antenna designed for compatible 2.4GHz Wi-Fi, WLAN, industrial wireless communication, gateway, telemetry, and data-transmission equipment.

The antenna covers the 2.4GHz ISM frequency range and can be integrated with compatible Wi-Fi modules, wireless access points, industrial gateways, routers, monitoring equipment, and embedded communication systems.

It features 4–5dBi specified gain, vertical polarization, 50Ω impedance, and a specified VSWR of ≤1.5 across its intended operating range.

The fiberglass-reinforced plastic radome provides a rigid protective housing for the internal antenna element. The antenna body is approximately 20mm in diameter and 300mm long.

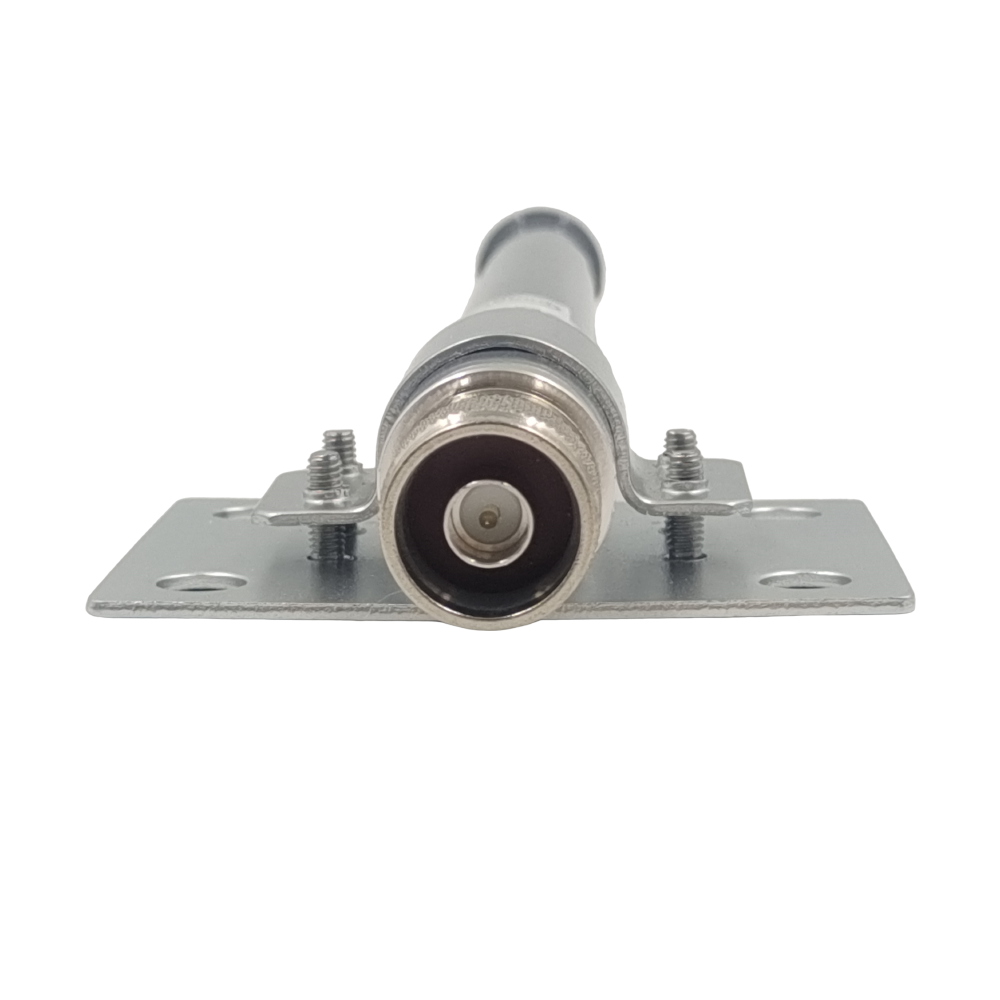

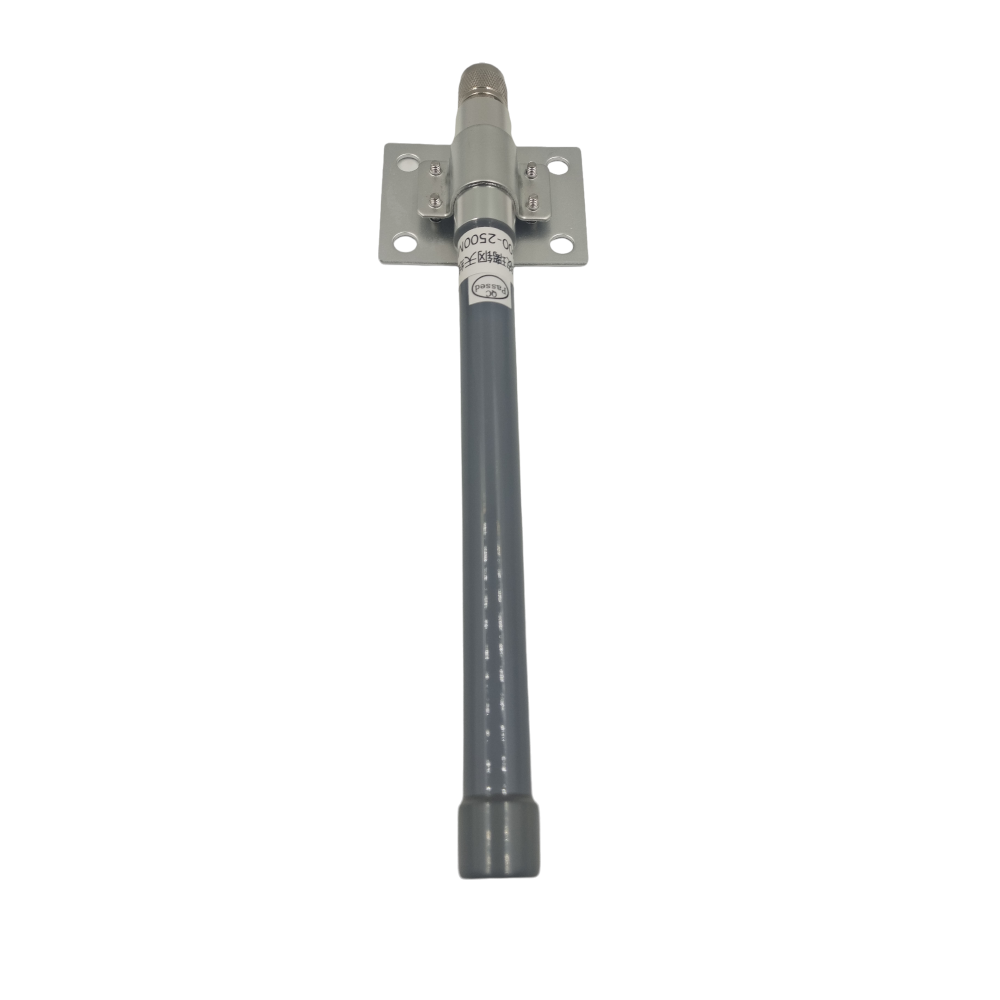

The standard product information specifies an N male connector. The available product image and dimension drawing also show a metal mounting bracket for installation on a suitable wall, panel, cabinet, or supporting structure.

Actual antenna performance depends on the operating frequency, installation position, surrounding metal structures, mounting orientation, RF cable loss, connector condition, wireless module, and operating environment.

Key Features

2400–2500MHz Frequency Coverage

Designed for compatible Wi-Fi, WLAN, and 2.4GHz ISM wireless equipment operating within the 2400–2500MHz frequency range.

4–5dBi Specified Gain

Provides a specified gain of 4–5dBi for compatible fixed wireless communication and data-transmission applications.

Omnidirectional Radiation

The vertically polarized design supports radio-frequency transmission and reception around the antenna in suitable installation environments.

Low VSWR

The specified VSWR is ≤1.5 across the intended operating frequency range. The available measurement information records values of 1.1 and 1.2 for the tested sample.

Fiberglass Radome

The gray fiberglass-reinforced plastic radome provides a rigid protective structure for the internal antenna element.

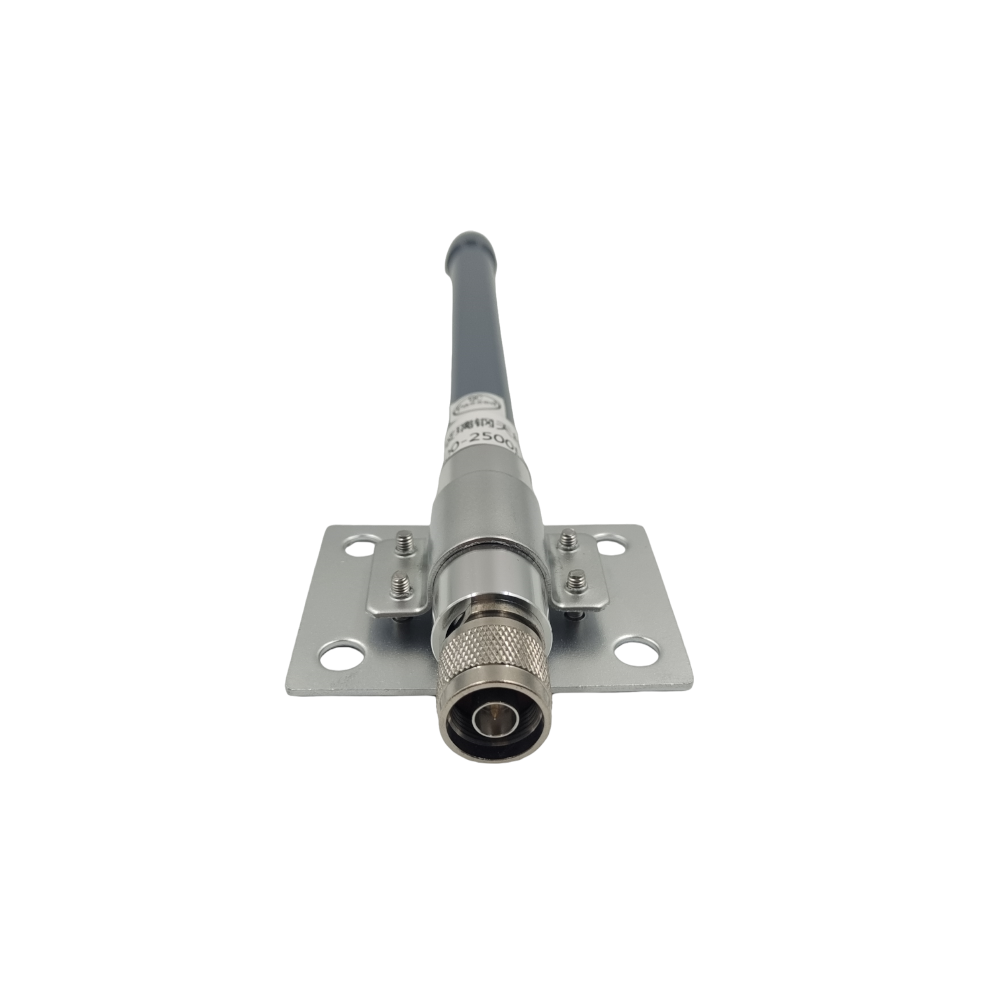

N Male Connector

The N male interface supports connection to compatible 50Ω RF cable assemblies, wireless equipment, mounting accessories, or system components.

Compact Ø20 × 300mm Structure

The compact fiberglass antenna body supports installation on industrial gateways, wireless cabinets, access points, monitoring systems, and fixed communication equipment.

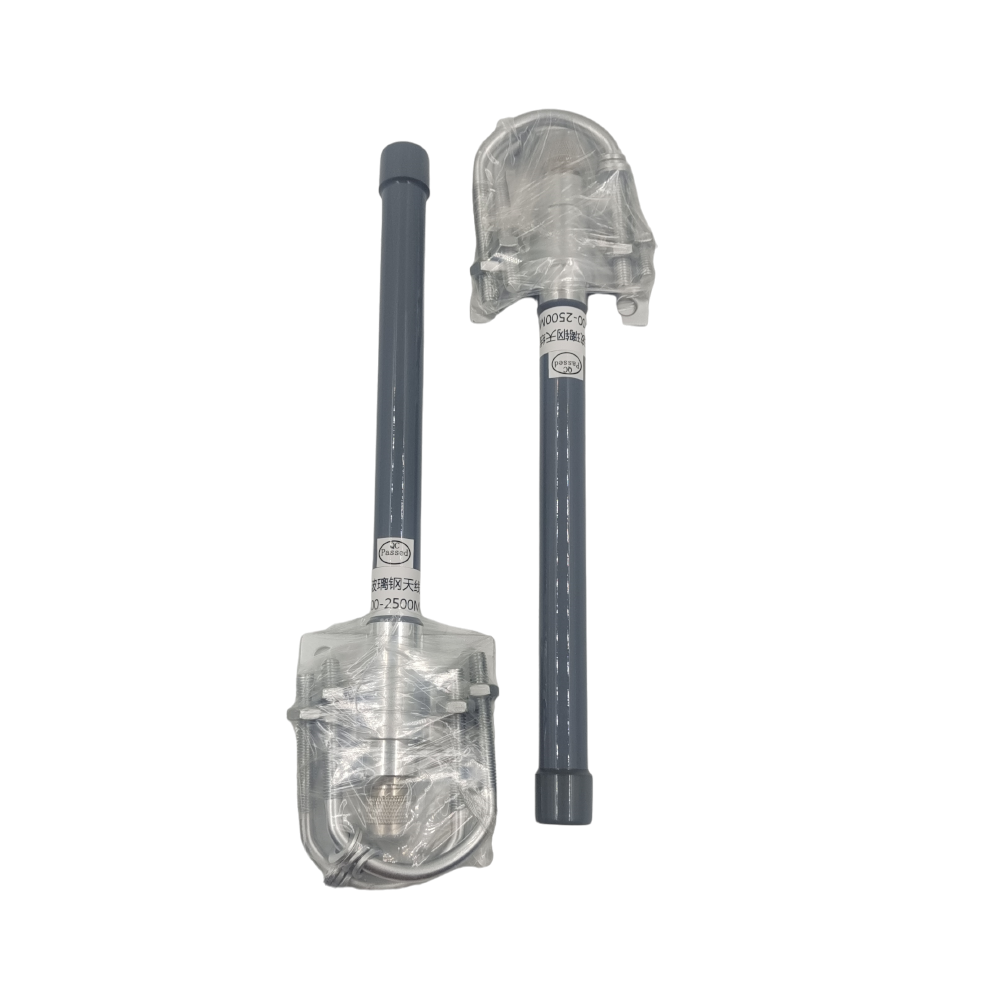

Mounting Bracket

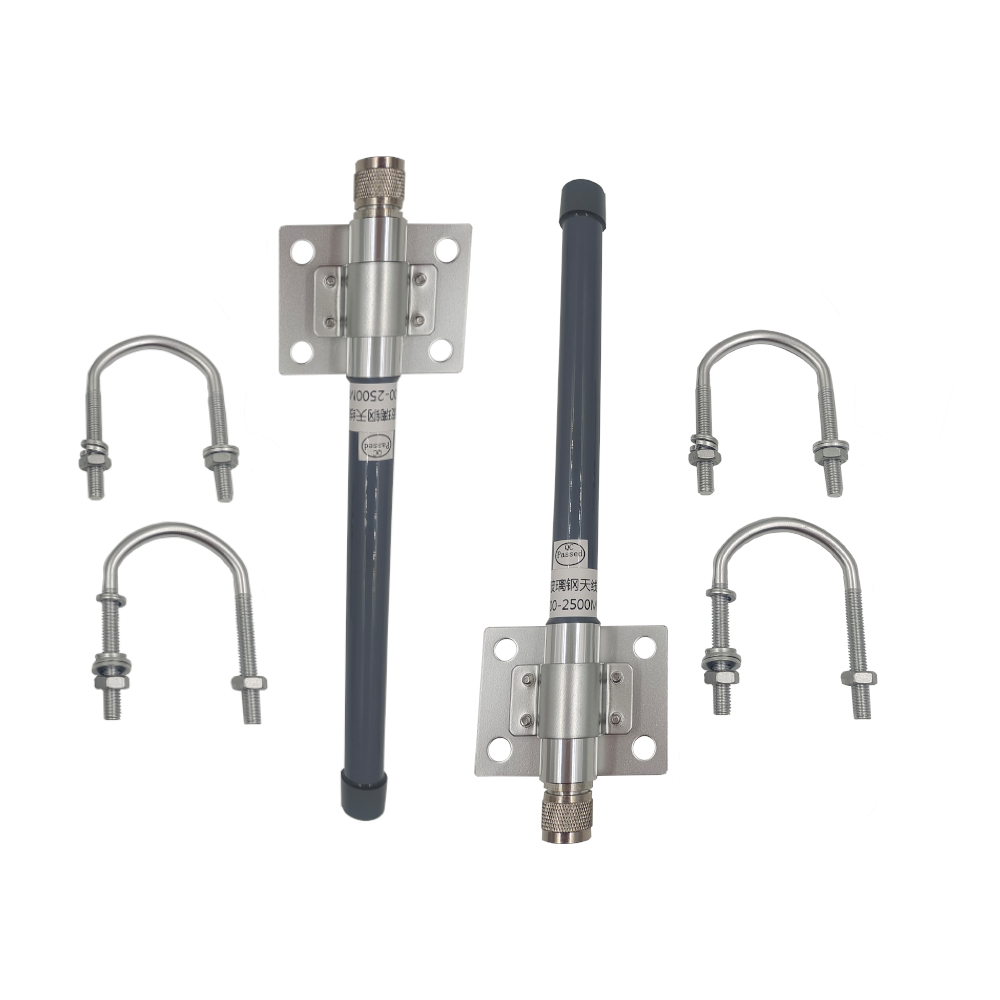

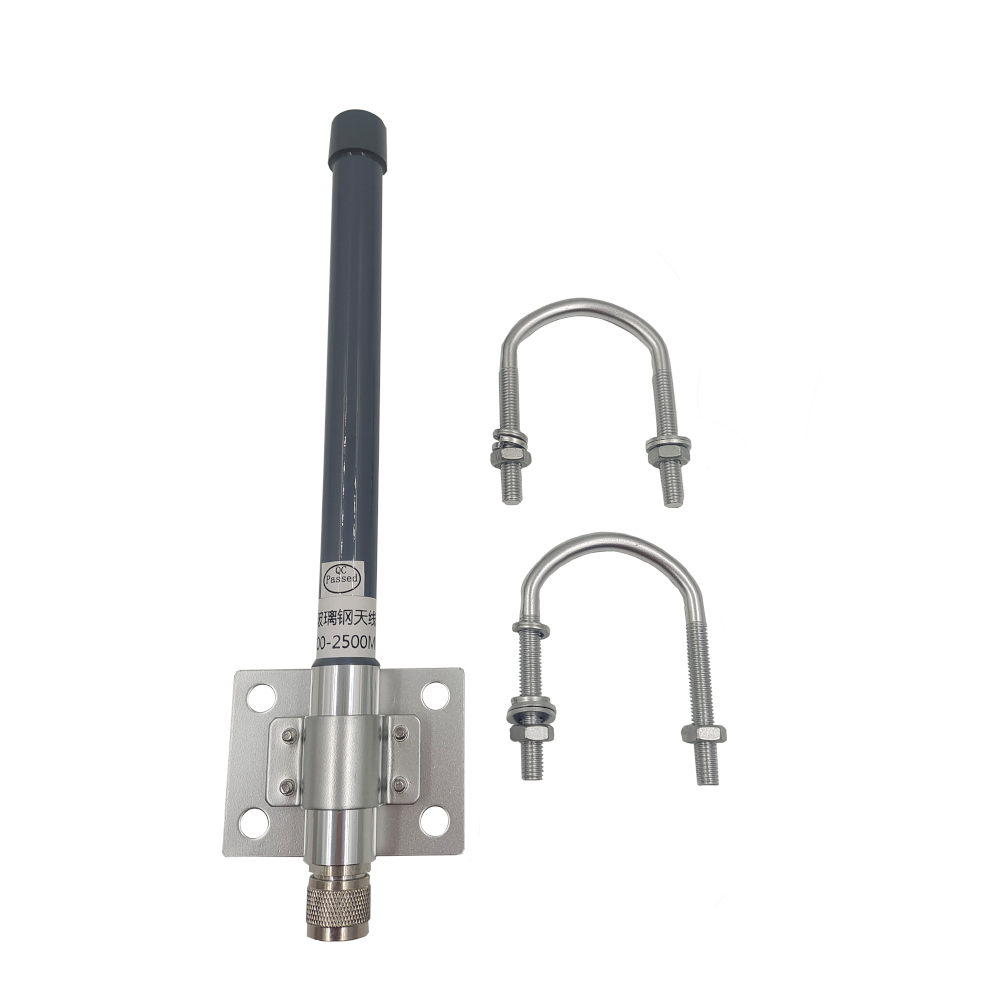

The illustrated metal bracket supports secure installation on a suitable wall, panel, cabinet, equipment frame, or other supporting structure.

Project Customization Support

Frequency tuning, connector configuration, mounting accessories, product labels, packaging, and matching RF cable assemblies can be evaluated according to project requirements and order quantity.

Technical Specifications

Dimension Drawing

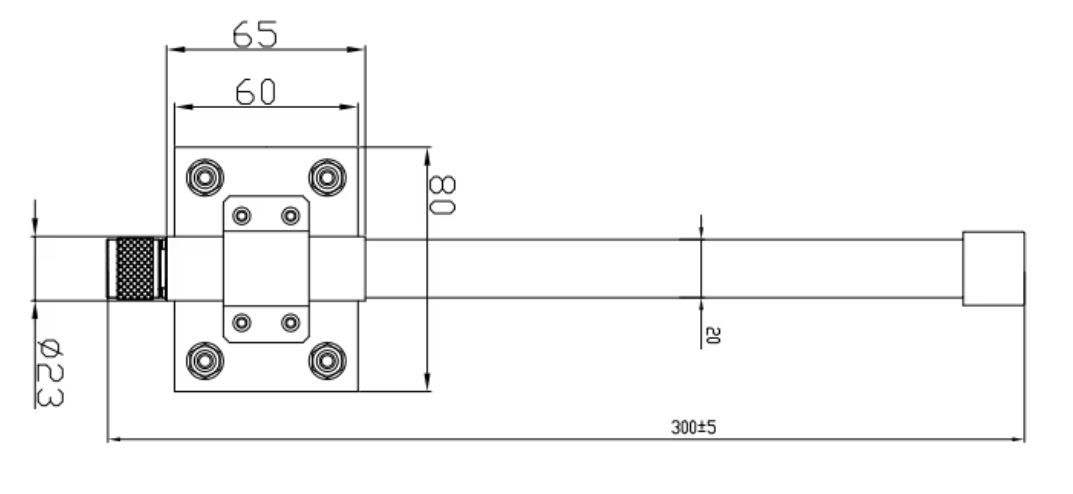

The available drawing indicates an antenna-body length of 300 ±5mm and an outer diameter of approximately 20mm.

The connector-side structure is shown as approximately Ø23mm. The mounting bracket drawing indicates a 65mm length, 60mm mounting-hole spacing, and 80mm width.

Applications

• 2.4GHz Wi-Fi and WLAN Equipment

• Industrial Wireless Gateways

• Wireless Routers and Access Points

• Remote Monitoring Equipment

• Industrial Telemetry Systems

• Wireless Data Acquisition Equipment

• Compatible IoT and M2M Terminals

• Security and Monitoring Systems

• Industrial Automation Equipment

• Compatible 2.4GHz ISM Communication Systems

System Integration

The TX-A193 can be integrated into compatible wireless communication equipment using the following configuration:

TX-A193 Antenna → N-Type RF Connection / 50Ω Coaxial Cable → 2.4GHz Wi-Fi Module, Router, Gateway or Wireless Terminal

Before integration, confirm that the connected wireless module or equipment operates within the 2400–2500MHz frequency range and uses a compatible 50Ω RF interface.

An adapter or matching coaxial cable assembly may be required when the connected equipment does not use an N-type connector.

Install the antenna vertically and maintain suitable clearance from large metal surfaces, walls, motors, power converters, high-current cables, and other potential interference sources.

The mounting position, installation height, surrounding structures, cable attenuation, connector loss, wireless-module output power, receiver sensitivity, and operating environment can affect final communication performance.

Sample testing with the actual wireless module, RF cable, mounting structure, enclosure, and target operating environment is recommended before volume production.
