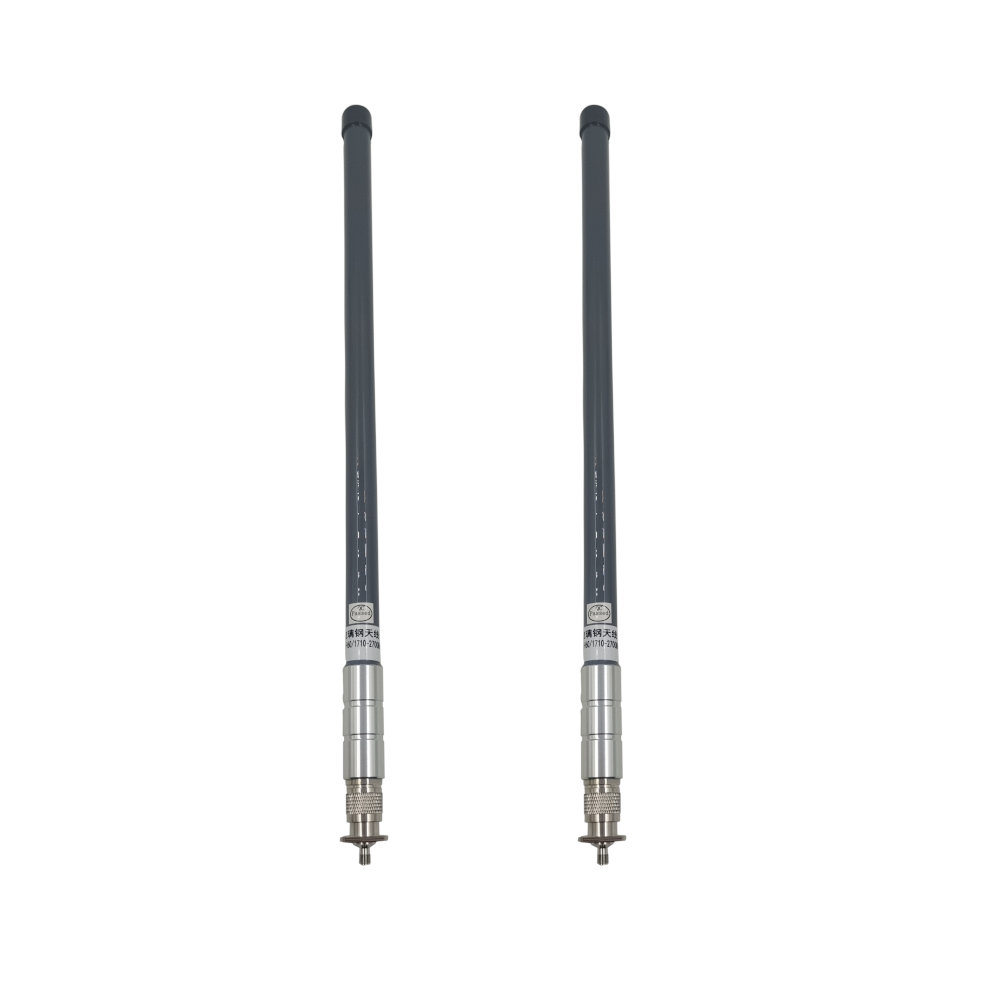

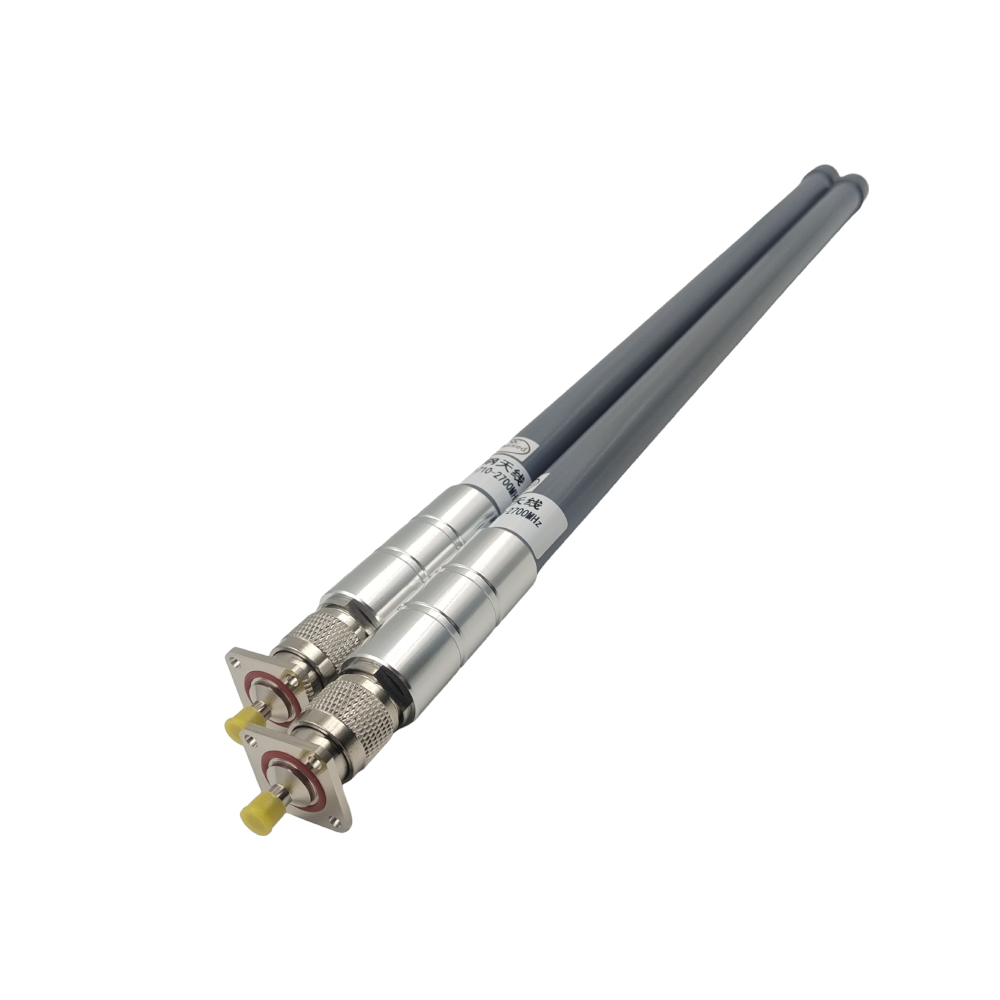

Overview

The TOXU TX-A192 is a wideband cellular fiberglass omnidirectional antenna covering 800–960MHz and 1710–2690MHz. It is designed for compatible cellular communication, industrial gateway, telemetry, router, monitoring, and wireless data equipment.

The antenna supports multiple cellular frequency bands within its specified operating range, making it suitable for compatible 2G, 3G, and 4G LTE communication systems. Final band compatibility must be confirmed according to the cellular module and local network.

It features 3–5dBi specified gain, vertical polarization, 50Ω impedance, and a nominal VSWR of ≤2.5.

The fiberglass-reinforced plastic radome provides a rigid protective housing for the internal antenna structure. The antenna body measures approximately Ø20 × 500mm.

An N male connector supports direct integration with compatible 50Ω RF cable assemblies, mounting accessories, communication equipment, and surge-protection components.

The available test information reports 800–960MHz and 1710–2700MHz measured coverage with a VSWR result of ≤1.274 for the tested sample. Product selection and volume-order approval should follow the nominal 800–960MHz and 1710–2690MHz specification.

Key Features

Wideband Cellular Coverage

Covers 800–960MHz and 1710–2690MHz for compatible cellular communication and wireless data equipment.

3–5dBi Specified Gain

Designed to support signal transmission and reception across the specified cellular frequency ranges.

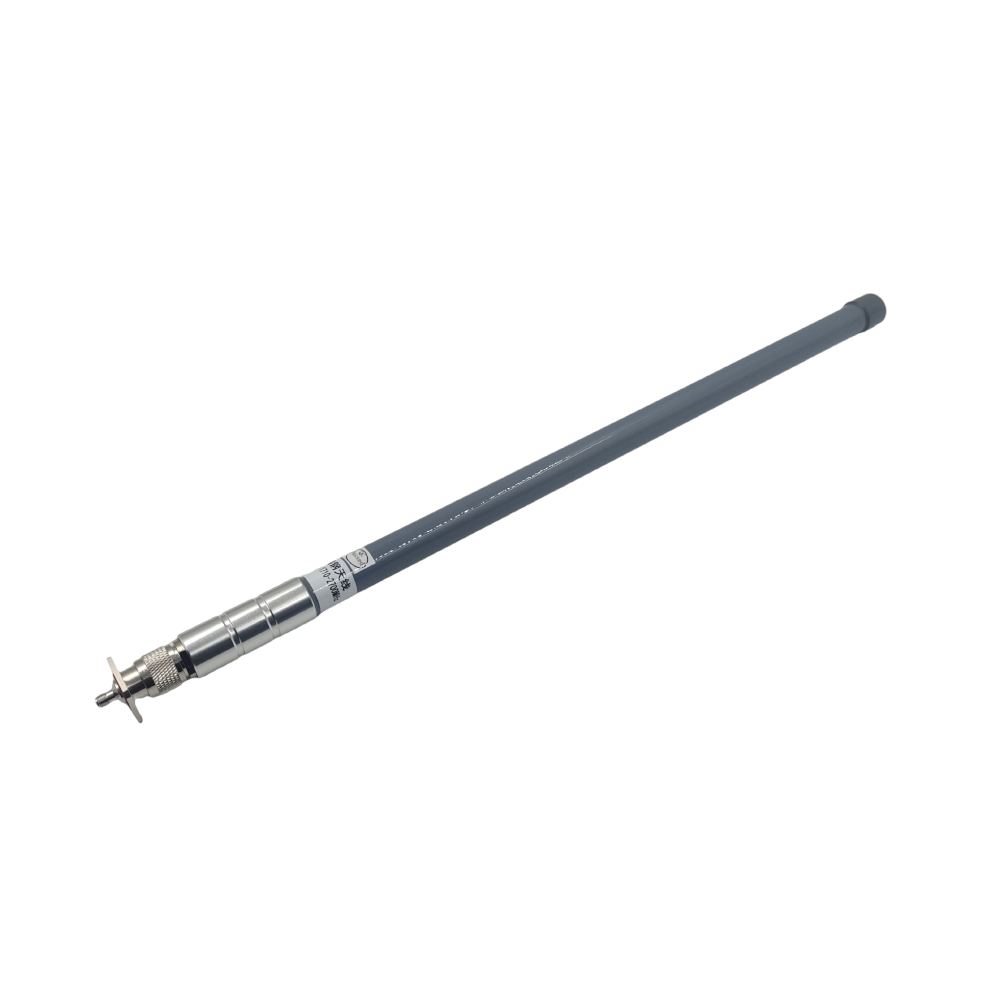

Omnidirectional Radiation

The vertically polarized design provides radio-frequency coverage around the antenna in suitable installation environments.

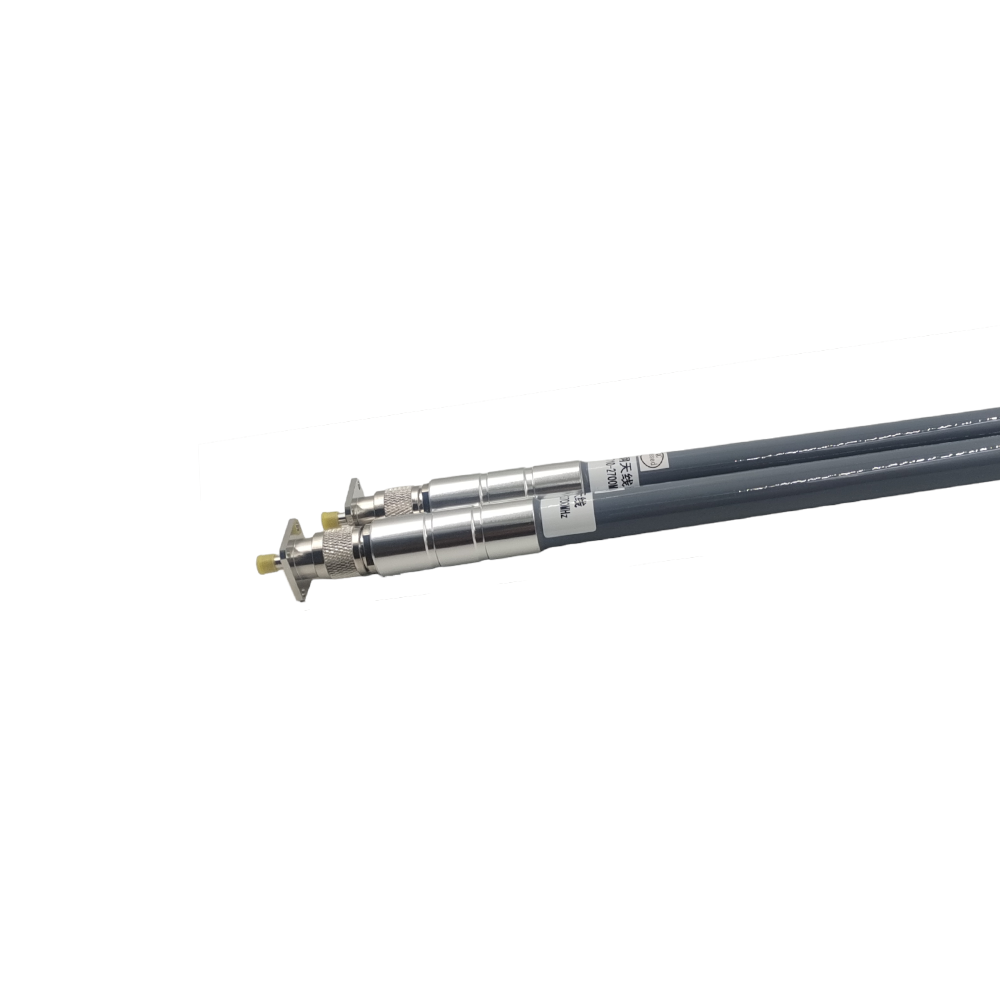

Fiberglass Radome

The gray fiberglass-reinforced plastic radome provides a rigid protective structure for industrial and fixed-equipment integration.

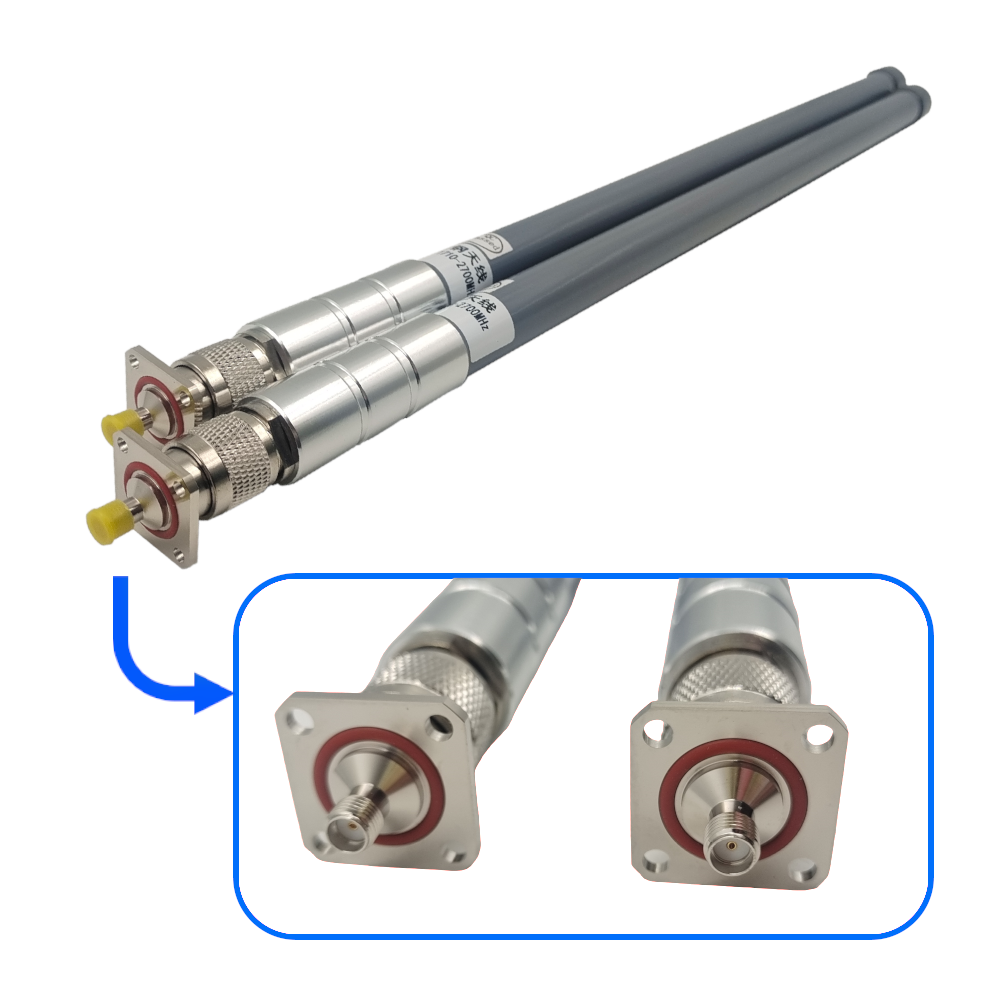

N Male Connector

Supports connection to compatible 50Ω cellular equipment, RF cable assemblies, mounting bases, and system accessories.

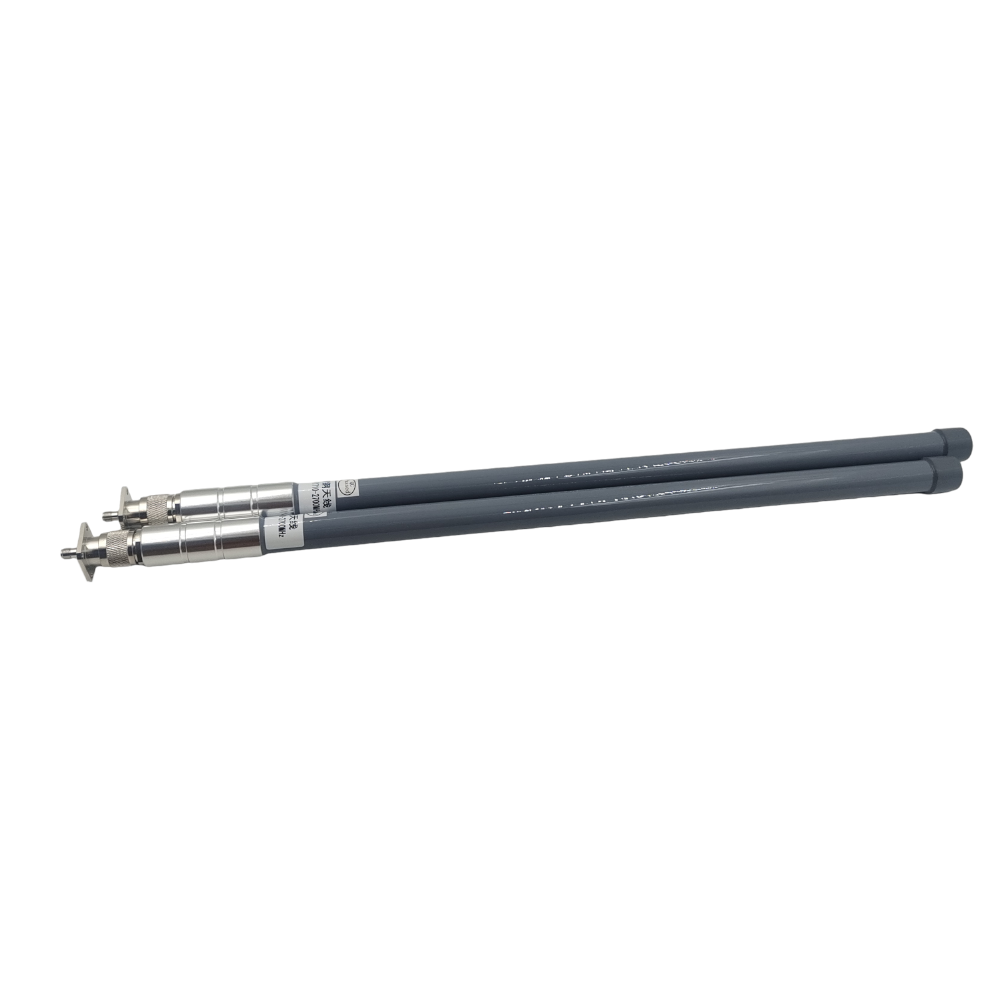

Ø20 × 500mm Structure

The compact fiberglass antenna body supports integration into gateways, cabinets, monitoring equipment, and fixed wireless installations.

Project Customization Support

Frequency tuning, connector configuration, mounting hardware, labeling, packaging, and matching RF cable assemblies can be evaluated for volume-order projects.

Technical Specifications

Dimension Drawing

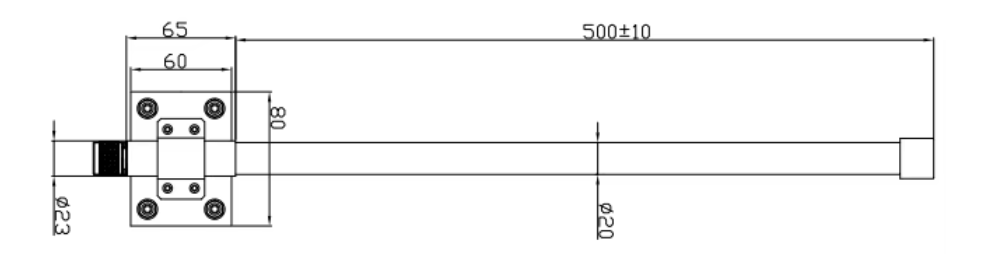

The available drawing indicates an antenna-body diameter of approximately 20mm and a body length of 500 ±10mm.

The illustrated mounting structure shows an approximately Ø23mm connector-side section, 60mm mounting-hole spacing, 65mm bracket length, and 80mm bracket width.

Applications

• 2G, 3G and 4G LTE Communication Equipment

• Industrial Cellular Gateways

• Cellular Routers and Modems

• Remote Monitoring Equipment

• Telemetry and Wireless Data Systems

• IoT and M2M Terminals

• Security and Alarm Communication Systems

• Industrial Automation Equipment

• Fixed Wireless Communication Installations

System Integration

The TX-A192 can be integrated into compatible cellular communication equipment using the following configuration:

TX-A192 Antenna → N-Type RF Connection / 50Ω Coaxial Cable → Cellular Router, Gateway or Communication Module

Before integration, confirm that the required cellular frequency bands fall within 800–960MHz or 1710–2690MHz.

Install the antenna vertically and maintain suitable clearance from large metal structures, motors, switching power supplies, high-current cables, and other potential interference sources.

An adapter or matching RF cable assembly may be required when the connected equipment does not use an N-type interface.

Communication performance depends on the cellular band, network coverage, installation height, surrounding obstacles, cable loss, connector loss, equipment sensitivity, and operating environment.

Sample testing with the actual cellular module, RF cable, mounting structure, and target network is recommended before volume production.
