Overview

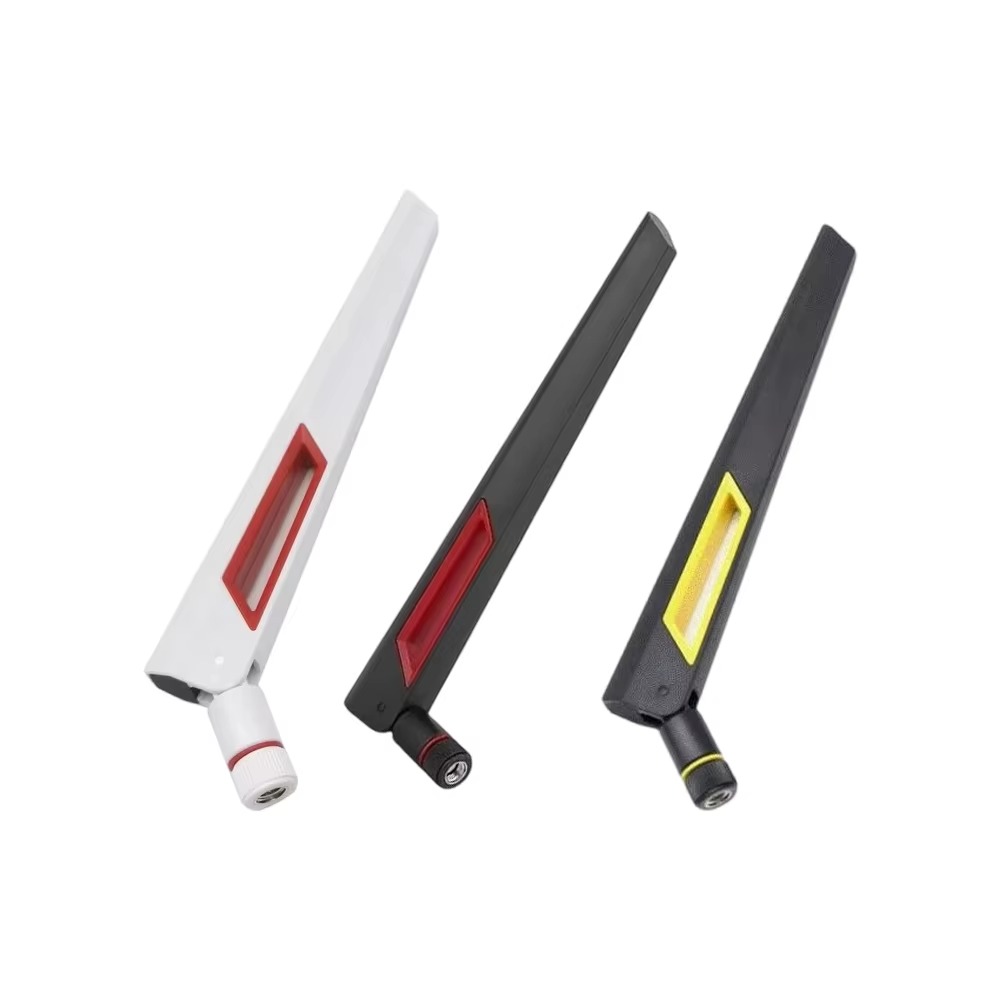

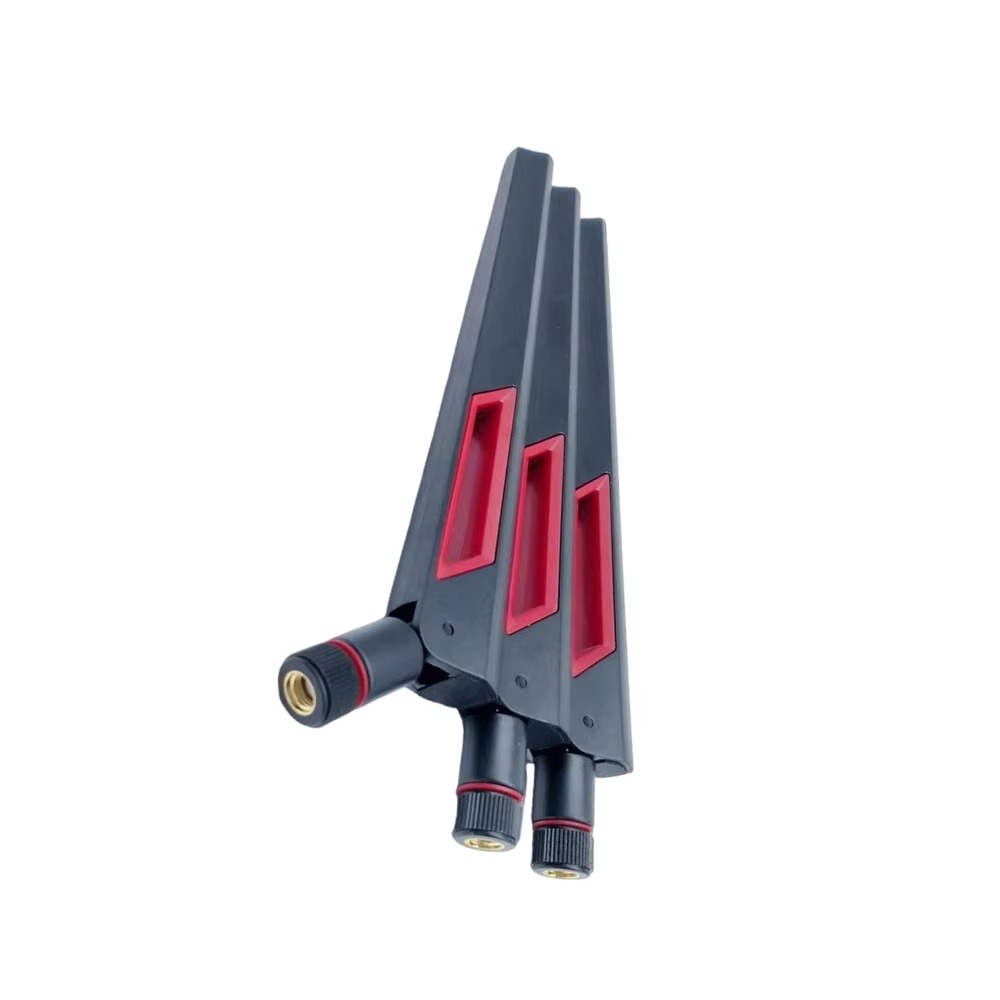

The TOXU TX-A17 is a dual-band rubber duck antenna covering 2400–2500MHz and 5000–5800MHz. It is designed for compatible 2.4GHz and 5GHz Wi-Fi, WLAN, router, access point, industrial gateway, IoT, and wireless data equipment.

The antenna features 12dBi specified gain, vertical polarization, 50Ω impedance, and a specified VSWR of ≤1.9.

Its approximately 195mm rubber housing and adjustable joint support direct installation on compatible wireless equipment.

SMA and RP-SMA connector configurations are available according to project requirements. The exact connector series and gender must be confirmed before ordering.

Actual RF performance depends on the selected connector, operating frequency, antenna orientation, equipment enclosure, surrounding metal structures, wireless module, and installation environment.

Key Features

Dual-Band Wi-Fi Coverage

Covers 2400–2500MHz and 5000–5800MHz for compatible 2.4GHz and 5GHz Wi-Fi and WLAN equipment.

12dBi Specified Gain

The available product information specifies 12dBi gain for compatible wireless communication applications.

Vertical Polarization

Designed for vertically polarized wireless signal transmission and reception when installed in the recommended orientation.

195mm Rubber Housing

The rubber duck structure supports direct installation on routers, gateways, access points, wireless modules, and embedded equipment.

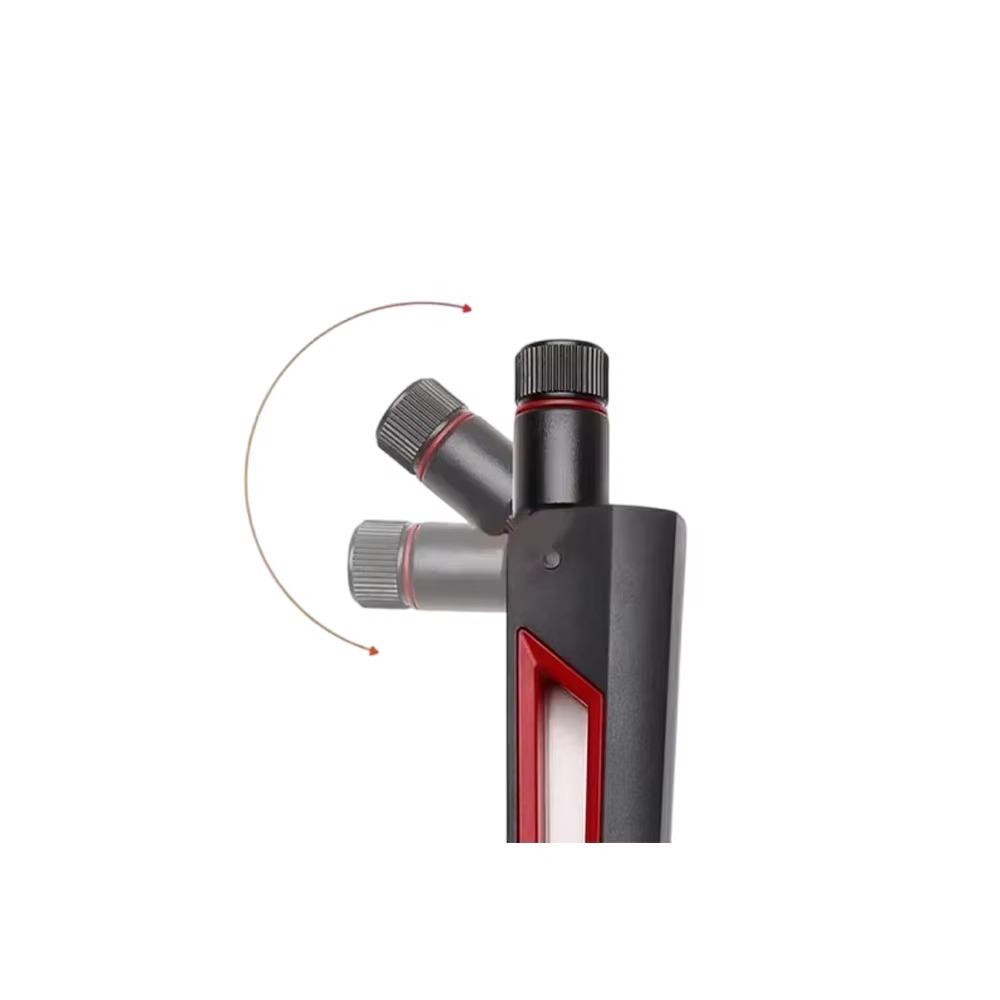

Adjustable Antenna Joint

The adjustable structure allows the antenna orientation to be adapted to different equipment and installation layouts.

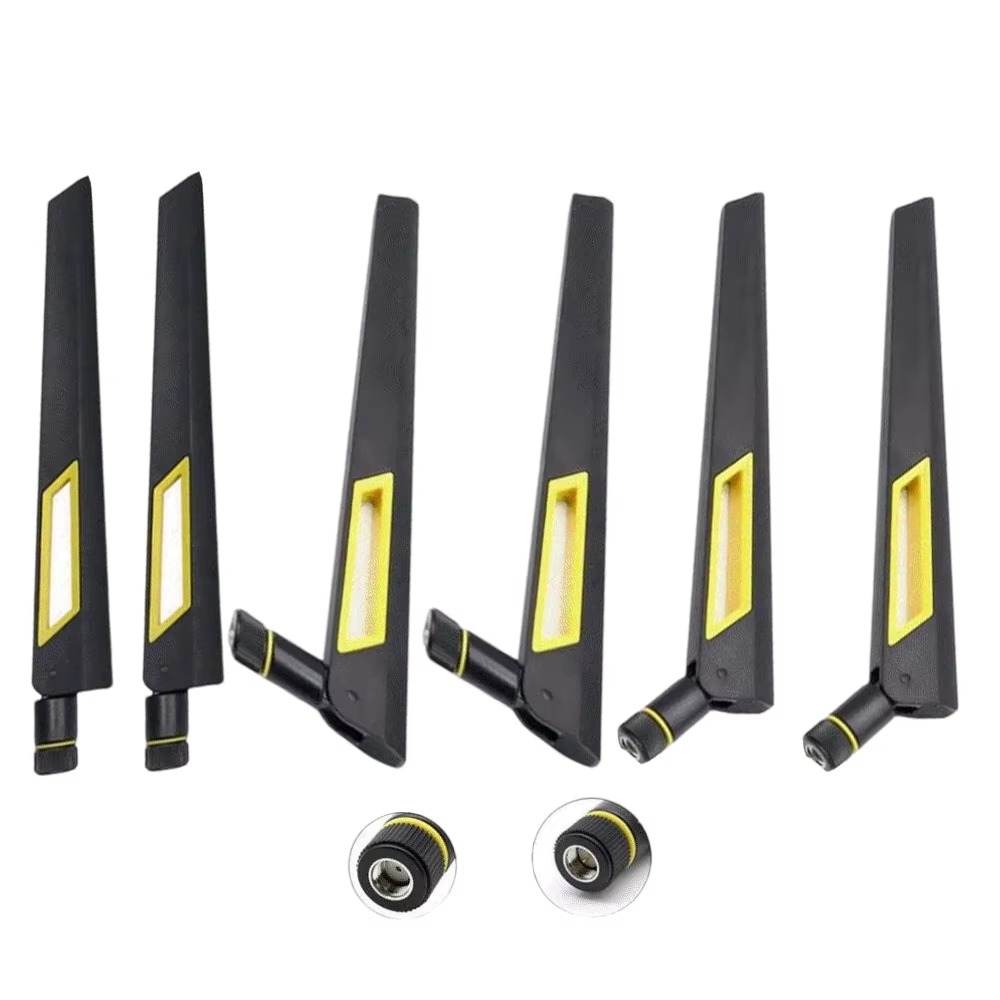

Optional SMA or RP-SMA Connector

Different SMA-series connector configurations can be evaluated according to the mating interface of the customer’s equipment.

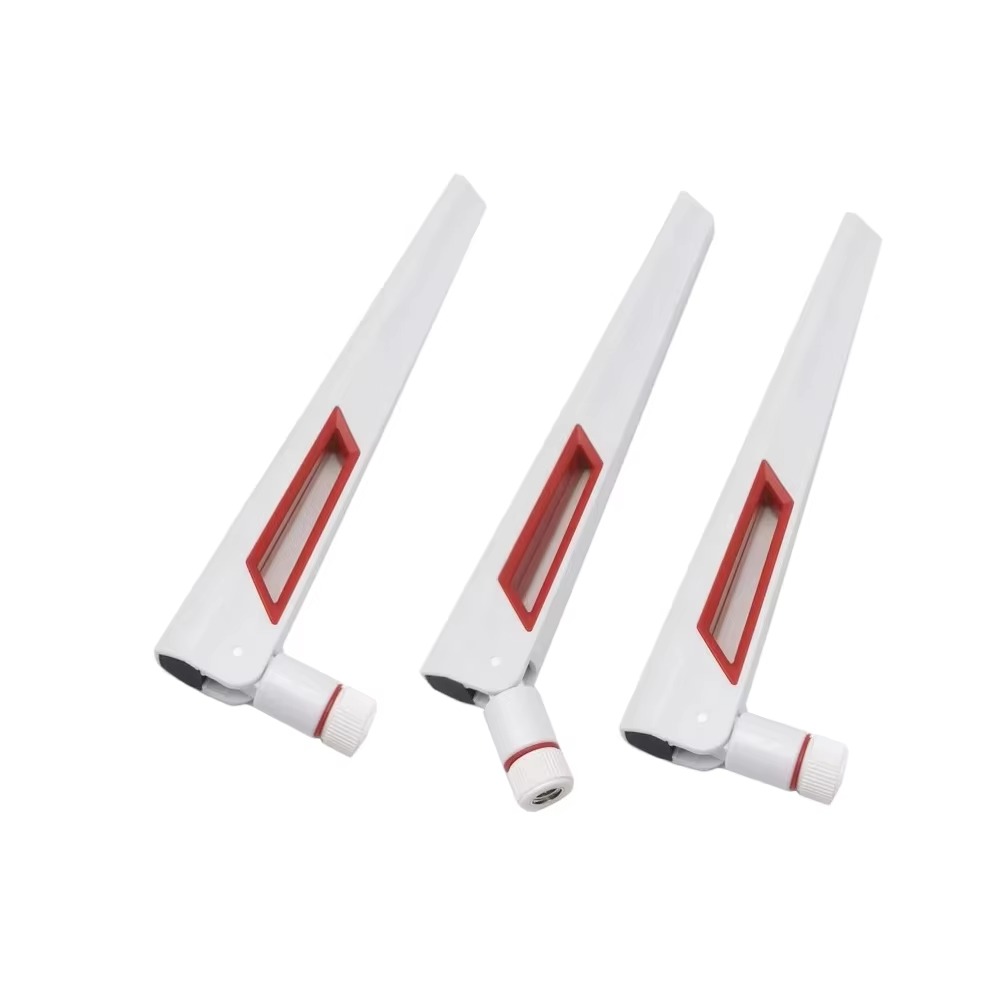

Customization Support

Connector configuration, housing color, product label, packaging, and frequency tuning can be evaluated for volume-order projects.

Technical Specifications

Applications

• Dual-Band Wi-Fi Routers

• Wireless Access Points

• Industrial Wireless Gateways

• Wi-Fi Modules and Development Boards

• IoT and M2M Equipment

• Wireless Monitoring Equipment

• Embedded Wireless Devices

• 2.4GHz and 5GHz WLAN Equipment

• Wireless Data-Transmission Systems

System Integration

The TX-A17 can be integrated into compatible wireless equipment using the following configuration:

TX-A17 Antenna → SMA or RP-SMA RF Interface → Wi-Fi Router, Access Point, Gateway or Wireless Module

Before ordering, confirm the equipment connector series and gender. SMA and RP-SMA connectors are mechanically similar but use different center-contact configurations and are not directly interchangeable.

Install the antenna in a suitable vertical orientation and maintain appropriate clearance from metal enclosures, power supplies, motors, high-current cables, and other potential interference sources.

Sample testing with the actual wireless module, equipment enclosure, connector interface, and operating environment is recommended before volume production.

Why Choose TOXU

TOXU supplies Wi-Fi antennas, cellular antennas, GNSS antennas, UHF and VHF antennas, RF cable assemblies, coaxial connectors, communication modules, and receiver hardware for equipment manufacturers and system integrators.

Our team can assist with frequency confirmation, connector matching, antenna selection, sample testing, RF cable configuration, and device-integration support.

For volume-order projects, TOXU can evaluate customized connectors, antenna colors, labels, packaging, and matching RF cable assemblies.

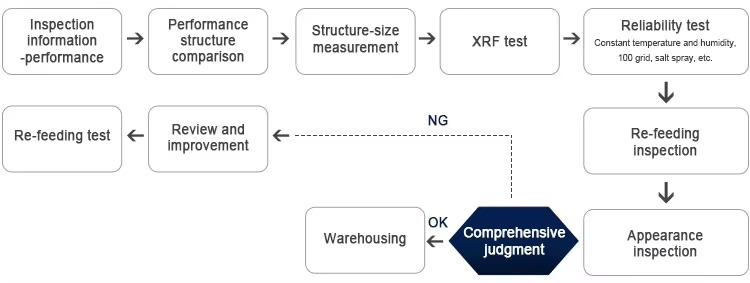

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports antenna assembly, RF testing, quality control, and stable volume-order delivery.

FAQ

Q: What frequency bands does the TX-A17 support?

A: It covers 2400–2500MHz and 5000–5800MHz for compatible dual-band Wi-Fi and WLAN equipment.

Q: Does it support both 2.4GHz and 5GHz Wi-Fi?

A: Yes. Its specified frequency ranges cover compatible 2.4GHz and 5GHz Wi-Fi applications.

Q: What is the specified antenna gain?

A: The available product information specifies 12dBi. Final performance should be verified with the actual equipment and installation environment.

Q: Does the antenna use SMA or RP-SMA?

A: Both connector configurations can be evaluated. The exact connector series and gender must be confirmed before ordering.

Q: Are SMA and RP-SMA connectors interchangeable?

A: No. Their center-contact structures are different, so the equipment interface must be checked carefully.

Q: What is the antenna length?

A: The available specification states an approximate antenna length of 195mm.

Q: Can the color and connector be customized?

A: Connector configuration, housing color, label, packaging, and other project requirements can be evaluated according to order quantity.

Q: Is the antenna waterproof?

A: The current information does not provide a confirmed IP rating, so it should not be marketed with a specific waterproof level.
