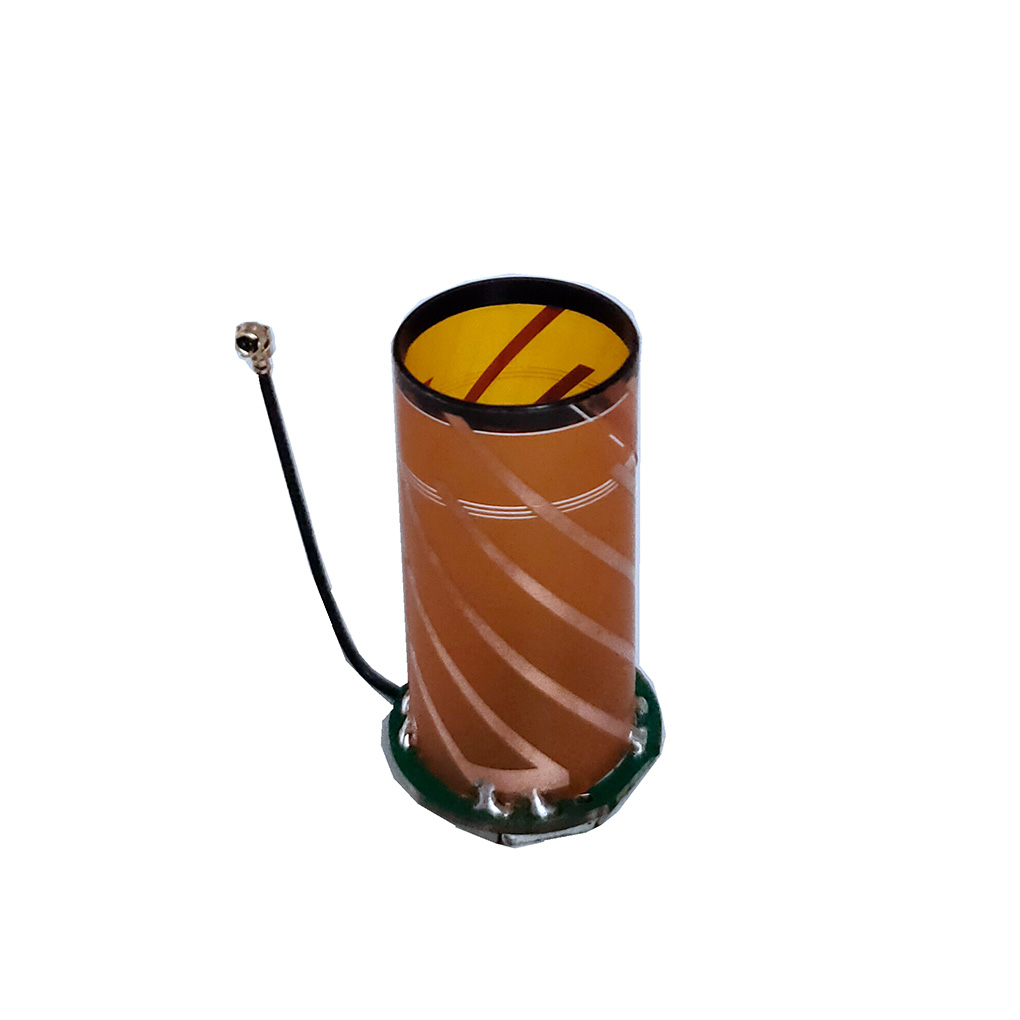

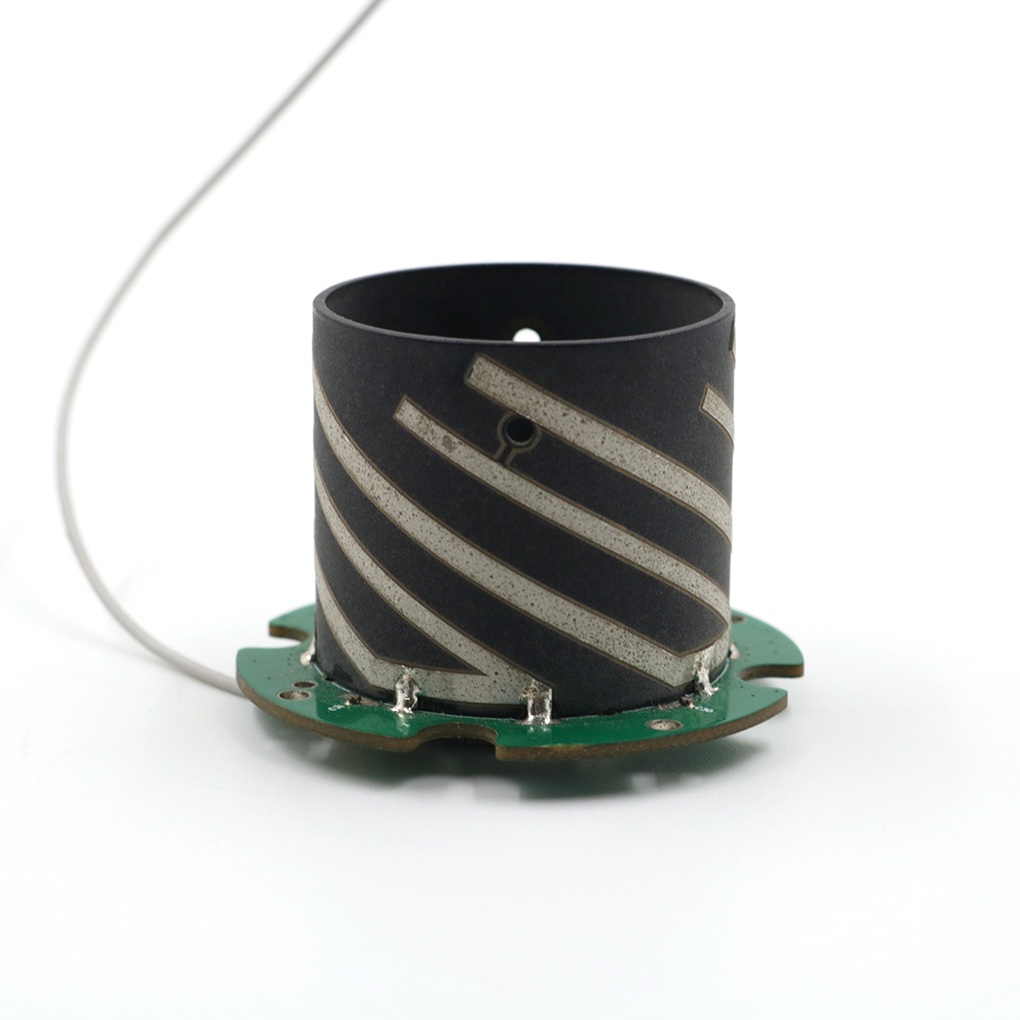

embedded helix antenna is designed for high precision positioning and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO and Beidou. It has the characteristics of small size and light weight. It is widely used in navigation scheduling, tracking monitoring, measurement and control And other fields. Based on the four-arm helical antenna's low requirements for antenna attitude, it is especially suitable for many applications such as drone, such as aerial photography, traffic monitoring, remote telemetry, etc., and can also be applied to various handheld terminals, high-precision positioning modules, etc
RT3005 KC.DA.00173-Build-in Helical Antenna datasheet.pdf
1.Small size, light weight, low power consumption: The light weight and small size ,RT3004 Can largely lighten the loads of UAVs , The Helical RTK Antenna design reduces the weight of UAV and improves the performance
2.Strong Anti-interference Performance: The antenna design adopts a four-arm spiral structure with stable phase center,Improve measurement accuracy
3.Tracking in Challenging Environments: The antenna has high gain, wide pattern wave speed, and is good at receiving signals at low elevation angles.
4.Strong anti-interference ability: The antenna is equipped with high out-of-band suppression and low-noise circuitry, which can effectively resist external electromagnetic interference.
Technical Parameters | |
Electrical Specifications | |
Frequency Range(MHz) | GPS:L1+L2/L1+L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b |
Polarization | RHCP |
Gain at Zenith (90°) | 1217-1257mhz 2dbi (max) 1559-1610mhz 2.5dbi(max) |
Axial Ratio(dB) | 90°≤3 |
Impedance(Ω) | 50Ω |
LAN | |
LNA Gain(dB) | 38±2 |
V.S.W.R | <2.0 |
Noise Figure (dB) | <1.50 |
DC Voltage (V) | 3.3~10VDC |
Current (mA) | <50mA(Max) |
Mechanical Specifications | |

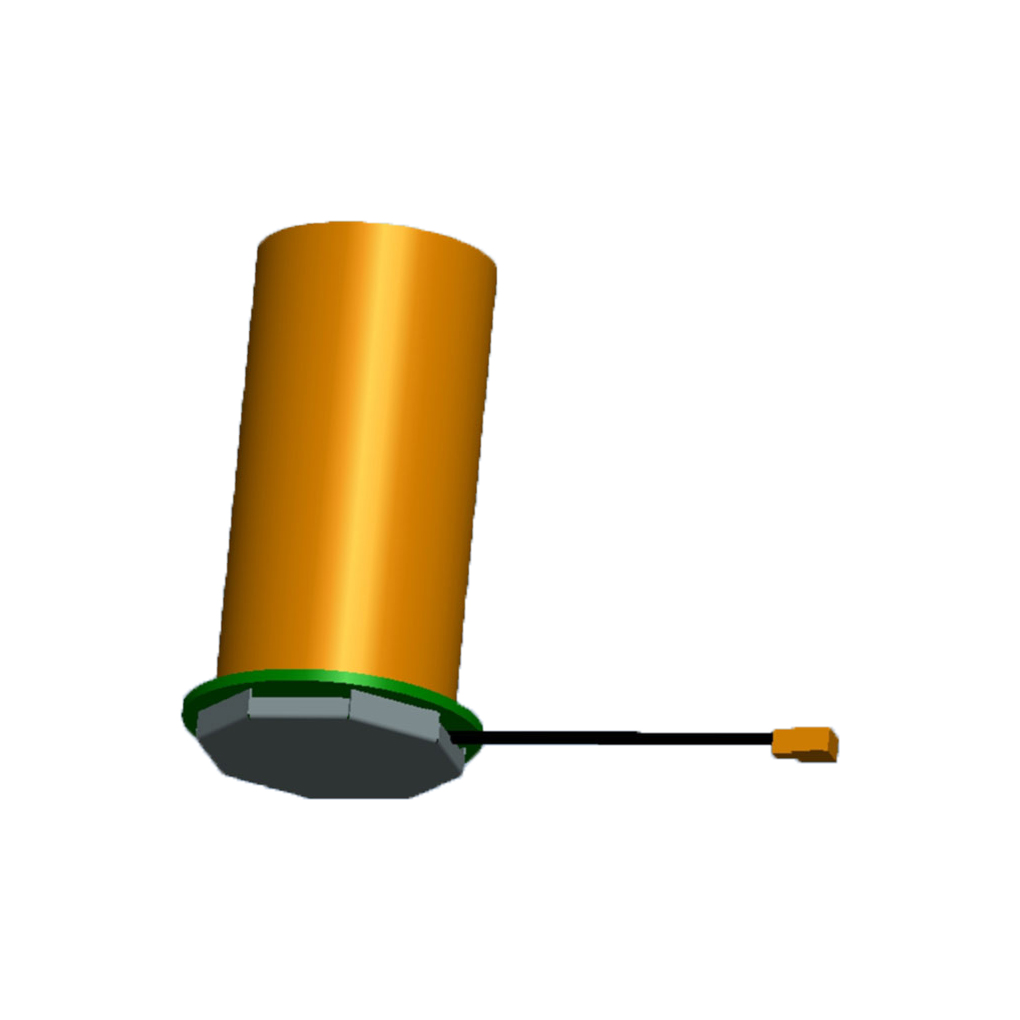

Dimensions(mm) | Φ25.5*43.6mm |
Connector | IPEX |
Weight(g) | <7g |
Mounting | Custom design own installation |
Environment Specifications | |
Relative Humidity | 95% |
Operating Temperature (℃) | -40~+75 |
Storage Temperature (℃) | -55~+85 |
