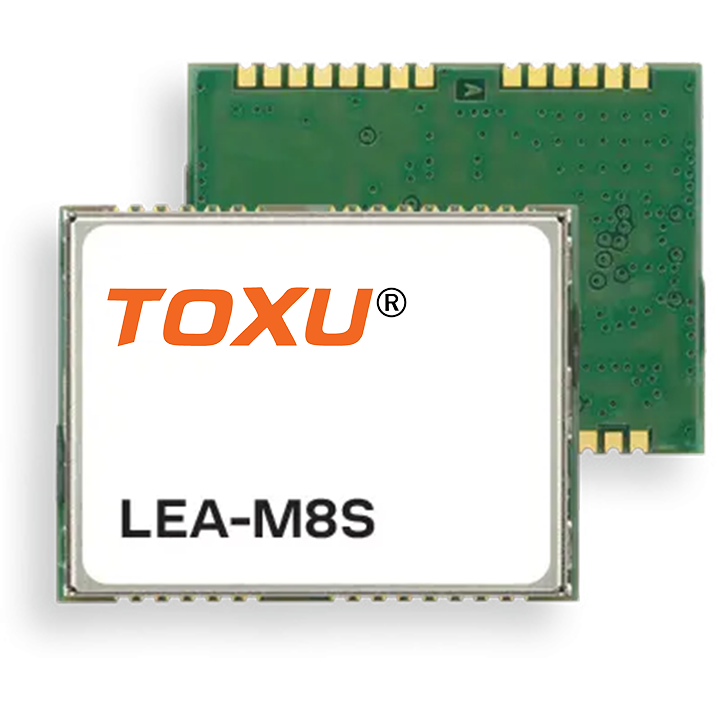

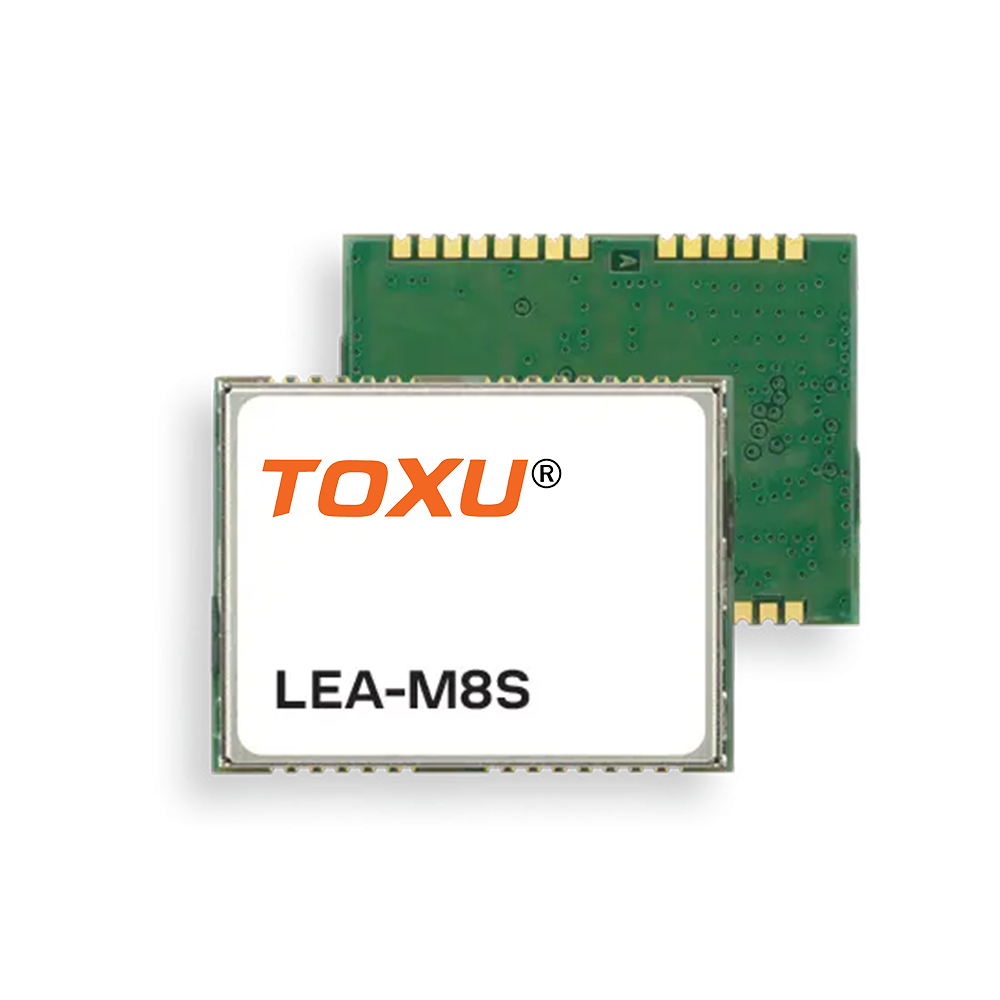

LEA-M8S module u-blox M8 GNSS module

Seamless upgrade of existing LEA-6 designs to multi-GNSS

Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)

Industry leading -167 dBm navigation sensitivity

Combines low power consumption and high sensitivity

Superior anti-spoofing and anti-jamming

UART, USB and DDC (I²C compliant) interfaces

Easy migration from LEA-6 module

Leave a message

Contact

Product Description

Product variants	LEA-M8S
GNSS features
GNSS	BeiDou, Galileo, GLONASS, GPS / QZSS
Number of concurrent GNSS	3
Oscillators	TCXO
Interfaces
UART	√
USB	√
I2C	√
Electrical data
Maximum supply [V]	3.6
Minimum supply [V]	2.7
Environmental data,quality & reliability
Maximum temperature [°C]	85
Minimum temperature [°C]	-40
Features
Additional SAW	√
Built-in sensor	√
RTC crystal	√
Time pulse output	√
General features
Antennas	Pin (active) for external antenna, Pin (passive) for external antenna
Dimensions
Dimensions [mm]	17 x 22.4 x 2.4

The LEA-M8S module delivers concurrent GNSS location capability together with high-performance u-blox M8 positioning technology in the industry proven LEA form factor.

With its dual-frequency RF front-end, the LEA-M8S concurrent GNSS module is able to intelligently use the highest number of visible satellites from up to three GNSS systems (GPS/Galileo together with either BeiDou or GLONASS) for more reliable positioning. The LEA-M8S provides exceptional performance with low system power, and is optimized for cost sensitive applications. It also supports message integrity protection, geofencing, and spoofing detection.

The LEA-M8S has sophisticated RF-architecture and interference suppression ensuring maximum performance even in GNSS-hostile environments. It features very low power GLONASS functionality. This 6th generation module in the LEA form factor allows simple migration from LEA-6x GPS and LEA-6N GPS /GLONASS modules.

The LEA-M8S combines a high level of robustness and integration capability with flexible connectivity options. The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules. For RF optimization, the LEA-M8S features a front-end SAW filter for increased jamming immunity.

LEA-M8S module uses u-blox GNSS chips qualified according to AEC-Q100 and is manufactured in ISO/TS 16949 certified sites. Qualification tests are performed as stipulated in the ISO16750 standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”.
