Overview

The TOXU TX-TV05 is a desktop indoor digital TV antenna designed for compatible terrestrial television reception systems.

It covers 174–240MHz and 470–862MHz frequency ranges and is supplied with a 22dB signal amplifier to help compensate for signal loss when a usable terrestrial television signal is available.

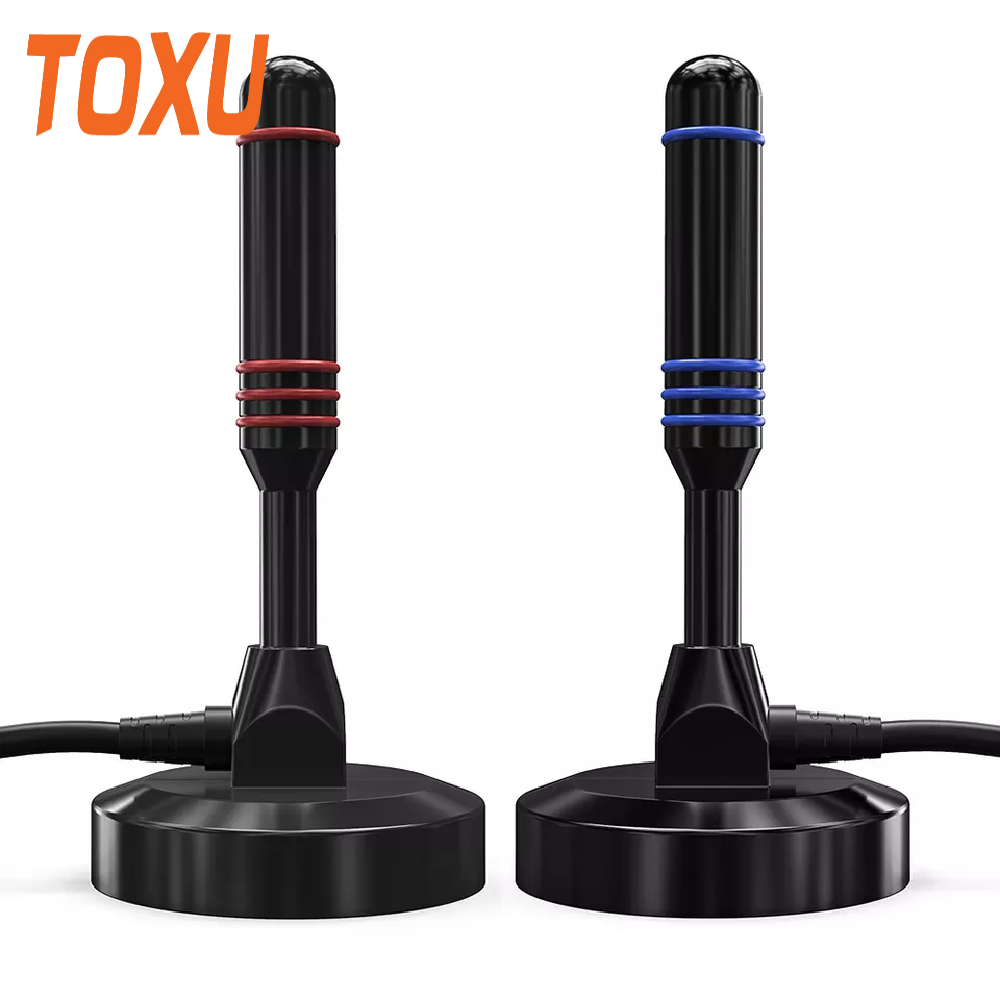

The upright antenna structure and round desktop base support convenient placement near televisions, windows, cabinets, and other suitable indoor reception locations.

A 5m coaxial cable allows the antenna to be positioned farther away from the connected television or set-top box, providing greater flexibility when testing different antenna locations and orientations.

The standard configuration uses a 75Ω system and includes an F-type connector with a TV adapter for compatible terrestrial television equipment.

Actual reception performance depends on local broadcast coverage, television standards, antenna position, surrounding buildings, indoor obstacles, interference, cable loss, and receiver compatibility.

Key Features

VHF and UHF Frequency Coverage

Covers 174–240MHz and 470–862MHz for compatible terrestrial digital television reception systems.

22dB Signal Amplifier

The supplied amplifier provides 22dB gain to help compensate for signal losses when an existing usable television signal is available.

Desktop Antenna Structure

The upright antenna element and round base support convenient placement on tables, cabinets, shelves, window ledges, and other suitable indoor surfaces.

5m Coaxial Cable

The integrated 5m cable provides flexibility when positioning the antenna away from the television and closer to a suitable signal reception location.

75Ω TV System Compatibility

The 75Ω impedance is designed for integration with compatible televisions, set-top boxes, and terrestrial television receivers.

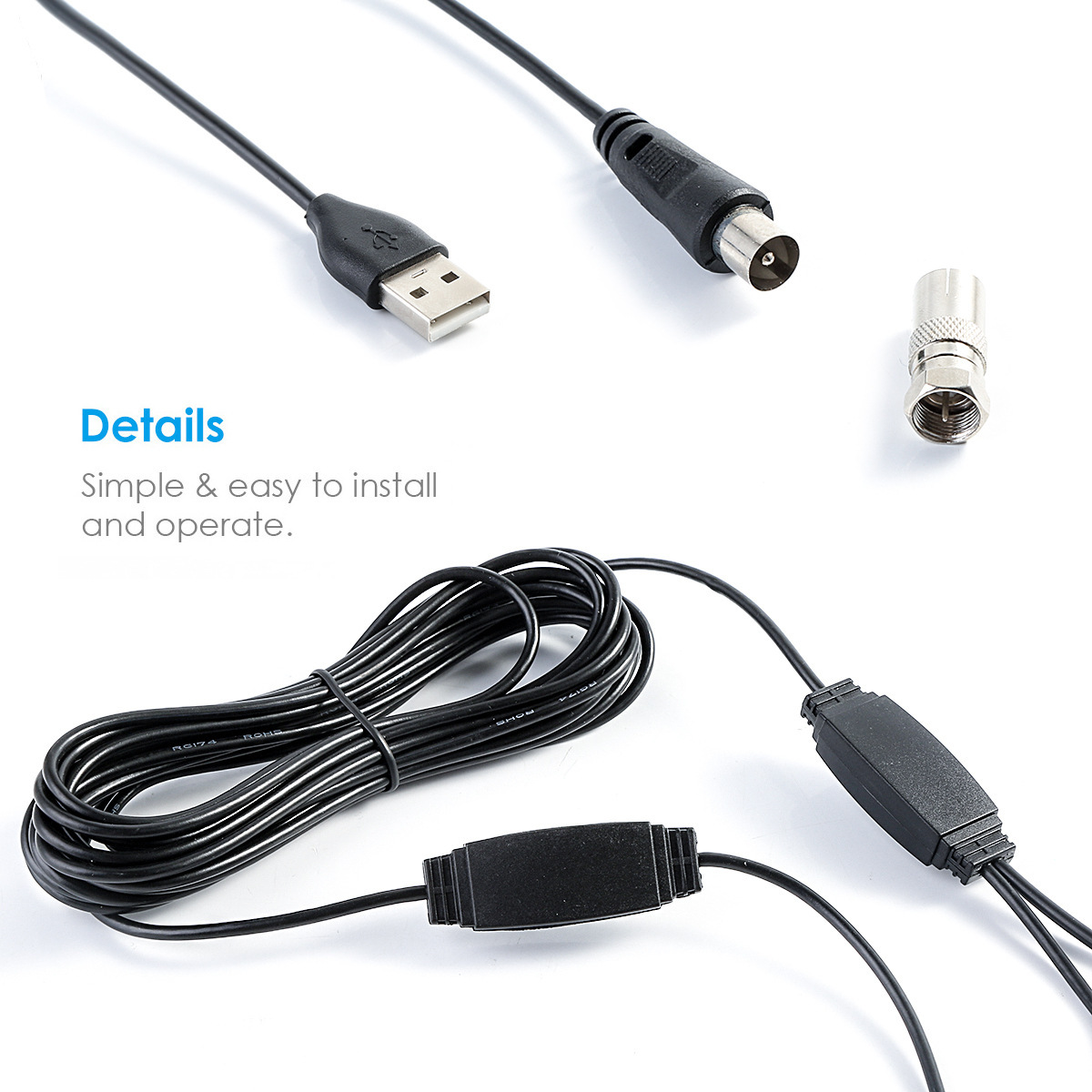

F-Type Connection with TV Adapter

The standard configuration includes an F-type connector and TV adapter for connection to compatible television equipment.

Custom Supply Support

Connector configuration, cable length, appearance, label, packaging, and matching RF accessories can be evaluated for volume-order projects.

Technical Specifications

Note: The stated 22dB value refers to amplifier gain rather than the passive gain of the antenna element. Final connector configuration, cable length, amplifier power interface, included accessories, appearance, and television-system compatibility should be confirmed before ordering.

Applications

• Indoor Terrestrial Digital TV Reception

• Television and Set-Top Box Systems

• Residential Television Installations

• Apartments and Indoor Living Spaces

• Desktop and Cabinet Antenna Placement

• Compatible Terrestrial Television Receivers

System Integration

The TX-TV05 can be integrated into a compatible terrestrial television reception system using the following configuration:

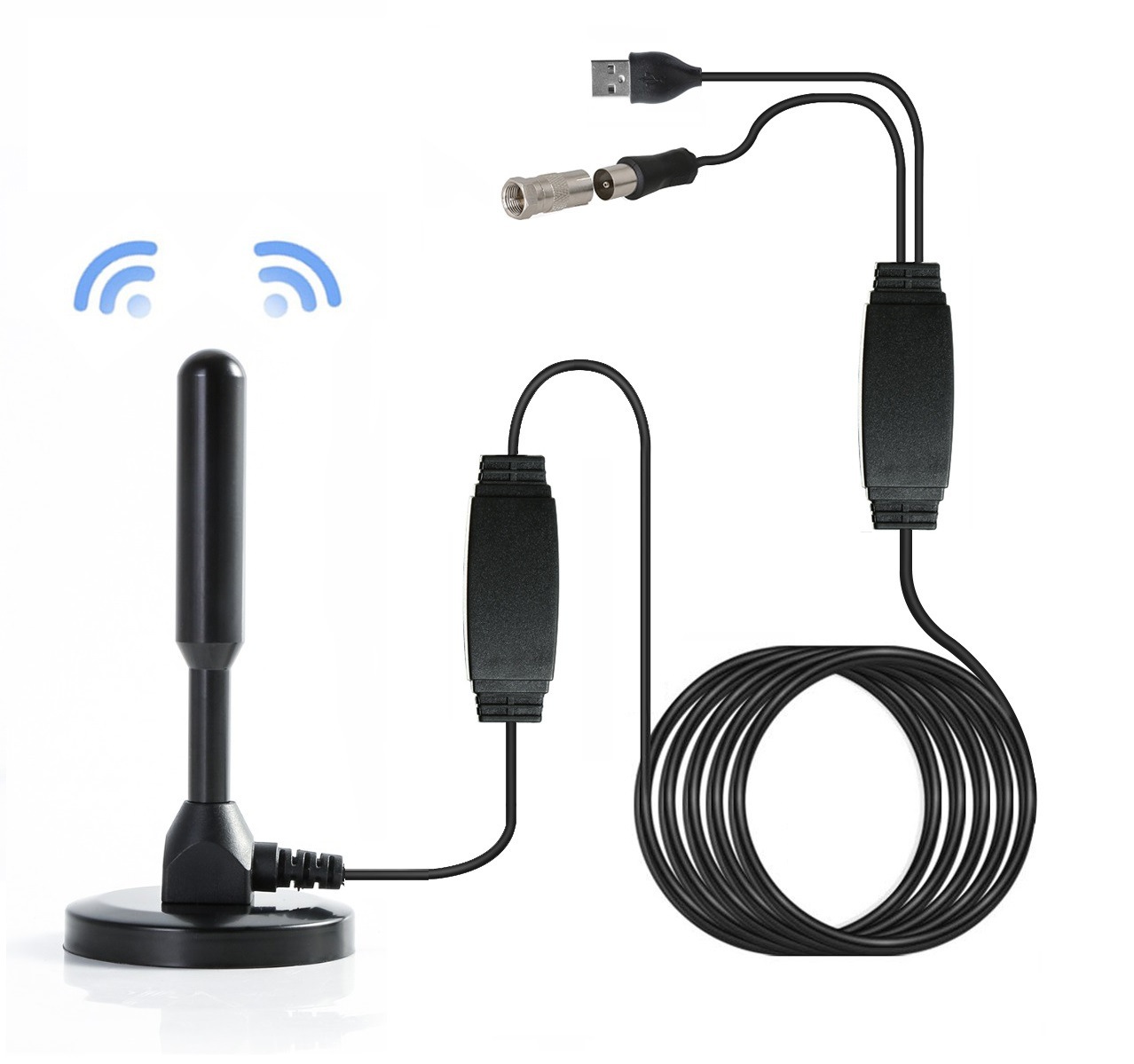

TX-TV05 TV Antenna → Signal Amplifier → TV Adapter → TV / Set-Top Box

Before installation, confirm that the antenna frequency range, connector, adapter, amplifier, receiver input, and local terrestrial television standard are compatible.

For initial testing, place the antenna near a window or another indoor location with fewer surrounding obstacles. Connect the complete system and perform a new channel scan through the television or set-top box.

Antenna position and orientation can significantly affect reception. The 5m cable allows several locations to be tested before selecting the final installation position.

The supplied amplifier is intended to amplify an existing compatible signal. It cannot create a television signal where no usable terrestrial broadcast signal is available.

If the original signal is already strong, additional amplification may not improve reception and can occasionally affect receiver performance. Testing with the actual television system is recommended.

Why Choose TOXU

TOXU supplies television antennas, communication antennas, GNSS antennas, RF cable assemblies, coaxial connectors, signal accessories, GNSS modules, and receiver hardware for equipment manufacturers and system integrators.

Our team can assist with frequency confirmation, antenna selection, connector matching, coaxial cable configuration, amplifier integration, sample verification, and product compatibility evaluation.

For volume-order projects, TOXU can evaluate customized connectors, cable lengths, antenna element colors, product labels, packaging, and matching RF accessories.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports product inspection, cable assembly, performance testing, quality control, and stable volume-order delivery.

FAQ

Q: What frequency ranges does the TX-TV05 cover?

A: It covers 174–240MHz and 470–862MHz for compatible terrestrial television reception systems.

Q: Does the TX-TV05 include a signal amplifier?

A: Yes. The standard configuration includes a signal amplifier with a stated gain of 22dB.

Q: Is 22dB the passive antenna gain?

A: No. The stated 22dB value refers to amplifier gain, not the passive gain of the antenna element.

Q: What is the standard cable length?

A: The standard coaxial cable length is 5m, allowing flexible indoor antenna positioning.

Q: Which connector does the antenna use?

A: The standard configuration includes an F-type connector and TV adapter.

Q: Can the antenna guarantee a 50-mile reception range?

A: No. Reception distance depends on transmitter power, local terrain, surrounding buildings, indoor obstacles, interference, installation position, and receiver sensitivity.

Q: Does the antenna determine whether the television picture is 1080p or 4K?

A: No. Picture resolution depends on the transmitted television program and the connected receiver and display equipment. The antenna receives compatible terrestrial broadcast signals.

Q: Where should the TX-TV05 be positioned?

A: Test it near a window or another indoor location with fewer obstacles. Several positions and orientations should be evaluated before selecting the final location.

Q: Can TOXU customize the connector or cable length?

A: Yes. Connector configuration, cable length, appearance, label, packaging, and matching accessories can be evaluated according to project requirements and order quantity.
