Overview

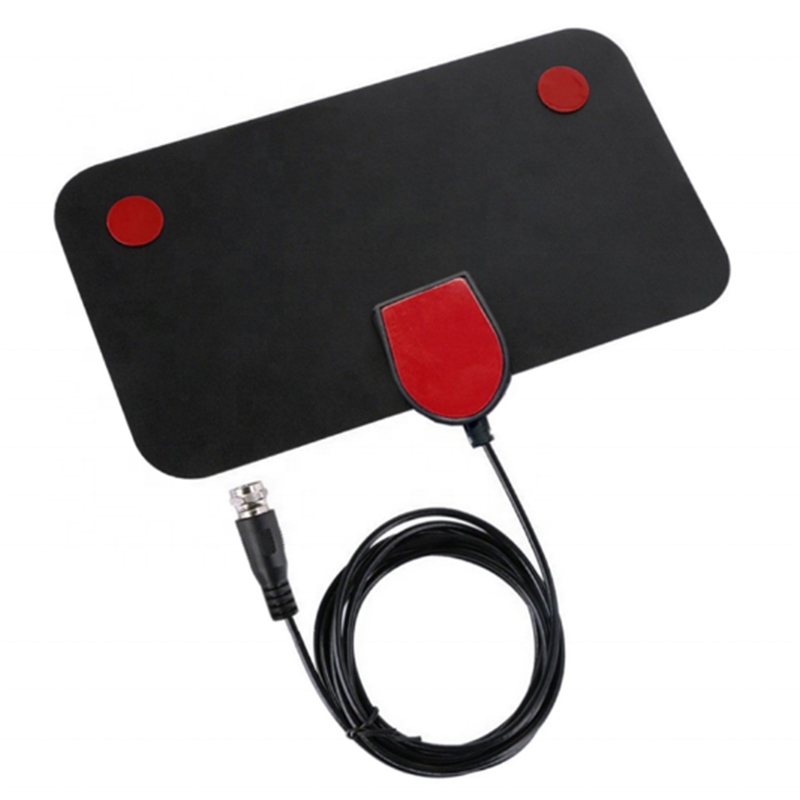

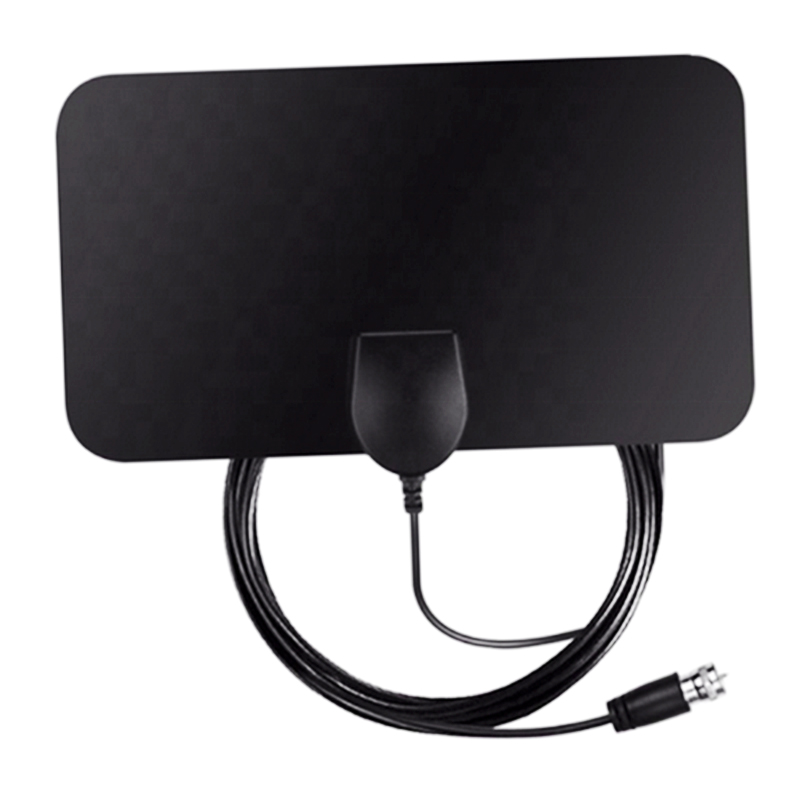

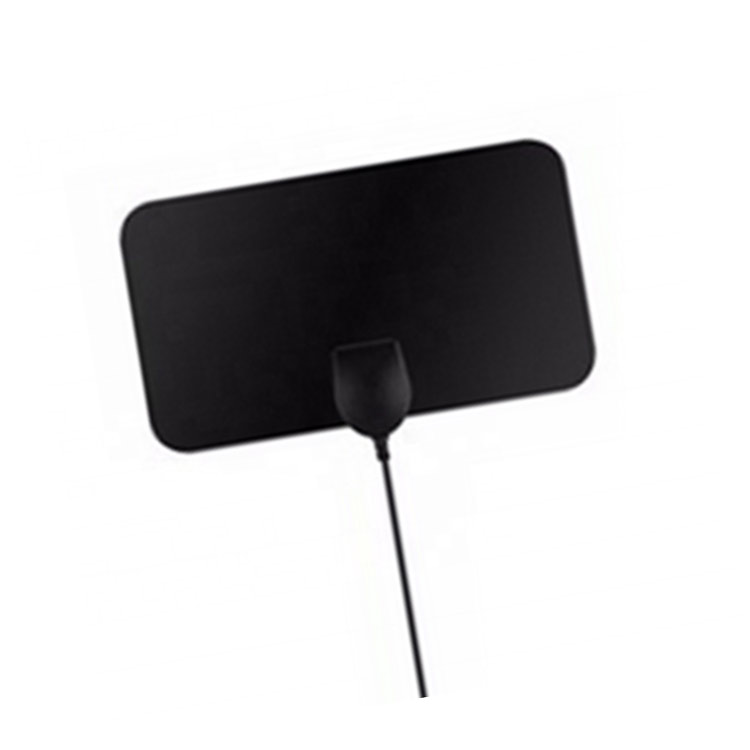

The TOXU TX-TV06 is a flat indoor digital TV antenna designed for compatible terrestrial television reception systems.

It covers the 174–240MHz and 470–862MHz frequency ranges, supporting compatible VHF and UHF terrestrial television signals.

The compact 220 × 120 × 0.6mm flat structure supports space-saving placement on suitable indoor windows, walls, cabinets, and other flat surfaces.

The TX-TV06 is supplied with a 3m coaxial cable, providing flexibility when positioning the antenna away from the television and closer to a suitable reception location.

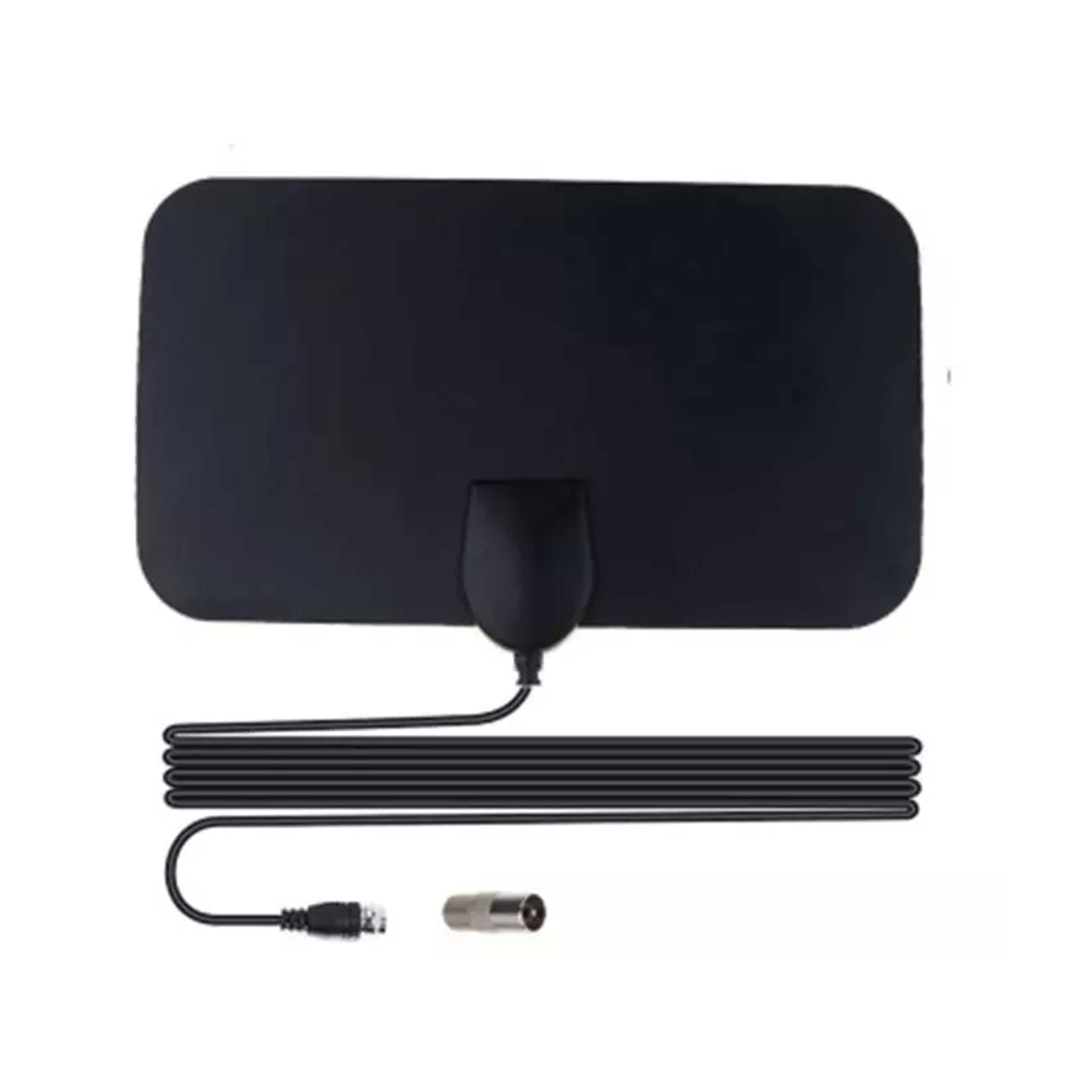

The standard configuration includes an F-type connector and TV adapter for connection to compatible televisions, set-top boxes, and terrestrial television receivers.

Actual reception performance depends on local broadcast coverage, supported television standards, transmitter distance, antenna position, surrounding buildings, indoor obstacles, interference, cable loss, and receiver compatibility.

Key Features

VHF and UHF Frequency Coverage

Covers 174–240MHz and 470–862MHz for compatible terrestrial digital television reception systems.

Flat Indoor Antenna Design

The slim rectangular structure supports space-saving placement on suitable indoor windows, walls, cabinets, and other flat surfaces.

3m Coaxial Cable

The integrated 3m cable provides flexibility when testing different antenna positions and orientations inside the installation area.

Compact 220 × 120mm Structure

The compact antenna body can be integrated into residential, commercial, and other compatible indoor television reception environments.

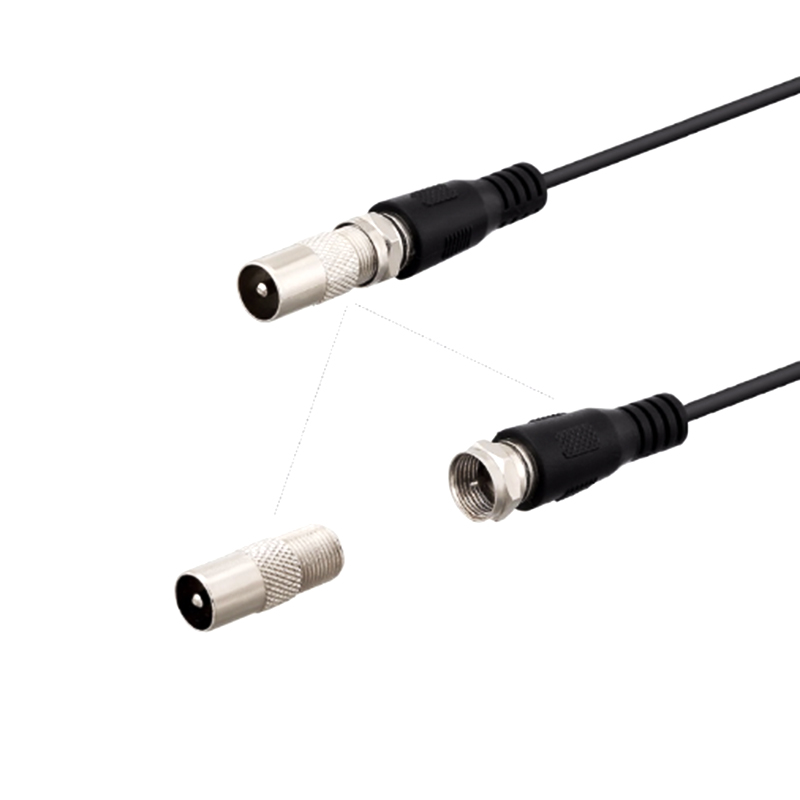

F-Type Connection with TV Adapter

The standard configuration includes an F-type connector and TV adapter for connection to compatible television equipment.

Custom Supply Support

Connector configuration, cable length, product appearance, label, packaging, and matching RF accessories can be evaluated for volume-order projects.

Technical Specifications

Applications

• Indoor Terrestrial Digital TV Reception

• Television and Set-Top Box Systems

• Residential Television Installations

• Apartments and Indoor Living Spaces

• Window and Wall Antenna Placement

• Compatible VHF and UHF Television Receivers

System Integration

The TX-TV06 can be connected within a compatible terrestrial television reception system using the following configuration:

TX-TV06 TV Antenna → TV Adapter → TV / Set-Top Box

Before installation, confirm that the antenna frequency range, connector, adapter, receiver input, and local terrestrial television standard are compatible.

For initial testing, position the antenna near a window or another indoor location with fewer surrounding obstacles. Connect the antenna to the television or set-top box and perform a new channel scan.

Antenna position and orientation can significantly affect reception. The 3m cable allows several locations to be tested before selecting the final installation position.

The TX-TV06 cannot guarantee a specific reception distance, number of channels, or picture resolution. Reception results depend on the availability and strength of compatible local broadcast signals.

Why Choose TOXU

TOXU supplies television antennas, communication antennas, GNSS antennas, RF cable assemblies, coaxial connectors, signal accessories, GNSS modules, and receiver hardware for equipment manufacturers and system integrators.

Our team can assist with frequency confirmation, antenna selection, connector matching, coaxial cable configuration, sample verification, and compatibility evaluation.

For volume-order projects, TOXU can evaluate customized connector configurations, cable lengths, product appearance, labels, packaging, and matching RF accessories.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports product inspection, cable assembly, performance testing, quality control, and stable volume-order delivery.

FAQ

Q: What frequency ranges does the TX-TV06 cover?

A: It covers 174–240MHz and 470–862MHz for compatible VHF and UHF terrestrial television reception systems.

Q: What is the standard cable length?

A: The standard coaxial cable length is approximately 3m.

Q: Which connector does the antenna use?

A: The standard configuration includes an F-type connector and TV adapter.

Q: Does the TX-TV06 include a signal amplifier?

A: The currently available information does not confirm an included amplifier or power interface. The final configuration should be verified before ordering.

Q: Does the antenna provide 20dBi or 28dBi gain?

A: The available product information contains conflicting gain values and does not provide reliable test data. Therefore, neither value is specified as confirmed antenna gain.

Q: Can this antenna guarantee 4K television reception?

A: No. Picture resolution depends on the transmitted program, receiver, and display equipment. The antenna receives compatible terrestrial television signals.

Q: Where should the antenna be installed?

A: Test the antenna near a window or another indoor location with fewer obstacles. Several positions and orientations should be evaluated before permanent installation.

Q: Can TOXU customize the connector or cable length?

A: Connector configuration, cable length, appearance, label, packaging, and matching accessories can be evaluated according to project requirements and order quantity.
