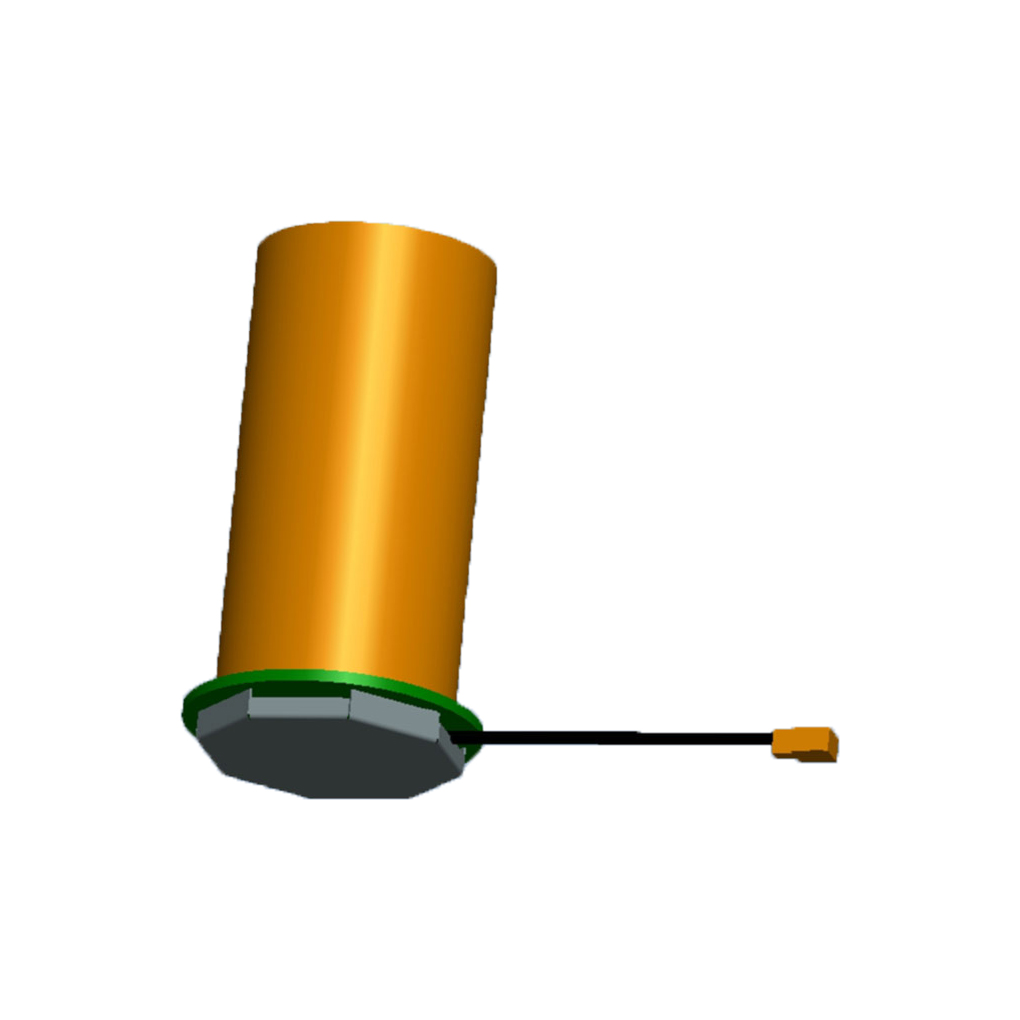

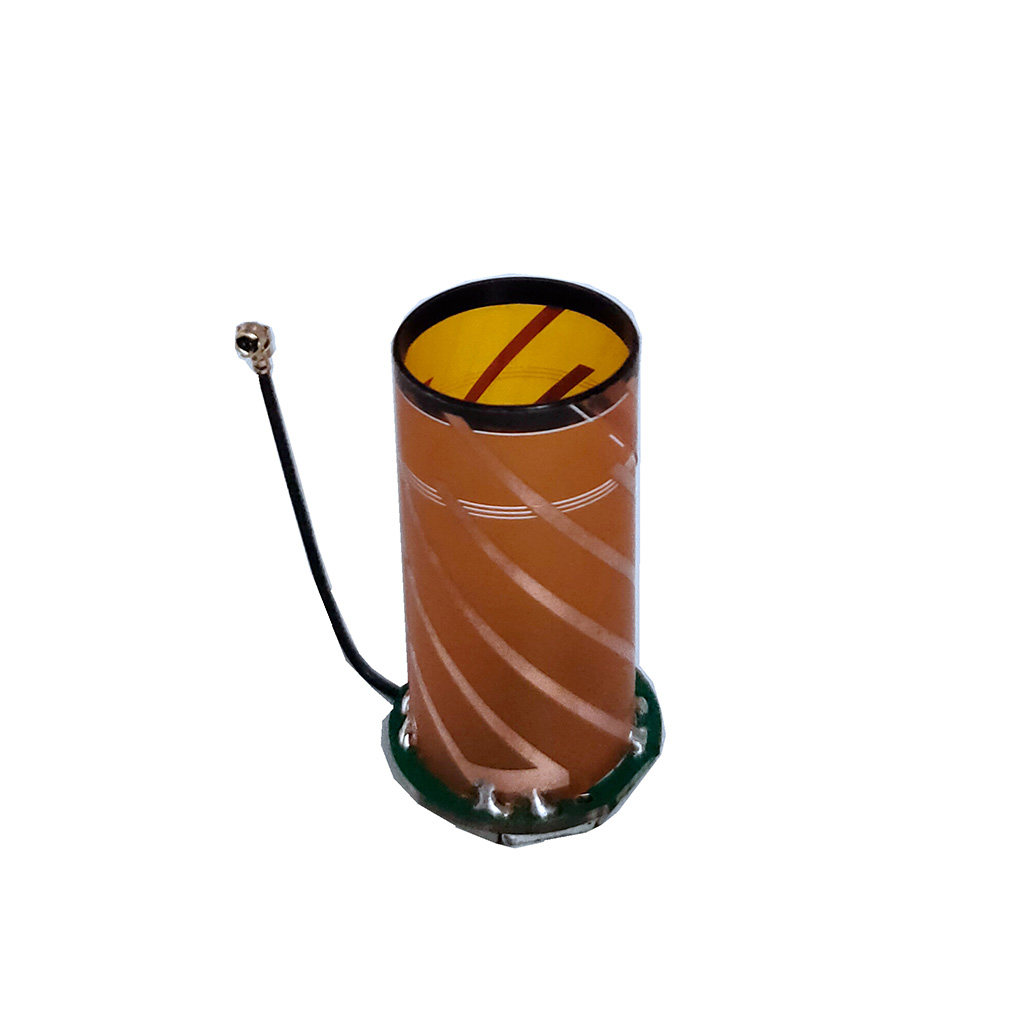

Built-in GNSS RTK Embedded Helix Antenna for UAV

embedded helix antenna is designed for high precision positioning and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO and Beidou. It has the characteristics of small size and light weight. It is widely used in navigation scheduling, tracking monitoring, measurement and control And other fields. Based on the four-arm helical antenna's low requirements for antenna attitude, it is especially suitable for many applications such as drone, such as aerial photography, traffic monitoring, remote telemetry, etc., and can also be applied to various handheld terminals, high-precision positioning modules, etc


RT3005 KC.DA.00173-Build-in Helical Antenna datasheet.pdf


Leave a message Contact

Fill in your email address

Or you can continue to download without filling in

Product Description

1.Small size, light weight, low power consumption: The light weight and small size ,RT3004 Can largely lighten the loads of UAVs , The Helical RTK Antenna design reduces the weight of  UAV and improves the performance

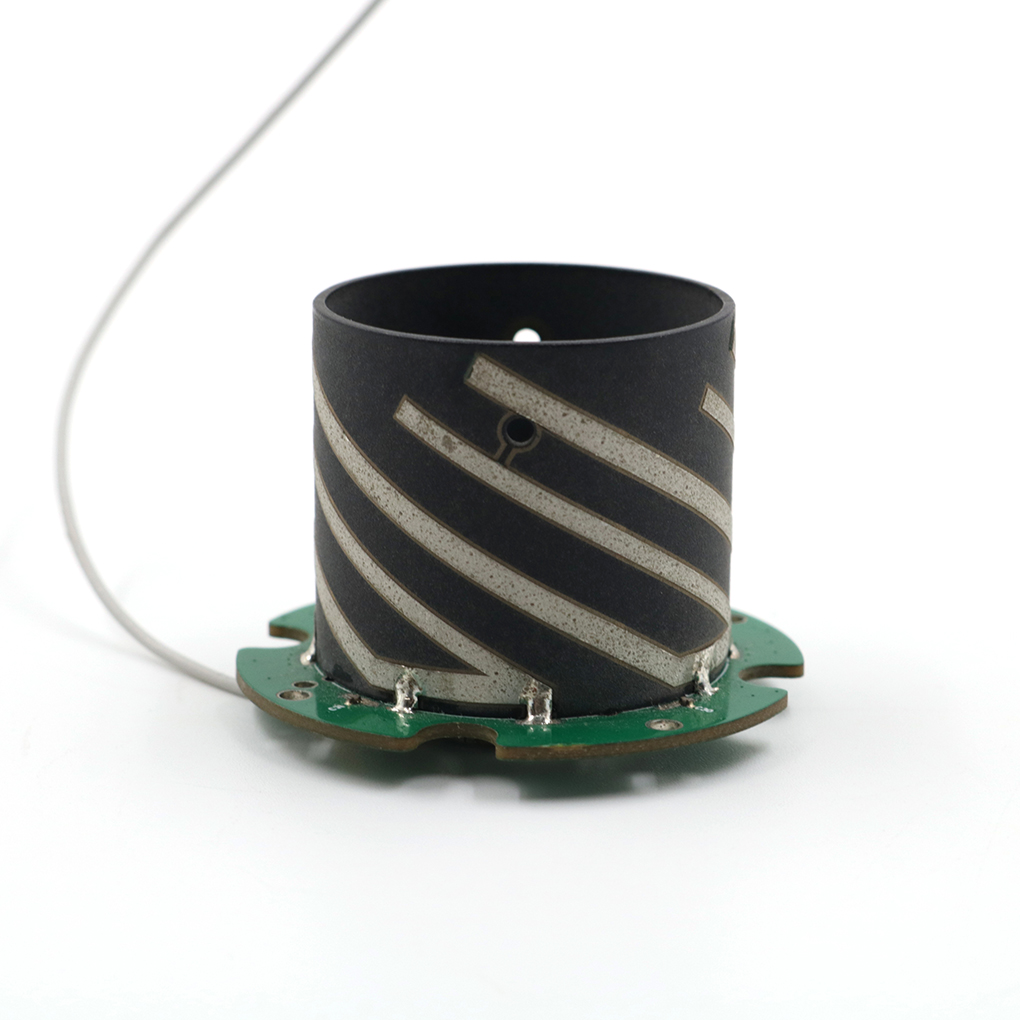

2.Strong Anti-interference Performance: The antenna design adopts a four-arm spiral structure with stable phase center,Improve measurement accuracy

3.Tracking in Challenging Environments: The antenna has high gain, wide pattern wave speed, and is good at receiving signals at low elevation angles.

4.Strong anti-interference ability: The antenna is equipped with high out-of-band suppression and low-noise circuitry, which can effectively resist external electromagnetic interference.


Technical Parameters
Electrical Specifications
Frequency Range(MHz)

GPS:L1+L2/L1+L5;

BDS:B1/B2/B3;

GLONASS:G1/G2/G3;

Galileo:El/E5a/E5b

PolarizationRHCP
Gain at Zenith (90°)

1217-1257mhz 2dbi (max)

1559-1610mhz 2.5dbi(max)

Axial Ratio(dB)90°≤3
Impedance(Ω)50Ω
LAN
LNA Gain(dB) 38±2
V.S.W.R<2.0
Noise Figure (dB)<1.50
DC Voltage (V)3.3~10VDC
Current (mA) <50mA(Max)
Mechanical Specifications
Dimensions(mm)Φ25.5*43.6mm
ConnectorIPEX
Weight(g)<7g
MountingCustom design own installation
Environment Specifications
Relative Humidity95%
Operating Temperature (℃)-40~+75
Storage Temperature (℃)-55~+85
