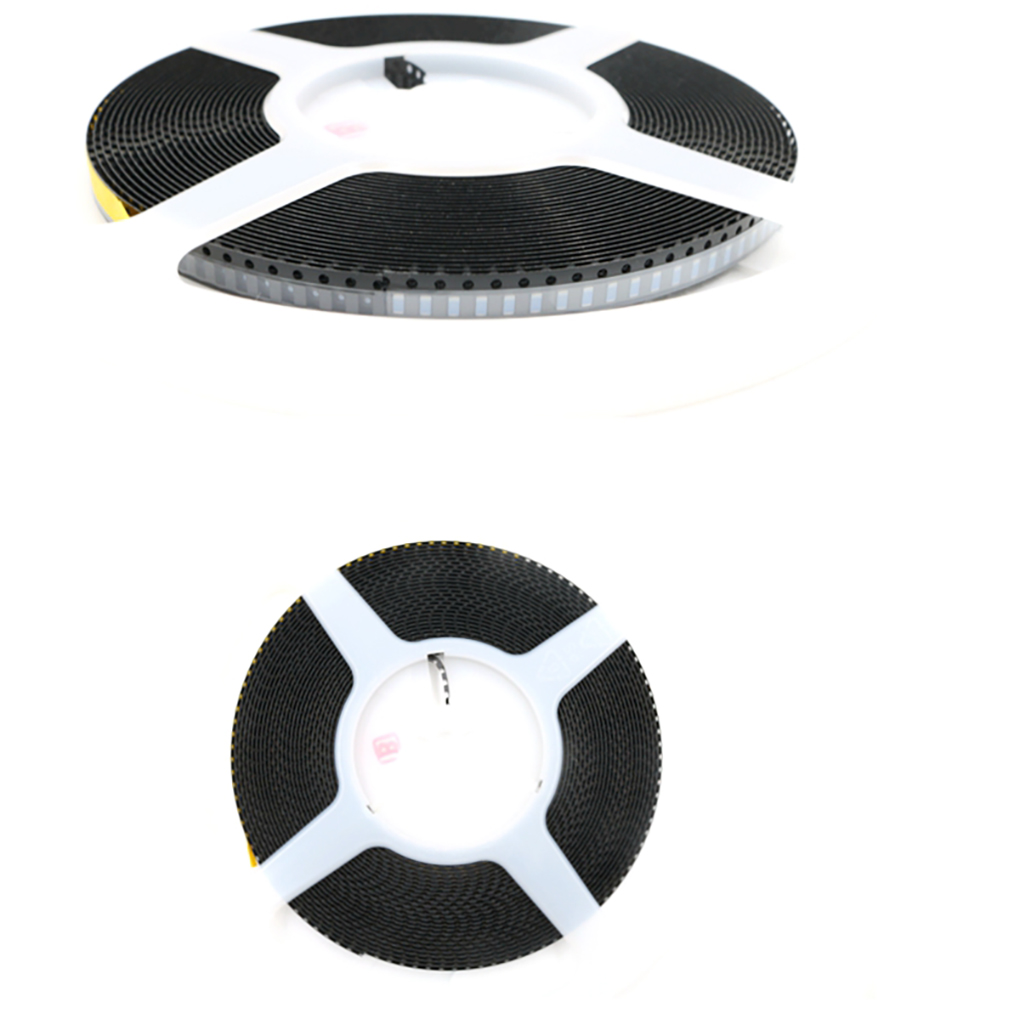

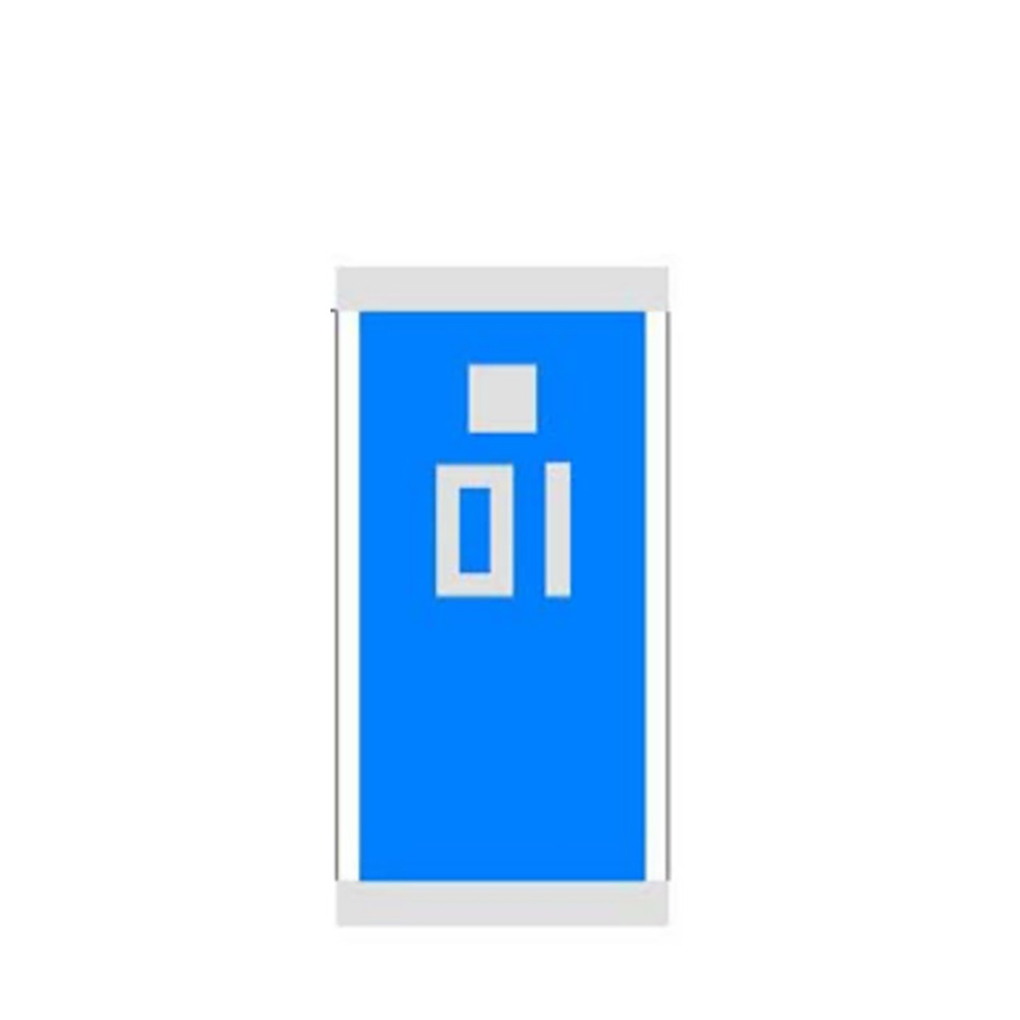

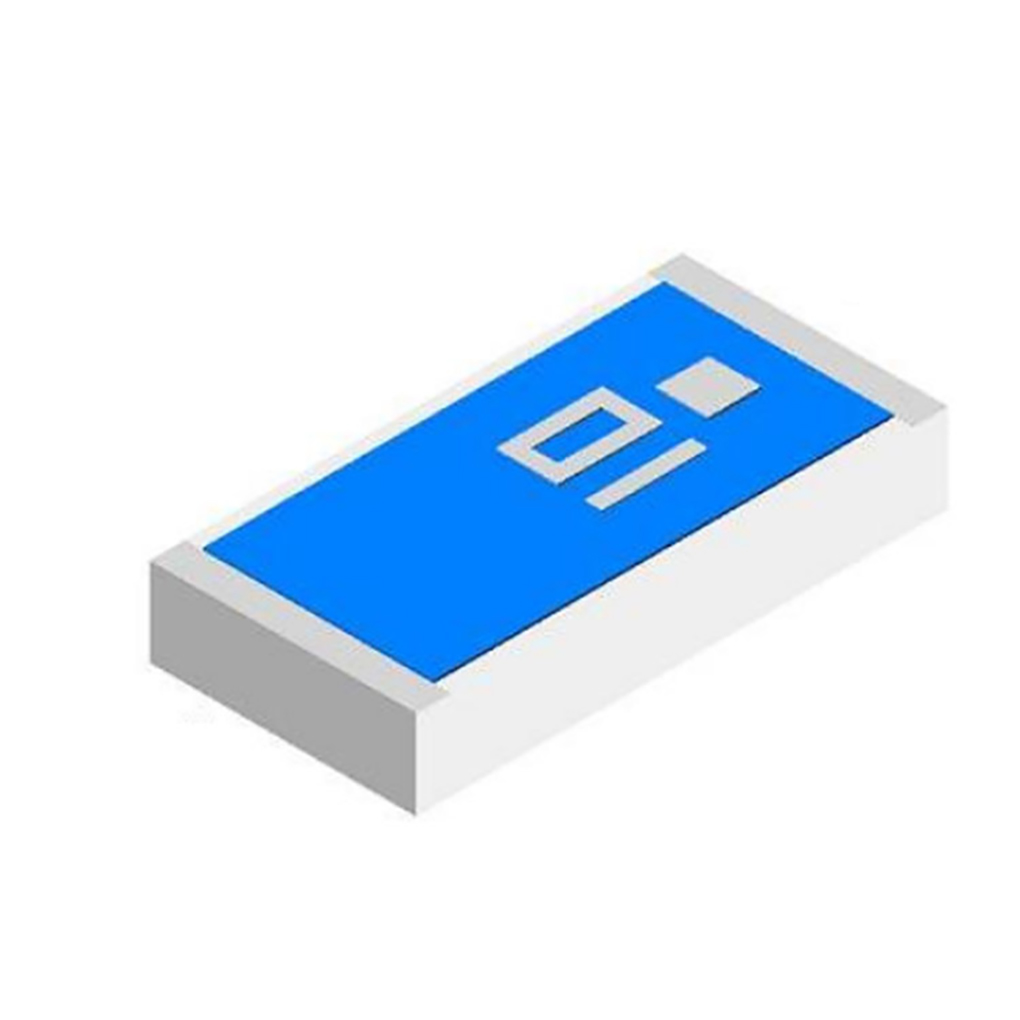

2.4g Build-in WIFI Chip Antenna

The 2.4g small ceramic antenna is widely used in various wireless communication devices due to its compact size and high performance. Its application ranges from WiFi routers, Bluetooth devices, IoT sensors, to smart home appliances. The antenna’s small form factor makes it suitable for integration into small and portable devices, while its high efficiency ensures reliable wireless connectivity for data transmission and reception. Overall, the 2.4g small ceramic antenna plays a crucial role in enabling seamless wireless communication in a wide range of modern electronic devices


TX-AT1017-FSRFECA3216060A1T_V08.pdf


Leave a message Contact

Fill in your email address

Or you can continue to download without filling in

Product Description

1. High Performance: Despite its small size, the antenna offers high efficiency and reliable wireless connectivity for data transmission and reception in various wireless communication devices.

2. Wide Application Range: The antenna is widely used in WiFi routers, Bluetooth devices, IoT sensors, smart home appliances, and other electronic devices requiring wireless communication capabilities.

3. Durable Material: The ceramic material provides durability and resistance to environmental factors, making the antenna suitable for long-term use in different operating conditions.

Overall, the 2.4g small ceramic antenna is known for its small size, high performance, and versatility in enabling wireless communication in modern electronic devices.

4. Superb performance to place on the middle of PCB edge and excellent peak/ average gain observed by field test application.


Frequency2.4GHz~2.4835GHz
VSWR2.0 max
Impedance50Ω
Peak gain2.dbi (Typical)
PolarizationLinear
Radiation PatternOmni-directional
Antenna length3.2 X 1.6 X 0.6 mm
Storage Temperature-40 ~ +85°C
Relative Humidity20 ~ 95% RH
Recommended Storage conditionStore in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max.
