The application areas of WIFI antennas encompass a wide range of industries and technologies, including telecommunications, networking, Internet of Things (IoT), wireless communication systems, mobile devices, smart home technology, industrial automation, automotive industry, aerospace and defense, as well as public safety and emergency services. WIFI antennas play a crucial role in enabling wireless connectivity and data transmission across these diverse fields. A reliable and efficient IoT solution relies on a high performing antenna for fast, stable connectivity. Covering a range of applications and frequencies commonly used by the industry, Toxu has a full portfolio of IoT antennas from robust low profile solutions to sophisticated MiMo offerings and embedded products to choose from.

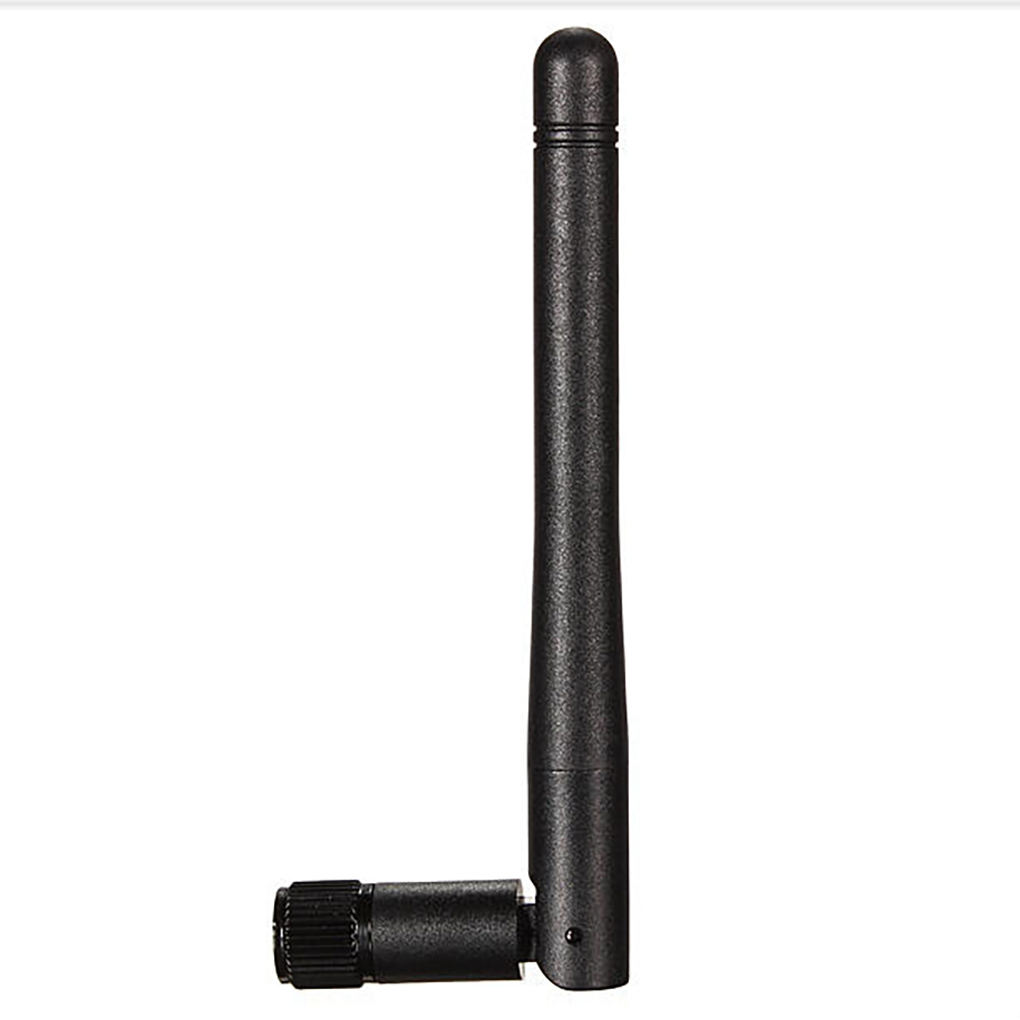

KC.DA.00182-WIFI Antenna datasheet.pdf
1.Directional or Omnidirectional: Can be designed for focused coverage in a specific direction or for 360-degree coverage.
2.Easy Installation: Designed for simple and secure mounting on poles or other structures.
3.Wide Frequency Range: Supports various WIFI frequency bands for versatile compatibility.
4.High Performance: Delivers stable and efficient WIFI connectivity over long distances.
Frequency | 2.4~2.5ghz, 5.150~5.850ghz |
VSWR | <2.0 |
Impedance | 50Ω |
Peak gain | 2.15dbi |
Polarization | Linear |
Radiation Pattern | Omni-directional |
Cover color | Black |
Cover material | TPEE |
Cable | RG178 |
Antenna length | 108±2mm |
Connector | SMA Male/RP SMA Male |
Storage Temperature | -40 ~ +85°C |
Relative Humidity | 20 ~ 95% RH |
Recommended Storage condition | Store in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max. |
