Overview

The TOXU KC.CW.00296 RF cable assembly is designed to provide reliable RF signal transmission between external antennas and embedded wireless modules. It features an SMA Female Bulkhead connector and an I-PEX MHF1 connector connected by a 520mm RF1.37 low-loss coaxial cable.

With a characteristic impedance of 50Ω and stable RF performance, this cable assembly is suitable for wireless communication equipment, GNSS antenna systems, IoT devices and embedded electronic products requiring compact RF interconnection solutions.

Key Features

SMA Female Bulkhead Connector

Provides a secure panel-mounted RF interface for external antenna connections.

I-PEX MHF1 Connector

Compatible with miniature RF modules and embedded wireless communication devices.

RF1.37 Low-Loss Cable

Offers stable RF signal transmission with excellent flexibility for compact installations.

520mm Standard Length

Standard cable length suitable for internal routing. Customized lengths are available upon request.

OEM Manufacturing Support

Supports customized cable assemblies with different connectors, cable types and lengths.

Technical Specifications

Dimension Drawing

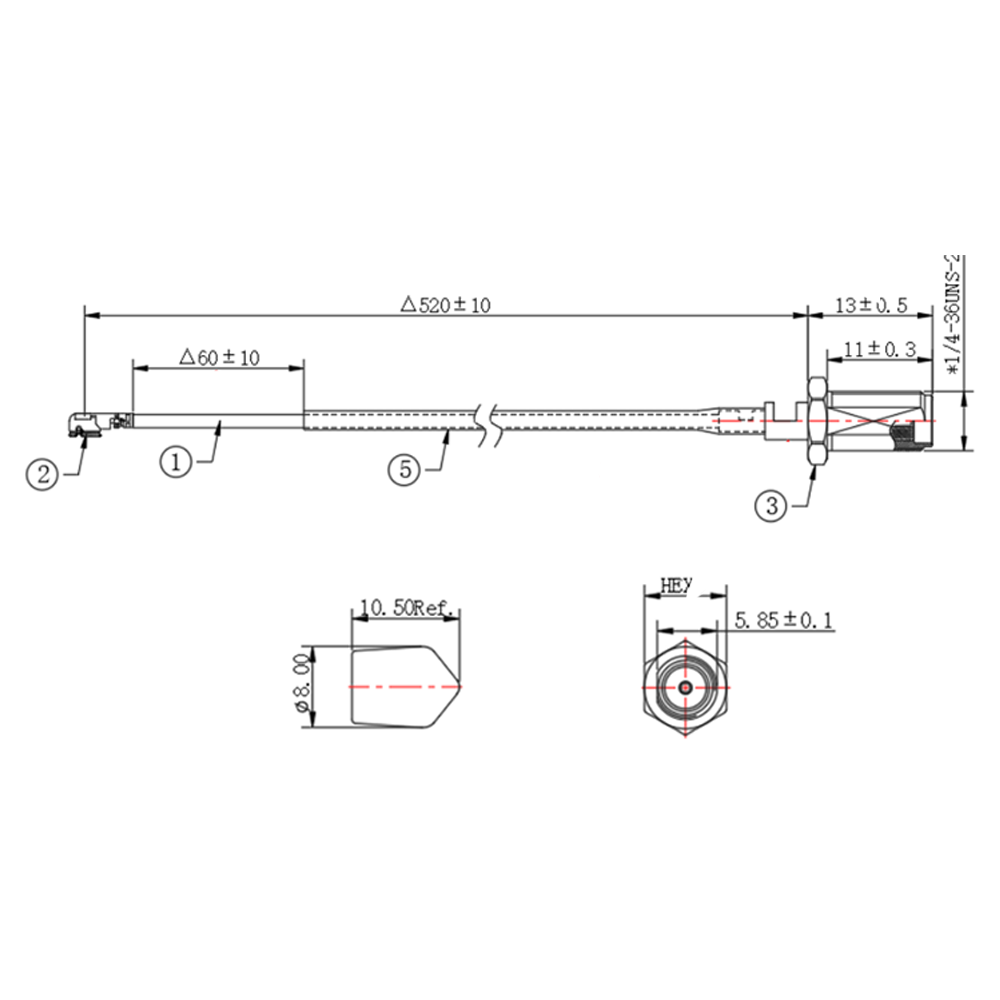

A detailed mechanical drawing is provided, showing the connector dimensions, cable length and assembly structure for easy product integration.

Applications

● Wireless Communication Equipment

● GNSS Antenna Systems

● IoT Devices

● Embedded Electronic Systems

● Industrial Communication Equipment

● RF Test Equipment

System Integration

External RF Antenna

↓

KC.CW.00296 RF Cable Assembly

↓

I-PEX MHF1 RF Interface

↓

Wireless Communication Module

↓

Electronic System

Complete RF Hardware Solution Support

RF Cable Assembly Solutions

TOXU provides customized RF cable assemblies with different connector combinations, cable types and cable lengths for various RF applications.

RF Connector Solutions

Support for SMA, RP-SMA, I-PEX, U.FL, MMCX, MCX, SMB, BNC, TNC, FAKRA and Mini FAKRA connector solutions.

Antenna Integration

Complete RF hardware integration covering antennas, RF cable assemblies and connector systems.

OEM & ODM Manufacturing

Engineering support from prototype development through mass production.

Why Choose TOXU

TOXU specializes in RF cable assemblies, RF connectors and antenna integration solutions for wireless communication, automotive electronics, GNSS positioning and IoT industries.

With strong engineering capability and professional manufacturing experience, TOXU delivers reliable customized RF interconnection solutions for global OEM customers.
