Overview

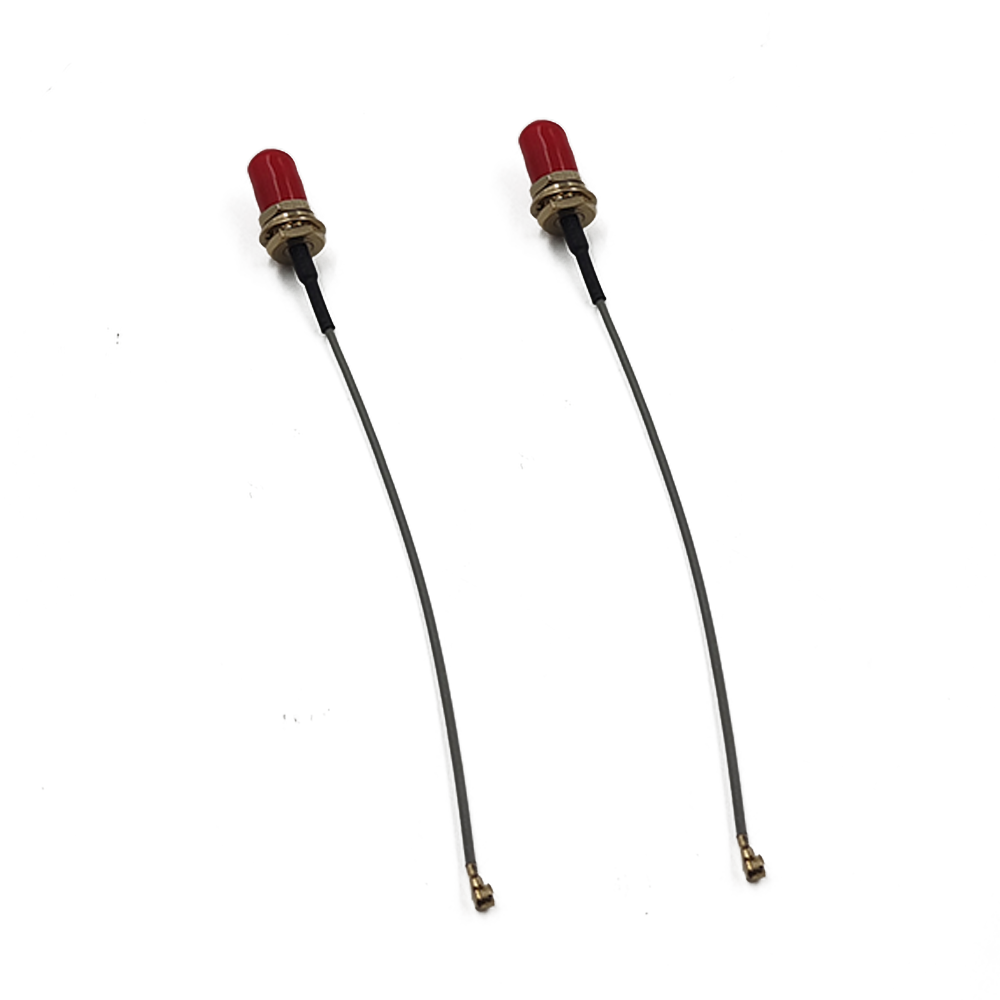

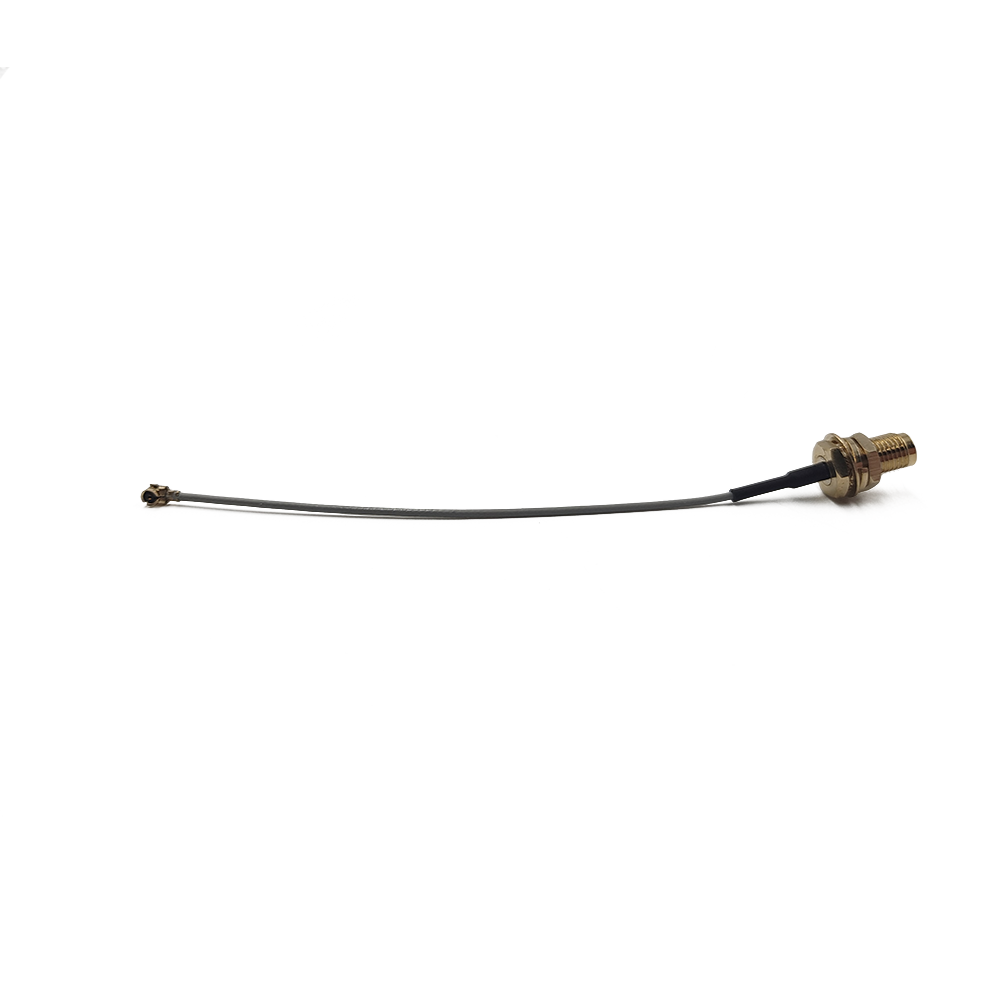

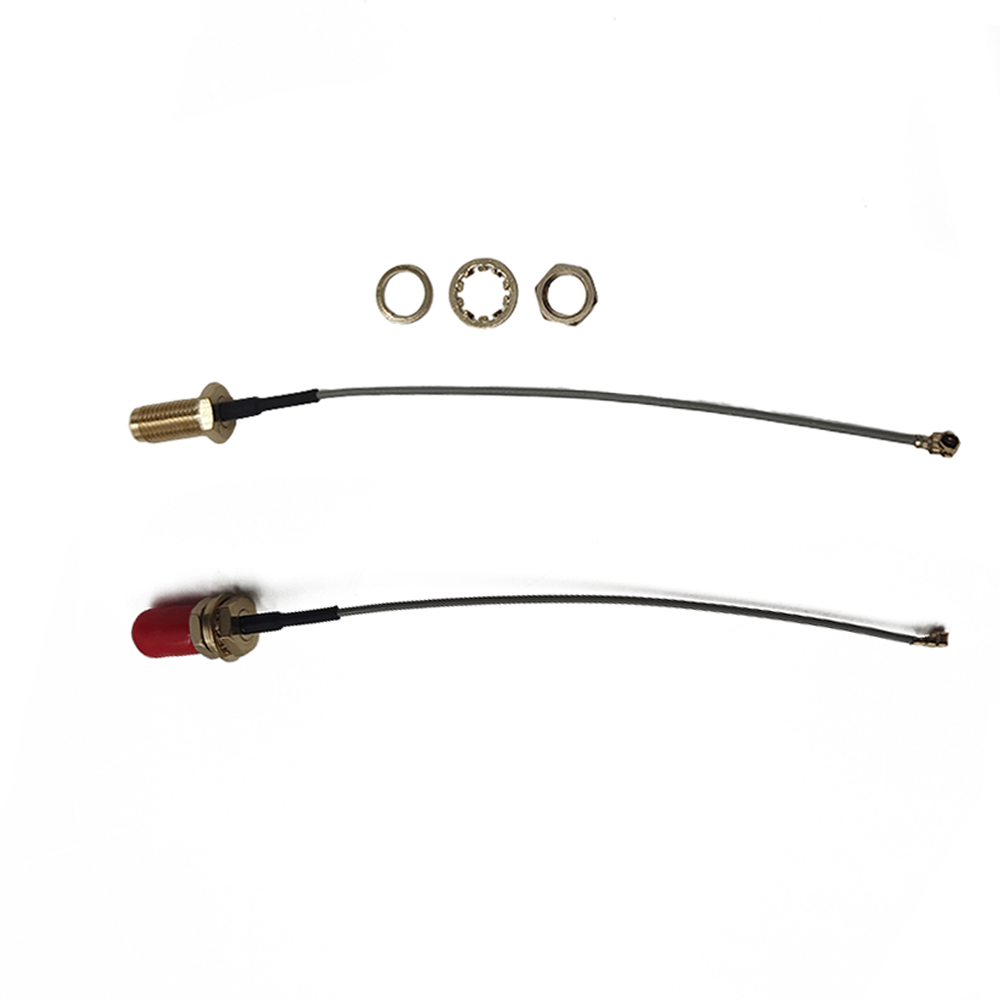

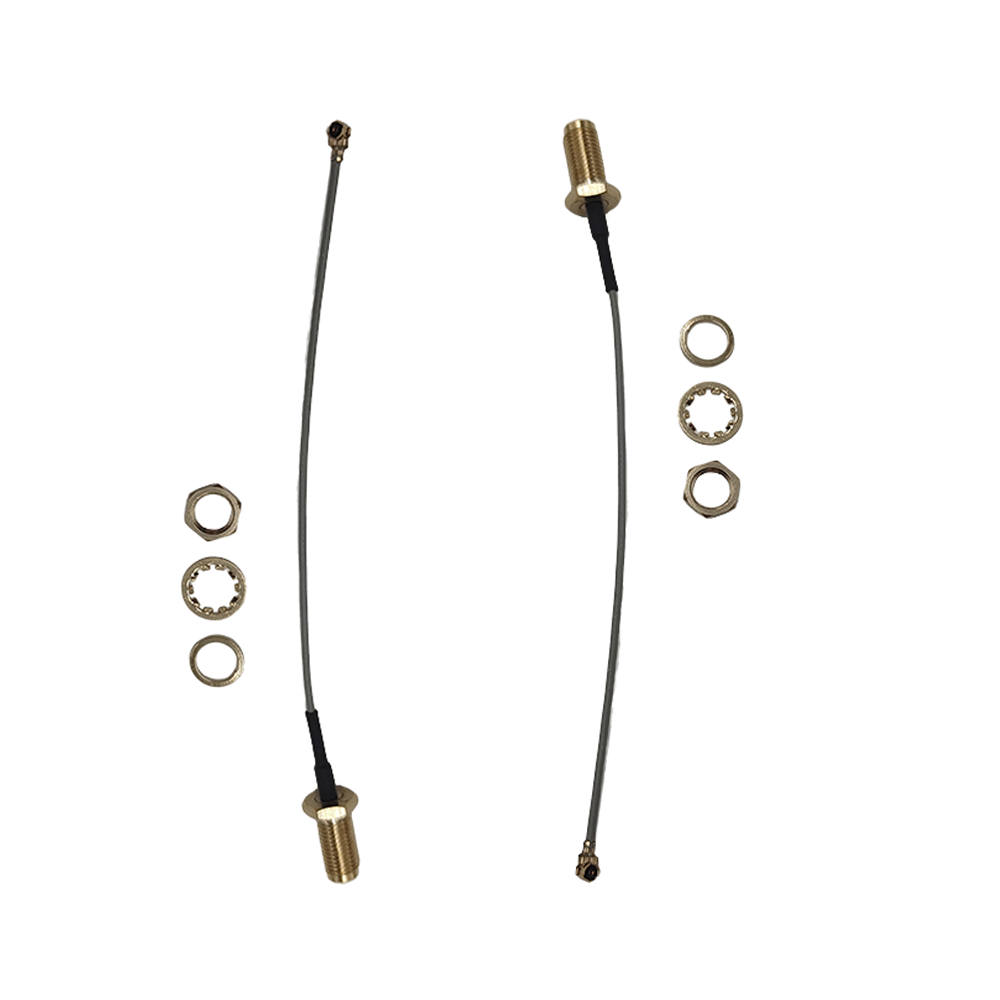

The TOXU KC.CW.00246 is an SMA Female Bulkhead to I-PEX MHF1 RF Cable Assembly designed for wireless communication devices, IoT equipment, embedded RF modules and antenna system integration.

This assembly combines a panel-mount SMA Female connector with an I-PEX MHF1 miniature RF connector through RF1.13 low-profile coaxial cable, providing a reliable RF interface between external antennas and compact wireless modules.

Designed with a characteristic impedance of 50Ω and operating frequency up to 6GHz, the cable assembly is suitable for compact electronic products requiring stable RF signal transmission.

Key Features

SMA to I-PEX Connection

Provides a reliable RF interface between external SMA antennas and embedded I-PEX MHF1 RF modules.

RF1.13 Miniature Cable

Flexible RF1.13 coaxial cable enables compact routing while maintaining stable RF performance.

SMA Bulkhead Mounting

The panel-mount SMA Female connector provides secure installation for communication equipment.

Stable RF Signal Transmission

Designed for 50Ω RF systems with operating frequencies up to 6GHz.

Customized Cable Assembly

Supports customized cable lengths, connector combinations and cable specifications.

OEM Manufacturing Support

Prototype development, engineering validation and volume production are fully supported.

Technical Specifications

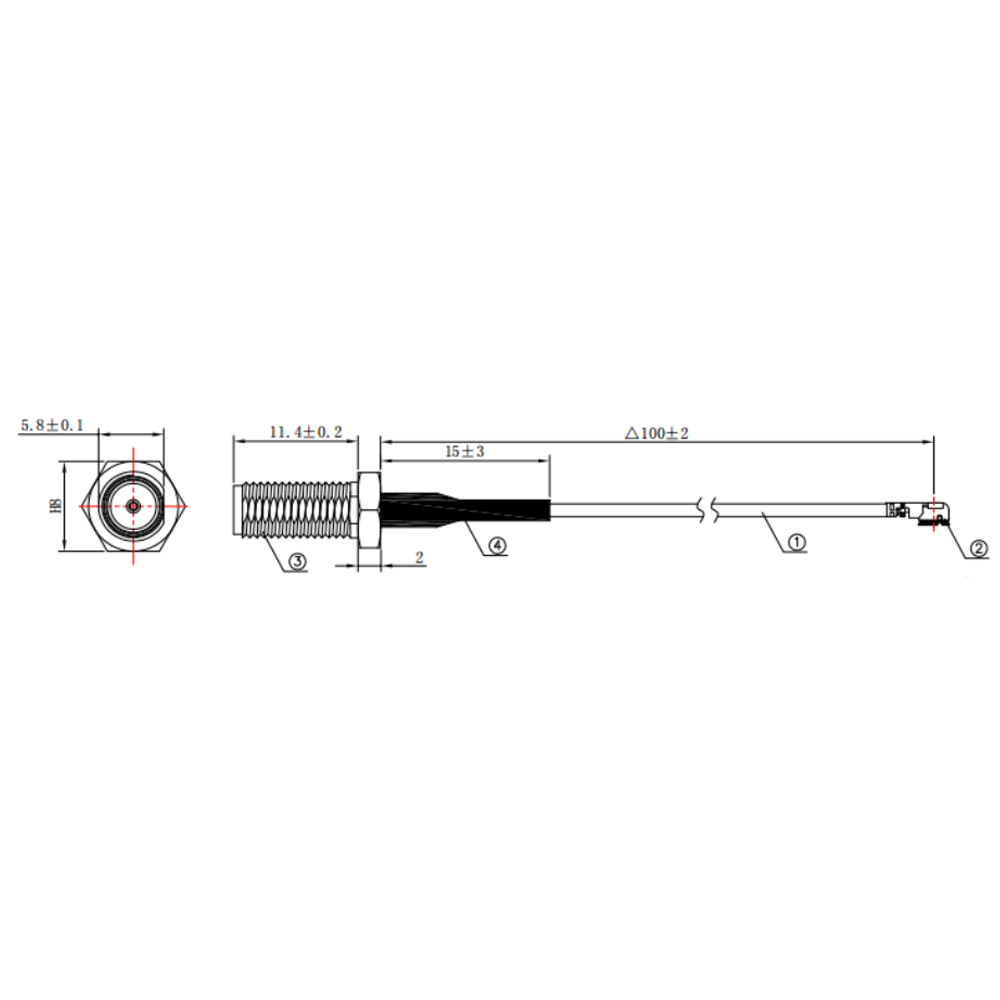

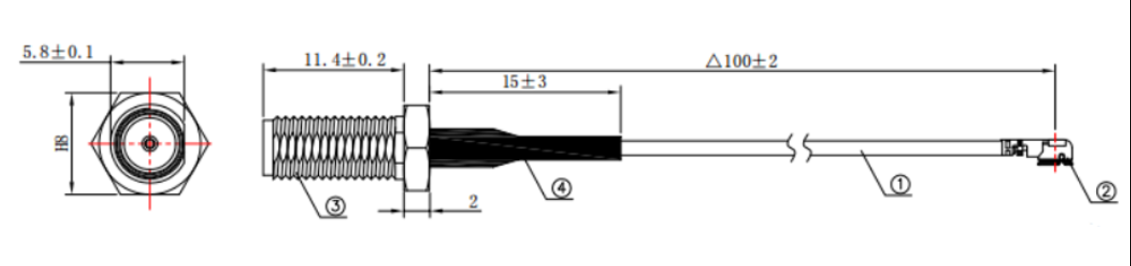

Dimension Drawing

The engineering drawing provides detailed dimensions of the SMA Female Bulkhead connector, RF1.13 coaxial cable and I-PEX MHF1 connector for simplified equipment integration.

Applications

● Wireless communication modules

● Wi-Fi modules

● Bluetooth modules

● IoT devices

● Embedded RF systems

● External antenna integration

System Integration

External Antenna

↓

SMA to I-PEX RF Cable Assembly

↓

I-PEX RF Interface

↓

Wireless Module

↓

Electronic System

Complete RF Hardware Solution Support

RF Cable Assembly Solutions

TOXU provides customized RF cable assemblies with different connector combinations, cable types and cable lengths for wireless communication applications.

RF Connector Solutions

TOXU supplies SMA, I-PEX, MMCX, MCX, FAKRA, Mini FAKRA, SMB, BNC, TNC and customized RF connectors.

Antenna Integration

TOXU supports complete integration between RF connectors, cable assemblies and antenna systems.

Hardware Customization

From prototype development to mass production, TOXU provides flexible OEM and ODM manufacturing services.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering RF cable assemblies, RF connectors, antennas and customized RF development.

With strong engineering capability and manufacturing experience, TOXU supports customers from design validation to mass production.

FAQ

Q1: Can TOXU customize RF cable assemblies?

Yes. We support customized connector combinations, cable lengths and cable specifications.

Q2: Can different connector types be provided?

Yes. TOXU supports SMA, I-PEX, MMCX, MCX, SMB, FAKRA, Mini FAKRA, BNC and TNC connectors.

Q3: Can TOXU support OEM and ODM projects?

Yes. Prototype development, testing and mass production are fully supported.

Q4: What products can TOXU provide besides RF cable assemblies?

TOXU also provides RF connectors, RF cables, GNSS antennas and complete RF hardware integration solutions.
