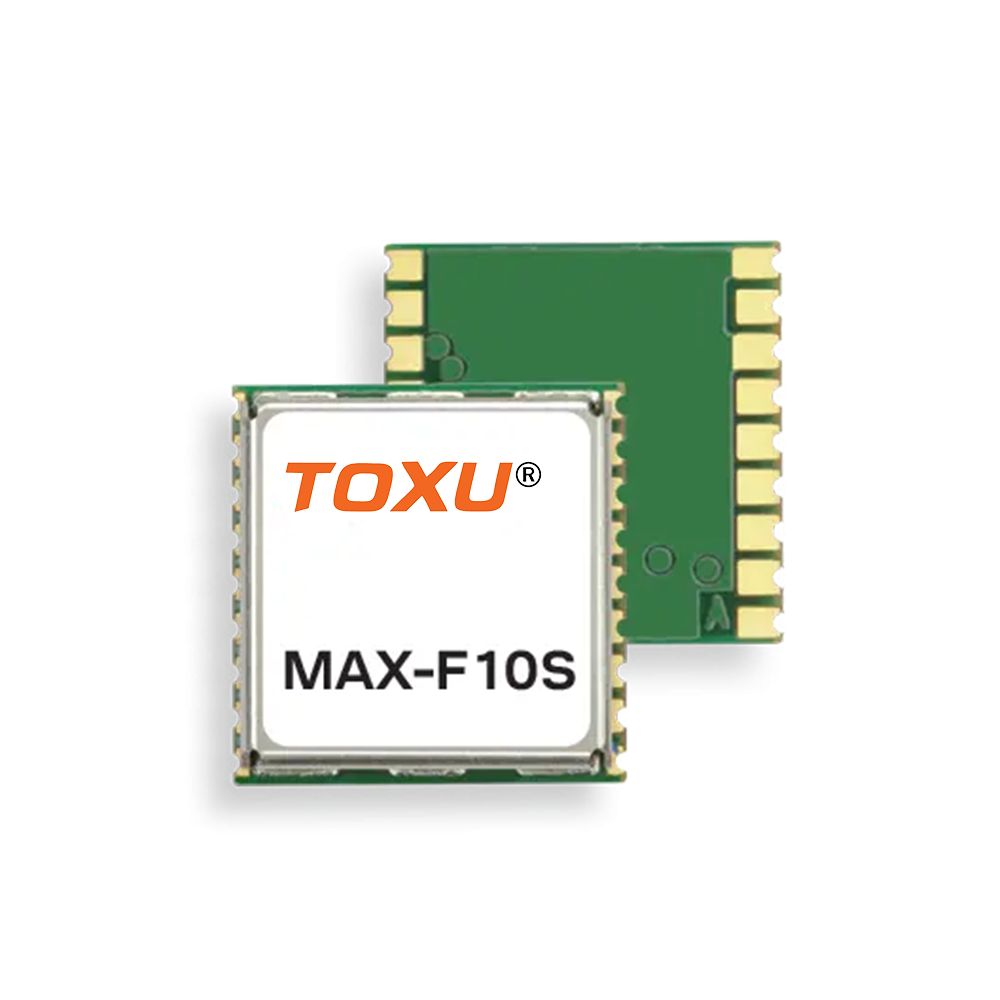

The MAX-F10S module is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas.

With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly.

MAX-F10S offers a single antenna input. Two SAW filters in series with a LNA in between provide high robustness against RF interference from co-located cellular modems.

MAX-F10S is pin-to-pin compatible with previous u-blox generations, which saves designers time and cost when upgrading their designs.

u-blox modules are manufactured in IATF 16949 certified sites and are fully tested on a system level.
