Overview

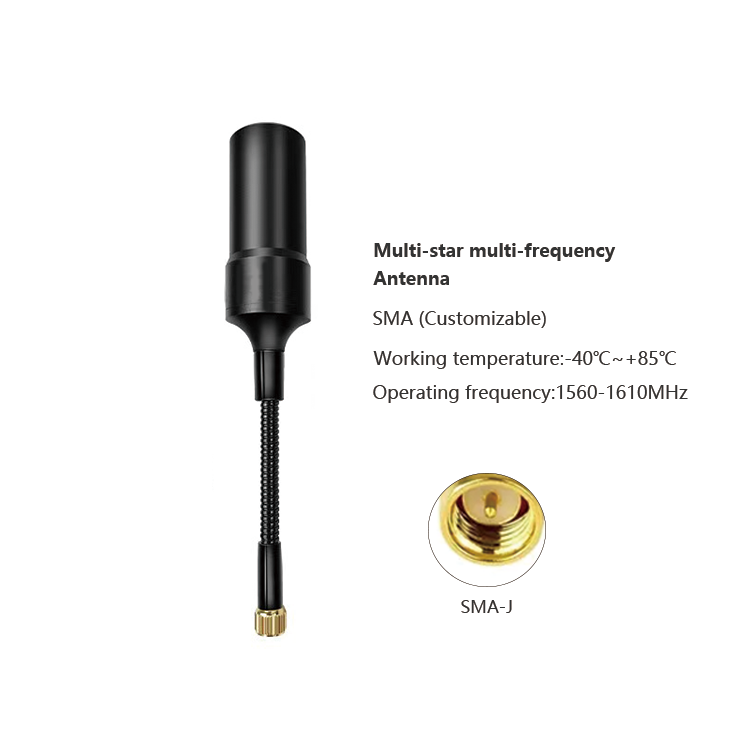

The TOXU TX-G052 is a compact multi-band active GNSS quadrifilar helical antenna designed for UAVs, micro RTK receivers, handheld positioning terminals, tablets, portable data-collection equipment, and other satellite-navigation devices requiring a lightweight external antenna.

The antenna covers two specified working frequency ranges: 1164–1230MHz and 1560–1610MHz. It is intended for use with compatible GNSS receivers operating within these frequency ranges.

The TX-G052 adopts a quadrifilar helical architecture and right-hand circular polarization. Its four-arm helical structure provides a compact cylindrical antenna form suitable for equipment where installation space and antenna weight are limited.

An integrated low-noise active circuit provides a specified gain of 40±2dB typical. The specified maximum noise figure is 1.5dB, helping amplify received satellite signals before delivering them to the connected GNSS receiver.

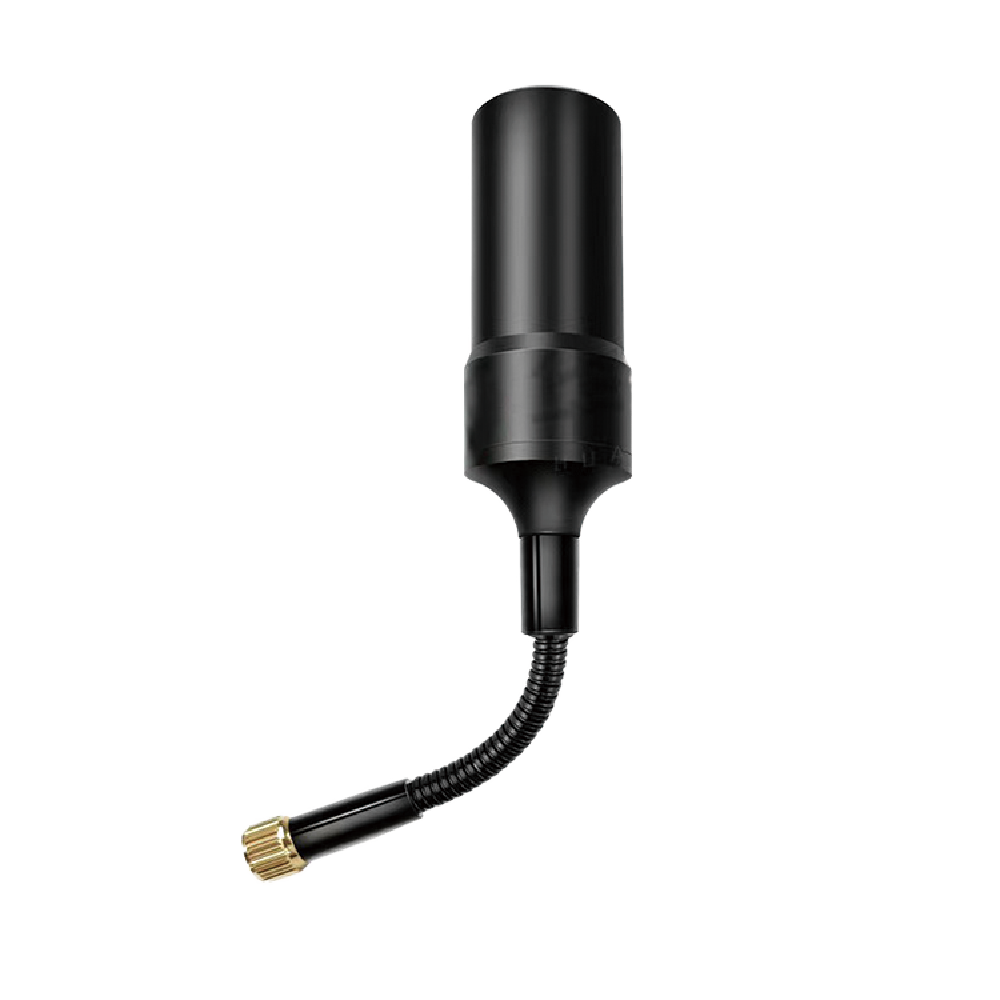

The flexible gooseneck section allows the antenna body to be repositioned according to the receiver-port orientation, surrounding equipment structure, and available installation space.

The TX-G052 operates from 2.8–5V DC and has a specified current consumption of 26±2mA at 3.3V. Power is normally supplied by a compatible GNSS receiver through the RF connector.

The antenna has a nominal impedance of 50 ohms and uses an SMA male connector. Its approximate overall dimensions are Φ28 × 160mm, and its weight is no more than 18g.

The TX-G052 is an active receiving antenna only. It does not independently calculate coordinates, process RTK correction data, or determine positioning accuracy. These functions must be provided by the connected GNSS or RTK receiver.

Key Features

Multi-Band GNSS Frequency Coverage

Covers 1164–1230MHz and 1560–1610MHz for compatible multi-frequency GNSS receiving equipment.

Quadrifilar Helical Architecture

The four-arm helical structure provides a compact antenna form for UAVs, portable receivers, handheld terminals, and other space-limited equipment.

RHCP Polarization

Right-hand circular polarization supports reception of compatible circularly polarized satellite-navigation signals.

Active Antenna Configuration

The integrated active circuit amplifies received GNSS signals before delivering them to the connected receiver.

Specified Gain of 40±2dB Typical

Provides the specified active signal-amplification performance under the applicable product test conditions.

Noise Figure ≤1.5dB

Supports low-noise amplification of compatible GNSS signals under the specified operating conditions.

Flexible Gooseneck Structure

The flexible section allows the antenna orientation to be adjusted according to the equipment layout and receiver-port position.

Wide 360° Azimuth Coverage

The specified 360-degree horizontal coverage supports signal reception from different azimuth directions when the antenna is correctly installed.

Compact and Lightweight Design

The approximately Φ28 × 160mm antenna weighs no more than 18g, supporting installation in weight- and space-sensitive equipment.

SMA Male Direct Connection

The standard SMA male connector supports connection to a compatible SMA female 50-ohm GNSS receiver interface.

2.8–5V DC Operating Range

Supports compatible receiver RF ports capable of supplying the required DC bias voltage and operating current.

Technical Specifications

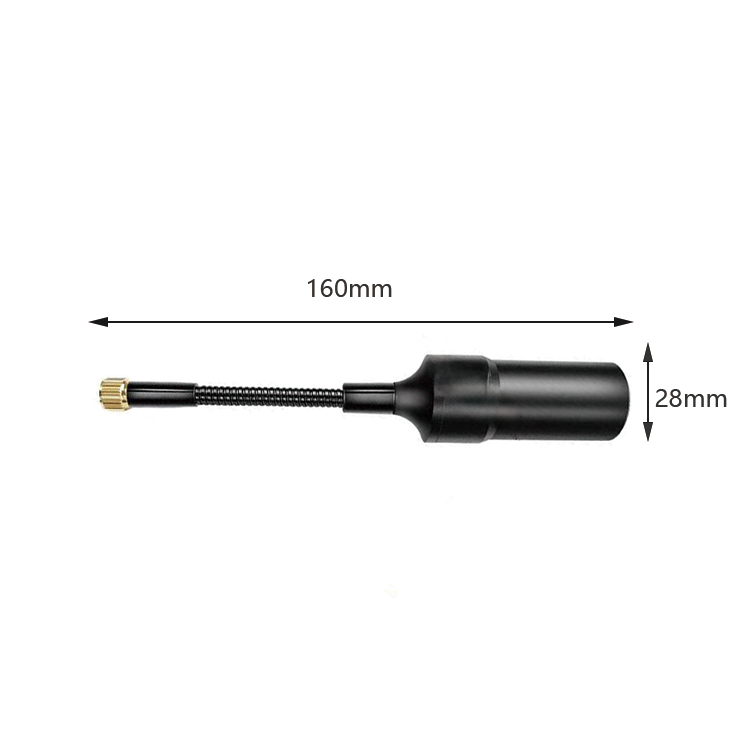

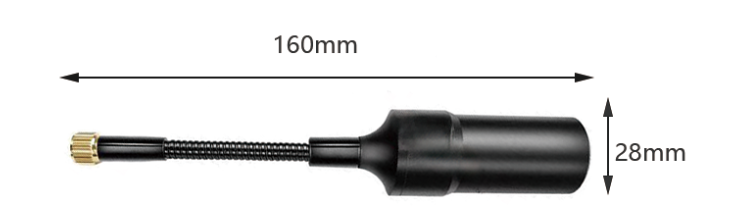

Dimension Drawing

The TX-G052 has an approximate overall length of 160mm and a maximum antenna-body diameter of approximately 28mm. Its flexible gooseneck section allows the antenna body to be adjusted according to the installation orientation.

Applications

• Unmanned Aerial Vehicles

• Micro RTK Receivers

• Multi-Band GNSS Receivers

• Handheld Positioning Terminals

• Portable Mapping Equipment

• Tablets and Mobile Data Terminals

• Autonomous Robots

• Portable Surveying Equipment

• Industrial Navigation Devices

• OEM Satellite-Navigation Equipment

System Integration

The TX-G052 must be connected to a compatible GNSS or RTK receiver supporting the required operating frequencies within 1164–1230MHz and 1560–1610MHz.

Because the TX-G052 is an active antenna, the connected receiver must provide compatible DC bias power through the RF port. The receiver should support the specified 2.8–5V DC operating range and provide sufficient current for the antenna.

The standard configuration uses an SMA male connector. The connected receiver or RF cable assembly should therefore provide a compatible SMA female 50-ohm interface.

Before integration, confirm the receiver’s supported GNSS frequencies, antenna-bias voltage, available current, RF input impedance, connector gender, mechanical clearance, and installation orientation.

The flexible gooseneck supports antenna-angle adjustment, but repeated excessive bending or sharp folding should be avoided to reduce the risk of mechanical or internal RF damage.

Install the antenna where it has the clearest practical sky view. Keep the antenna away from large metal obstructions, transmitting antennas, motors, switching power supplies, high-current cables, and other possible sources of electromagnetic interference.

Final system performance can be affected by the GNSS receiver, installation orientation, surrounding materials, equipment housing, power-supply quality, nearby electronics, and operating environment. Testing with the actual receiver and complete equipment is recommended before volume production.

For RTK applications, the connected receiver must support RTK processing and receive valid correction data from a base station, NTRIP service, radio modem, cellular modem, or another compatible correction source.

The antenna itself receives and amplifies compatible satellite signals but does not independently generate positioning coordinates or determine positioning accuracy.

Why Choose TOXU

TOXU provides GNSS and RTK antennas, communication antennas, embedded antennas, external antennas, RF cable assemblies, RF connectors, GNSS modules, receiver boards, and integrated positioning hardware for equipment manufacturers and system integrators.

Our engineering team supports frequency selection, receiver compatibility evaluation, antenna-bias confirmation, connector and cable matching, installation analysis, RF testing, sample verification, and customized antenna development.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports product labels, packaging, quality inspection, prototype verification, and stable volume-production delivery for overseas B2B projects.

Sample testing with the customer’s actual GNSS receiver and equipment is recommended before volume production to confirm frequency compatibility, connector matching, power supply, installation position, and overall system performance.

FAQ

Q: What frequency ranges does the TX-G052 cover?

A: It covers 1164–1230MHz and 1560–1610MHz for compatible multi-band GNSS receiving equipment.

Q: Is the TX-G052 an active or passive antenna?

A: It is an active antenna incorporating a signal-amplification circuit with a specified gain of 40±2dB typical.

Q: What does quadrifilar helix mean?

A: It refers to a four-arm helical antenna architecture used to provide RHCP reception in a compact cylindrical structure.

Q: What voltage does the TX-G052 require?

A: The specified operating voltage is 2.8–5V DC. Its specified current consumption is 26±2mA at 3.3V.

Q: Which connector does the TX-G052 use?

A: The standard configuration uses an SMA male connector, also identified as SMA-J.

Q: Can the antenna angle be adjusted?

A: Yes. The TX-G052 incorporates a flexible gooseneck section that allows the antenna body to be repositioned according to the equipment layout.

Q: What are the dimensions and weight?

A: The approximate overall dimensions are Φ28 × 160mm, and the specified weight is no more than 18g.

Q: Can the TX-G052 provide RTK positioning independently?

A: No. It receives and amplifies compatible GNSS signals. RTK calculations, correction-data processing, and positioning output are performed by the connected receiver.

Q: Is the TX-G052 suitable for UAVs?

A: Its compact dimensions, low weight, flexible structure, and multi-band active configuration make it suitable for compatible UAV receiver systems. Final testing should be performed on the actual UAV platform.

Q: Can TOXU customize the connector or product marking?

A: Connector configuration, product labels, packaging, and related RF integration requirements can be evaluated according to the project and order quantity.
