Overview

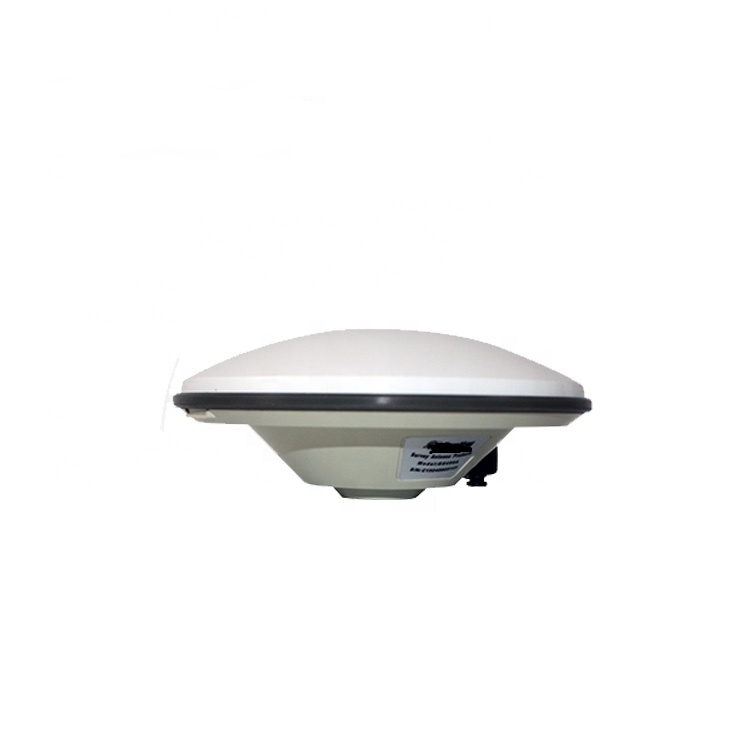

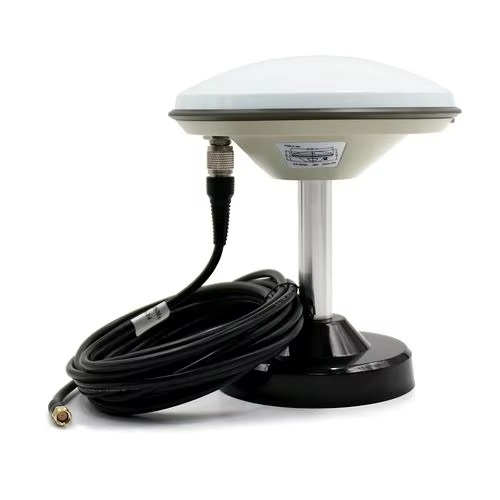

The TOXU KC.EX.00100 is a multi-constellation, multi-band active GNSS antenna designed for professional positioning and measurement systems operating in outdoor environments.

The antenna supports compatible GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, and Galileo E1/E5b signals. It can be used with suitable multi-band GNSS and RTK receivers for surveying, mapping, precision agriculture, machine control, deformation monitoring, vehicle testing, autonomous equipment, outdoor robotics, and reference-station applications.

A multi-feed antenna structure is used to provide stable phase-center performance. The available specification lists a phase-center error of ±2mm and an axial ratio of no more than 3dB.

The integrated low-noise amplifier provides a specified gain of 40±2dB with a noise figure of no more than 2.0dB. The active circuit operates from 3.3V to 12.0V DC and consumes no more than 45mA.

The antenna uses right-hand circular polarization and a nominal 50-ohm RF interface. Its standard configuration includes a TNC male connector and a 5/8"-11UNC mounting thread.

The KC.EX.00100 measures Φ154 × 64.2mm and weighs no more than 300g. Its IP67-rated enclosure supports outdoor installation when the antenna, mating connector, cable joint, and mounting structure are properly installed and sealed.

The available specification lists compatibility with UM482, UM960, UM980, and UM982 GNSS modules. Compatibility with other receivers should be evaluated according to supported frequencies, antenna-bias voltage, available current, connector type, and RF input requirements.

The KC.EX.00100 is an active GNSS antenna only. It receives and amplifies satellite signals but does not calculate position, process correction data, or provide RTK accuracy independently.

Key Features

Multi-Constellation Signal Reception

Supports compatible GPS, GLONASS, BDS, and Galileo satellite-navigation signals within the bands listed in the product specification.

Multi-Band GNSS Operation

Supports compatible L1, L2, and L5-band signals for use with suitable multi-frequency GNSS and RTK receivers.

Multi-Feed Antenna Structure

The multi-feed design supports stable phase-center performance for professional GNSS measurement and positioning applications.

Specified ±2mm Phase-Center Error

The available specification lists a phase-center error of ±2mm under the defined antenna test conditions.

RHCP Polarization

Right-hand circular polarization supports reception of compatible circularly polarized GNSS satellite signals.

Antenna Axial Ratio ≤3.0dB

Provides the specified circular-polarization performance under the applicable measurement conditions.

40±2dB LNA Gain

The integrated active circuit amplifies received GNSS signals before delivering them to the connected receiver through the coaxial cable.

Noise Figure ≤2.0dB

The specified low-noise amplifier limits the additional noise introduced during signal amplification.

VSWR ≤2.0

Provides the specified RF matching performance when connected to a compatible nominal 50-ohm receiving system.

3.3–12.0V DC Operation

Supports antenna-bias power supplied through the RF connection by a compatible GNSS receiver or bias-tee circuit.

Current Consumption ≤45mA

The active antenna circuit operates with a specified current consumption of no more than 45mA.

Multipath-Mitigation Structure

The antenna incorporates a structure intended to reduce the influence of reflected GNSS signals in demanding installation environments.

Out-of-Band Interference Suppression

The available specification states that the antenna is designed to suppress strong signals outside its operating bands.

IP67-Rated Enclosure

The sealed housing supports outdoor applications exposed to dust and water when the complete installation is correctly assembled and protected.

TNC Male RF Connector

The standard TNC-K connector provides a threaded RF connection for compatible 50-ohm cable assemblies and receiving equipment.

5/8"-11UNC Mounting Thread

The standard mounting interface supports installation on compatible survey poles, tripods, brackets, and other positioning equipment.

Lightweight Φ154mm Housing

The antenna measures Φ154 × 64.2mm and weighs no more than 300g for portable and fixed positioning equipment.

Technical Specifications

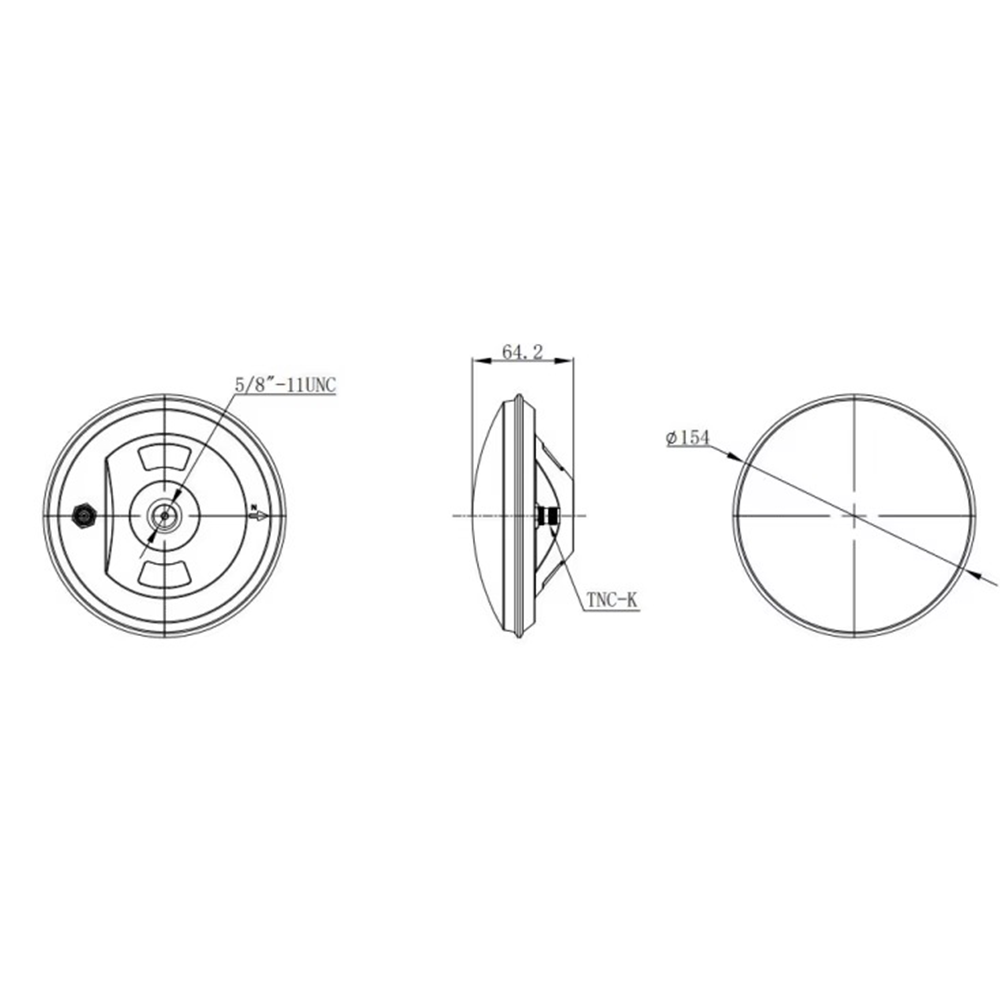

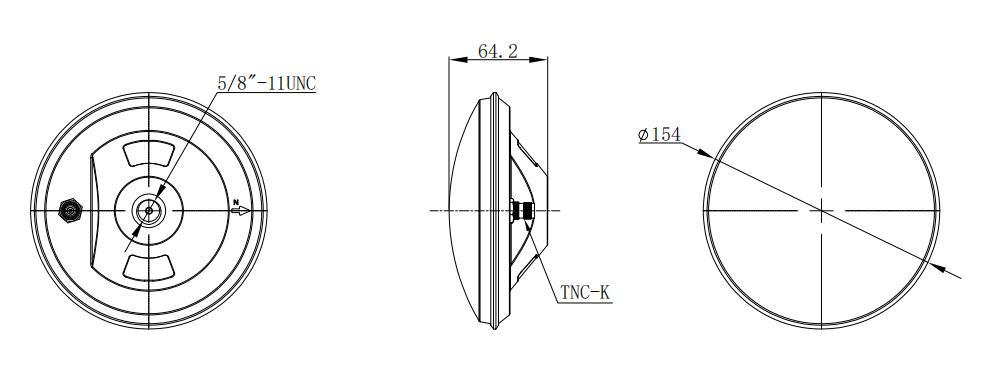

Dimension Drawing

The standard KC.EX.00100 antenna measures Φ154 × 64.2mm and uses a 5/8"-11UNC mounting thread together with a TNC male RF connector.

Applications

• GNSS Surveying and Mapping Equipment

• RTK Rover and Base-Station Systems

• Deformation Monitoring Systems

• Precision Agriculture Equipment

• Agricultural Guidance Systems

• Machine Control Systems

• Mobile Mapping Equipment

• Driving-Test and Training Equipment

• Autonomous Vehicles

• Outdoor Mobile Robots

• Construction Machinery

• GNSS Reference Stations

System Integration

The KC.EX.00100 must be connected to a compatible multi-band GNSS or RTK receiver supporting the required GPS, GLONASS, BDS, and Galileo signals.

The antenna requires 3.3–12.0V DC bias power with sufficient current capacity. Bias power is normally supplied through the RF cable by the connected receiver or a compatible external bias-tee circuit.

Before connection, confirm the receiver’s antenna-bias voltage, available current, short-circuit protection, active-antenna detection, input impedance, and supported frequency bands.

The standard antenna uses a TNC male connector. The mating coaxial cable assembly should therefore use a compatible TNC female connector and a nominal 50-ohm cable.

Cable type and length should be selected according to the required installation distance because coaxial-cable insertion loss can reduce the signal level delivered to the receiver.

The 5/8"-11UNC thread supports installation on compatible survey poles, tripods, brackets, and mounting adapters. Confirm thread compatibility and mechanical clearance before installation.

For optimum reception, install the antenna horizontally with the upper radome facing the sky and provide the clearest practical sky view.

Keep the antenna away from metal obstructions, transmitting antennas, motors, high-current cables, switching power supplies, digital clock sources, and other potential sources of blockage, reflection, or electromagnetic interference.

The IP67 rating applies to the antenna enclosure under the specified product configuration. The mating connector, cable joint, mounting interface, and complete equipment enclosure must be sealed and protected separately.

For RTK operation, the connected receiver must receive valid compatible correction data from a base station, NTRIP service, radio modem, cellular modem, or another correction source.

Final positioning performance must be verified on the customer’s completed equipment because antenna installation, receiver configuration, correction-data quality, satellite visibility, cable loss, multipath, and electromagnetic interference can affect results.

Why Choose TOXU

TOXU provides multi-band GNSS antennas, RTK survey antennas, embedded antennas, GNSS modules, receiver boards, RF cable assemblies, RF connectors, PCBA manufacturing, and integrated positioning hardware for equipment manufacturers and system integrators.

Our engineering team supports frequency selection, receiver compatibility evaluation, connector and cable configuration, antenna-bias confirmation, installation analysis, RF testing, sample verification, and customized product development.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized connectors, cable assemblies, labels, packaging, quality inspection, prototype verification, and stable volume-production delivery for overseas B2B projects.

FAQ

Q: Which GNSS signals does the KC.EX.00100 support?

A: The specification lists GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, and Galileo E1/E5b signals.

Q: Is this an active or passive GNSS antenna?

A: It is an active GNSS antenna with a specified LNA gain of 40±2dB.

Q: Does the antenna provide RTK positioning directly?

A: No. It receives and amplifies compatible GNSS signals. RTK processing, correction-data reception, and positioning calculations are performed by the connected GNSS receiver and complete system.

Q: What phase-center performance is specified?

A: The available specification lists a phase-center error of ±2mm under the applicable test conditions.

Q: What power supply does the antenna require?

A: It requires 3.3–12.0V DC bias power and consumes no more than 45mA according to the specification.

Q: Which connector does the antenna use?

A: The standard configuration uses a TNC male connector, also identified as TNC-K in the specification.

Q: What mounting thread is provided?

A: The antenna uses a standard 5/8"-11UNC mounting thread.

Q: Is the antenna waterproof?

A: The enclosure is specified as IP67. The mating connector, cable joint, and complete installation must also be correctly sealed to maintain outdoor protection.

Q: Is it compatible with UM980 and UM982 receivers?

A: Yes. The available specification lists UM482, UM960, UM980, and UM982 as compatible modules. The antenna-bias voltage, current, connector, and receiver configuration must still be confirmed.

Q: Can it be used with receivers from other manufacturers?

A: It may be used with other compatible multi-band GNSS receivers when the supported signals, antenna-bias voltage, current capacity, impedance, and connector requirements match.

Q: Does the product include a GNSS receiver or correction service?

A: No. The standard product is an active GNSS antenna. A compatible GNSS receiver, correction-data source, cable assembly, and related system components are separate unless otherwise specified.

Q: Can TOXU customize the connector or matching RF cable?

A: Yes. TOXU can evaluate compatible connectors, coaxial cable types, cable lengths, labels, packaging, and other integration requirements according to the project.
