Overview

The TOXU KC.WA.00022 is an active outdoor GNSS antenna designed for compatible timing receivers, synchronization equipment, positioning systems, fixed reference equipment, and industrial GNSS terminals.

Its 1560–1606MHz operating range covers BDS B1 at 1561.098MHz, GPS L1 at 1575.42MHz, and GLONASS L1 signals around 1602MHz. This enables one antenna to receive compatible L1-band signals from multiple satellite navigation constellations.

The internal GNSS patch antenna uses right-hand circular polarization and provides a specified typical zenith gain of 5.0dBic at 1561.098MHz and 1575.42MHz when measured on a 100 × 100mm ground plane.

An integrated low-noise amplifier provides 38dB typical gain, gain flatness of ±2dB, a noise figure below 2.5dB, and an output VSWR below 1.5 under the specified test conditions.

The complete antenna assembly provides a specified typical overall zenith gain of 38±3dBic. The connected GNSS receiver must supply suitable active-antenna bias power through the RF port.

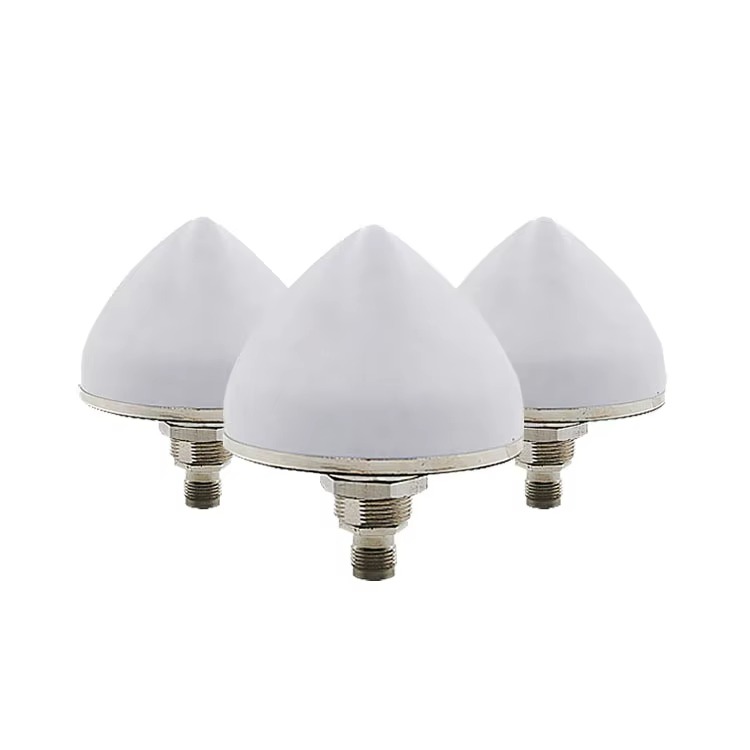

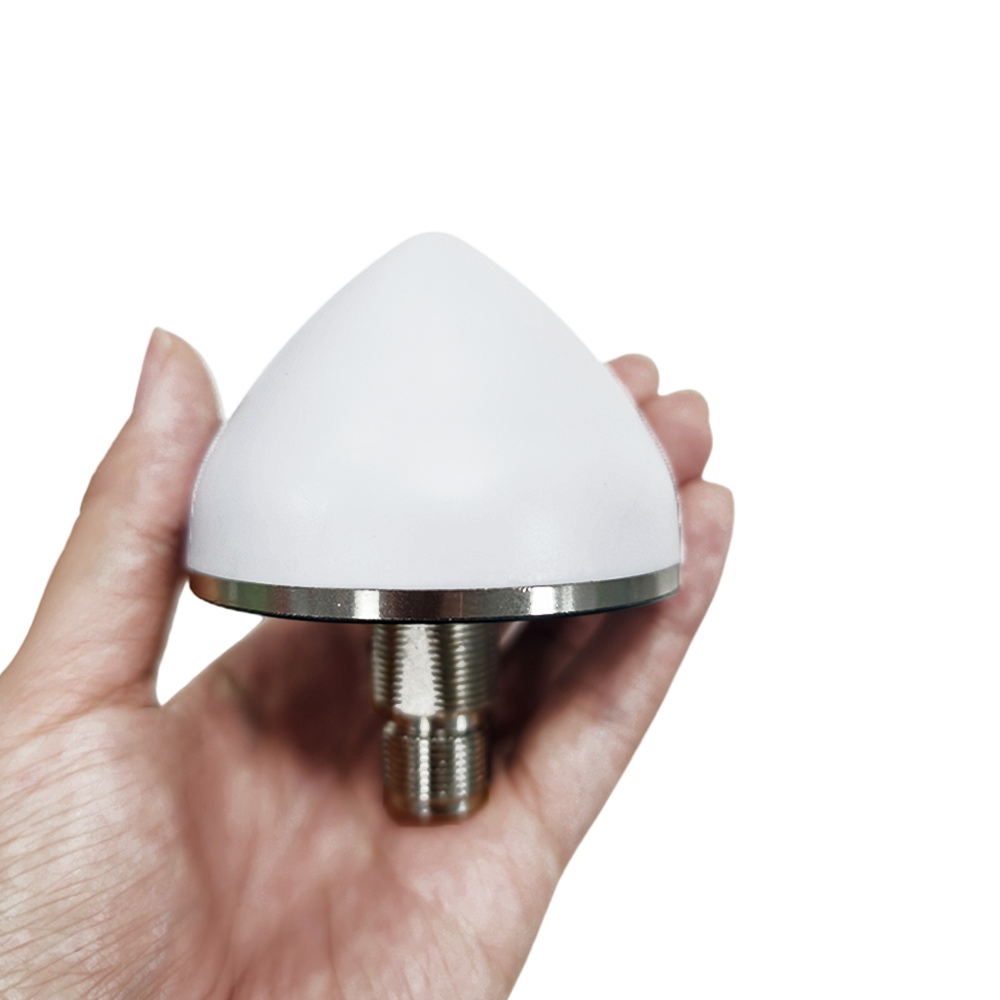

The KC.WA.00022 uses an approximately Φ66.5 × 80mm radome with an IP67-rated enclosure. Its screw-mount structure and integrated N male connector support secure installation on compatible equipment panels and mounting surfaces.

The standard antenna does not use an external coaxial cable. It connects directly through its N male RF interface, helping reduce additional cable connections at the antenna side.

The KC.WA.00022 is an active GNSS antenna only. It does not contain a GNSS receiver, timing module, PPS output, or positioning engine and cannot independently calculate position or generate timing signals.

Key Features

GPS L1, BDS B1, and GLONASS L1 Support

The 1560–1606MHz operating range covers multiple L1-band GNSS signals for compatible multi-constellation receivers.

Active GNSS Antenna Design

The integrated LNA amplifies received satellite signals before transferring them to the connected GNSS receiver.

38dB Typical LNA Gain

The internal low-noise amplifier provides a specified typical gain of 38dB with gain flatness of ±2dB.

Noise Figure Below 2.5dB

The specified LNA noise figure is below 2.5dB under the defined test conditions.

5.0dBic Typical Patch Zenith Gain

The internal patch provides 5.0dBic typical zenith gain at 1561.098MHz and 1575.42MHz when measured on a 100 × 100mm ground plane.

RHCP Polarization

The right-hand circularly polarized patch is designed for compatible GNSS satellite signal reception.

38±3dBic Typical Overall Gain

The complete antenna and LNA assembly provides a specified typical overall zenith gain of 38±3dBic.

2.7–16V Active-Antenna Input

The complete antenna supports a 2.7–16V DC bias supply with specified current consumption below 25mA.

50dB Typical Out-of-Band Rejection

The integrated filtering provides 50dB typical rejection at approximately 50MHz away from the center frequency.

IP67-Rated Enclosure

The antenna enclosure is specified with IP67 protection for compatible fixed outdoor installations.

15kV Air-Discharge ESD Protection

The available specification states 15kV air-discharge ESD protection for improved electrical robustness.

Vibration and Shock Resistance

The antenna is specified for three-axis vibration testing and shock levels of 50G on the vertical axis and 30G on the other axes.

N Male RF Interface

The integrated N male connector provides a threaded 50-ohm RF interface for connection to compatible N female ports or coaxial cable assemblies.

Screw-Mount Installation

The threaded mounting structure and supplied nuts and washers support secure installation on a compatible mounting panel.

-40°C to +85°C Operating Range

The specified operating and storage temperature ranges support demanding outdoor, vehicle, and industrial environments.

OEM Project Support

Connector configuration, mechanical installation, housing marking, packaging, RF tuning, and matching cable assemblies can be evaluated according to project requirements.

Technical Specifications

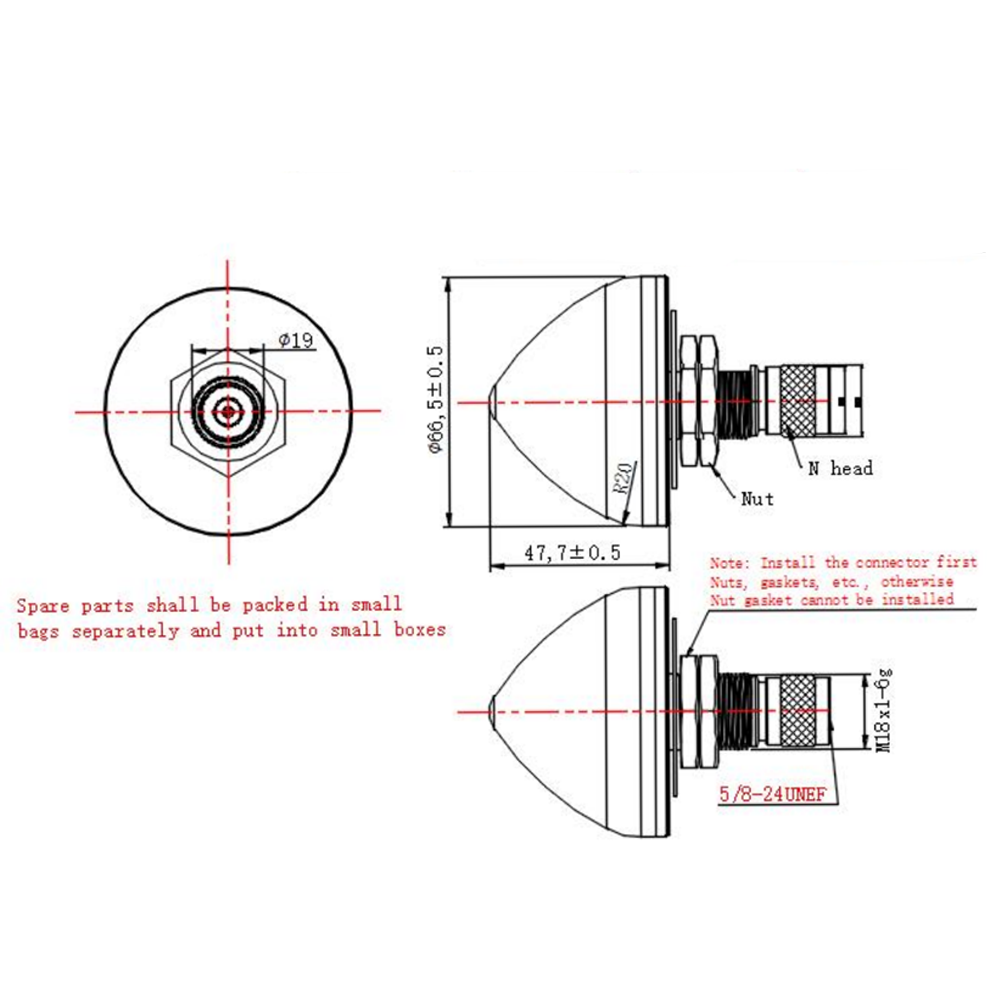

Dimension Drawing

The standard KC.WA.00022 enclosure measures approximately Φ66.5±0.5mm in diameter and 80mm in overall height. The radome section has a specified height of approximately 47.7±0.5mm.

The drawing specifies a 5/8-24 UNEF mounting thread and an integrated N male connector. Nuts, washers, and related mounting hardware are supplied separately for installation.

Enclosure dimensions, mounting-panel thickness, thread engagement, connector compatibility, installation clearance, and sealing performance should be confirmed against the approved drawing and sample before volume production.

Applications

• GNSS Timing Receivers

• Network Time Synchronization Equipment

• Base Station Timing Systems

• Telecom Synchronization Equipment

• Industrial Time-Synchronization Systems

• Fixed Outdoor GNSS Receivers

• GPS, BDS, and GLONASS Positioning Equipment

• Reference Stations

• Monitoring and Measurement Equipment

• Industrial Control Systems

• Vehicle and Machinery Positioning Terminals

• Outdoor Equipment Requiring an Active L1 GNSS Antenna

System Integration

The KC.WA.00022 is an active GNSS antenna containing an integrated low-noise amplifier. It must be connected to a compatible receiver input capable of supplying active-antenna bias power through the RF connection.

The complete antenna supports a specified operating voltage range of 2.7–16V DC and current consumption below 25mA. The receiver’s antenna-bias voltage, current capacity, short-circuit protection, and active-antenna monitoring functions should be confirmed before connection.

The connected receiver must support the required GPS L1, BDS B1, and/or GLONASS L1 signals. The antenna cannot add constellation or frequency compatibility to a receiver that does not support those signals.

The standard connector is an N male interface. It must be connected to a mechanically and electrically compatible N female port or 50-ohm RF cable assembly.

The antenna does not include an external cable. Where remote mounting is required, cable type, length, insertion loss, connector configuration, and outdoor protection should be selected according to the complete system requirements.

For timing applications, the timing accuracy is determined primarily by the connected GNSS timing receiver, receiver firmware, PPS implementation, cable delay compensation, satellite visibility, antenna position, and electromagnetic environment. The antenna alone does not generate a PPS or timing output.

The screw-mount structure should be installed on a mechanically suitable panel using the supplied nuts and washers. The mating surface, mounting hole, sealing method, and tightening torque should be validated for the finished equipment.

For improved GNSS reception, install the antenna with a clear view of the sky and away from high-power transmitters, switching power supplies, metal obstructions, reflective surfaces, and other potential interference sources.

Although the enclosure is specified as IP67, final outdoor protection depends on correct installation, connector sealing, mounting-panel sealing, and the environmental protection of the connected cable assembly.

The available specification states 15kV air-discharge ESD protection but does not provide a lightning-protection or surge-protection rating. External surge protection should be evaluated separately for exposed rooftop, base-station, and infrastructure installations.

This antenna covers L1-band GNSS signals only. It should not be described as a multi-frequency L1/L2/L5 RTK antenna. RTK or high-precision timing performance depends on the connected receiver and complete system architecture.

Final RF performance, timing performance, connector compatibility, cable loss, mounting strength, and environmental sealing should be verified on the customer’s finished equipment before volume production.

Why Choose TOXU

TOXU provides GNSS antenna design, active antenna integration, RF filtering, mechanical mounting development, connector assembly, prototype verification, testing, and volume-production support for equipment manufacturers and system integrators.

Our product range includes GPS and GNSS antennas, GNSS timing antennas, multi-frequency RTK antennas, automotive combination antennas, cellular antennas, WiFi and Bluetooth antennas, RF cable assemblies, RF connectors, PCBA manufacturing, GNSS modules, receiver boards, and integrated positioning solutions.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized connector configurations, mounting structures, housings, labels, packaging, RF testing, quality control, and stable delivery for overseas B2B projects.

FAQ

Q: Which GNSS signals does the KC.WA.00022 support?

A: Its 1560–1606MHz frequency range covers GPS L1, BDS B1, and GLONASS L1 signals.

Q: Is the KC.WA.00022 an active antenna?

A: Yes. It contains an integrated low-noise amplifier and requires bias power from a compatible GNSS receiver.

Q: What operating voltage does the antenna require?

A: The complete antenna assembly supports a specified operating voltage range of 2.7–16V DC with current consumption below 25mA.

Q: What is the difference between 5.0dBic, 38dB, and 38±3dBic?

A: The 5.0dBic value is the passive patch antenna’s typical zenith gain, 38dB is the typical LNA gain, and 38±3dBic is the specified typical overall gain through the antenna and LNA.

Q: Can this antenna be used for GNSS timing?

A: Yes. It can receive compatible L1-band GNSS signals for a connected timing receiver. The timing receiver, rather than the antenna, generates PPS or other timing outputs.

Q: What timing accuracy does the antenna provide?

A: An antenna does not independently specify the complete system timing accuracy. The available specification does not provide a timing-accuracy value, and final performance depends on the receiver, cable-delay compensation, firmware, installation, and satellite environment.

Q: What connector does the KC.WA.00022 use?

A: The standard configuration uses an integrated N male connector.

Q: Does the standard antenna include a coaxial cable?

A: No. The standard KC.WA.00022 has an integrated N male connector and does not include an external cable.

Q: How is the antenna installed?

A: It uses a screw-mount structure with a 5/8-24 UNEF thread. Nuts and washers are supplied separately for installation on a compatible panel.

Q: Is the KC.WA.00022 waterproof?

A: The antenna enclosure is specified as IP67. Final protection still depends on correct connector sealing, panel installation, and system-level environmental design.

Q: Does it provide lightning protection?

A: The specification states 15kV air-discharge ESD protection but does not provide a lightning or surge-protection rating. External surge protection should be evaluated for exposed installations.

Q: Does this antenna support L2, L5, or multi-frequency RTK?

A: No. It covers the 1560–1606MHz L1 frequency region and should not be described as an L1/L2/L5 multi-frequency RTK antenna.

Q: Can the connector or mounting structure be customized?

A: Connector configuration, mounting structure, label, packaging, and matching RF cable assemblies can be evaluated according to project requirements.
