Overview

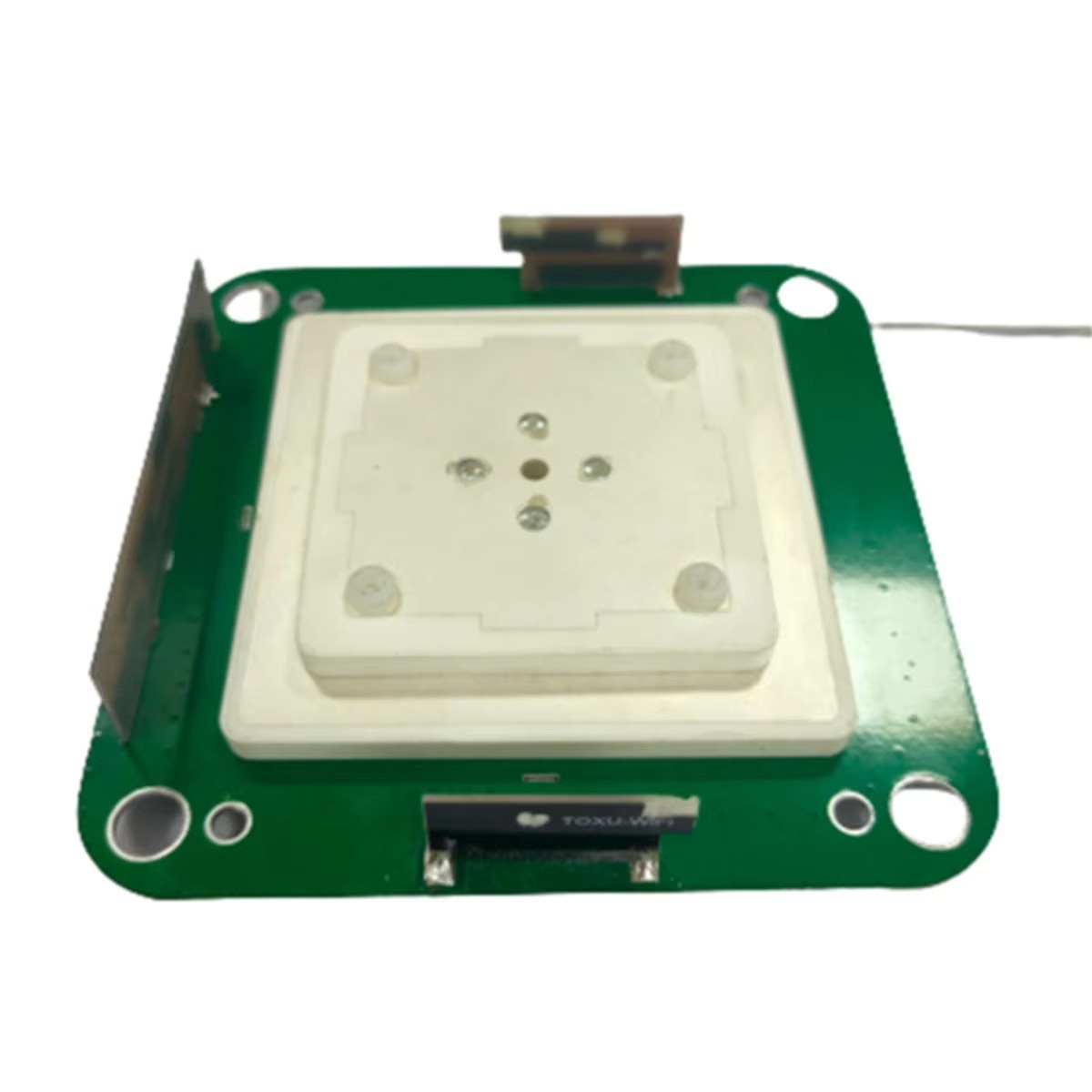

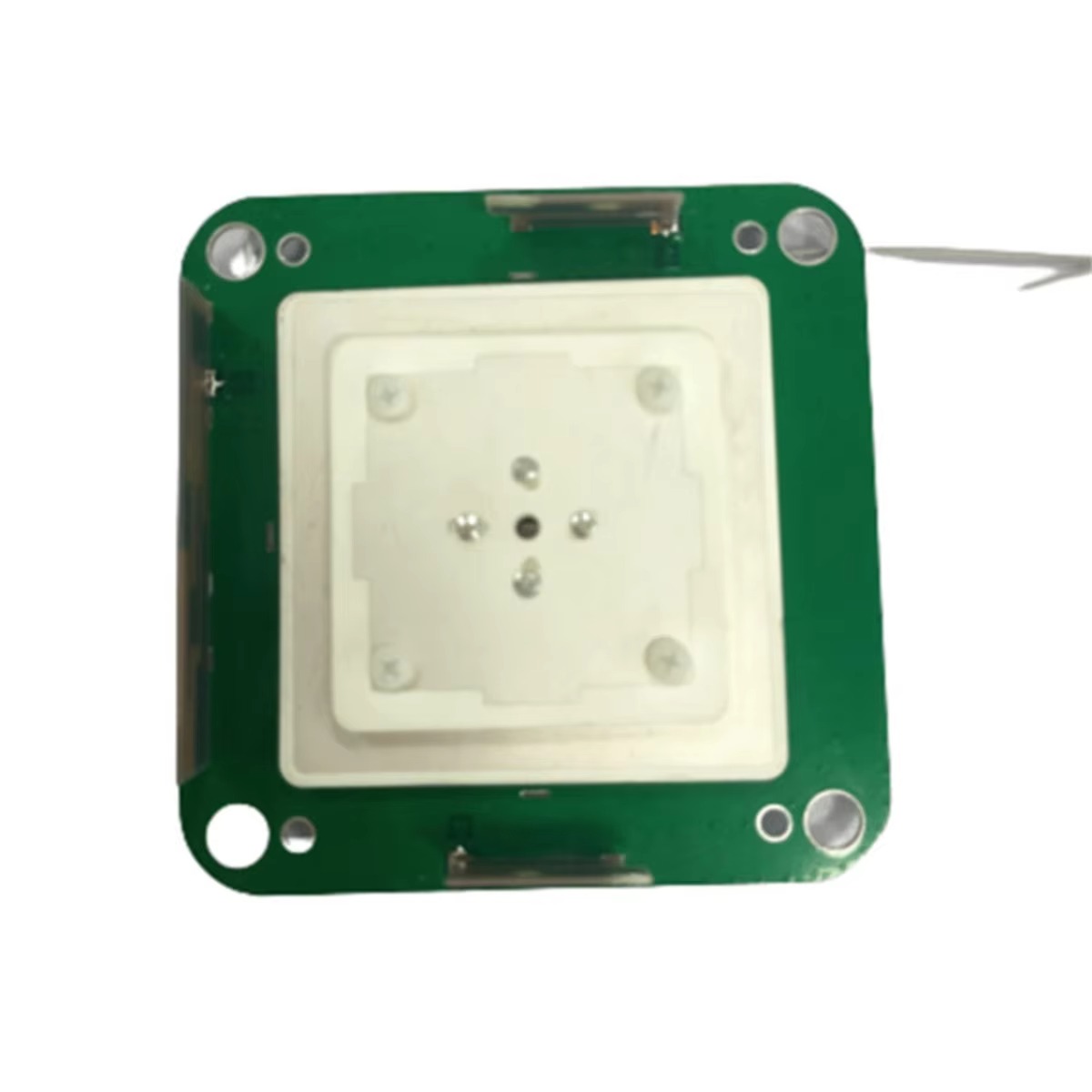

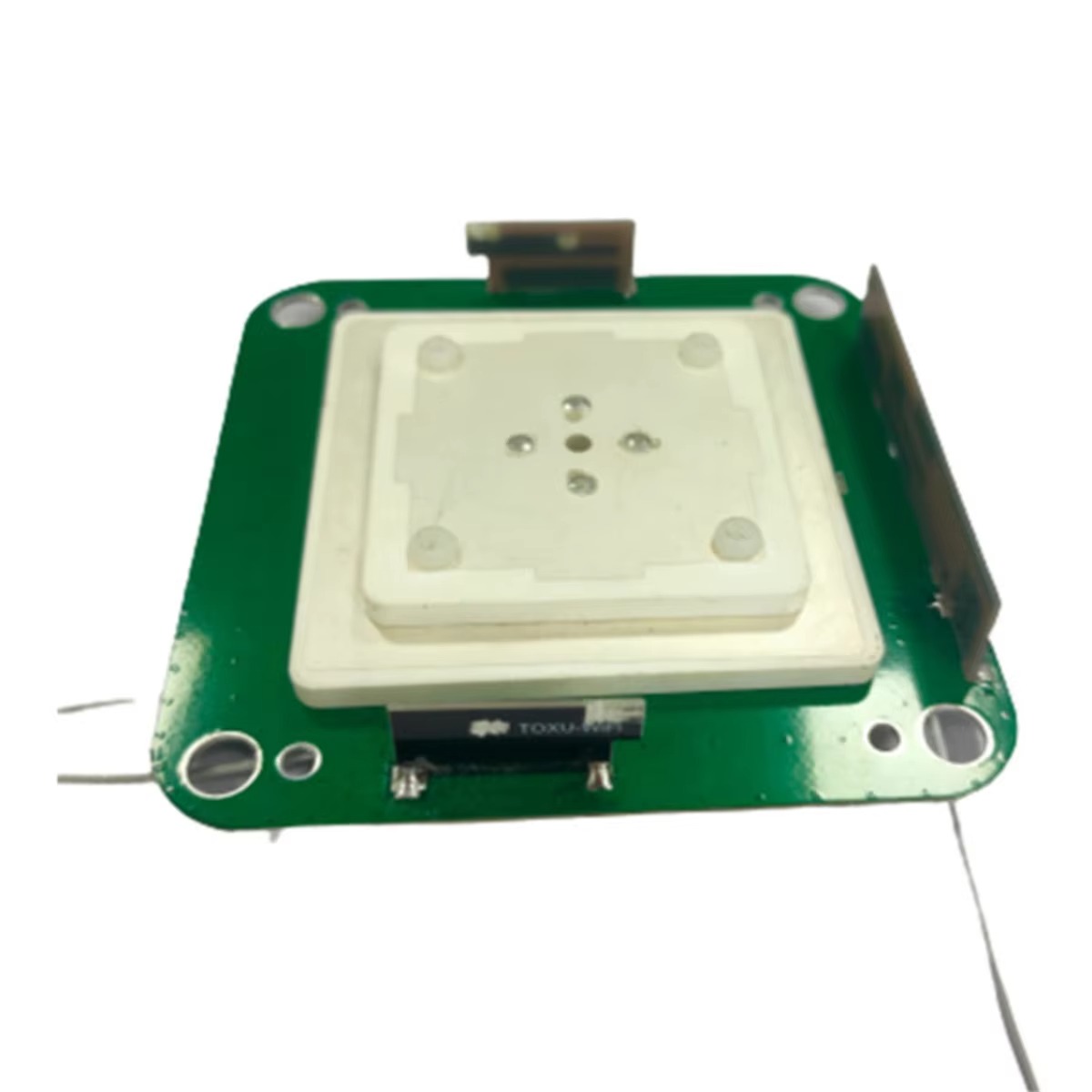

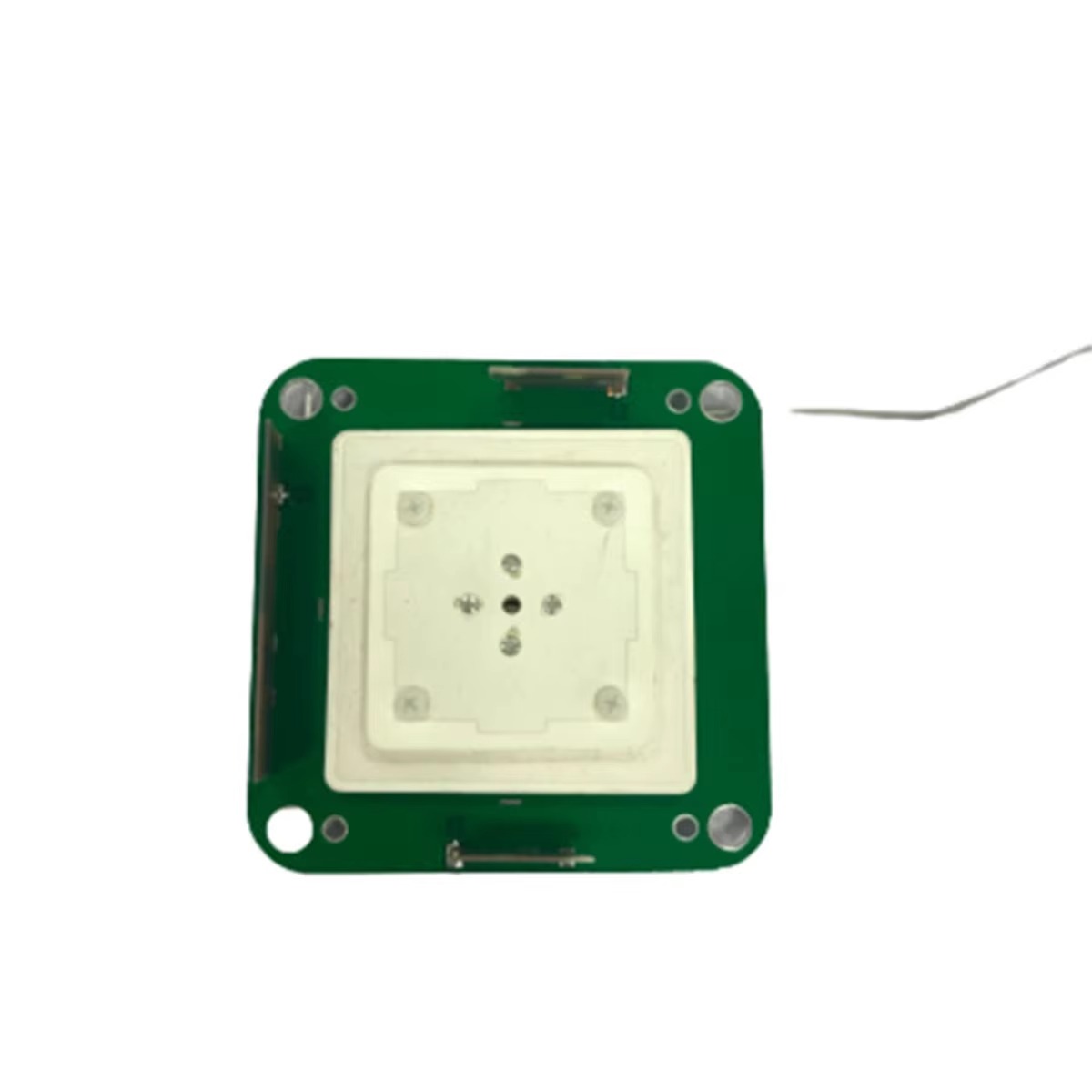

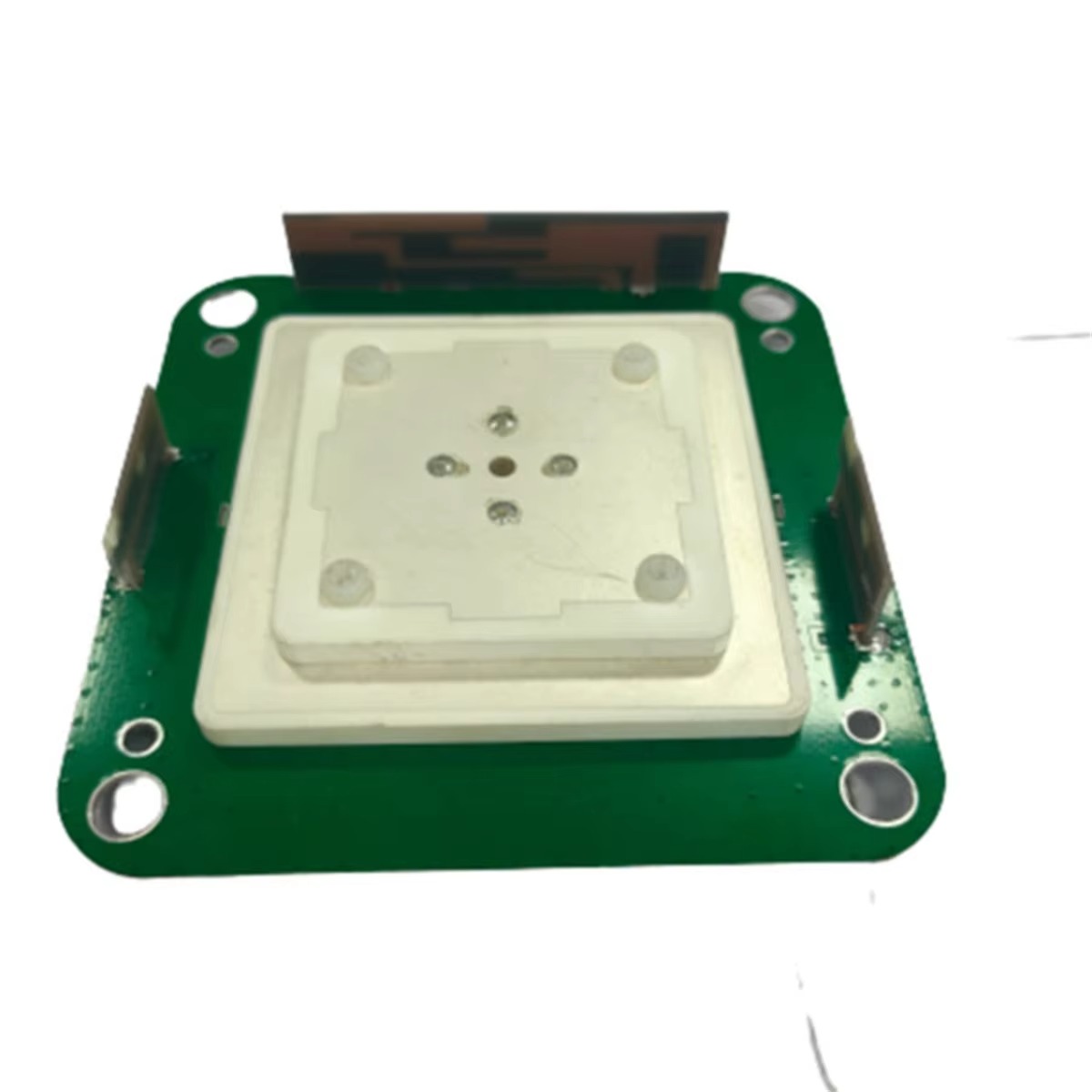

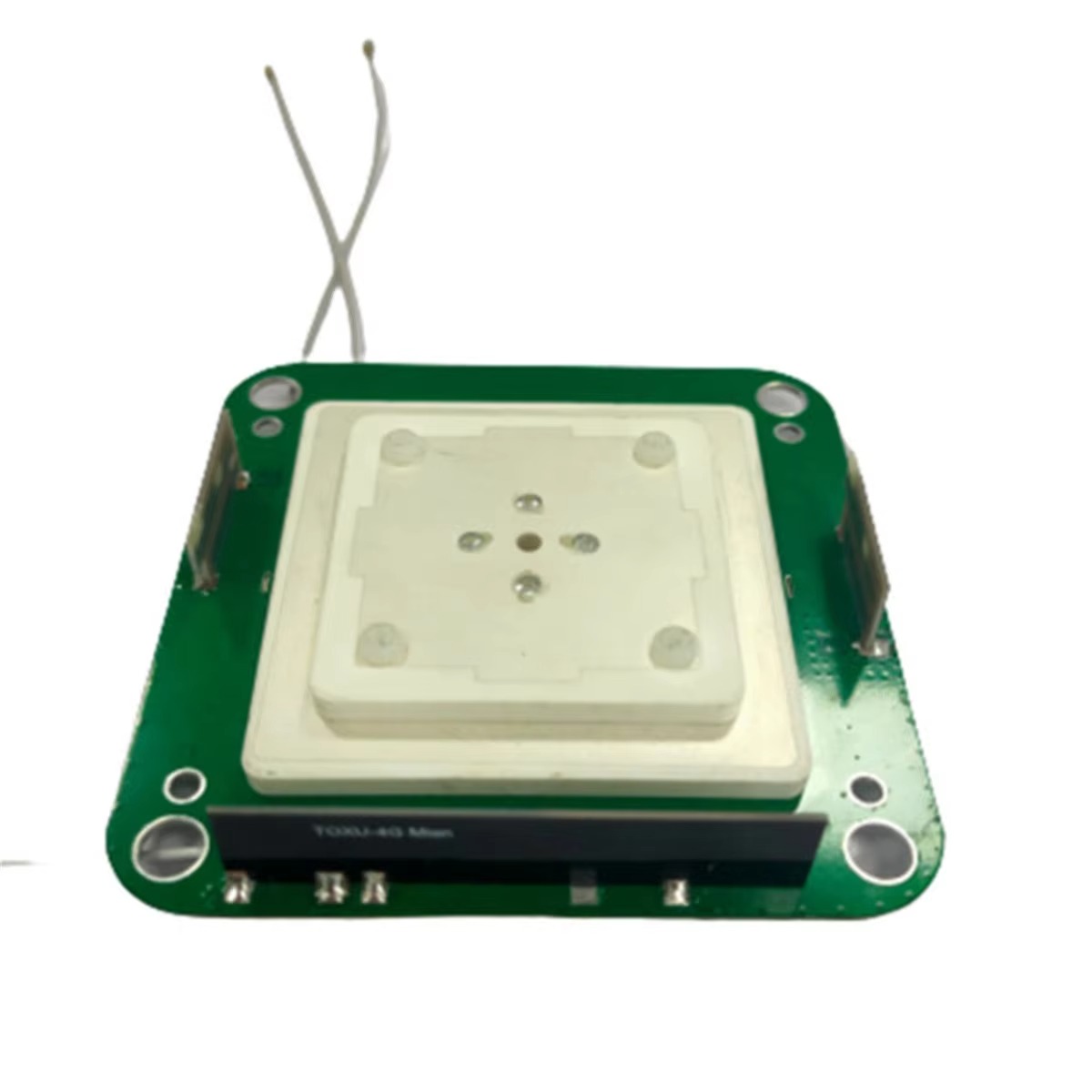

The TX-G016 is a full-band integrated GNSS RTK combination antenna designed for high precision measurement and industrial positioning equipment.

The antenna supports GPS, GLONASS, BeiDou and Galileo satellite systems while integrating cellular communication, WiFi and Bluetooth frequency bands, helping simplify multi-antenna installation in complex systems.

With multi-feed point technology, high gain performance and low phase center error, TX-G016 provides stable signal reception for surveying, mapping, navigation and monitoring applications.

Key Features

Multi-System GNSS Support

Supports GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1/B2/B3 and Galileo E1/E2/E5a/E5b frequency bands.

RTK Surveying Antenna Design

Designed for RTK measurement equipment requiring stable satellite signal reception and phase center performance.

Integrated Full-Band Communication

Integrates LTE, WCDMA, GSM900/GSM1800, WiFi and Bluetooth antenna functions.

Multi-Feed Point Structure

The multi-feed design reduces phase center deviation and helps improve measurement accuracy.

Compact Industrial Design

Small size and lightweight structure make it suitable for embedded industrial equipment.

Technical Specifications

Applications

RTK Surveying Equipment

Suitable for surveying instruments, mapping equipment and GNSS measurement systems.

Precision Agriculture

Applicable to agricultural machinery guidance and smart farming positioning systems.

Deformation Monitoring

Used in monitoring systems requiring long-term GNSS positioning stability.

Marine Navigation

Suitable for marine positioning and navigation equipment.

Industrial Navigation

Applicable to autonomous equipment, robotics and industrial positioning platforms.

System Integration

TX-G016 Combination Antenna

↓

RTK GNSS Receiver

↓

Communication Module

↓

Industrial Controller

↓

Application System

Complete RF Hardware Solution Support

GNSS Antenna Solution

TOXU provides high precision GNSS antennas including RTK patch, helical and customized positioning antennas.

Communication Antenna Integration

Supports LTE, WiFi, Bluetooth and other wireless antenna integration solutions.

RF Cable Assembly

Customized RF cable and connector solutions are available for system integration.

OEM Manufacturing

TOXU supports antenna design, RF tuning, prototype development and mass production.

Why Choose TOXU

TOXU specializes in GNSS antennas, communication antennas, RF cable assemblies and integrated RF hardware solutions.

With antenna engineering, RF tuning and manufacturing capability, TOXU supports global OEM customers from prototype to mass production.

FAQ

Is TX-G016 suitable for RTK applications?

Yes. TX-G016 is designed for GNSS RTK surveying and industrial positioning applications.

Does this antenna support cellular communication?

Yes. It integrates LTE, WCDMA, GSM, WiFi and Bluetooth antenna functions.

Can TOXU customize connectors and cables?

Yes. Connector type, cable length and antenna configuration can be customized.
