Overview

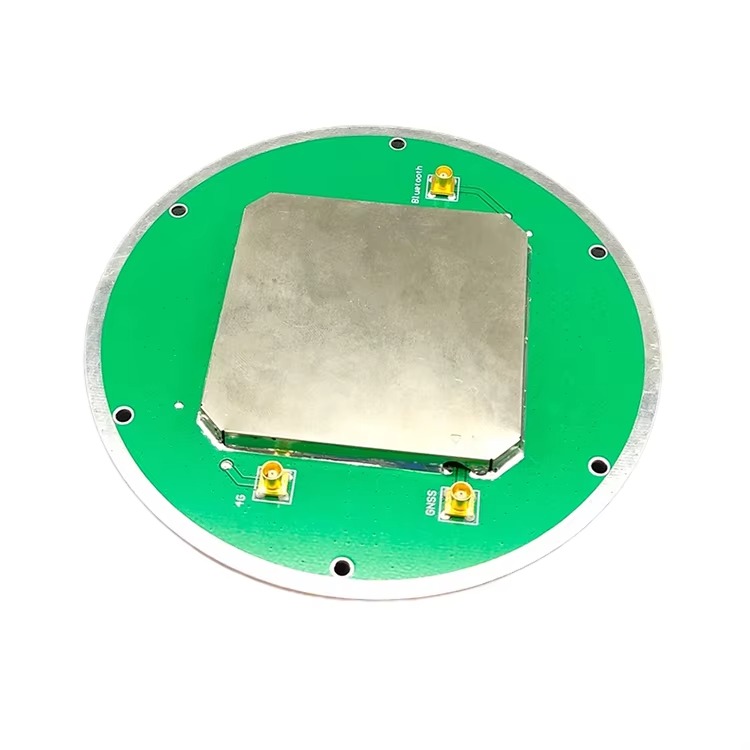

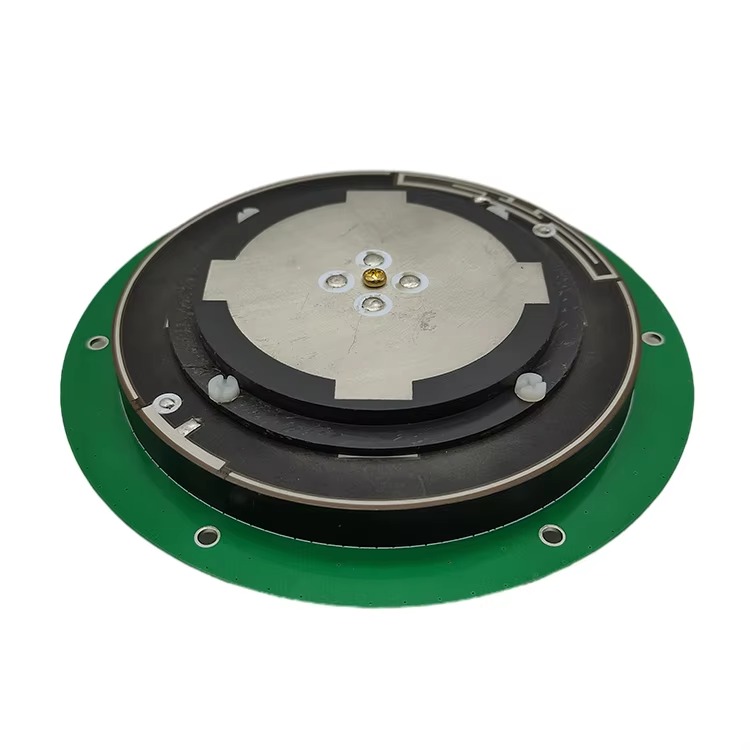

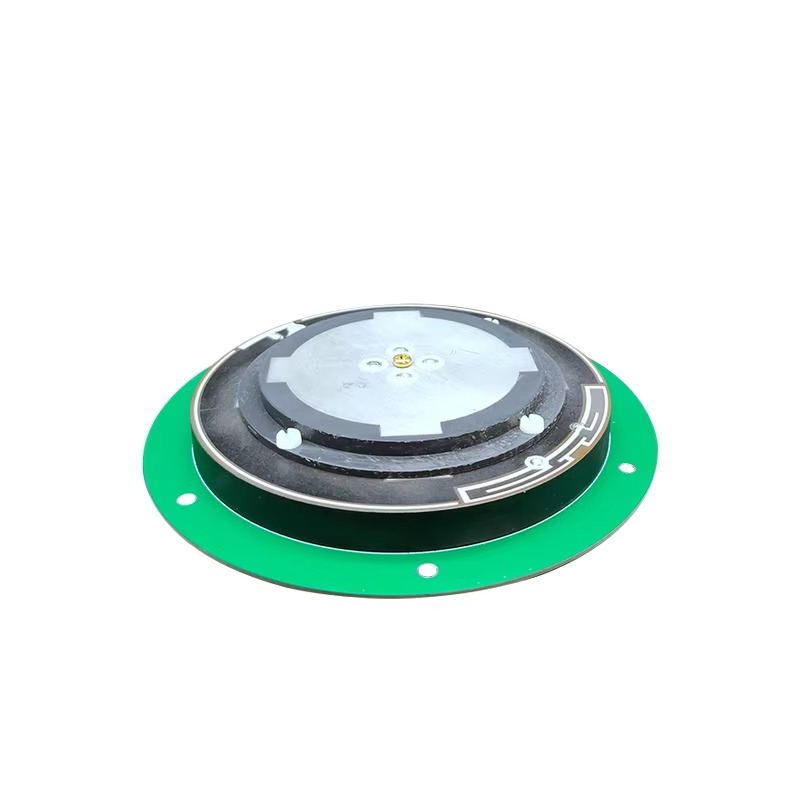

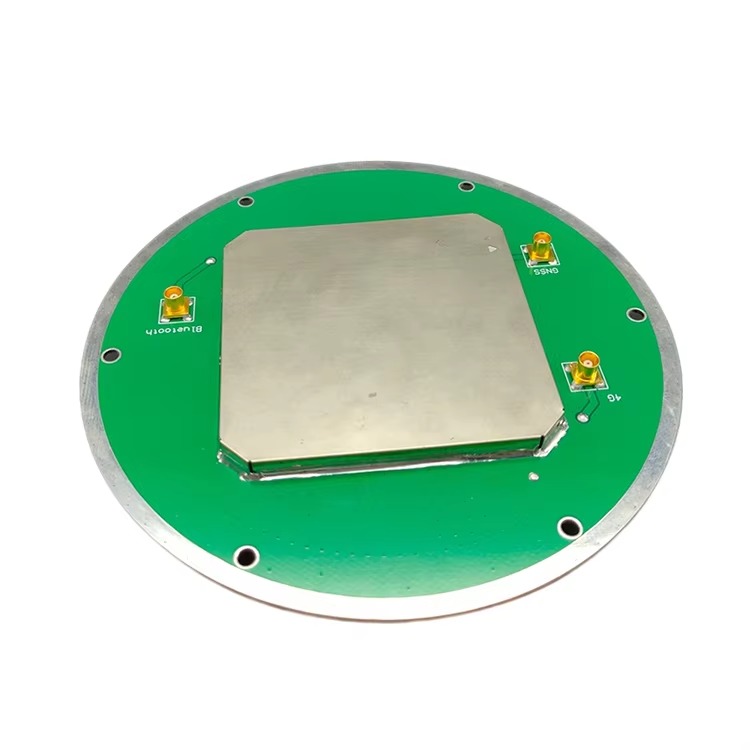

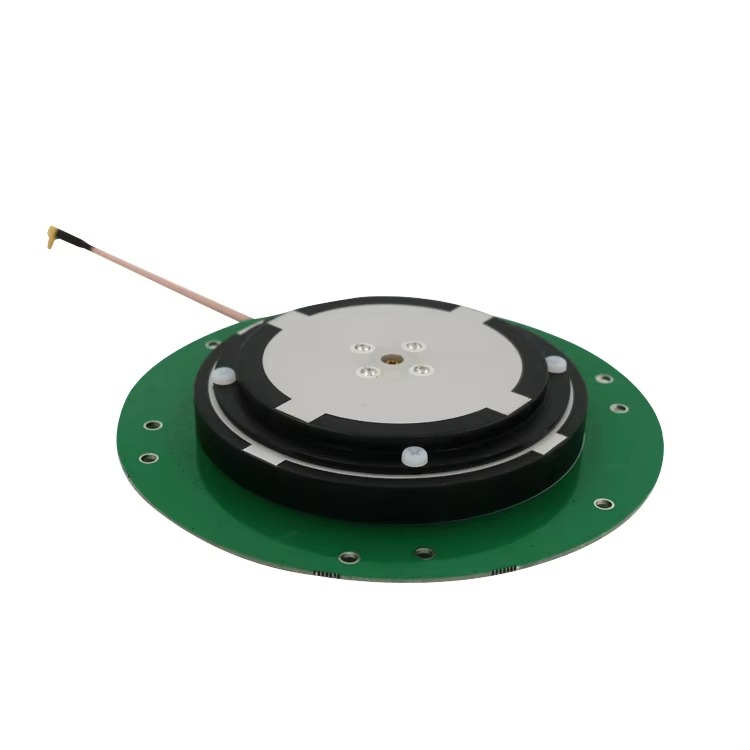

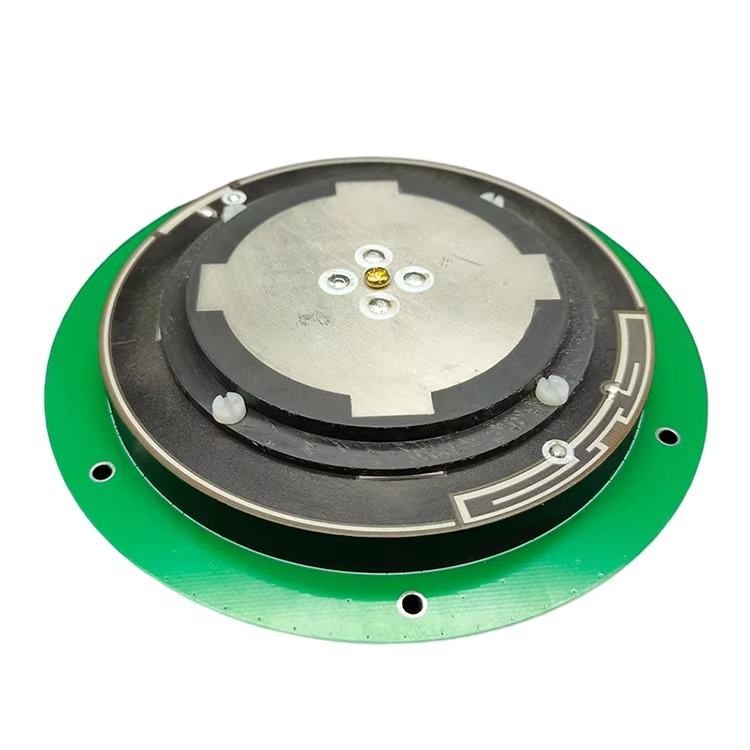

The TX-G019 is a high precision multi-band GNSS RTK survey antenna designed for professional GNSS reference systems, CORS base stations and industrial measurement equipment.

Supporting GPS, GLONASS, BeiDou and Galileo multi-system reception, the antenna provides stable satellite signal performance for surveying, mapping and deformation monitoring applications.

The antenna adopts a multi-feed point design to minimize the deviation between the phase center and geometric center, helping reduce measurement errors caused by phase center variation.

In addition to GNSS positioning bands, TX-G019 integrates cellular communication and wireless frequency bands, providing a complete antenna solution for modern GNSS equipment.

Key Features

Multi-Constellation GNSS Support

Supports GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1/B2/B3 and Galileo E1/E2/E5a/E5b frequency bands.

Designed for CORS Base Station

Suitable for reference stations, surveying infrastructure and professional GNSS measurement systems.

Low Phase Center Error

Multi-feed point antenna structure helps achieve phase center error ≤2.0mm.

Integrated Full-Band Communication

Supports GSM900/GSM1800, WCDMA2100, 4G LTE, WiFi and Bluetooth antenna functions.

Stable Low Elevation Reception

High gain antenna element design provides reliable satellite signal reception in challenging environments.

Technical Specifications

Applications

CORS Base Station

Designed for GNSS reference stations and correction service infrastructure.

Surveying and Mapping

Suitable for professional surveying instruments and geospatial measurement systems.

Deformation Monitoring

Used for long-term monitoring systems requiring stable GNSS positioning.

Precision Agriculture

Applicable to agricultural positioning and guidance systems.

Industrial Navigation

Suitable for autonomous equipment and industrial positioning platforms.

System Integration

TX-G019 GNSS Survey Antenna

↓

GNSS Receiver / CORS System

↓

Correction Data Network

↓

Surveying Application

Complete RF Hardware Solution Support

GNSS Antenna Engineering

TOXU provides high precision GNSS antenna solutions including RTK patch, helical and customized antenna designs.

RF Cable Assembly

Customized RF cables and connector assemblies are available for GNSS equipment integration.

Communication Antenna Integration

Supports cellular, WiFi and Bluetooth antenna integration solutions.

OEM Manufacturing

TOXU supports antenna design, RF tuning, prototype development and mass production.

Why Choose TOXU

TOXU specializes in GNSS antennas, communication antennas, RF cable assemblies and integrated RF hardware solutions.

With professional antenna engineering and manufacturing capability, TOXU supports global customers from prototype validation to volume production.

FAQ

Is TX-G019 suitable for CORS applications?

Yes. TX-G019 is designed for CORS base stations, reference stations and professional GNSS measurement systems.

Does TX-G019 support RTK positioning?

Yes. The antenna supports multi-band GNSS reception for RTK positioning systems.

Can TOXU customize this antenna?

Yes. Cable length, connector type and frequency configurations can be customized.
