Overview

The TOXU TX-G012 is a active dual/multi-frequency GNSS ceramic patch antenna designed for high-precision positioning. Supporting GPS L1/L5, GLONASS, BeiDou, and Galileo, it delivers centimeter-level accuracy required for RTK surveying, UAV navigation, and professional geodetic applications.

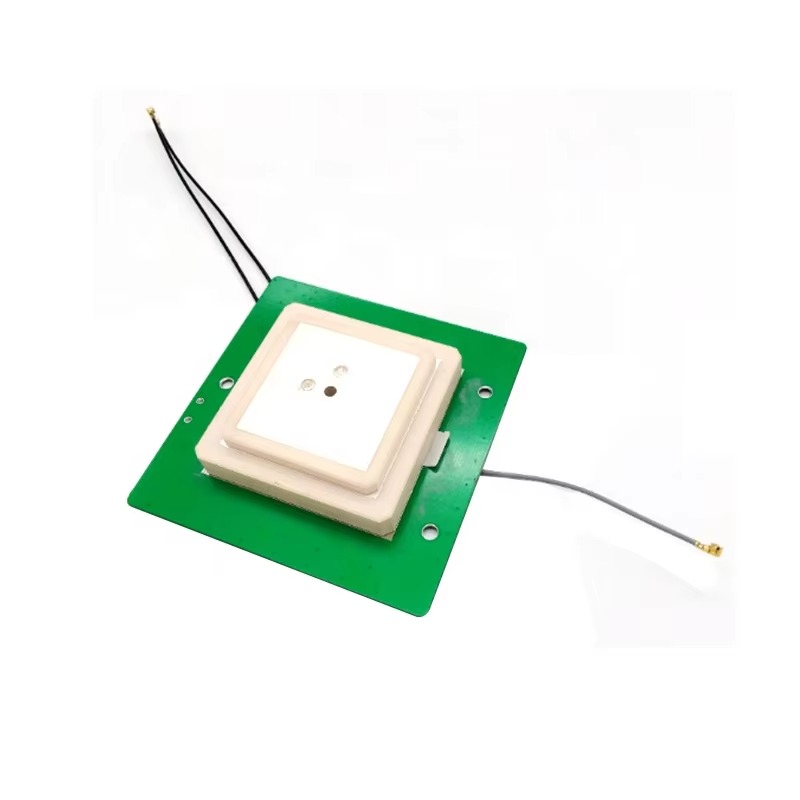

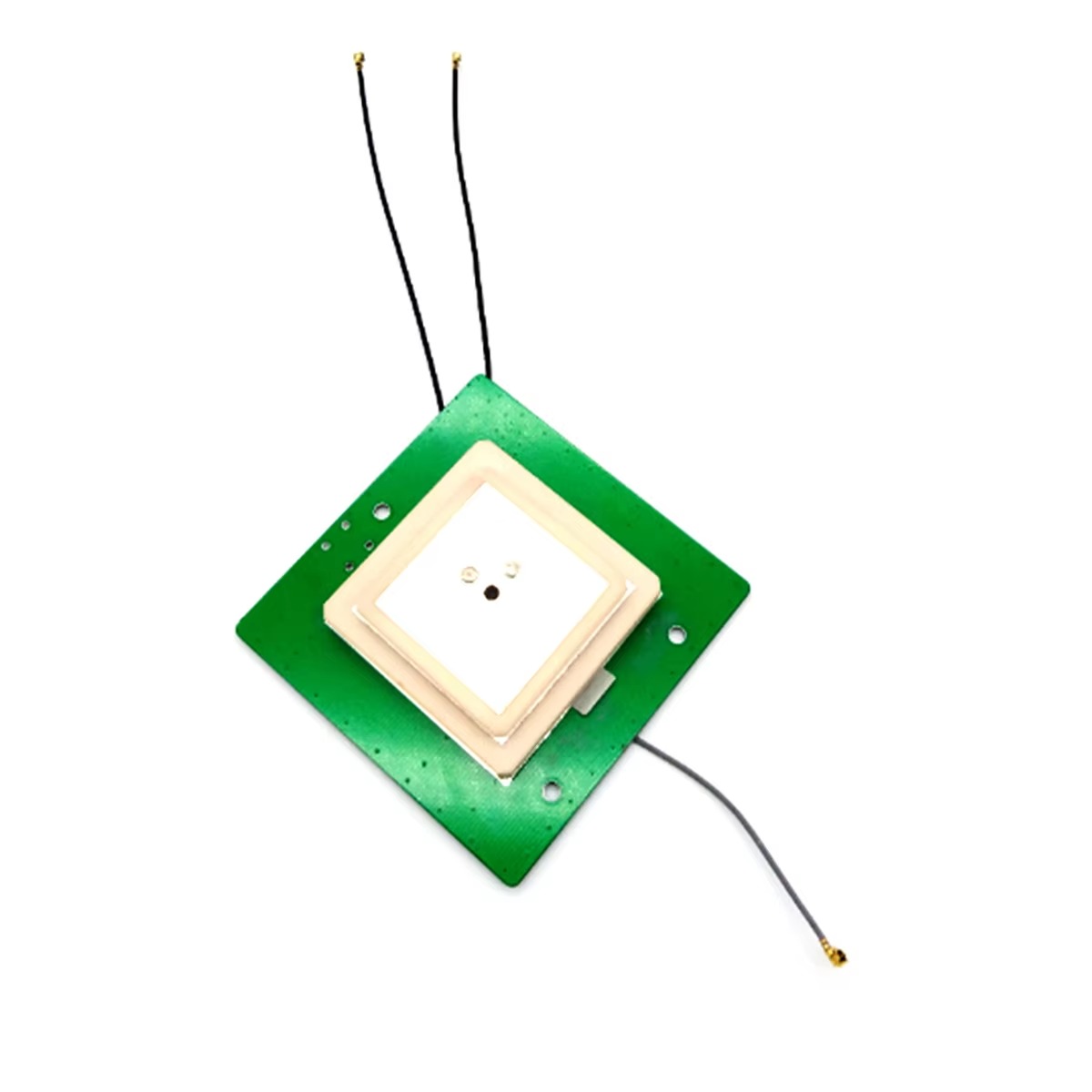

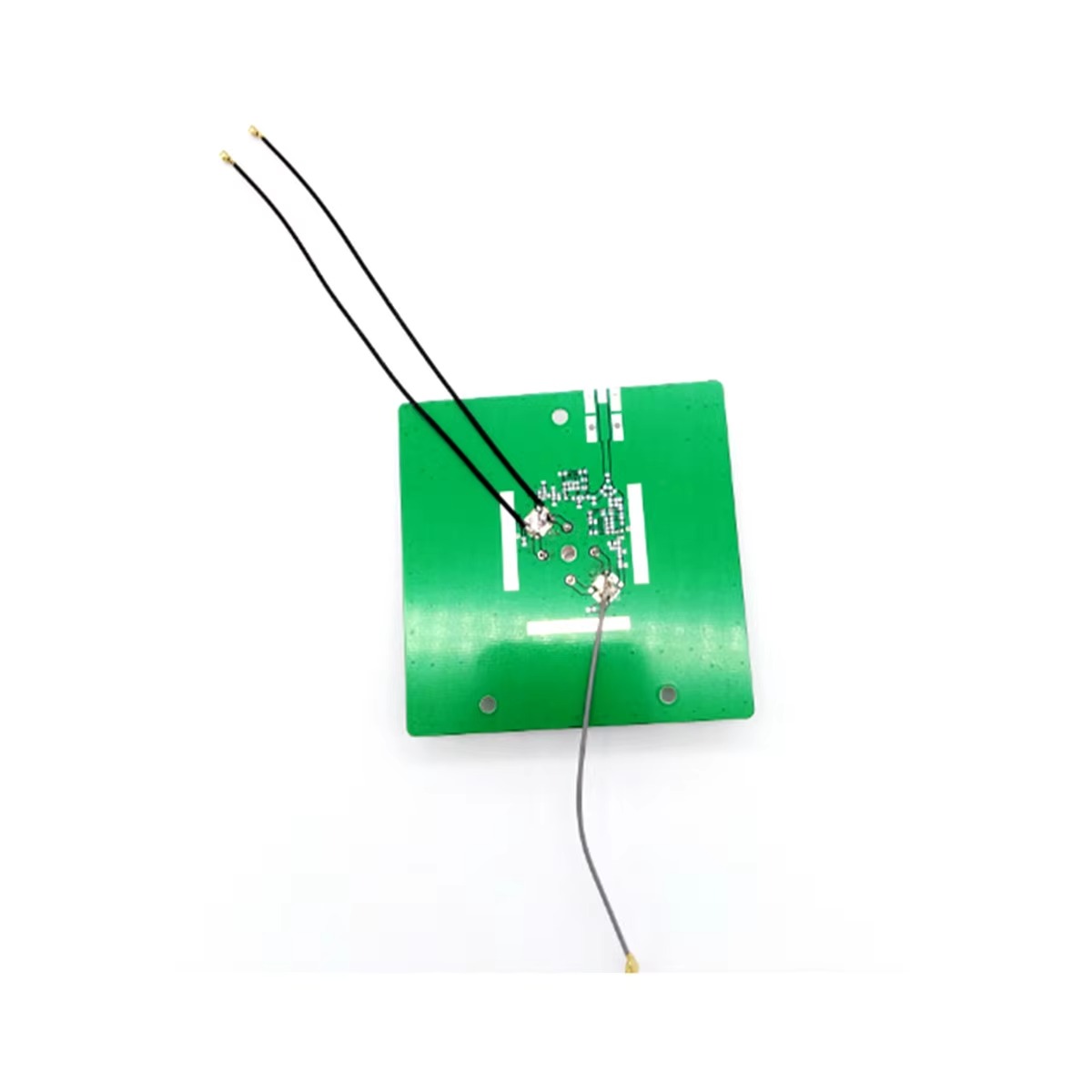

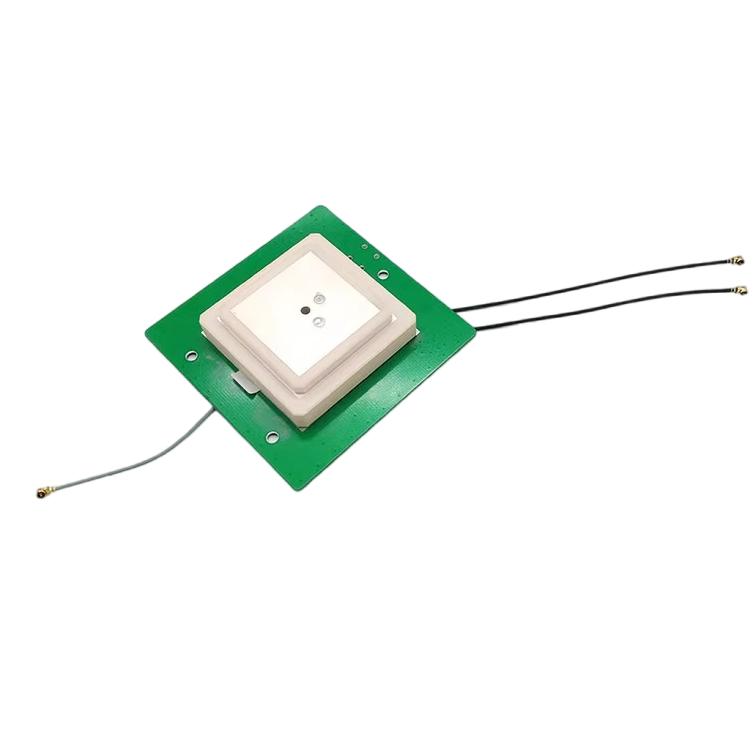

Built with a large 70 × 70 mm PCB and high-grade ceramic material, the TX-G012 achieves superior signal reception, low noise figure (≤1.8 dB), and active gain up to 20 ± 3 dB. It ensures stable satellite lock even in challenging urban or agricultural environments. The antenna is RHCP polarized with excellent axial ratio (<3 dB), reducing multipath interference for reliable performance.

Engineered for integration, it offers multiple coaxial cable options (RF1.13 / RF1.37 / RF1.78 / RF0.81) with SMA, MCX, MMCX, HRS, or IPX connectors. Customization services include frequency tuning, PCB optimization, and enclosure design, making it suitable for a wide range of professional GNSS systems.

Technical Specifications

Applications

• RTK surveying and CORS base stations

• UAVs and drones for precision mapping

• Automotive navigation and ADAS integration

• Wearable devices requiring compact high-accuracy GNSS

Why Choose TOXU

• Over 13 years of GNSS antenna R&D and manufacturing experience

• IATF16949 & ISO9001 certified automotive-grade production

• In-house RF testing and reliability validation

• OEM/ODM flexibility: size tuning, ground plane optimization, labeling

• Global support for automotive, IoT, and embedded GNSS projects

FAQ – Frequently Asked Questions

• Q1: Are you a manufacturer?
  A1: Yes. TOXU has over 13 years of experience in antenna R&D, design, and manufacturing. We are a factory, not a trading company.

• Q2: How can I get samples?
  A2: Samples are free of charge; you only need to cover the shipping cost.

• Q3: How do I place an OEM order?
  A3: After confirming product details, packaging, quantity, unit price, delivery, and payment terms, both parties sign an agreement. The buyer issues a formal PO, and we provide a PI with terms and conditions.

• Q4: What are your payment terms?
  A4: For samples or small orders: 100% payment before shipment. For bulk orders: 70% T/T deposit, balance paid before shipment.

• Q5: How long is your delivery time?
  A5: Samples: 7–15 working days after full payment. Bulk orders: 15–35 working days after receiving the deposit.

• Q6: What warranty do you provide?
  A6: All products come with a 1-year warranty.

• Q7: How do you handle after-sales service?
  A7: If you experience any issues after receiving the goods, please contact us immediately. Our team will provide a prompt solution.

• Q8: Can you support special designs or custom functions?
  A8: Yes. Our R&D team can develop customized solutions to meet your requirements.
