1)High Sensitivity: G MOUSE exhibits exceptional sensitivity, allowing it to accurately detect and track even the slightest movements, making it ideal for precise navigation and control in various applications.
2)Low Power Consumption: G MOUSE is designed to operate efficiently with minimal power consumption, making it suitable for battery-powered devices and applications where energy efficiency is crucial.
3)Compact Form Factor: G MOUSE is compact and lightweight, making it easy to integrate into small electronic devices without adding significant bulk or weight, thus offering a high degree of flexibility in design and application.
| Characteristics | Specification |
| Frequency Range | 1575MHz，1602MHz |
| Center Frequency | 1575 MHz |
| Bandwidth (10dB return loss) | 20 MHz |
| Zenith Gain | 1561.098MHZ | 3.0 dBic typ. |
| 1575.42 MHz | 3.0 dBic typ. |
| Polarization | R.H.C.P. |
| Characteristics | Specification |
| Frequency Range | 1575MHz,1602MHz |
| Gain | 27 dB TYP |
| Noise Figure | <1.5 dB |
| Output V.S.W.R | 2.0 max |
| Operation Voltage | 3.3 V |
| Current | <20 mA |
| Characteristics | Specification |
| Frequency Range | 1575MHz,1602MHz |
| Zenith Gain | 29 dBic typ |
| Output Impedance | 50 ohm |
| Output VSWR | 2.0 typ |
| Operation Voltage | 3.3V |
| Current | <20 mA |

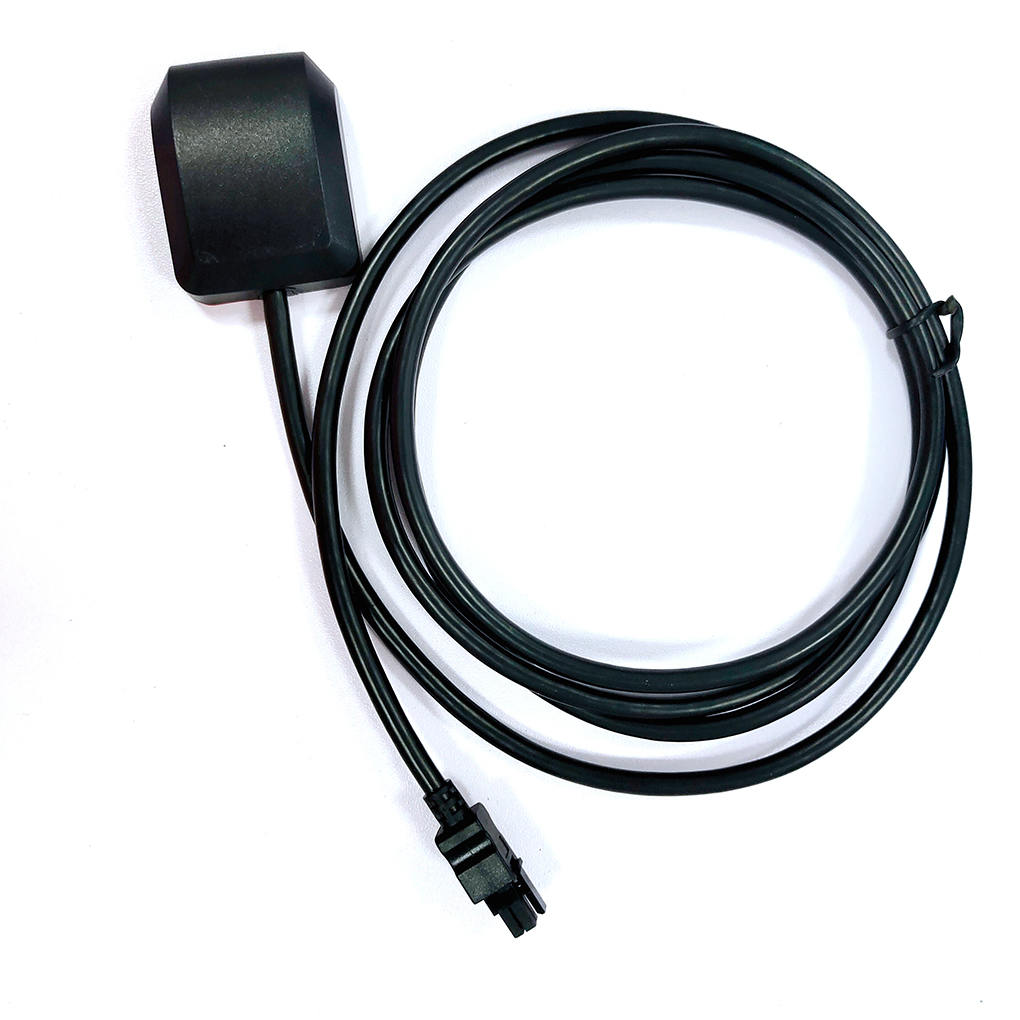

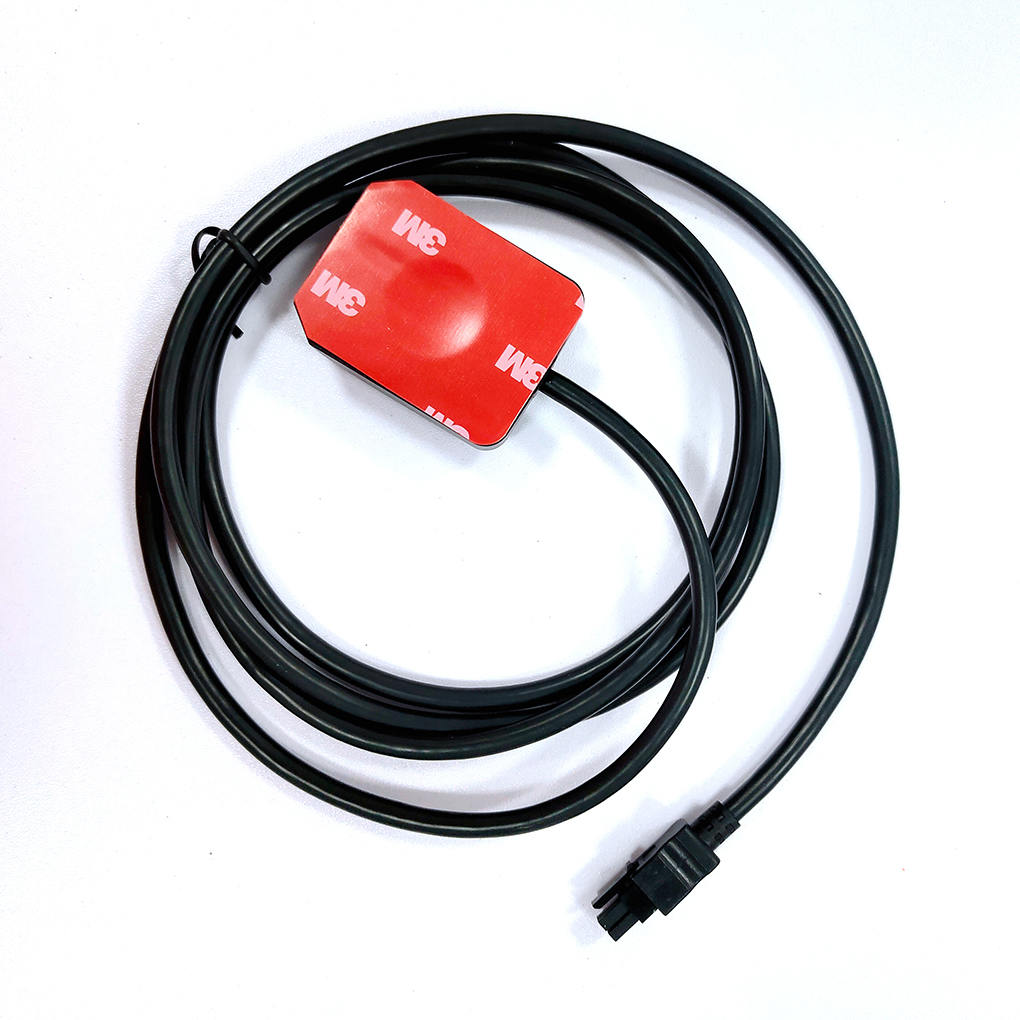

| Antenna Unit (with radome, connector, and cable – refer to an attached drawing) |
| Dimensions | 49.5*38*17.5mm |
| Radome | #S1W |
| Output Connector | Mini fakra |
| Cable | RG-174 (black) |
| Storage Temperature | -40 ~ +85°C |
| Relative Humidity | 20 ~ 95% RH |
| Recommended Storage condition | Store in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max. |
