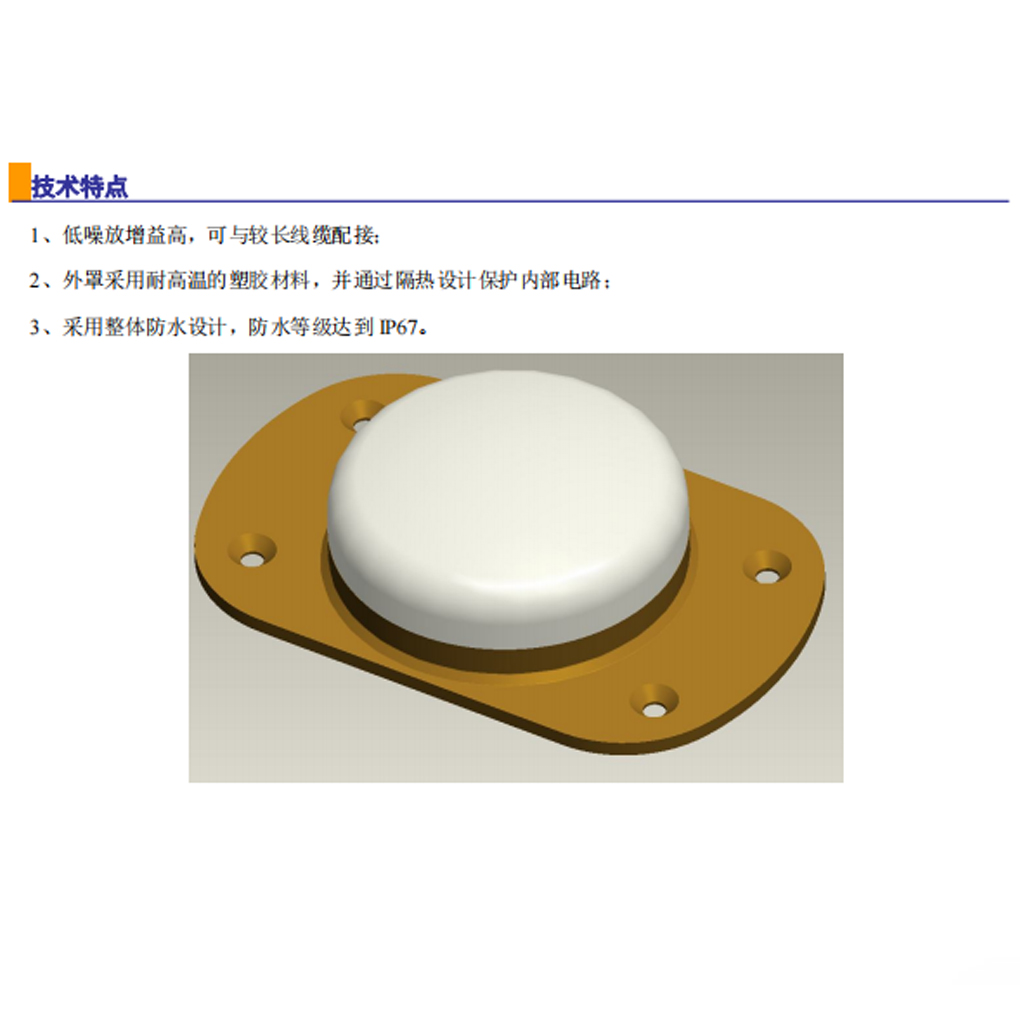

1.High Phase Center Stability: The antenna part adopts a multi-feed point design and a completely symmetrical antenna structure, which has a relatively stable phase center and reduces the impact of the antenna on measurement errors.
2.Tracking in Challenging Environments : The antenna has high gain, wide pattern beam, and good reception of signals at low elevation angles. It can receive stars normally in some situations with severe obstruction.
3.Strong anti-interference ability: Adopting pre-filtering and multi-stage filtering scheme, it can effectively suppress out-of-band strong interference signals

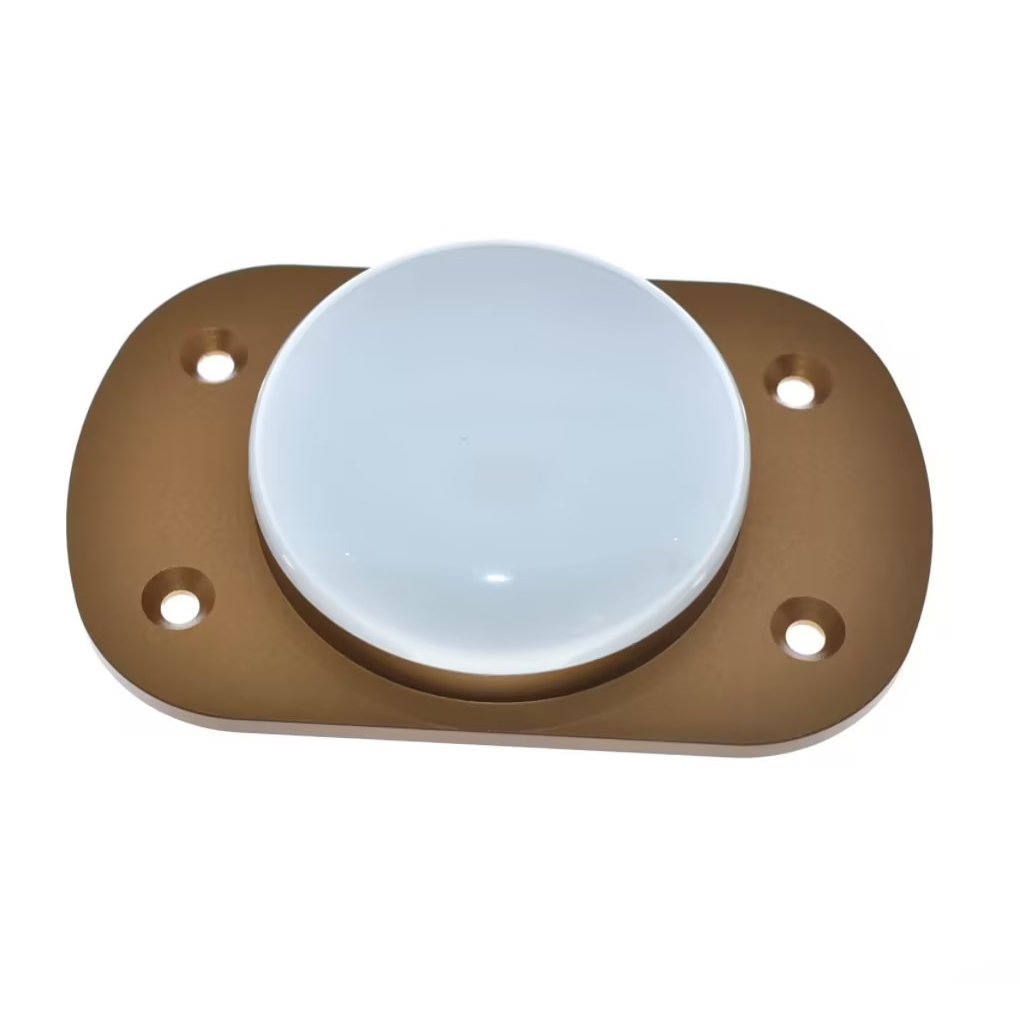

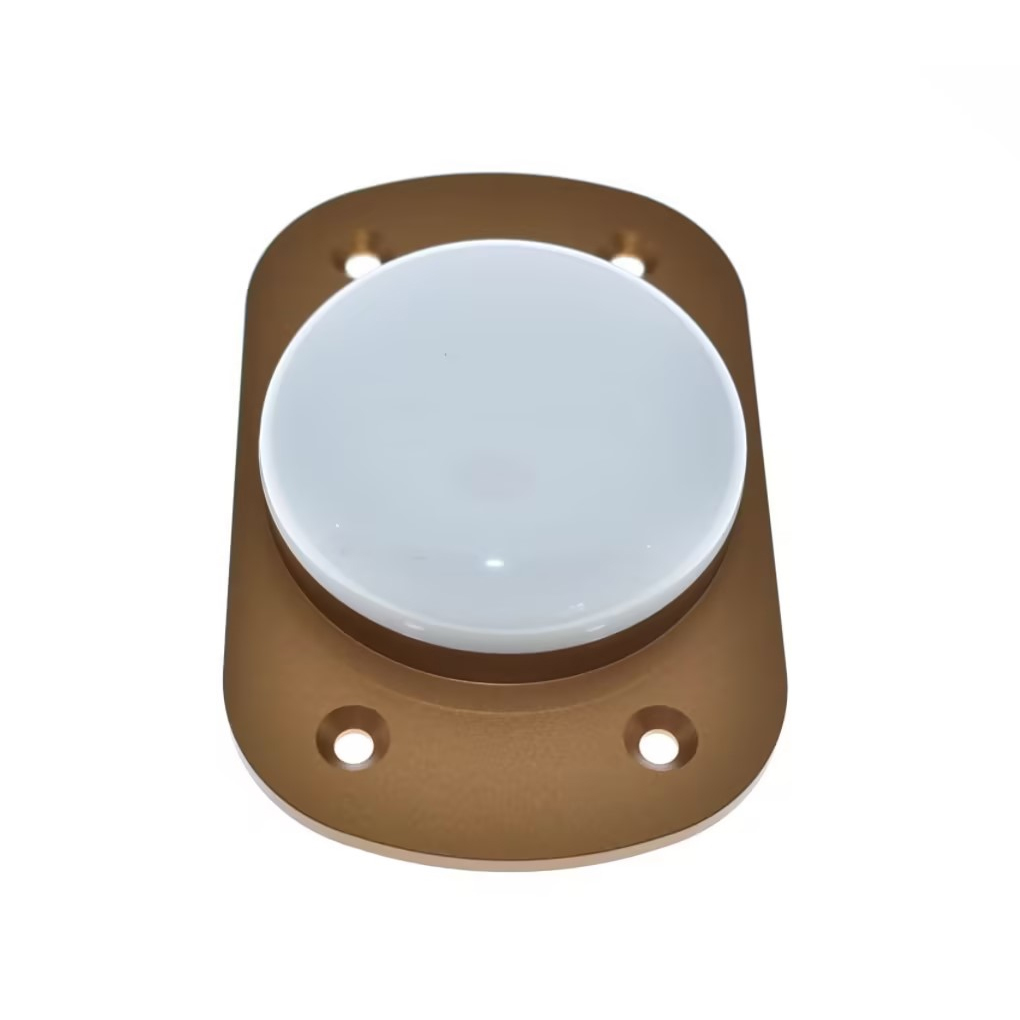

4.Compact, lightweight, low wind resistance UV: It ensures that the antenna can be used in harsh electromagnetic environments. It is compact, lightweight, and has low wind resistance. It also has an IP67 protection grade design and the outer casing effectively protects against ultraviolet radiation.
| Technical Parameters |
| Electrical Specifications |
| Frequency Range(MHz) | GPS：L1/L2/L5; BDS：B1/B2/B3; GLONASS：G1/G2/G3; Galileo：El/E5a/E5b L-Band |
| Polarization | RHCP |
| Gain (dBi) | 1164-1278mhz 3dbi 1520-1615mhz 4dbi |
| Axial Ratio（dB） | 90°≤3 |
| LAN |
| LNA Gain(dB) | 38±2 |
| V.S.W.R | <2.0 |
| Noise Figure (dB) | <1.5 |
| DC Voltage (V) | 3.3～12DVC |
| Current (mA) | <45 |
| Impedance(Ω) | 50 |
| Mechanical Specifications |
| Dimensions(mm) | 119.38mm*76.2mm*27.0mm |

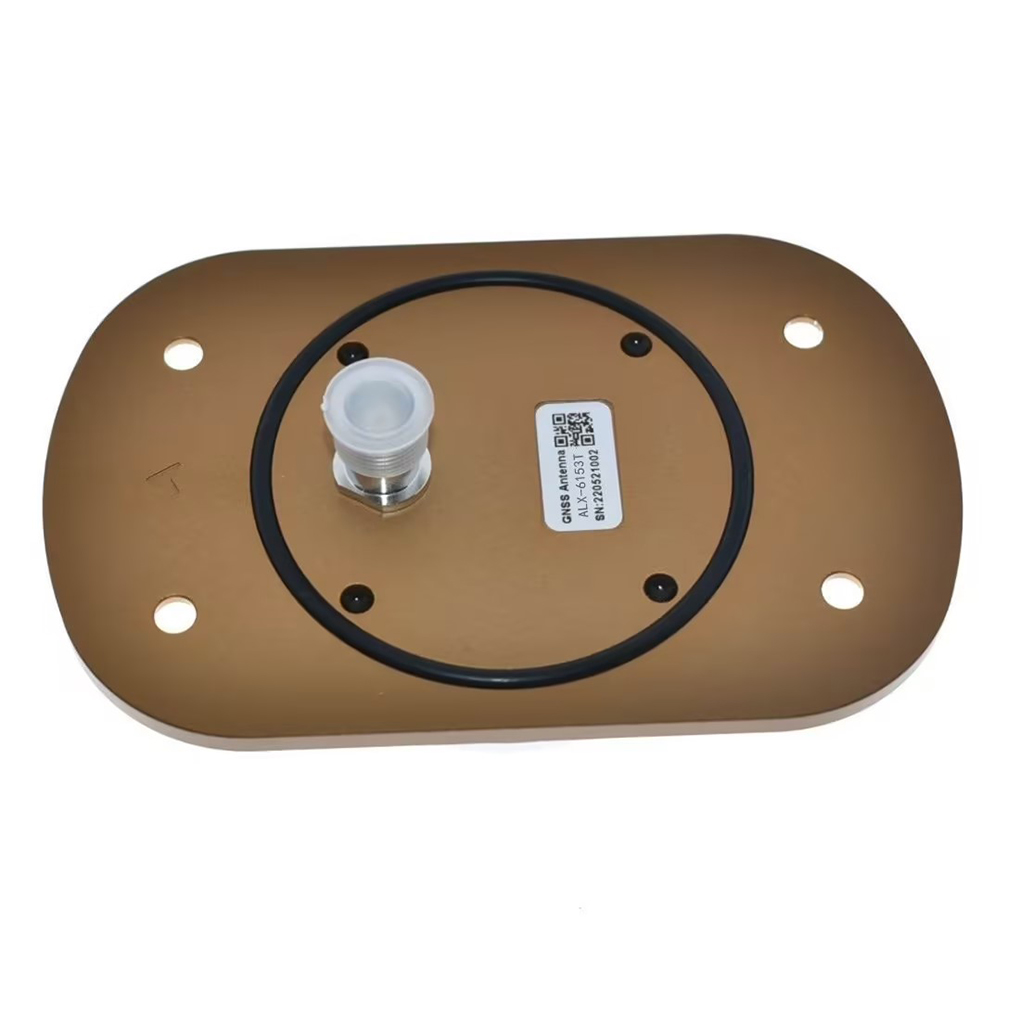

| Connector | TNC-Female |
| Weight（g） | <185g |
| Waterproof | IP67 |
| Radome | ABS+PC |
| Base | Aluminum alloy 6061-T6 |
| Attachment Method | Four screw holes |
| Vibration | 3 axis, sweep = 15 min, 10 to 200Hz sweep: 3G |
| Shock | Vertical axis:50G, other axes:30G |
| Environment Specifications |
| Relative Humidity | 95% |
| Operating Temperature (℃) | -40～+75 |
| Storage Temperature (℃) | -55～+85 |
