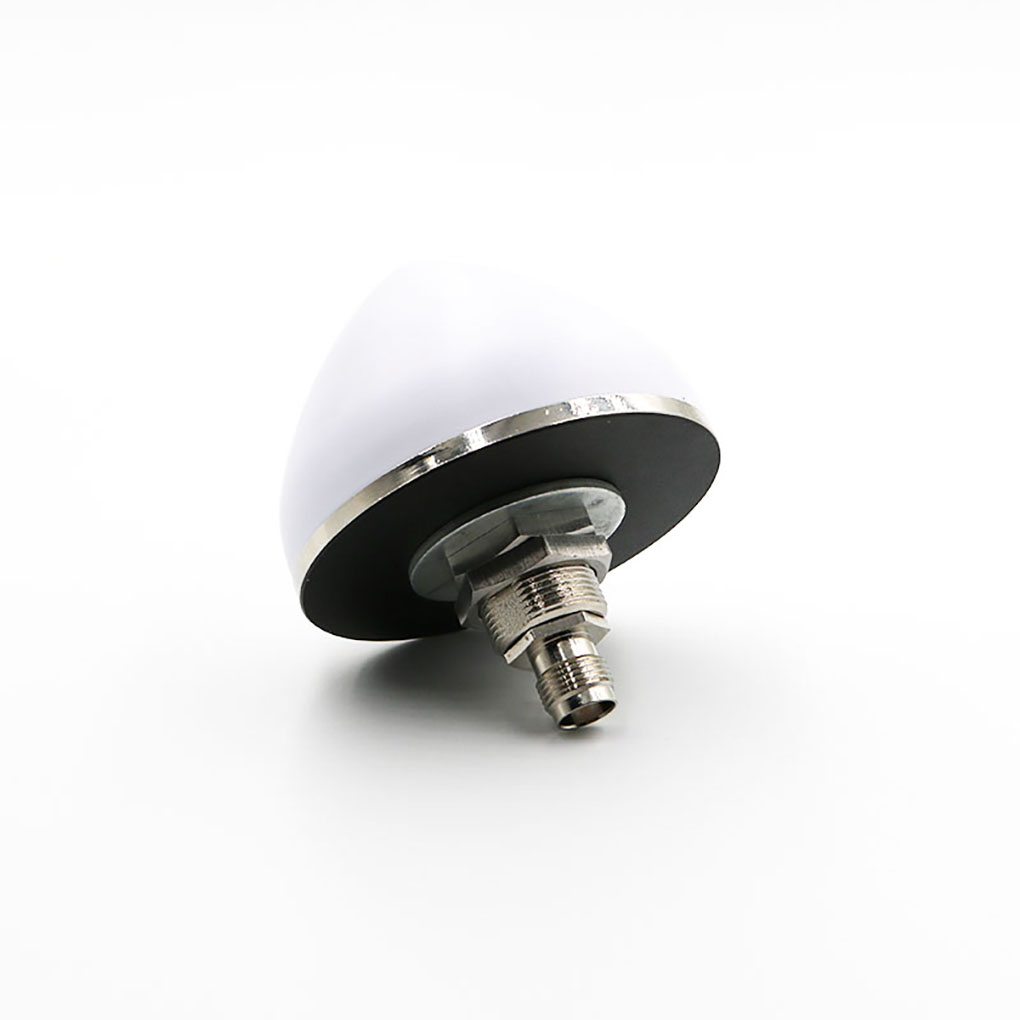

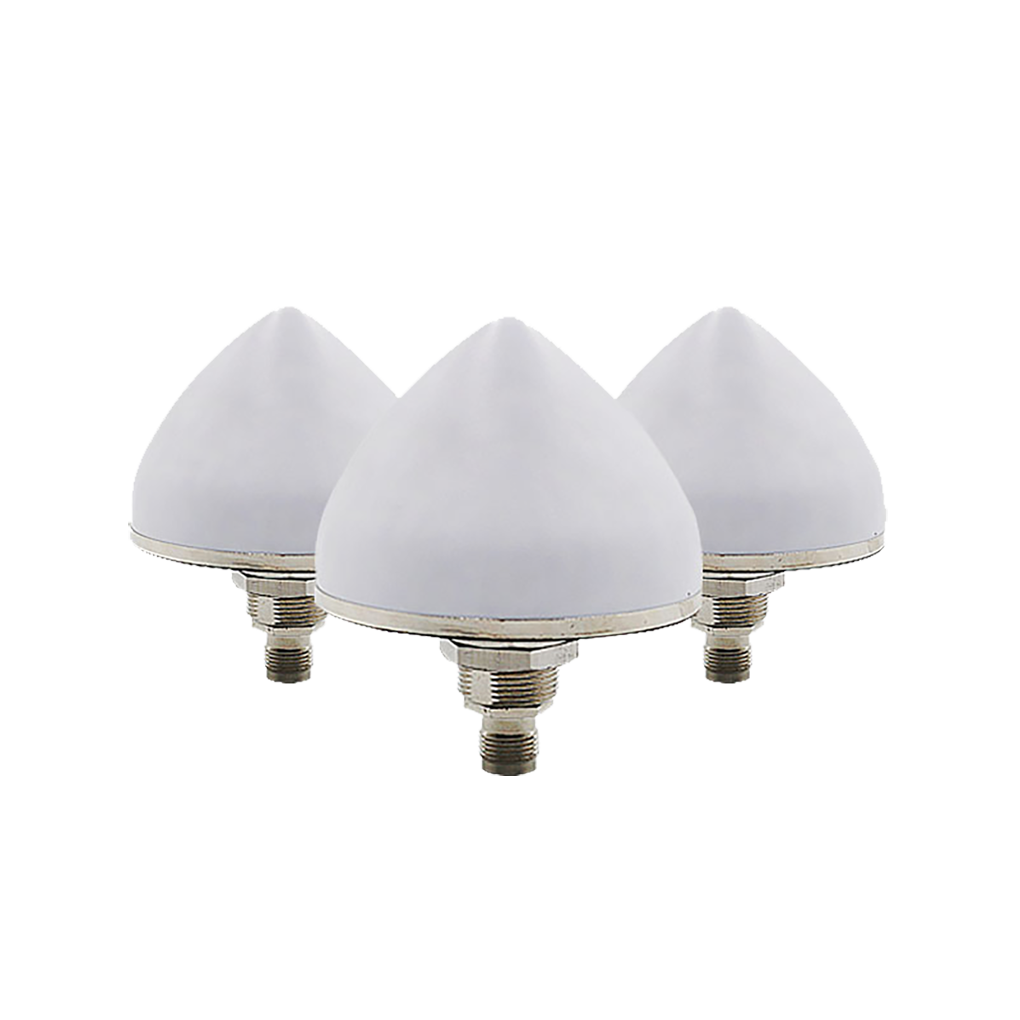

1. High Performance Timing Antenna: supports GPS, GLONASS and GALILEO. It’s especially designed for timing, mobile, precision and military applications. It can produce superior multipath signal rejection.
2. Reliable and Consistent Signal Tracking :The antenna has high gain, wide pattern beam, and good reception of low elevation angle signals.
3. Strong anti-interference ability: Equipped with high out-of-band suppression and low-noise discharge circuit, it has strong anti-interference ability and can be used in harsh electromagnetic environments.Durable,

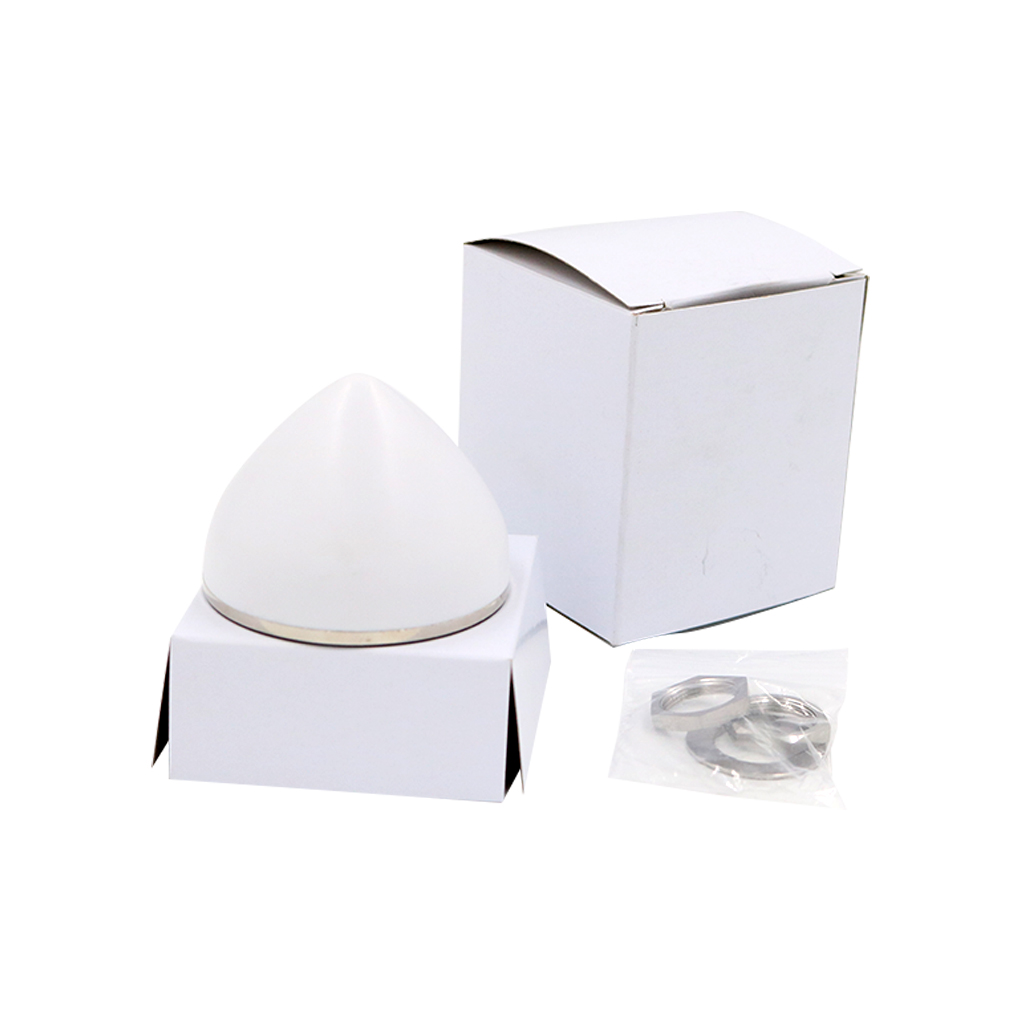

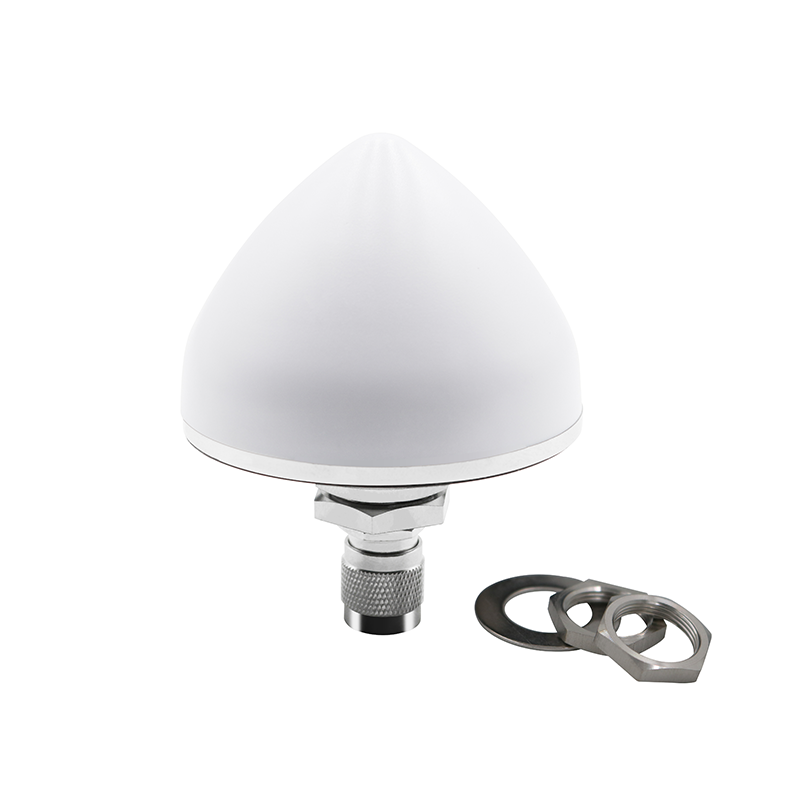

4. Compact and easy to install : The antenna has a compact structure and flexible installation methods, which can effectively reduce the installation difficulty for construction workers.
| Technical Parameters |
| Electrical Specifications |
| Frequency Range(MHz) | GPS@1575MZH/BD@1561MHZ /GLONASS@1602Mhz |
| Antenna ceramic size | 25*25*4 |
| Polarization | RHCP |
| Gain (dBi) | ＞3dbic |
| Axial Ratio（dB） | 90°≤3 |
| LAN |
| LNA Gain(dB) | 40±2(Typical) |
| V.S.W.R | <2.0 |
| Noise Figure (dB) | <1.5 |
| DC Voltage (V) | 3.3～12VDC |
| Current (mA) | <45mA |
| Impedance(Ω) | 50Ω |
| Mechanical Specifications |
| Dimensions(mm) | φ66.5*85mm |

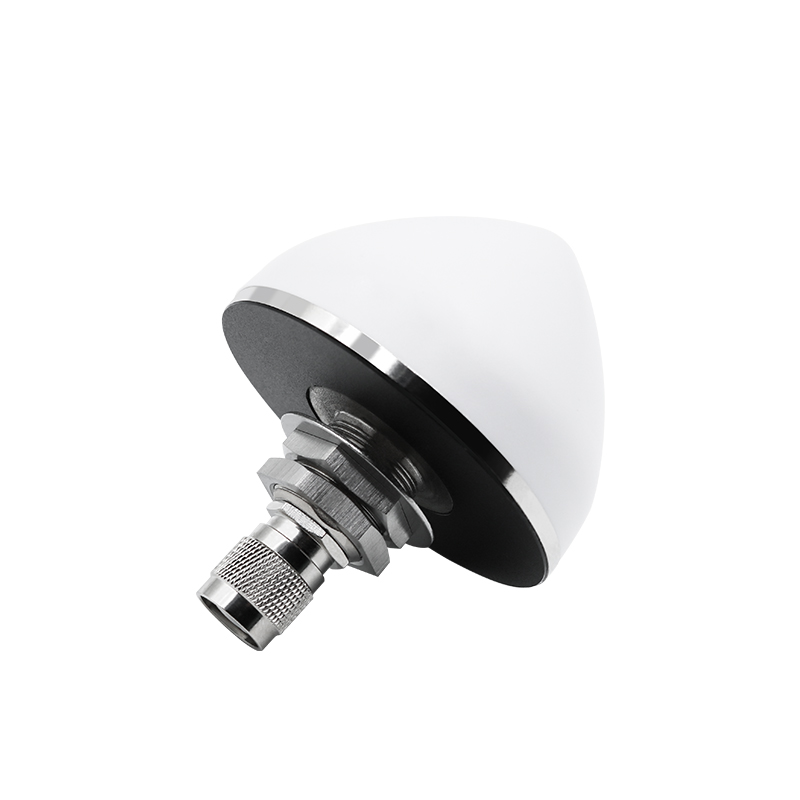

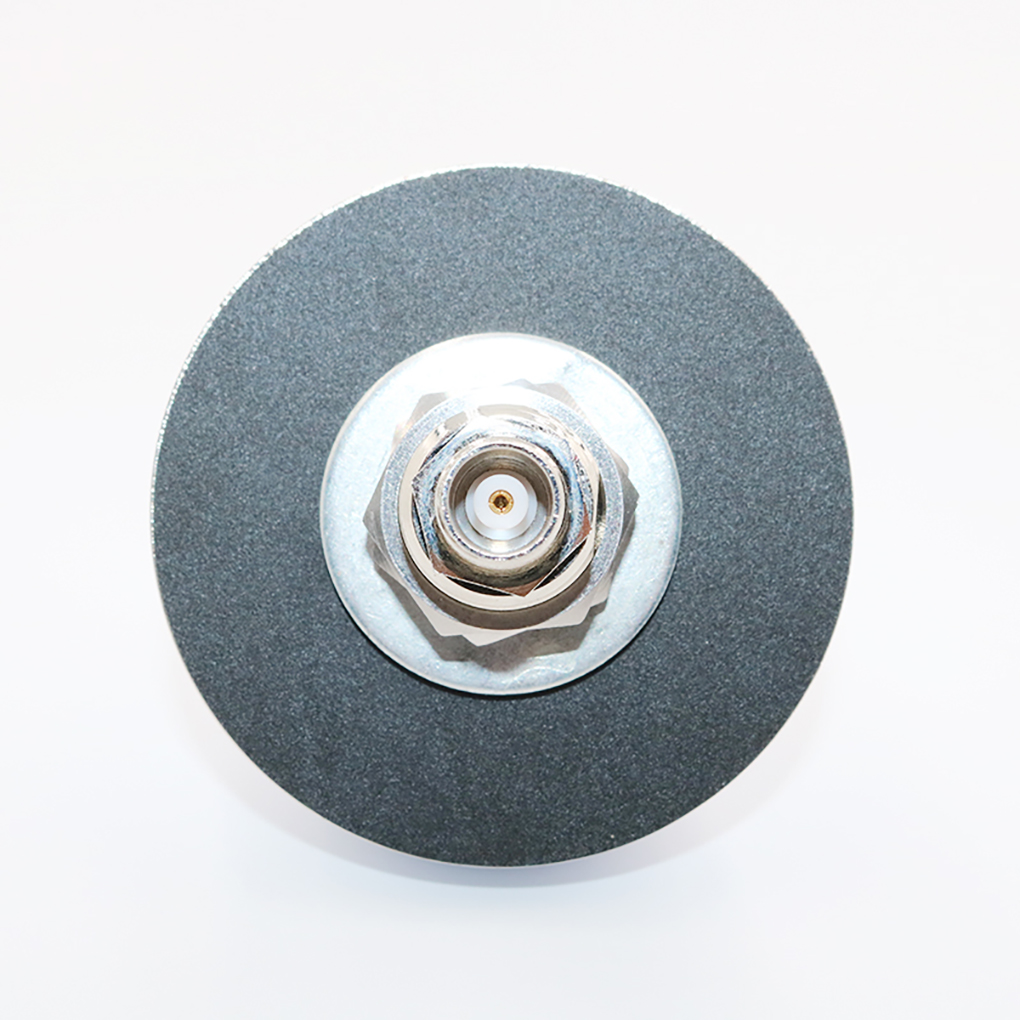

| Connector | TNC-Female,N -Male ,N-Female |
| Weight（g） | <150g |
| Waterproof | IP67 |
| ESD protection | 15KV air discharge |
| Salt Fog/ Spray | MIL-STD-810F SECTION 509.4 |
| Environment Specifications |
| Relative Humidity | 95% non-condensing |
| Operating Temperature (℃) | -40～+75 |
| Storage Temperature (℃) | -55～+85 |
