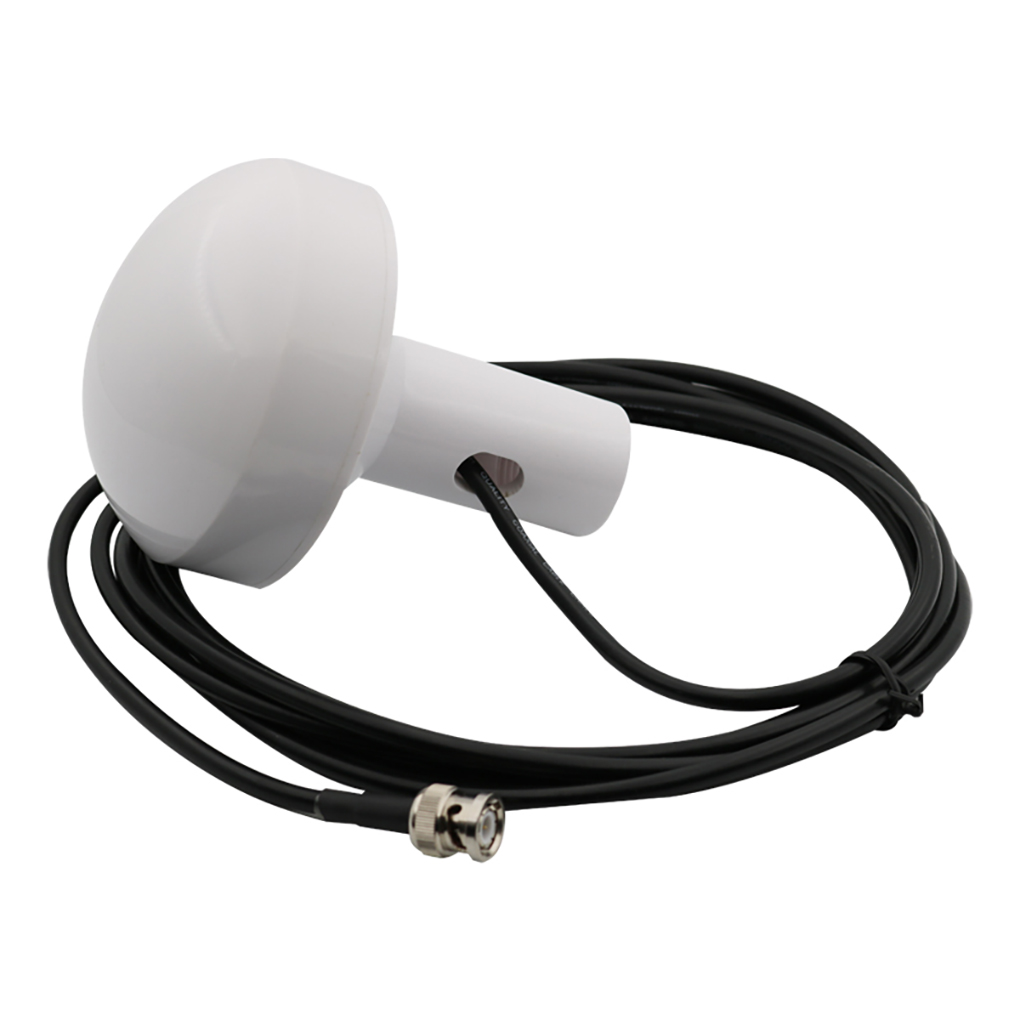

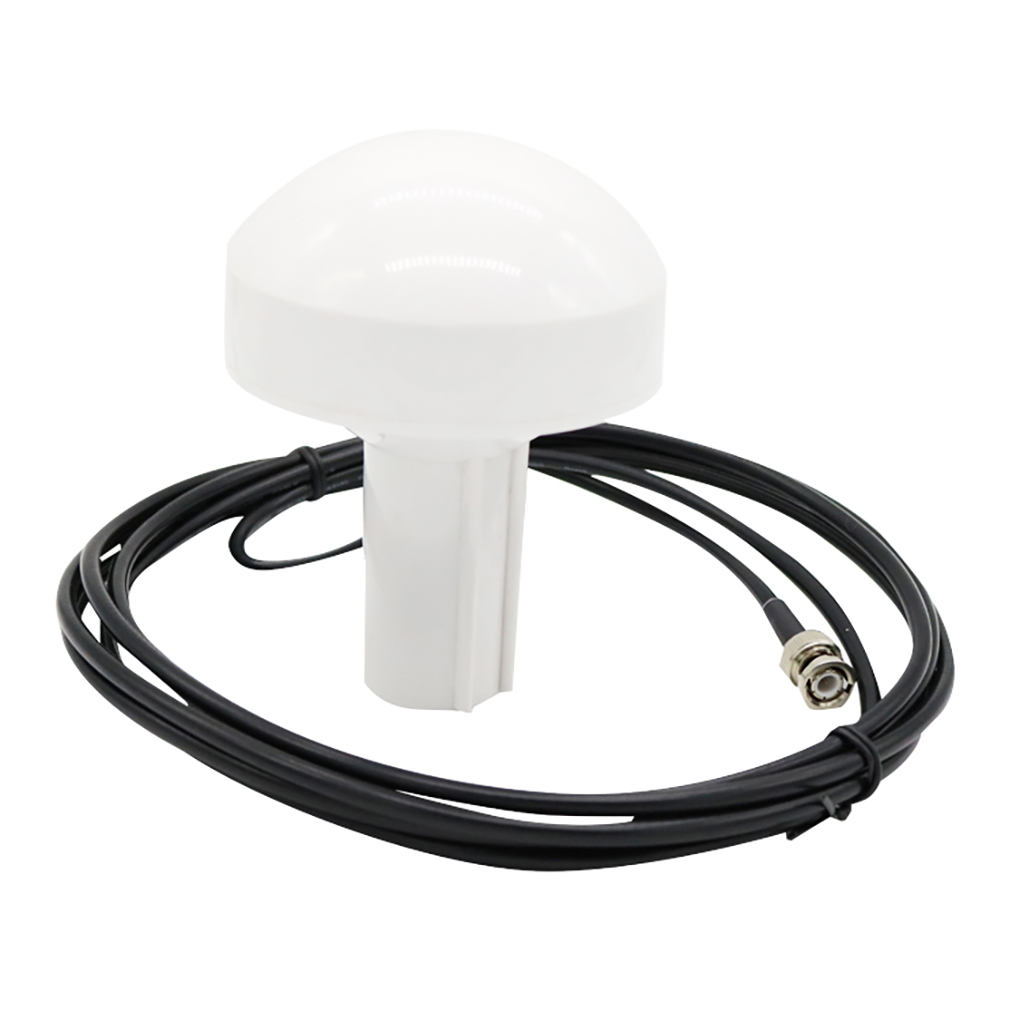

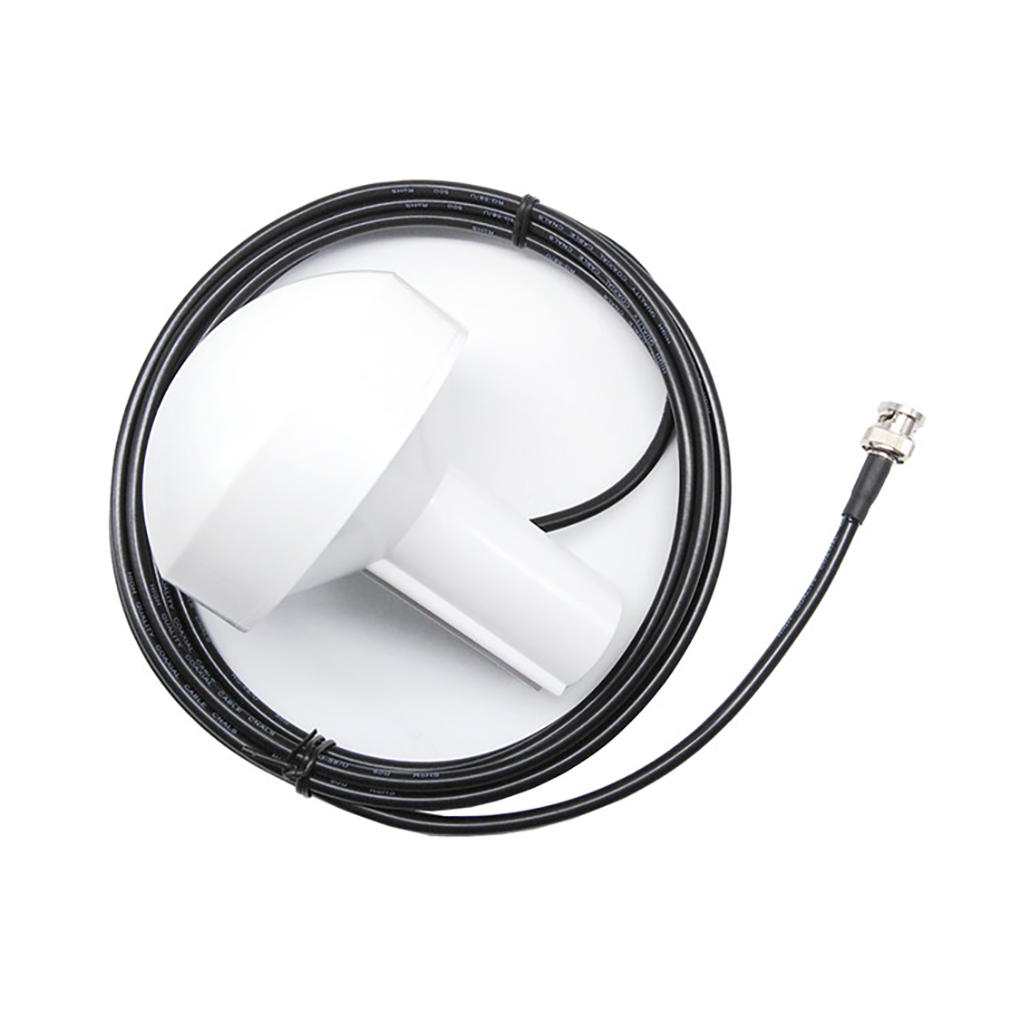

1.High Performance Timing Antenna supports GPS, GLONASS and GALILEO. It’s especially designed for timing, mobile, precision and military applications. It can produce superior multipath signal rejection.
2.Reliable and Consistent Signal Tracking The antenna has high gain, wide pattern beam, and good reception of low elevation angle signals.
3. Strong anti-interference ability Equipped with high out-of-band suppression and low-noise discharge circuit, it has strong anti-interference ability and can be used in harsh electromagnetic environments.Durable, 4. 4. Compact and easy to install The antenna has a compact structure and flexible installation methods, which can effectively reduce the installation difficulty for construction workers.
| Characteristics | Specification |
| Frequency Range | 1575MHz，1602MHz |
| Center Frequency | 1575 MHz |
Bandwidth (10dB return loss) | 20 MHz |
| Polarization | R.H.C.P. |
| Characteristics | Specification |
| Frequency Range | 1575MHz,1602MHz |
| Gain | 35 dB TYP |
| Noise Figure | <1.5 dB |
| Output V.S.W.R | 2.0 max |
| Operation Voltage | 3.3 V |
| Current | 5~25 mA |
| Characteristics | Specification |
| Frequency Range | 1575MHz,1602MHz |
| Zenith Gain | 37 dBic typ |
| Output Impedance | 50 ohm |
| Output VSWR | 2.0 typ |
| Operation Voltage | 3.3V |
| Current | <20 mA |
| Antenna Unit (with radome, connector, and cable – refer to an attached drawing) |
| Dimensions | Ø96*128mm |
| Radome | ABS |
| Output Connector | N Male/BNC Male/TNC Male can custom |
| Cable | RG-58U (black) |
| Storage Temperature | -40 ~ +85°C |
| Relative Humidity | 20 ~ 95% RH |
| Recommended Storage condition | Store in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max. |
