Overview

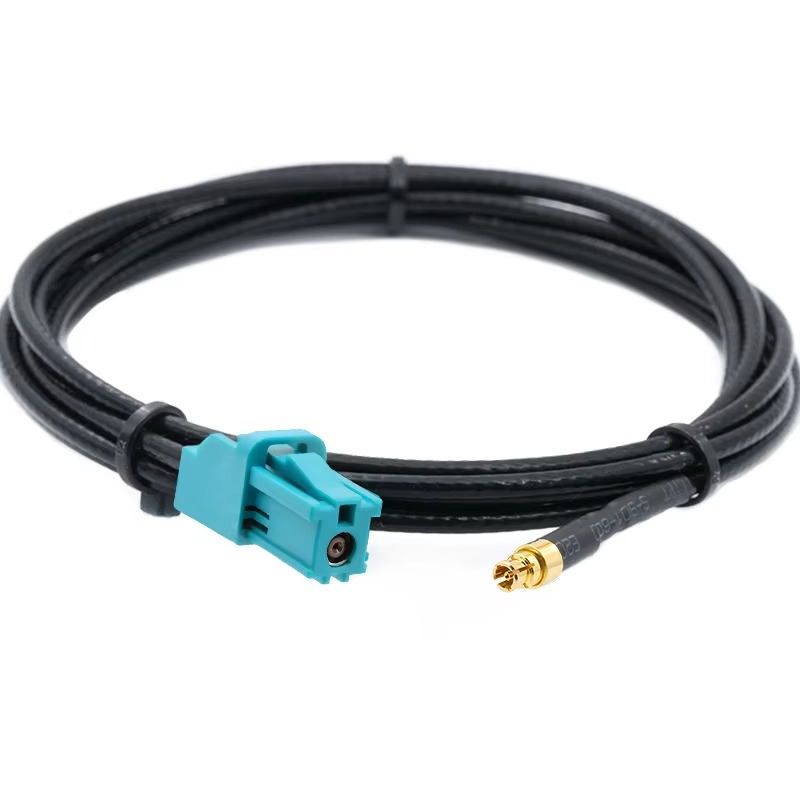

The TOXU TX-C113 is a Mini FAKRA Z Female to SSMP Female RF Cable Assembly designed for reliable RF signal transmission in automotive electronics, GNSS equipment and wireless communication systems.

This cable assembly combines a Mini FAKRA Z Female connector with an SSMP Female connector, providing a compact and dependable RF interconnection solution for high-density electronic devices and automotive communication systems.

Supporting frequencies from DC to 6GHz, the TX-C113 delivers stable RF performance for automotive antenna systems, embedded RF modules and customized communication equipment.

Key Features

Mini FAKRA to SSMP Interface

Provides a reliable RF connection between Mini FAKRA automotive interfaces and compact SSMP RF connectors.

Compact RF Cable Design

Designed for installations where space is limited while maintaining reliable RF signal transmission.

High-Frequency RF Performance

Supports RF applications operating from DC to 6GHz for automotive and wireless communication systems.

Customized Cable Assembly

Supports customized cable lengths, connector combinations and cable specifications according to project requirements.

Reliable Signal Transmission

Designed to provide stable RF connections between antennas, RF modules and communication equipment.

OEM Manufacturing Support

Supports prototype development, engineering validation and mass production for customized RF cable assembly projects.

Technical Specifications

Applications

The TX-C113 RF Cable Assembly is suitable for:

● Automotive antenna systems

● GNSS positioning modules

● Automotive communication systems

● Embedded RF modules

● Wireless communication equipment

● High-density electronic devices

System Integration

TOXU RF cable assemblies provide dependable RF connections between antennas, RF modules and automotive electronic systems.

Typical integration structure:

Automotive Antenna

↓

Mini FAKRA to SSMP RF Cable Assembly

↓

GNSS Module / RF Module

↓

Electronic Control Unit

Complete RF Hardware Solution Support

RF Cable Assembly Solutions

TOXU provides customized RF cable assemblies with various connector combinations, cable lengths and cable specifications for automotive and wireless communication applications.

RF Connector Solutions

TOXU supports Mini FAKRA, FAKRA, SSMP, SMPM, SMA, SMB, MMCX, MCX and other customized RF connector solutions.

Antenna Integration

TOXU supports complete integration between antennas, RF cable assemblies and RF connector systems for efficient hardware integration.

Hardware Customization

From prototype samples to mass production, TOXU provides flexible OEM and ODM manufacturing services for customized RF hardware projects.

Why Choose TOXU

TOXU is an RF hardware integration solution provider specializing in RF cable assemblies, RF connectors, GNSS antennas and customized RF products.

With experienced engineering support and manufacturing capability, TOXU delivers reliable RF interconnection solutions from prototype development to volume production.

FAQ

Q1: Can TOXU customize RF cable assemblies?

Yes. We support customized connector combinations, cable types, cable lengths and OEM manufacturing services.

Q2: Which RF connector combinations are available?

TOXU supports Mini FAKRA, FAKRA, SSMP, SMPM, SMA, SMB, MMCX, MCX, TNC, BNC and other customized connector combinations.

Q3: Can TOXU support OEM and ODM projects?

Yes. We support prototype development, engineering validation and mass production for customized RF cable assemblies.

Q4: What products can TOXU provide besides RF cable assemblies?

TOXU also provides RF connectors, GNSS antennas, communication antennas and complete RF hardware integration solutions.
