Overview

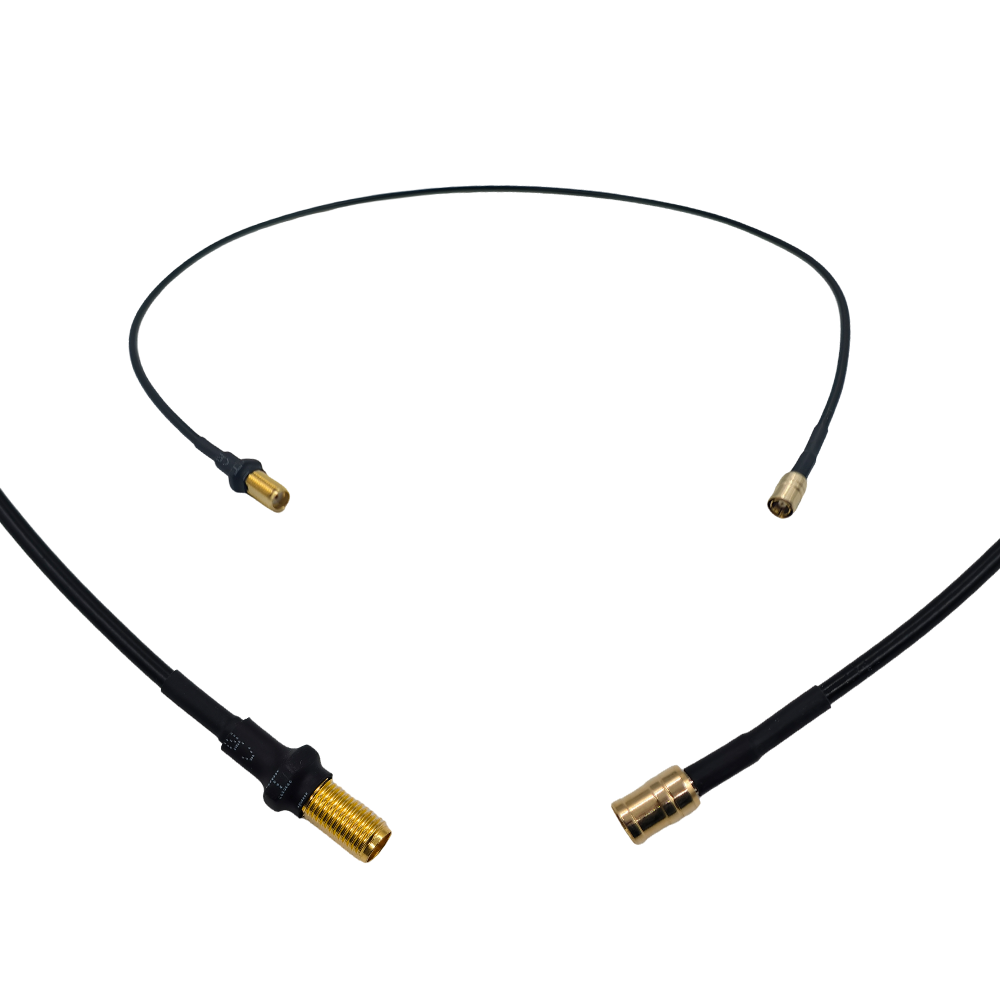

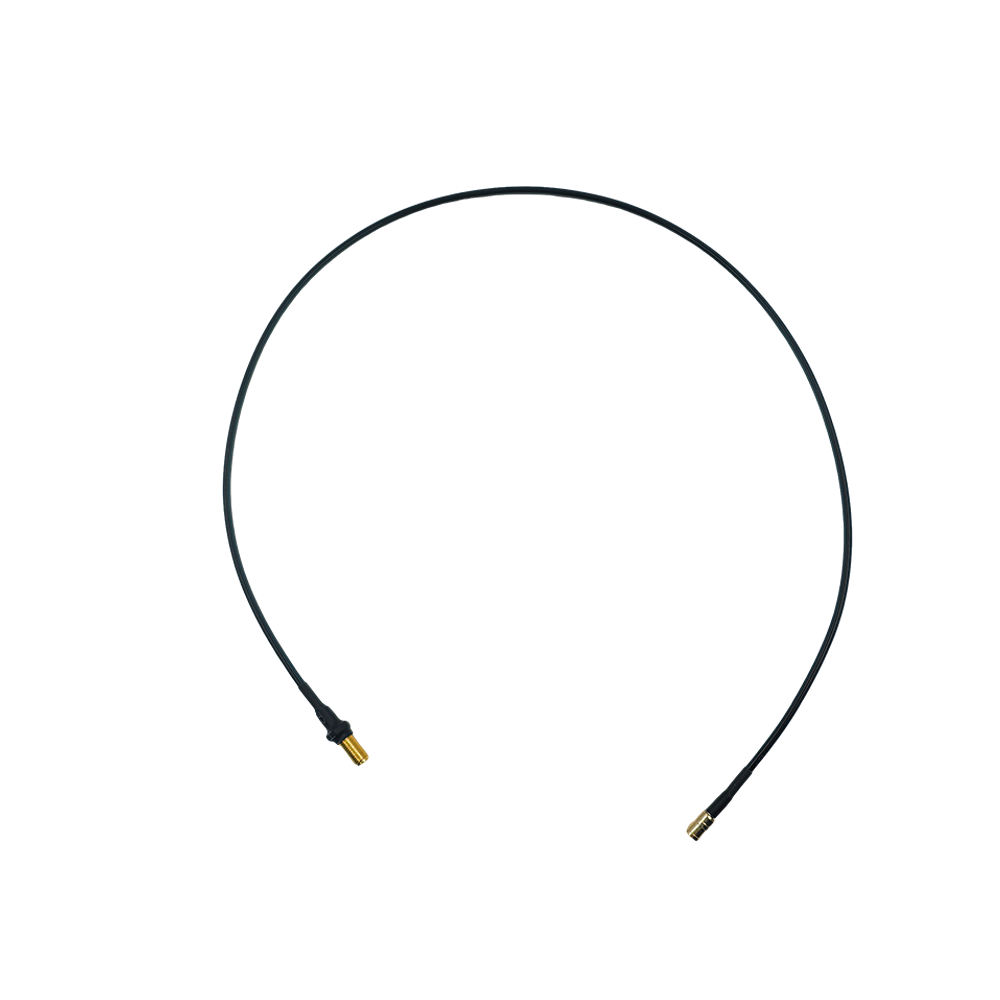

The TOXU KC.CW.00399 is an SMB Female to SMA Female Bulkhead RF Cable Assembly designed for RF communication equipment, wireless devices, antenna systems and embedded electronic applications.

The assembly combines an SMB Female connector with a panel-mount SMA Female Bulkhead connector through LMR100 low-loss coaxial cable, providing reliable RF signal transmission while simplifying equipment installation.

Designed with a characteristic impedance of 50Ω, this cable assembly offers dependable RF performance for communication systems requiring compact and secure interconnection.

Key Features

SMB to SMA Bulkhead Connection

Provides a reliable RF interface between SMB devices and SMA panel-mounted equipment.

LMR100 Low-Loss Cable

LMR100 coaxial cable offers stable RF transmission with excellent flexibility and low signal loss.

Panel Mount Installation

The SMA Female Bulkhead connector allows convenient panel installation for communication equipment.

Stable RF Performance

Designed with 50Ω characteristic impedance for dependable RF signal transmission.

Customized Cable Assembly

Supports customized cable lengths, connector combinations and cable specifications.

OEM Manufacturing Support

Prototype development, engineering validation and volume production are fully supported.

Technical Specifications

Dimension Drawing

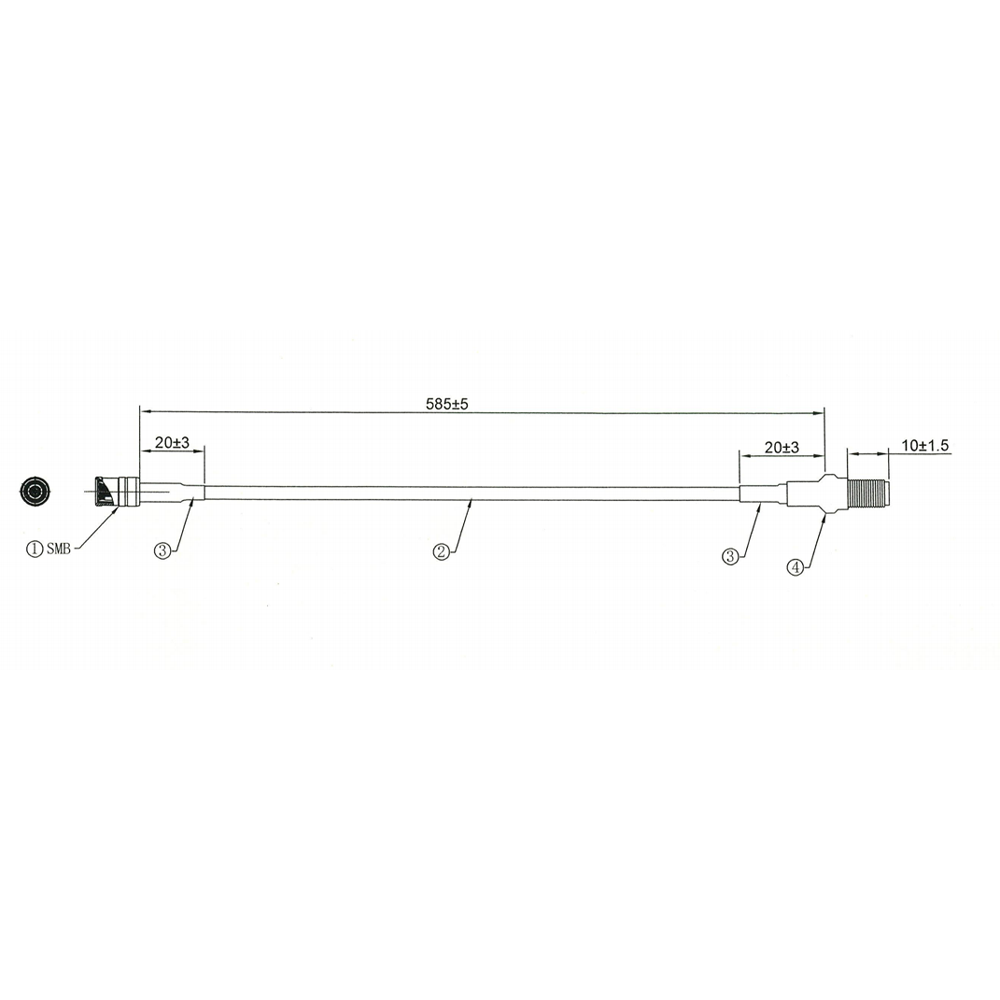

Detailed mechanical drawings are available for connector dimensions, cable length and assembly structure, supporting equipment integration and engineering evaluation.

Applications

● RF communication equipment

● Wireless communication systems

● RF test equipment

● Embedded electronic devices

● Antenna systems

● Industrial RF applications

System Integration

Typical integration structure:

RF Antenna

↓

SMB to SMA RF Cable Assembly

↓

SMA Interface

↓

RF Module / Communication Module

↓

Electronic System

Complete RF Hardware Solution Support

RF Cable Assembly Solutions

TOXU provides customized RF cable assemblies with various connector combinations, cable types and cable lengths for RF communication applications.

RF Connector Solutions

TOXU supplies SMA, SMB, MMCX, MCX, FAKRA, Mini FAKRA, BNC, TNC and customized RF connector solutions.

Antenna Integration

TOXU supports complete integration between RF connectors, cable assemblies and antenna systems.

Hardware Customization

From prototype development to mass production, TOXU provides flexible OEM and ODM manufacturing services.

Why Choose TOXU

TOXU is an RF hardware integration solution provider specializing in RF cable assemblies, RF connectors, antennas and customized RF products.

Our engineering team supports customers from design verification through volume production with reliable manufacturing and consistent quality.
