Overview

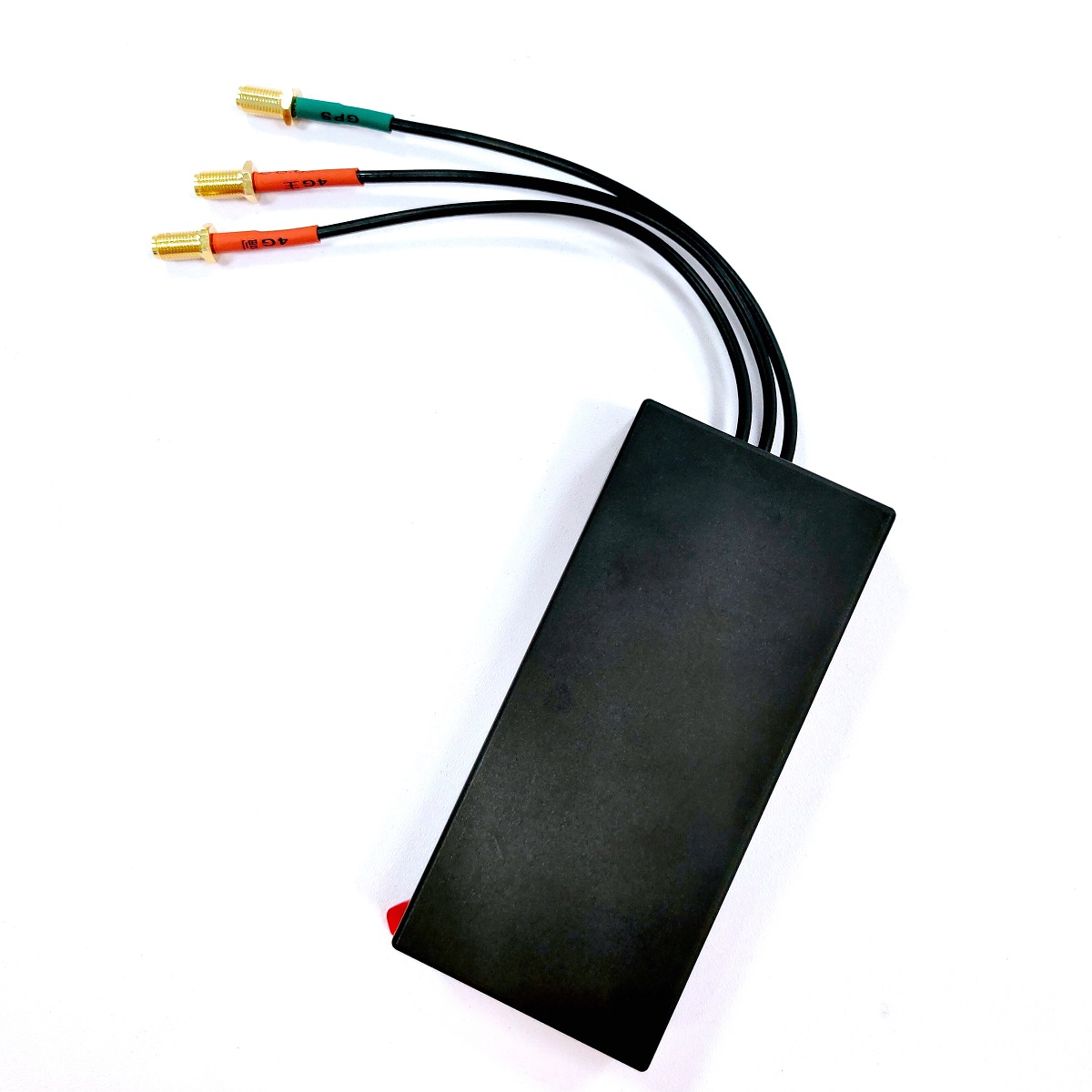

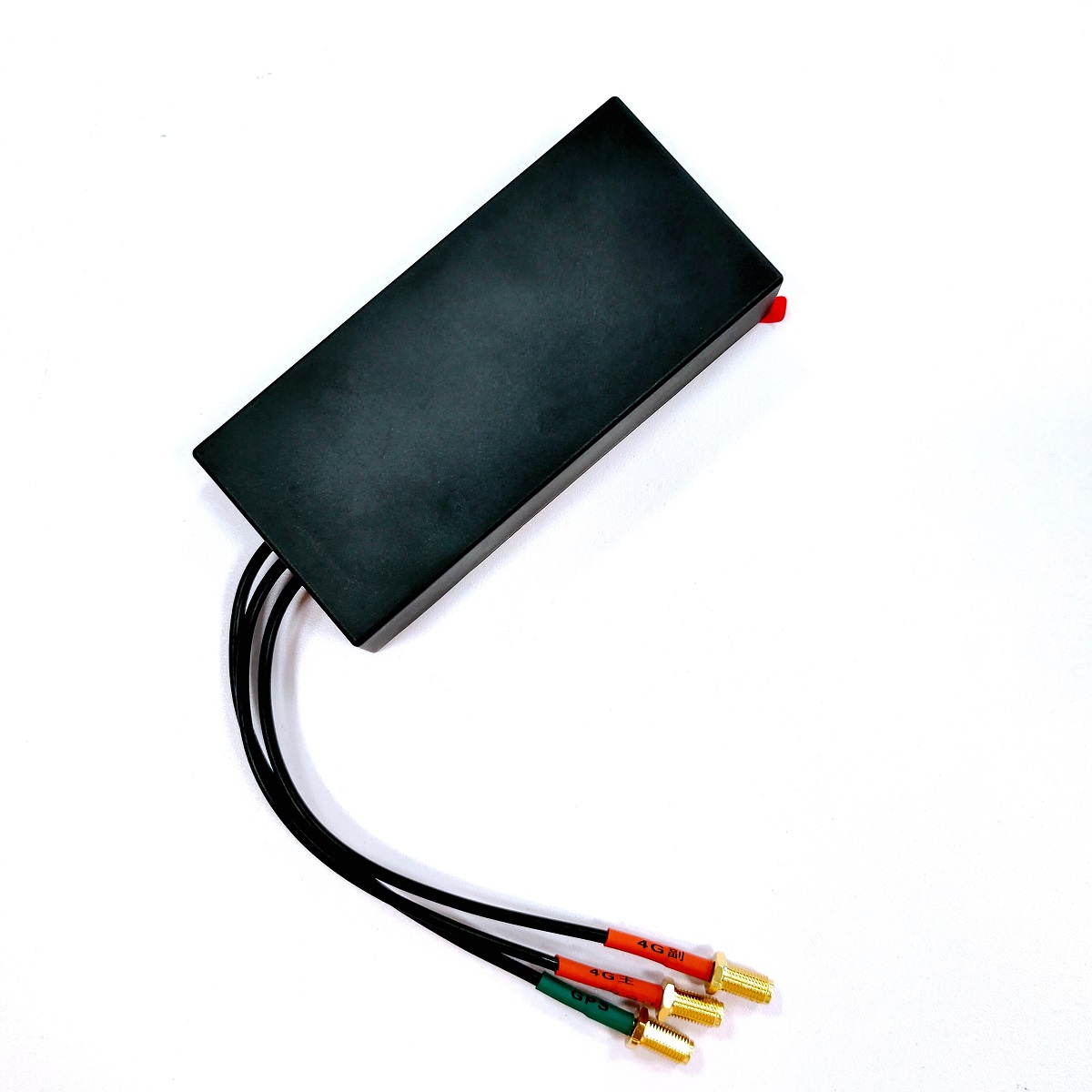

The TOXU TX-G93 is a compact 3-in-1 combination antenna integrating 4G LTE cellular communication, active GPS/BDS satellite positioning, and dual-band WiFi connectivity into one adhesive-mount housing.

The cellular antenna covers 690-960MHz and 1710-2690MHz for compatible vehicle telematics devices, tracking terminals, IoT gateways, wireless communication equipment, and industrial monitoring systems.

The active GNSS section supports GPS L1 at 1575.42MHz and BDS B1 at 1561MHz. It provides satellite-positioning signal reception for compatible single-frequency GNSS receivers and navigation terminals.

The WiFi antenna covers 2400-2500MHz and 5150-5850MHz, supporting compatible 2.4GHz and 5GHz wireless communication equipment.

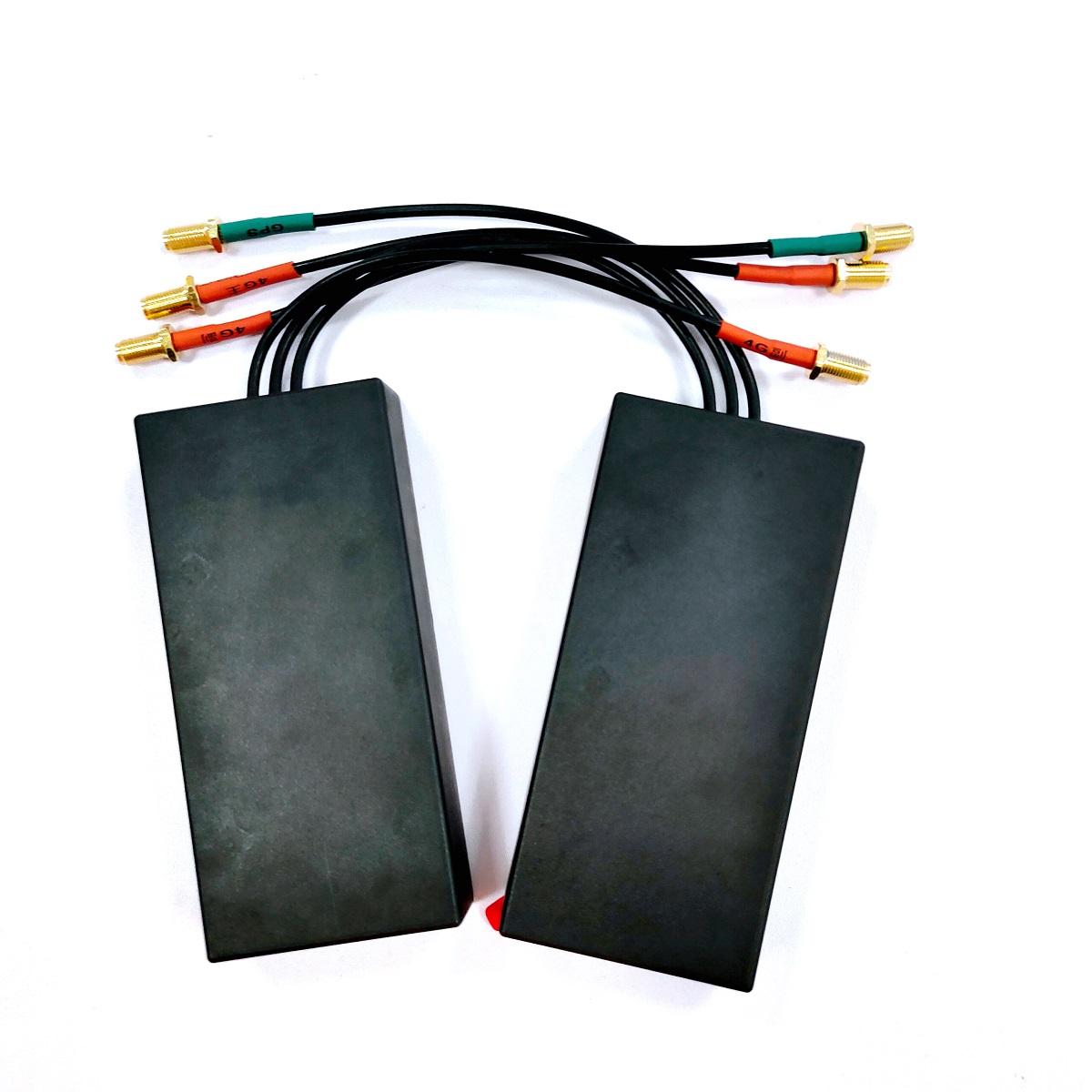

Three independent coaxial cables connect the cellular, GNSS, and WiFi antenna sections to their corresponding RF ports. Cable length, connector type, identification labels, and terminal configuration can be customized according to the equipment interface and project requirements.

Key Features

4G LTE, GNSS, and WiFi Integration

The TX-G93 integrates three independent antenna functions into one housing, helping reduce the number of separate antennas and simplify equipment installation.

690-960MHz and 1710-2690MHz Cellular Coverage

The cellular section supports compatible communication equipment operating within the specified low-band and high-band frequency ranges.

Active GPS L1 and BDS B1 Reception

The GNSS section supports GPS L1 at 1575.42MHz and BDS B1 at 1561MHz for compatible positioning and navigation equipment.

Dual-Band 2.4GHz and 5GHz WiFi

The WiFi antenna covers 2400-2500MHz and 5150-5850MHz for compatible wireless data communication applications.

Three Independent RF Connections

Separate coaxial cables are provided for the cellular, GNSS, and WiFi antenna functions, allowing connection to the corresponding RF ports of the equipment.

Compact Adhesive-Mount Housing

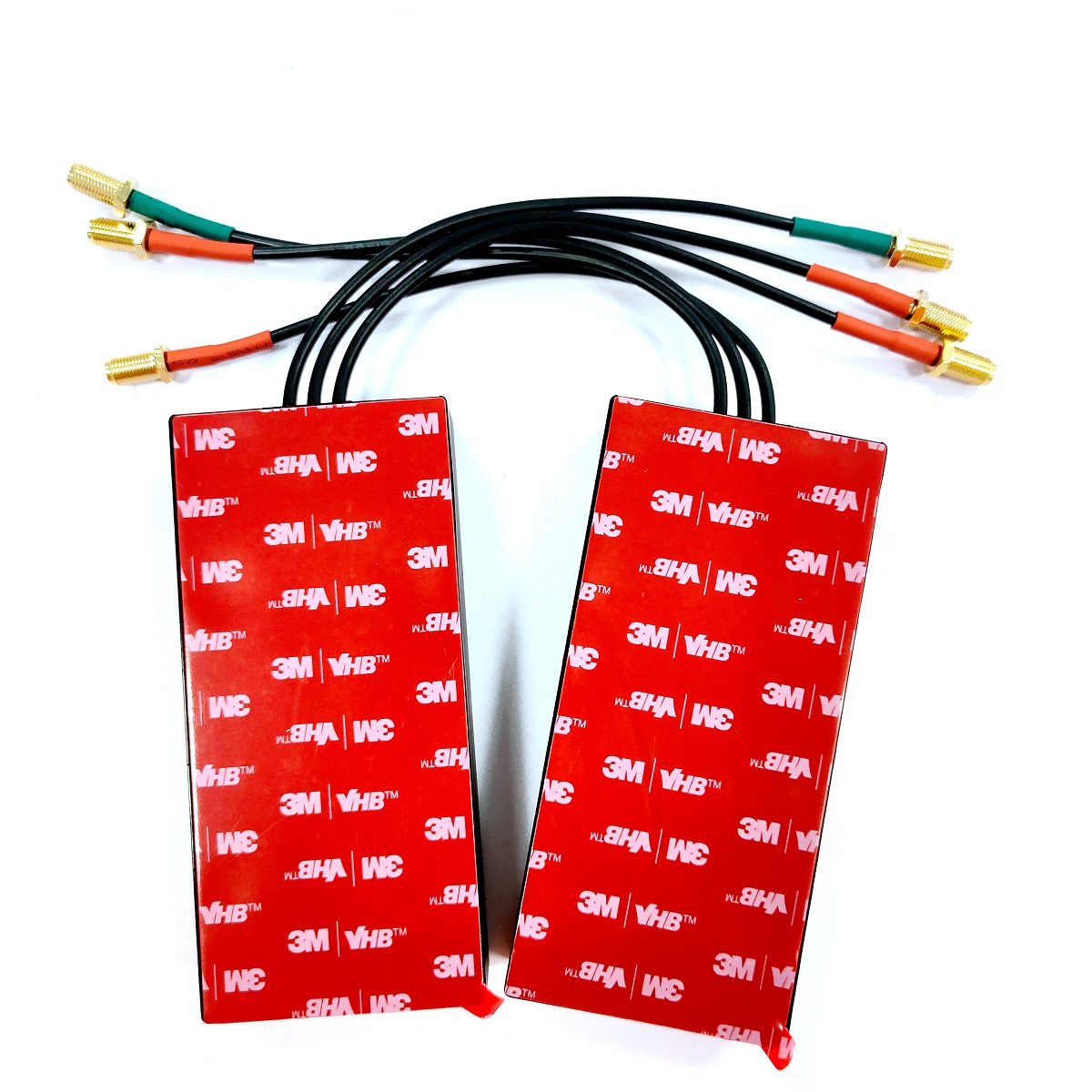

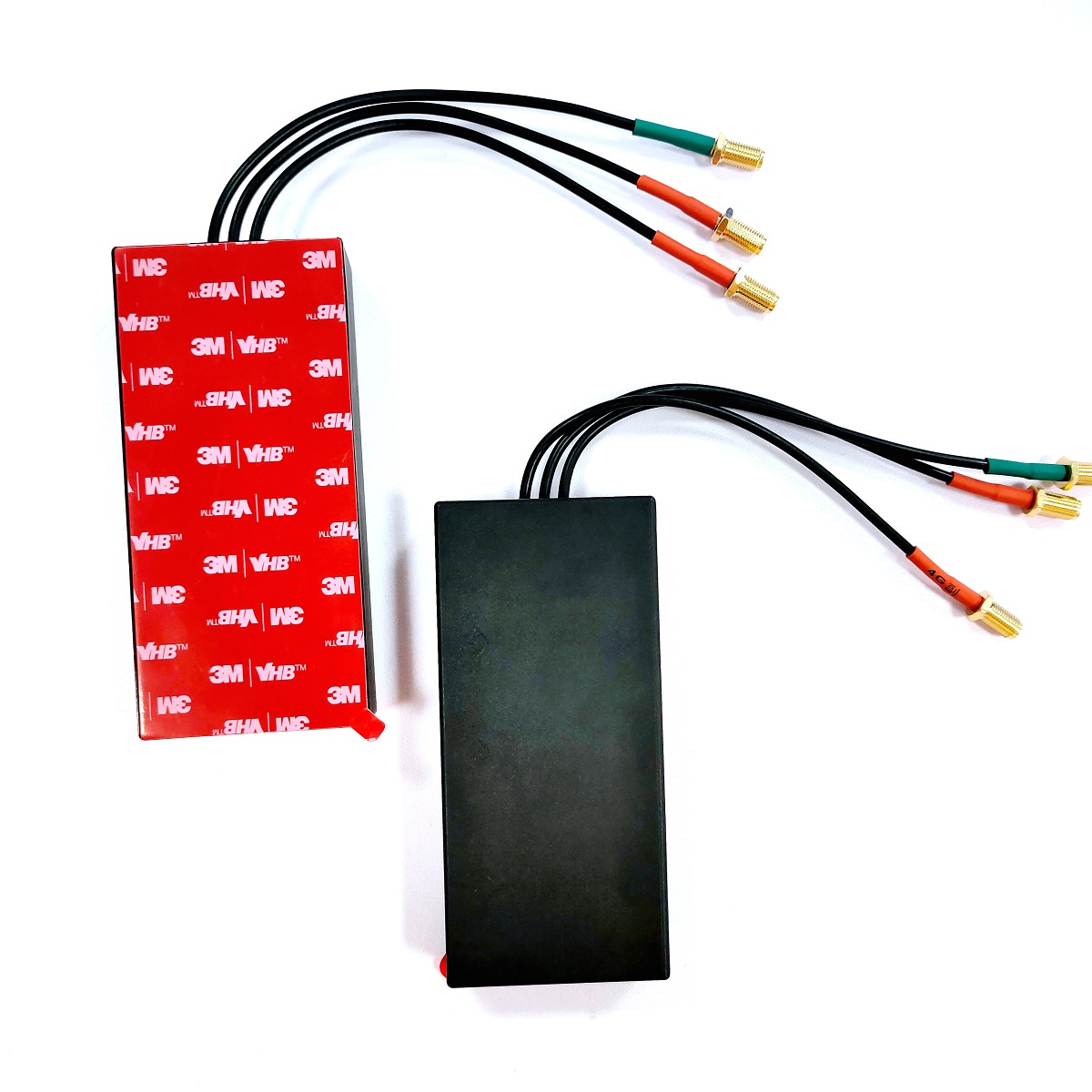

The low-profile rectangular housing uses a rear adhesive layer for installation on a clean, dry, and suitable flat surface.

Customizable Cable and Connector Configuration

Cable type, cable length, connector configuration, identification labels, and packaging can be evaluated according to project requirements.

Technical Specifications

Final gain, VSWR, cable length, connector type, housing dimensions, and electrical performance should follow the approved product specification and sample test results.

Applications

• Vehicle Tracking Devices

• Fleet Management Terminals

• Telematics Control Units

• Vehicle Navigation Equipment

• Industrial IoT Gateways

• Wireless Communication Terminals

• Asset Tracking Systems

• Remote-Monitoring Equipment

• Mobile Data Terminals

• Positioning and Communication Equipment

System Integration

The TX-G93 provides three independent RF connections for cellular communication, GNSS positioning, and WiFi connectivity. Each cable must be connected to the corresponding RF port of the equipment according to its identification label.

The GNSS equipment port must provide a compatible 3-5V DC bias voltage through the coaxial cable to power the integrated active GNSS antenna.

The TX-G93 supports GPS L1 and BDS B1 satellite signals. It does not provide RTK positioning capability by itself. Positioning accuracy is determined by the connected GNSS receiver, correction service, software, satellite environment, and overall system design.

The antenna should be installed on a clean, dry, and suitable flat surface. Nearby metal components, electronic modules, cable routing, and internal equipment structures may affect antenna performance and should be evaluated during final-device testing.

Connector type, connector gender, mechanical coding, cable length, and port assignment must be confirmed before sample production.

Why Choose TOXU

TOXU provides combination antenna design, RF tuning, cable processing, connector integration, prototype verification, testing, and volume-production support for equipment manufacturers and system integrators.

Our product range includes GNSS antennas, 4G LTE and 5G NR antennas, WiFi and Bluetooth antennas, combination antennas, embedded antennas, RF cable assemblies, RF connectors, PCBA manufacturing, GNSS modules, and receiver boards.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized antenna structures, cable lengths, connector configurations, labels, RF performance verification, quality control, and stable delivery for overseas B2B projects.

FAQ

Q: Which antenna functions are integrated into the TX-G93?

A: The TX-G93 integrates 4G LTE cellular, active GPS/BDS GNSS, and dual-band WiFi antenna functions in one compact housing.

Q: Is the TX-G93 an RTK antenna?

A: No. The standard TX-G93 supports single-frequency GPS L1 and BDS B1 signals. It should not be promoted as an RTK antenna.

Q: Which GNSS signals does the TX-G93 support?

A: The current configuration supports GPS L1 at 1575.42MHz and BDS B1 at 1561MHz.

Q: Does the WiFi antenna support both 2.4GHz and 5GHz?

A: Yes. The WiFi section covers 2400-2500MHz and 5150-5850MHz.

Q: How many RF cables does the TX-G93 have?

A: It has three independent RF cables for the cellular, GNSS, and WiFi antenna sections.

Q: Does the GNSS antenna require power?

A: Yes. The active GNSS antenna requires a compatible 3-5V DC bias voltage supplied through the GNSS RF port.

Q: Can the cable length and connector type be customized?

A: Yes. Cable length and connector configuration can be evaluated according to the equipment interface and project requirements.

Q: Can FAKRA, SMA, MCX, or MMCX connectors be supplied?

A: Different RF connectors can be evaluated, but the connector series, gender, coding, and cable compatibility must be confirmed before production.
