Overview

The TOXU TX-A129 is a stainless steel whip antenna designed for compatible VHF mobile and two-way radio equipment operating within 136-174MHz.

The listed configuration provides 2.5dBi gain, vertical polarization, and a 1/4-wave antenna structure. A 150-155MHz configuration is also identified in the available product information for applications requiring operation within that specified frequency range.

The TX-A129 uses an NMO interface for installation on a compatible vehicle antenna mount. Its stainless steel whip structure is suitable for mobile communication equipment installed on cars, service vehicles, fleet vehicles, and other compatible mobile radio platforms.

The antenna measures 465mm in height and weighs approximately 0.15kg. The exact operating frequency and required NMO mounting configuration should be confirmed before ordering.

Key Features

136-174MHz VHF Frequency Range

The TX-A129 covers 136-174MHz for compatible VHF mobile and two-way radio communication equipment.

150-155MHz Frequency Configuration

The available product information also identifies 150-155MHz as a specified frequency configuration.

2.5dBi Antenna Gain

The listed antenna gain is 2.5dBi for the specified product configuration.

1/4-Wave Antenna Structure

The antenna uses a 1/4-wave structure for compatible VHF mobile communication applications.

Vertical Polarization

The TX-A129 uses vertical polarization and should be installed in the corresponding vertical operating position.

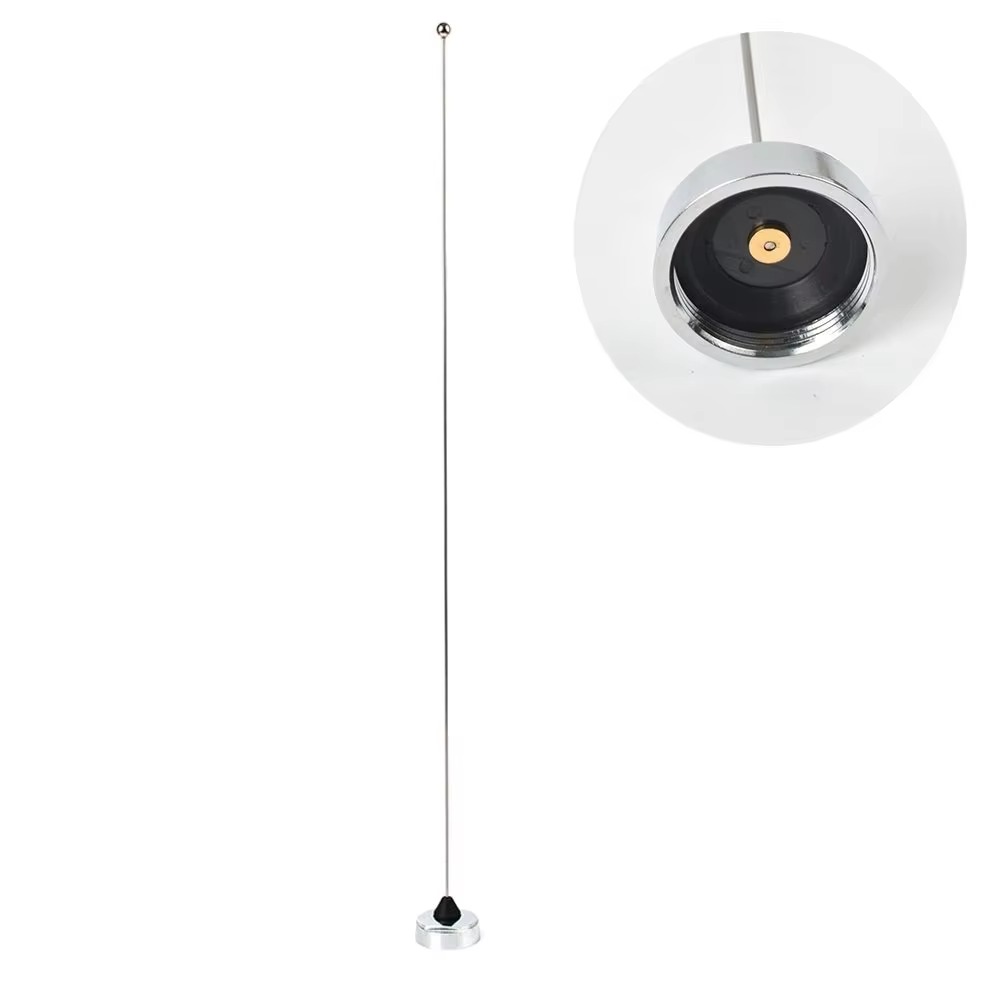

Stainless Steel Whip

The antenna features a slim stainless steel whip suitable for external vehicle-mounted radio installations.

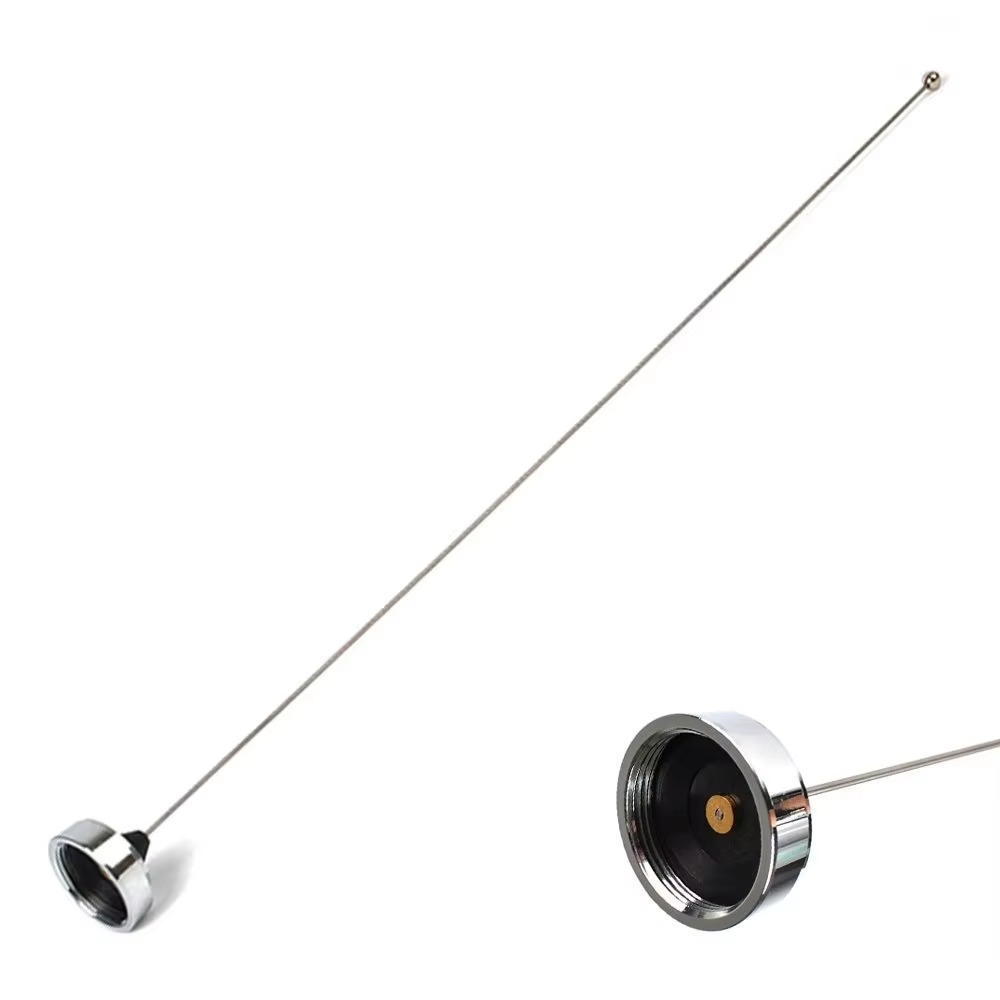

NMO Mounting Interface

The antenna is equipped with an NMO interface for connection to a compatible NMO vehicle antenna mount.

465mm Overall Height

The listed antenna height is 465mm, providing a full-length VHF whip structure for mobile radio applications.

Approximately 0.15kg Weight

The antenna weighs approximately 0.15kg according to the available product information.

Technical Specifications

The listed specifications are based on the currently available TX-A129 product information. The required operating frequency and NMO mounting configuration should be confirmed before ordering.

Applications

• VHF Mobile Radios

• Vehicle Two-Way Radios

• Fleet Communication Systems

• Service Vehicle Radio Systems

• Transportation Communication Equipment

• Amateur Radio Equipment

• Compatible 136-174MHz Radio Systems

• Compatible 150-155MHz Radio Systems

System Integration

Before ordering, confirm that the radio equipment operates within 136-174MHz or the specified 150-155MHz configuration. The antenna frequency must match the operating frequency of the connected radio equipment.

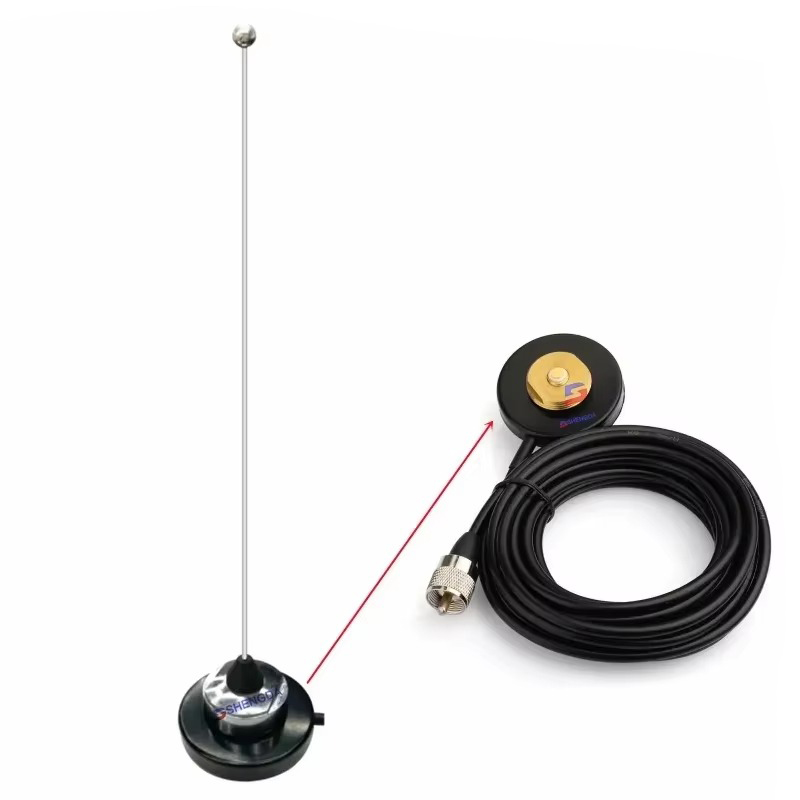

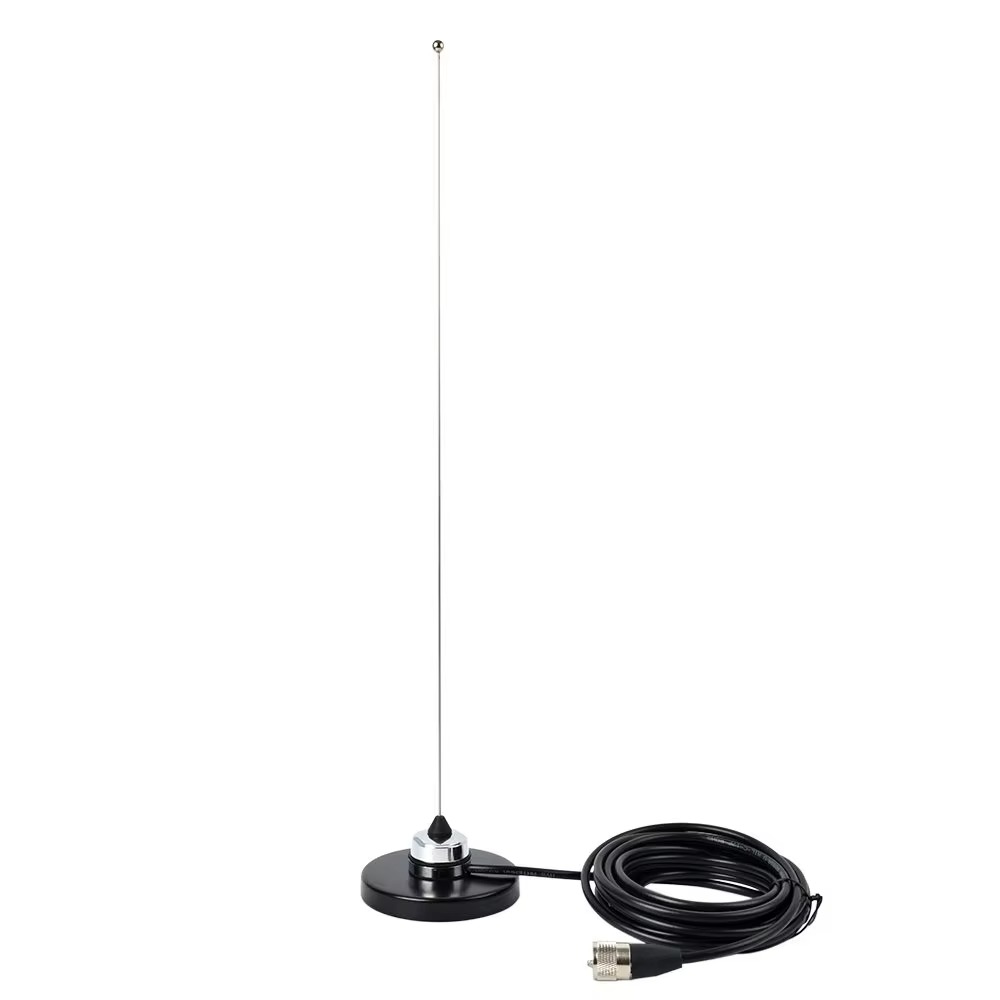

The TX-A129 uses an NMO interface and requires a compatible NMO antenna mount. The antenna alone does not include an NMO cable mount unless it is specifically included in the confirmed order configuration.

The antenna should be installed vertically to correspond with its specified vertical polarization.

The connected radio, coaxial cable, antenna mount, and antenna must use a compatible RF configuration. The required cable length and equipment-side connector should be confirmed separately when selecting an NMO mount assembly.

Why Choose TOXU

TOXU provides antenna design, RF tuning, RF cable processing, connector integration, prototype verification, testing, and volume-production support for communication equipment manufacturers and system integrators.

Our product range includes VHF and UHF communication antennas, cellular antennas, GNSS antennas, embedded antennas, combination antennas, fiberglass antennas, RF cable assemblies, RF connectors, PCBA manufacturing, GNSS modules, receiver boards, and integrated communication and positioning hardware solutions.

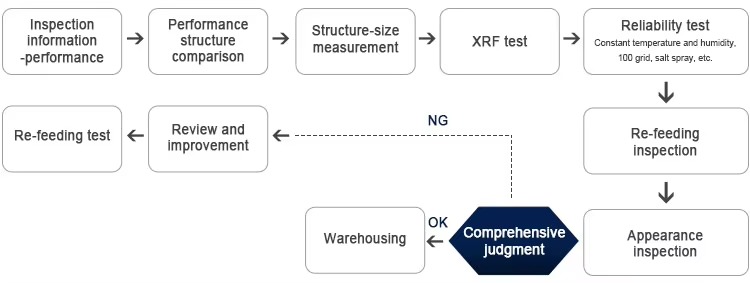

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports engineering verification, customized production, quality control, and stable delivery for overseas B2B projects.

FAQ

Q: What frequency range does the TX-A129 cover?

A: The TX-A129 covers 136-174MHz. A 150-155MHz frequency configuration is also listed.

Q: What is the antenna gain?

A: The listed gain is 2.5dBi.

Q: What type of antenna structure does it use?

A: It uses a 1/4-wave stainless steel whip structure.

Q: What is the antenna polarization?

A: The specified polarization is vertical.

Q: Which mounting interface does the antenna use?

A: The TX-A129 uses an NMO interface.

Q: What is the antenna height?

A: The listed antenna height is 465mm.

Q: What is the antenna weight?

A: The listed weight is approximately 0.15kg.
