Overview

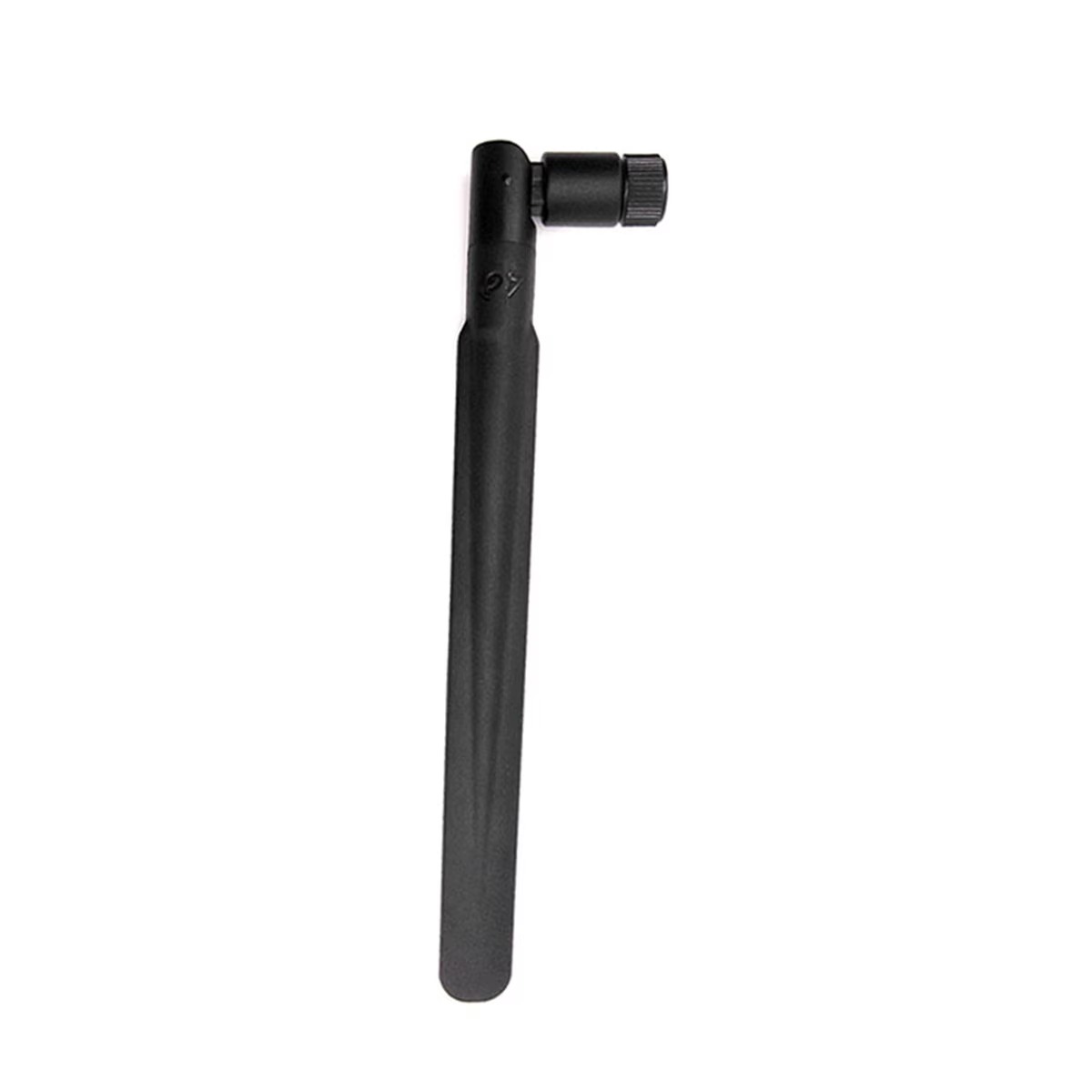

The TOXU TX-A25 is a wideband external paddle antenna developed for compatible 4G LTE and selected 5G Sub-6GHz communication equipment.

The antenna covers 690-960MHz, 1710-2690MHz, and 3300-5000MHz, making it suitable for compatible cellular routers, industrial gateways, CPE, wireless modems, monitoring equipment, and IoT communication terminals.

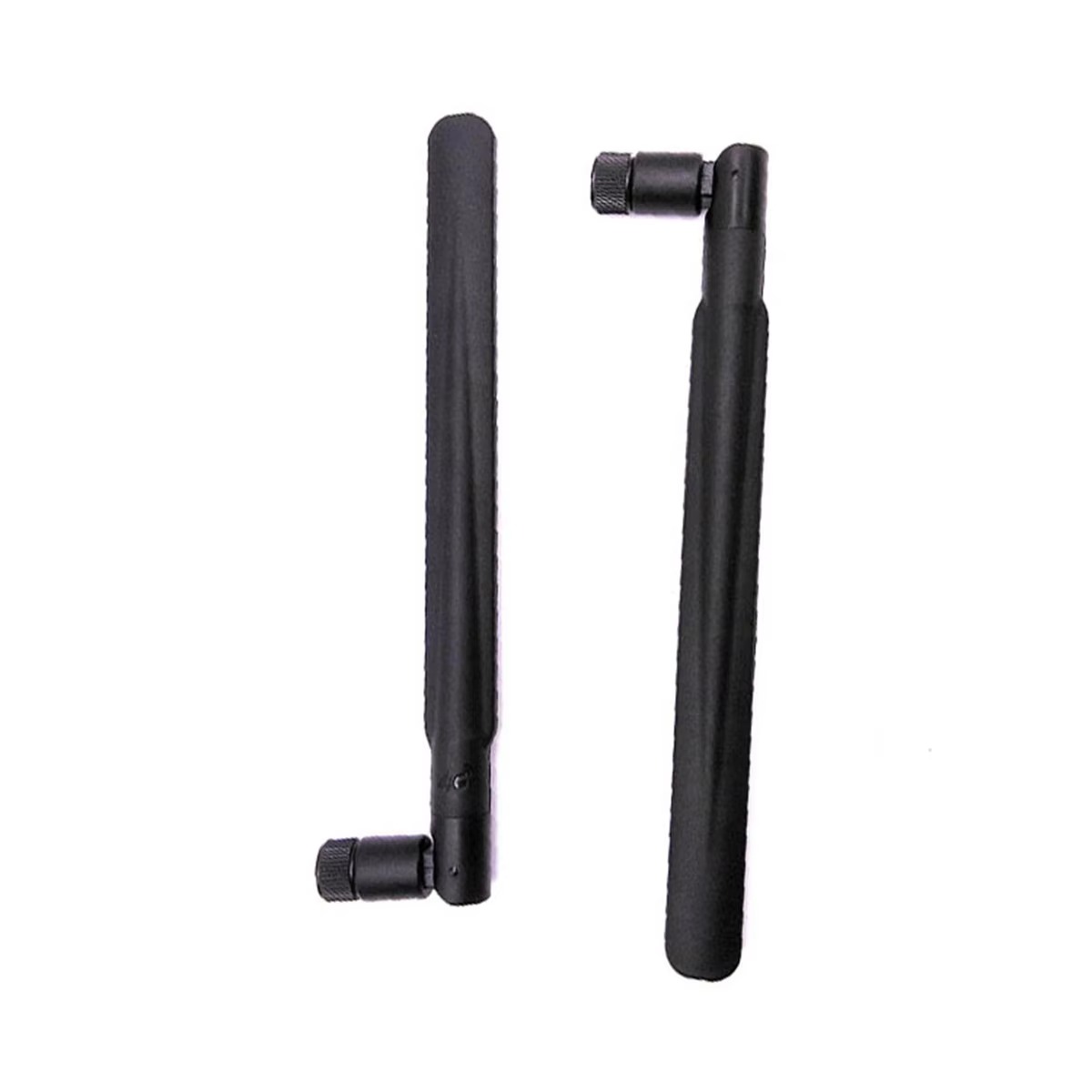

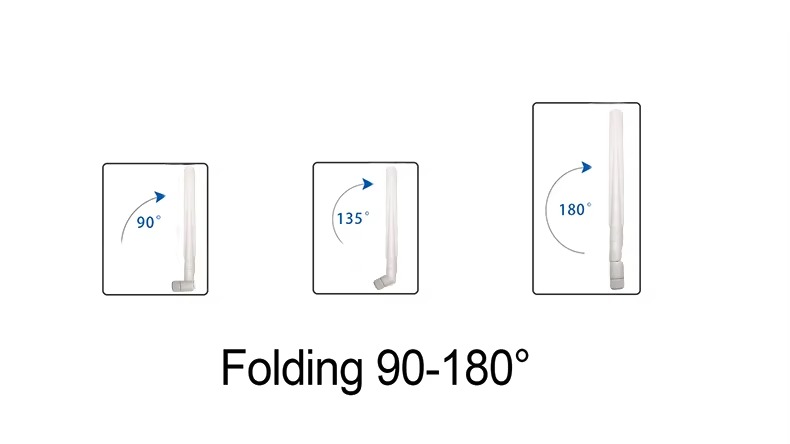

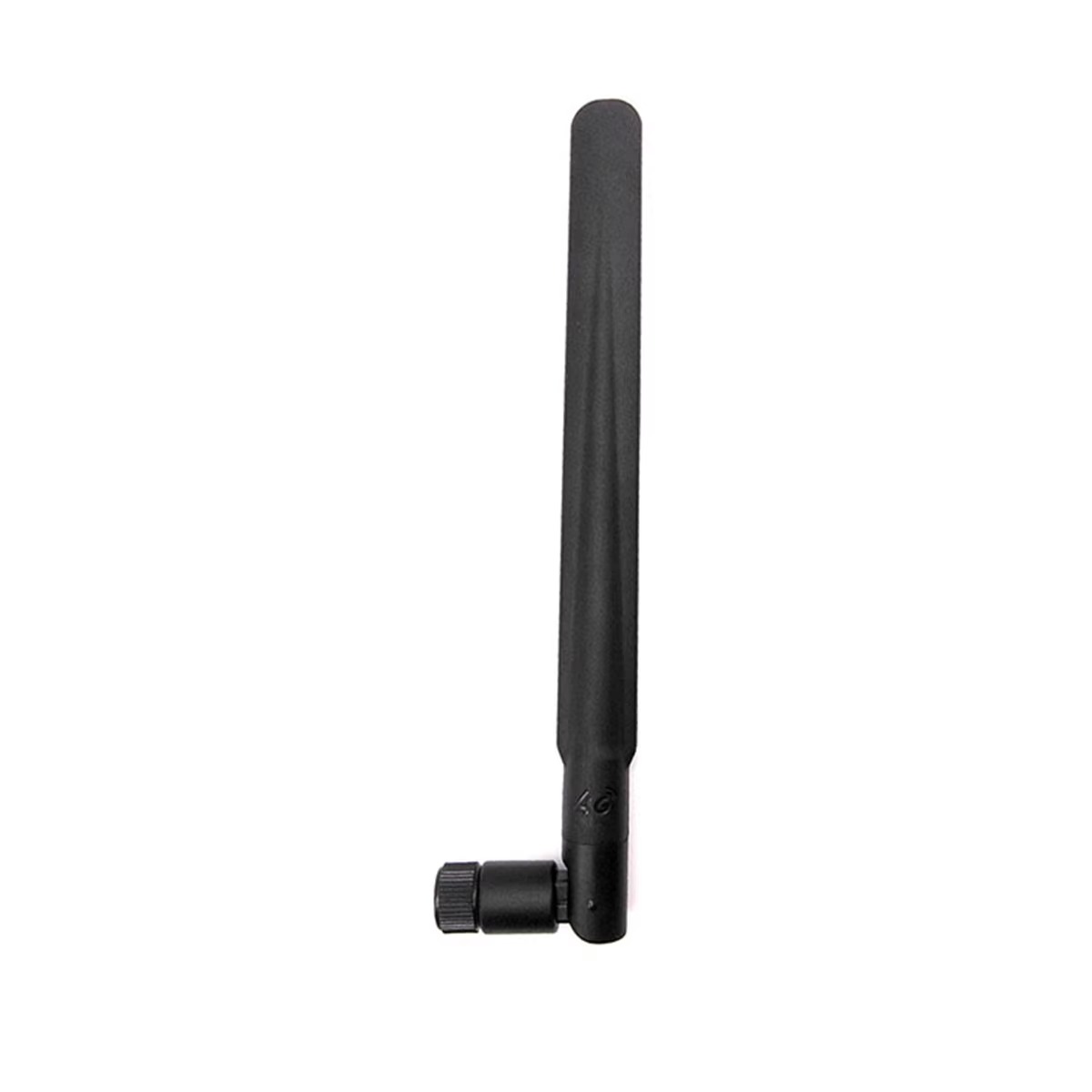

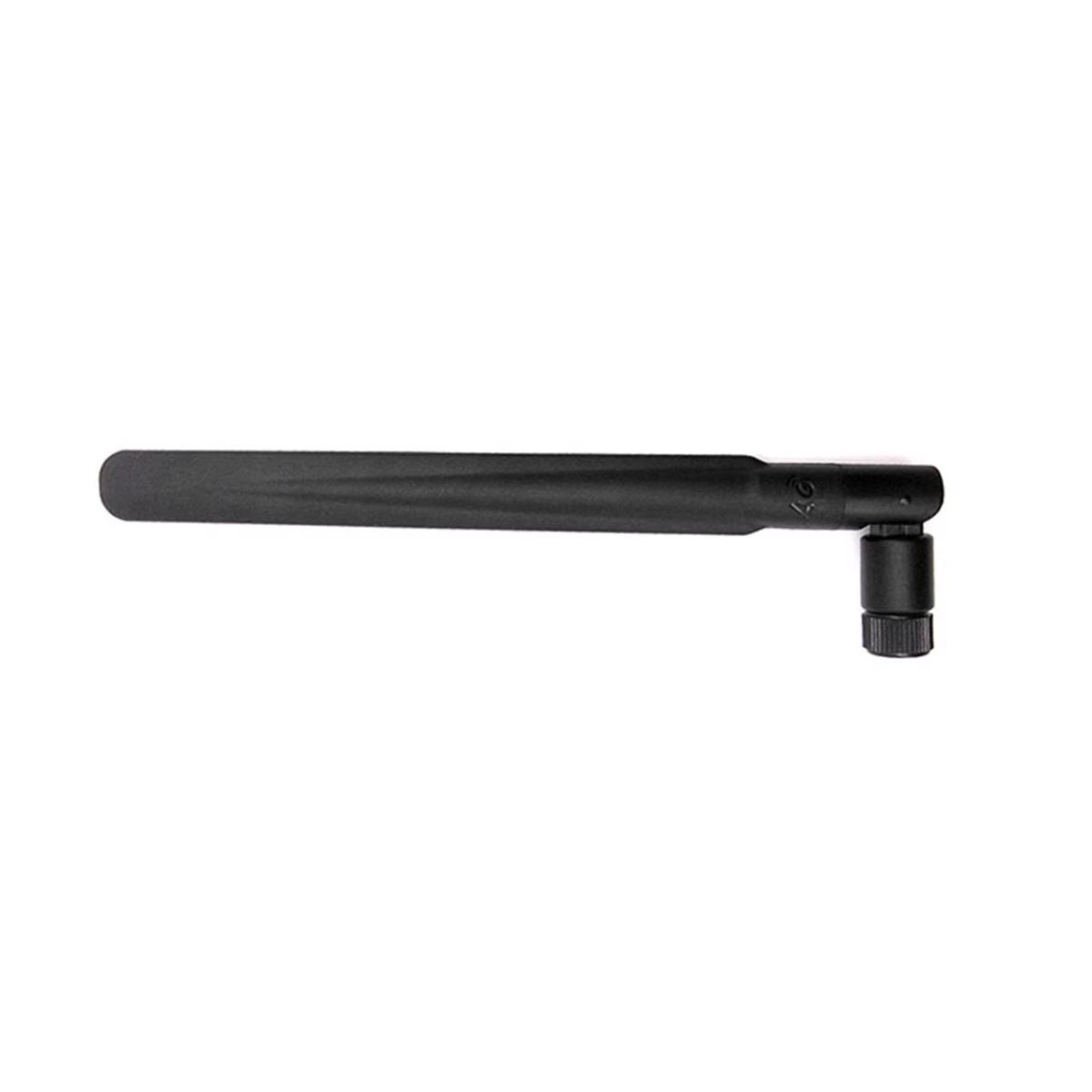

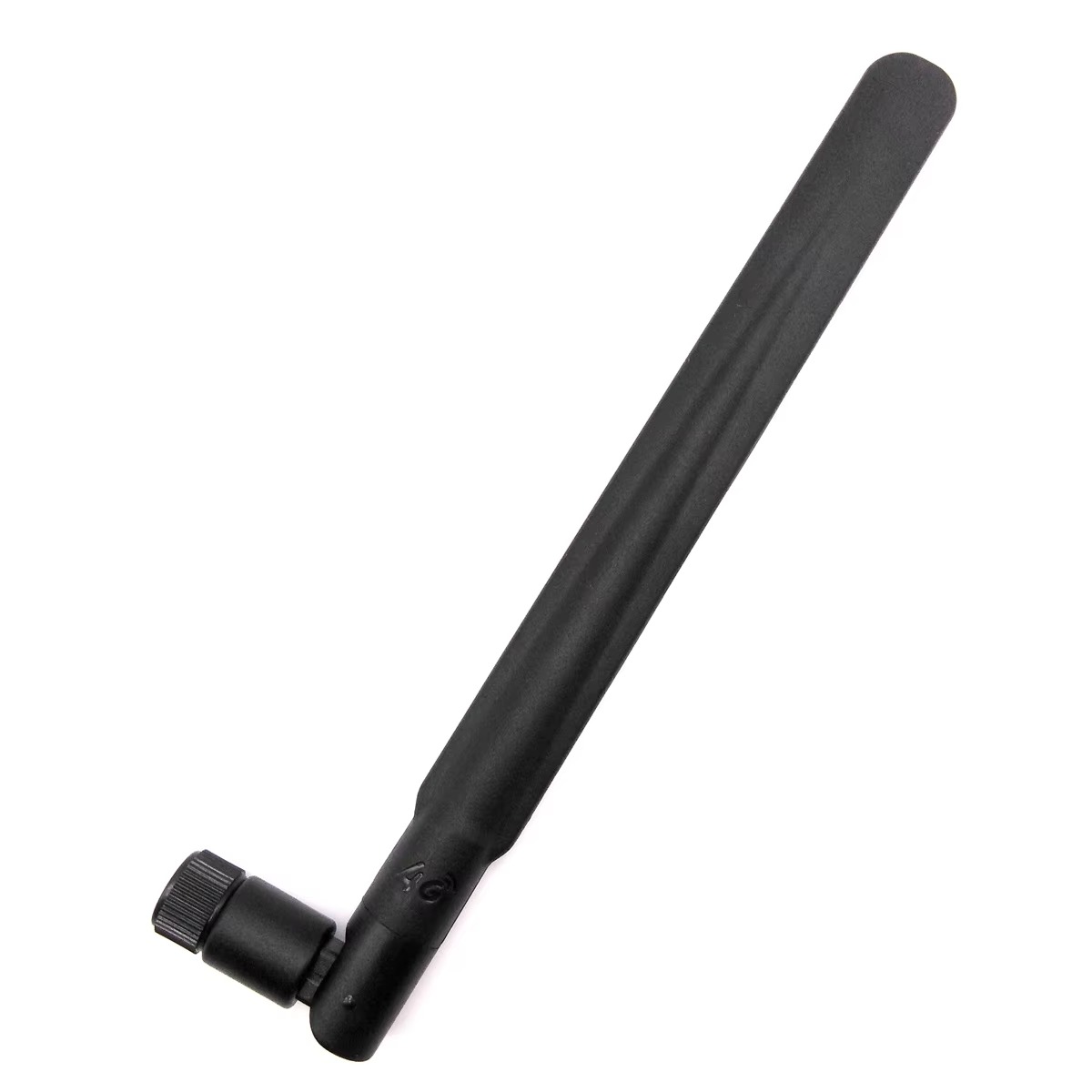

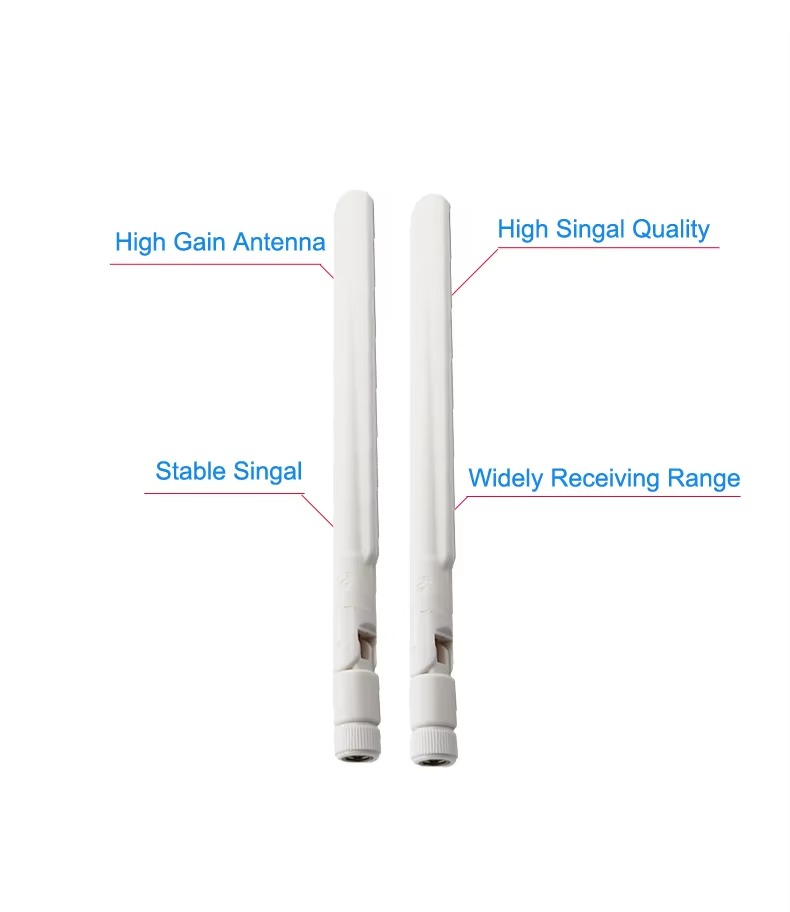

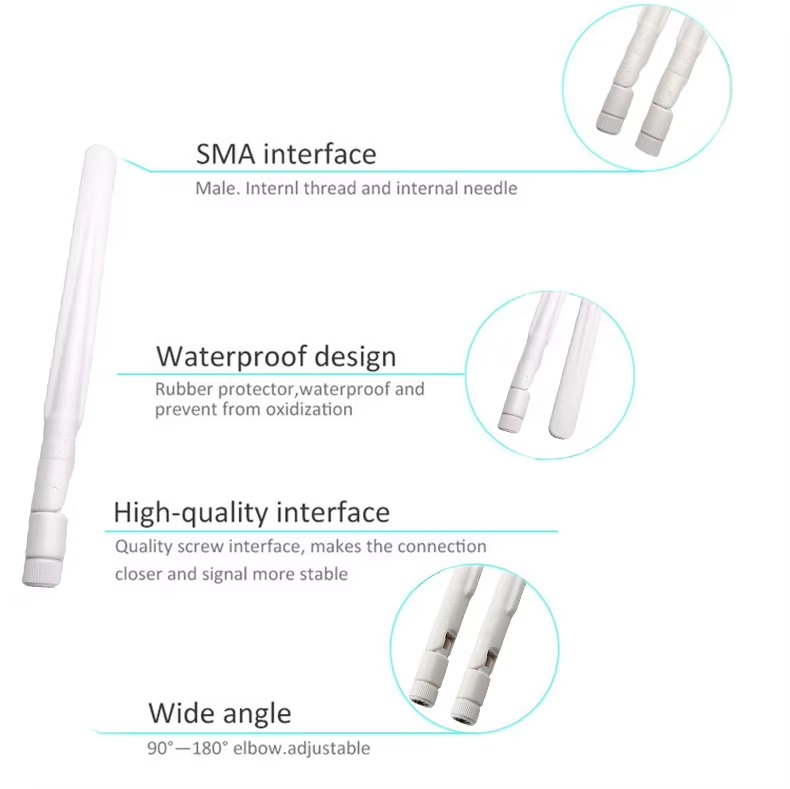

The TX-A25 uses a foldable paddle structure that allows the antenna body to be adjusted according to the installation direction and available space. Its extended length is approximately 196 ±2mm, while the folded length is approximately 172 ±2mm.

With linear polarization, 50Ω impedance, and an SMA male connector, the antenna can be installed directly on compatible equipment with an SMA female antenna port.

The exact operating bands, equipment interface, installation environment, and regional network frequencies should be confirmed before ordering. Sample testing is recommended before volume production.

Key Features

690-5000MHz Multi-Band Coverage

The antenna covers 690-960MHz, 1710-2690MHz, and 3300-5000MHz for compatible cellular communication applications.

Compatible 4G and 5G Applications

Suitable for compatible 4G LTE and selected 5G Sub-6GHz equipment operating within the specified frequency ranges.

Foldable External Structure

The adjustable joint allows the antenna body to be positioned according to the equipment orientation and available installation space.

SMA Male Connector

The standard SMA male connector supports direct installation on compatible equipment with an SMA female antenna interface.

Linear Polarization

The linearly polarized antenna configuration is suitable for compatible routers, gateways, modems, CPE, and industrial wireless terminals.

Wide Temperature Range

The specified operating and storage temperature range is -40°C to +85°C.

OEM and ODM Support

TOXU can evaluate frequency matching, connector configuration, housing structure, color, branding, packaging, and other project-specific requirements.

Technical Specifications

The listed parameters apply to the current TX-A25 configuration. Final RF and mechanical specifications should be confirmed through the approved specification and sample verification before volume production.

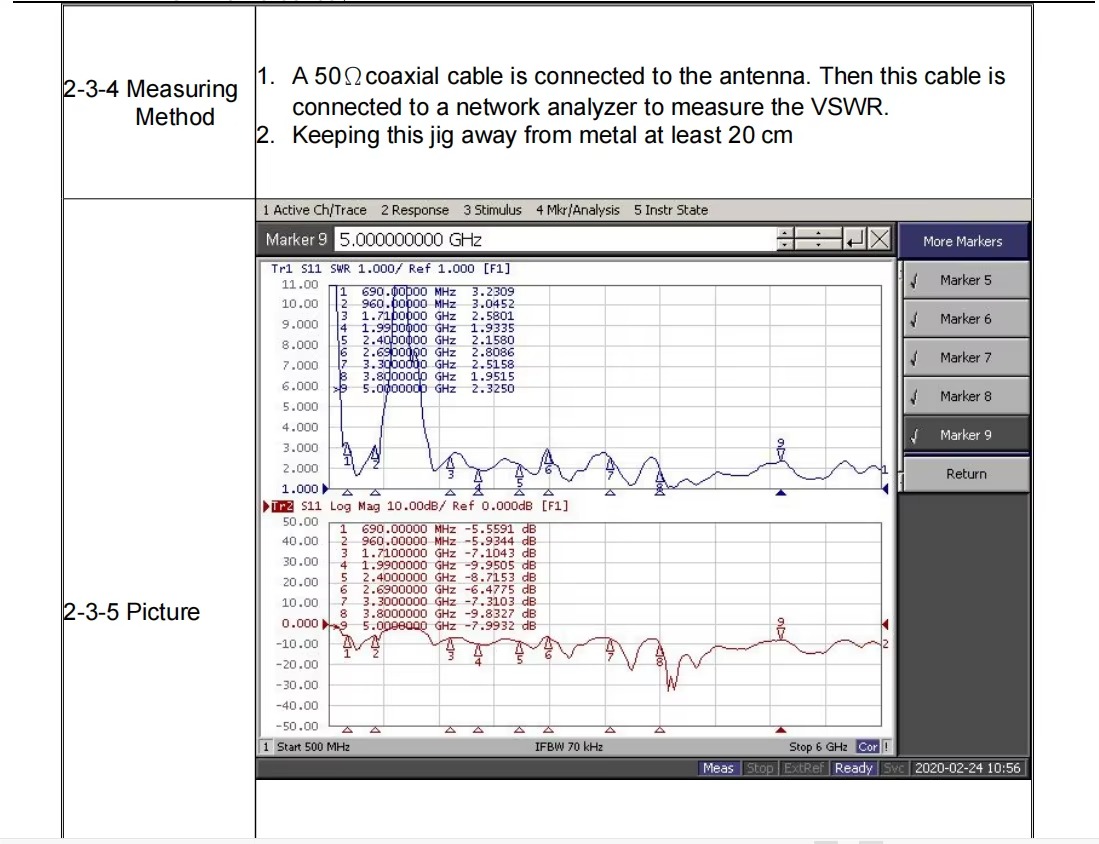

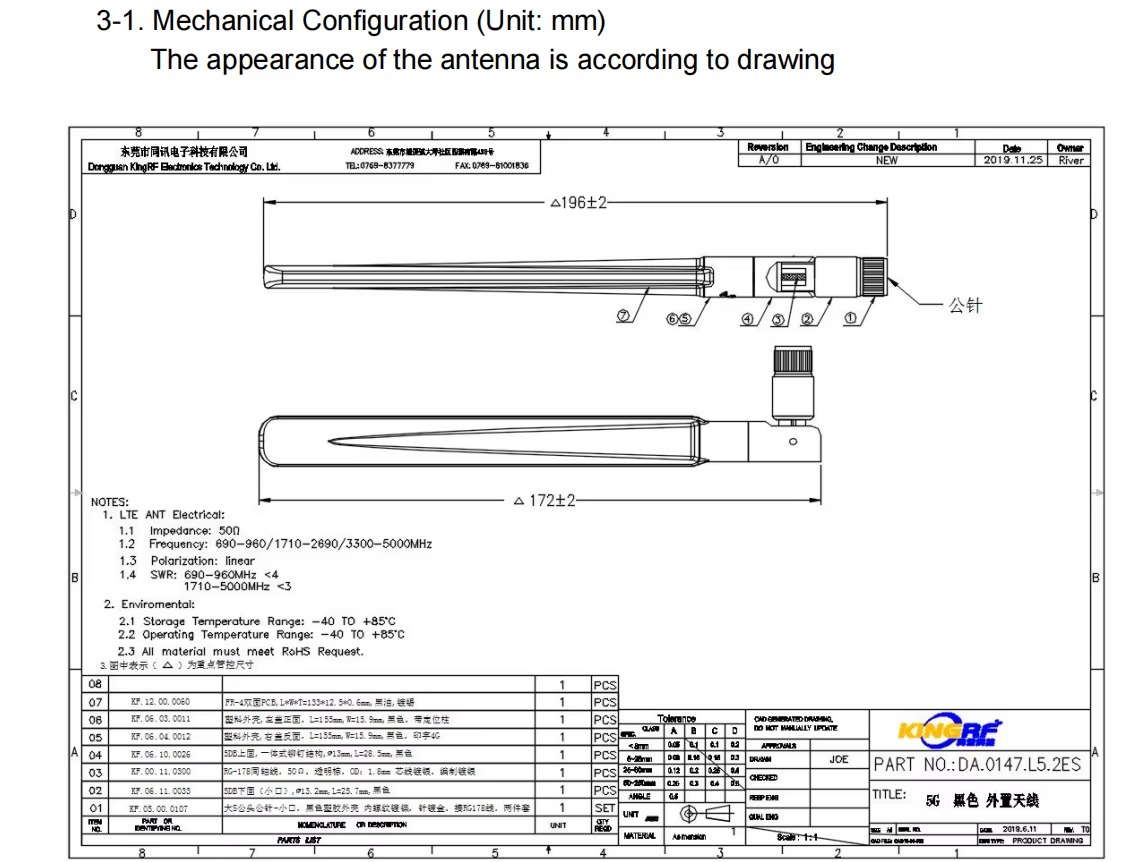

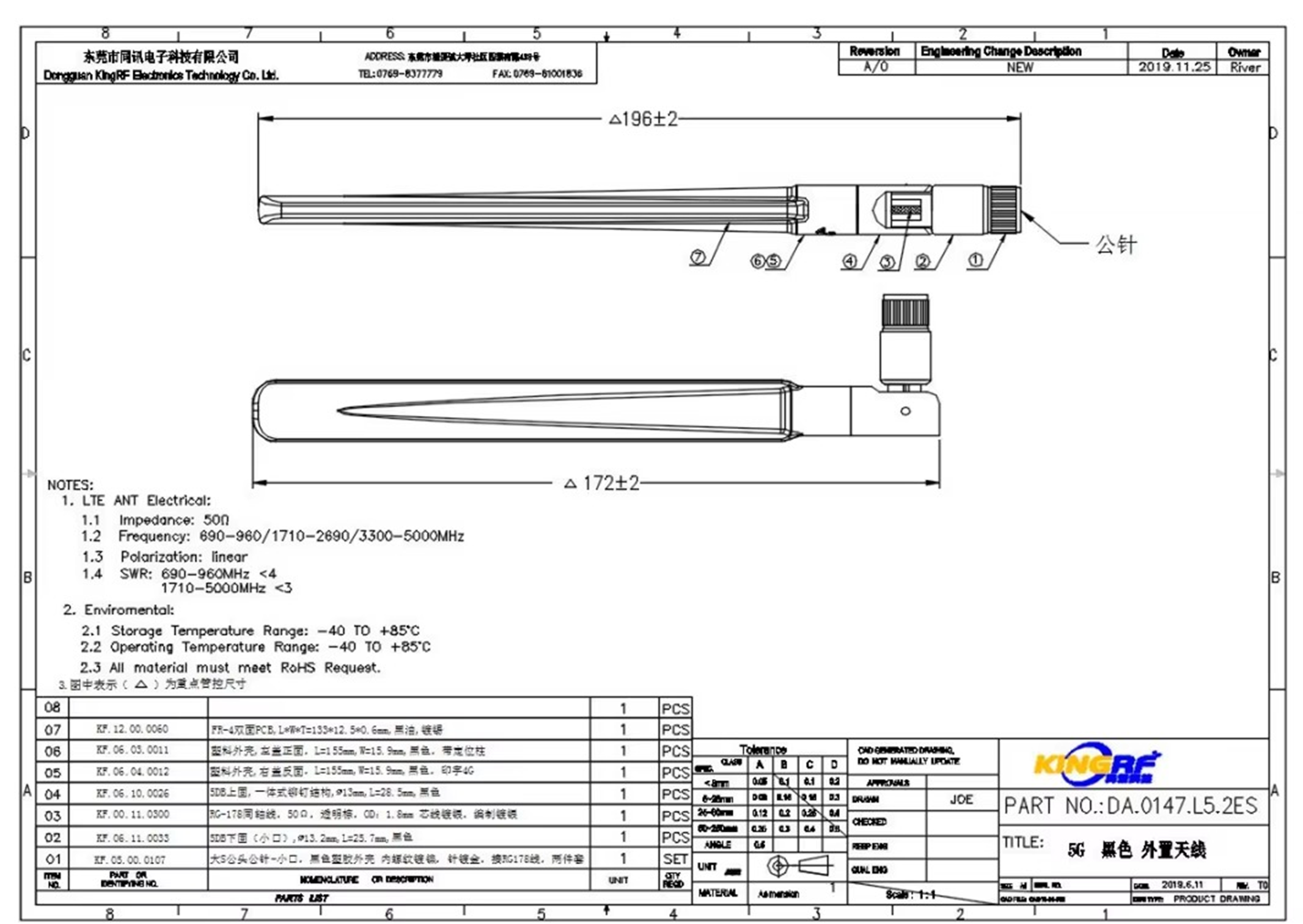

Dimension Drawing

The TX-A25 measures approximately 196 ±2mm when fully extended and approximately 172 ±2mm when folded at 90 degrees.

All dimensions are shown in millimeters. Please verify the equipment interface, connector clearance, antenna rotation direction, and surrounding installation space before confirming the product configuration.

Applications

• 4G LTE Routers

• Compatible 5G Sub-6GHz Routers

• Industrial Cellular Gateways

• Customer-Premises Equipment

• Wireless Modems

• Industrial IoT Terminals

• Cellular Monitoring Equipment

• Cellular Security Cameras

• Telemetry and Data-Transmission Units

• Smart-City Communication Equipment

Equipment compatibility depends on whether its operating bands and RF interface match the specified TX-A25 configuration.

System Integration

The TX-A25 connects directly to compatible wireless equipment through its SMA male connector. The connected equipment should use a matching SMA female antenna interface with 50Ω impedance.

Before ordering, customers should confirm the exact operating bands of the cellular module or modem. General descriptions such as “4G” or “5G” are not sufficient for final antenna selection.

The foldable joint allows the antenna body to be adjusted after installation. Sufficient clearance should be reserved around the connector and antenna body to support movement and prevent mechanical interference.

For suitable performance, the antenna should be positioned away from large metal surfaces, high-current circuits, motors, power supplies, and other strong electromagnetic interference sources whenever possible.

Actual communication performance depends on the wireless module, network coverage, transmit power, receiver sensitivity, antenna matching, equipment enclosure, installation orientation, and operating environment.

Customization Support

Frequency Matching

TOXU can evaluate antenna matching according to the required cellular bands, wireless module, equipment enclosure, and installation environment.

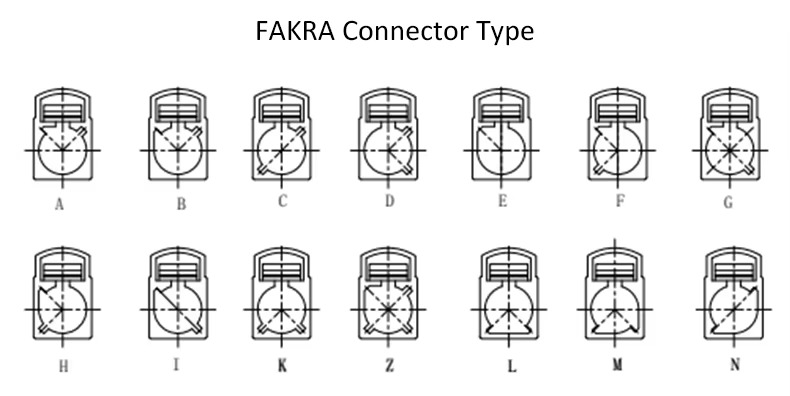

Connector Configuration

The standard configuration uses an SMA male connector. Alternative connector configurations can be evaluated according to the equipment interface and project requirements.

Mechanical Customization

Housing color, branding, packaging, joint structure, and other mechanical requirements can be evaluated for suitable OEM and ODM projects.

Prototype and RF Verification

TOXU supports sample development, network-analyzer testing, equipment-side verification, and final configuration approval before volume production.

Volume-Production Support

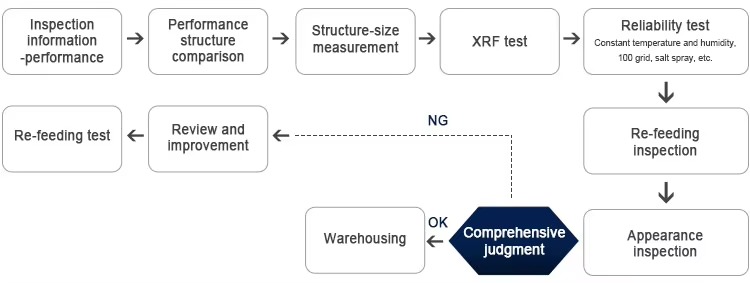

After sample approval, TOXU supports antenna assembly, RF inspection, quality control, customized packaging, and stable volume delivery.
