Overview

The TOXU KC.GA.00056 is a wideband magnetic-mount blade antenna developed for compatible 4G LTE and sub-6GHz 5G routers, CPE terminals, industrial gateways, wireless communication terminals, and remote-monitoring equipment.

The antenna supports 690–960MHz and 1710–5000MHz frequency ranges, covering multiple low-band and mid-band cellular communication applications. It provides 2dBi gain, linear polarization, 50Ω impedance, and an omnidirectional radiation pattern.

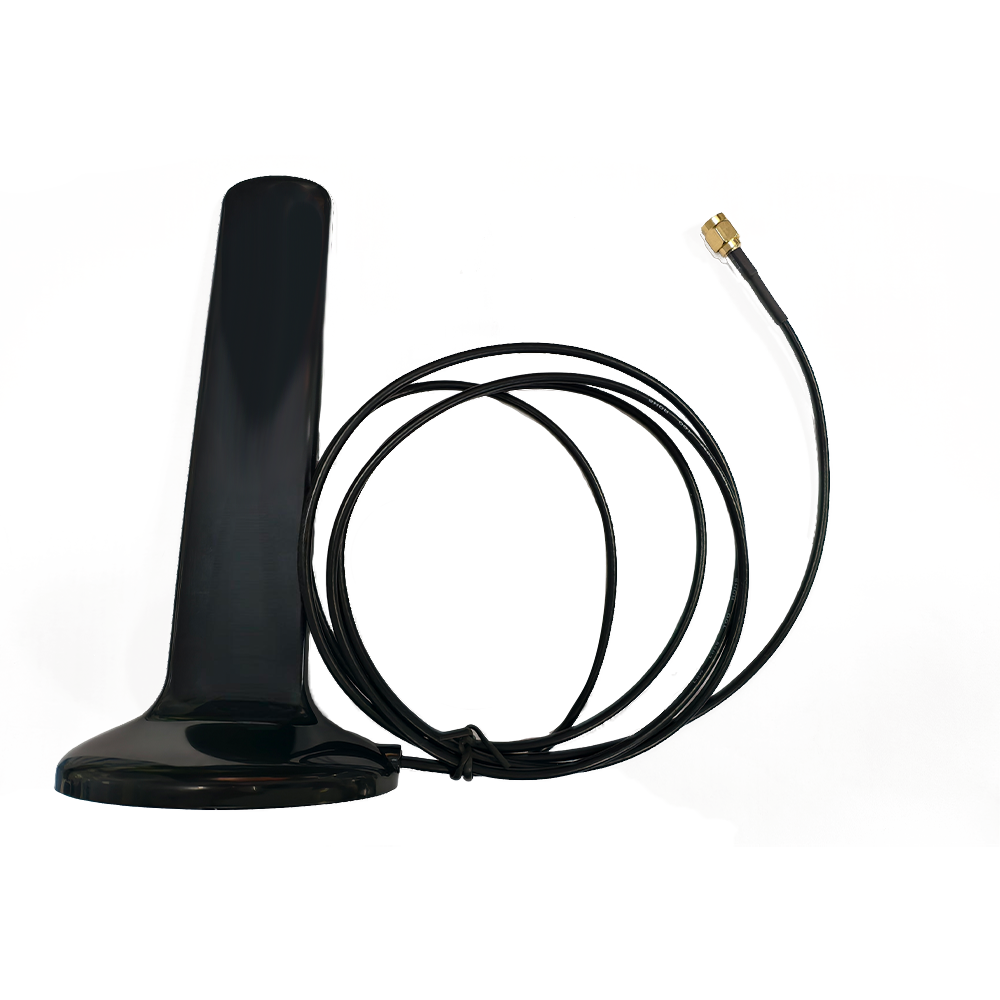

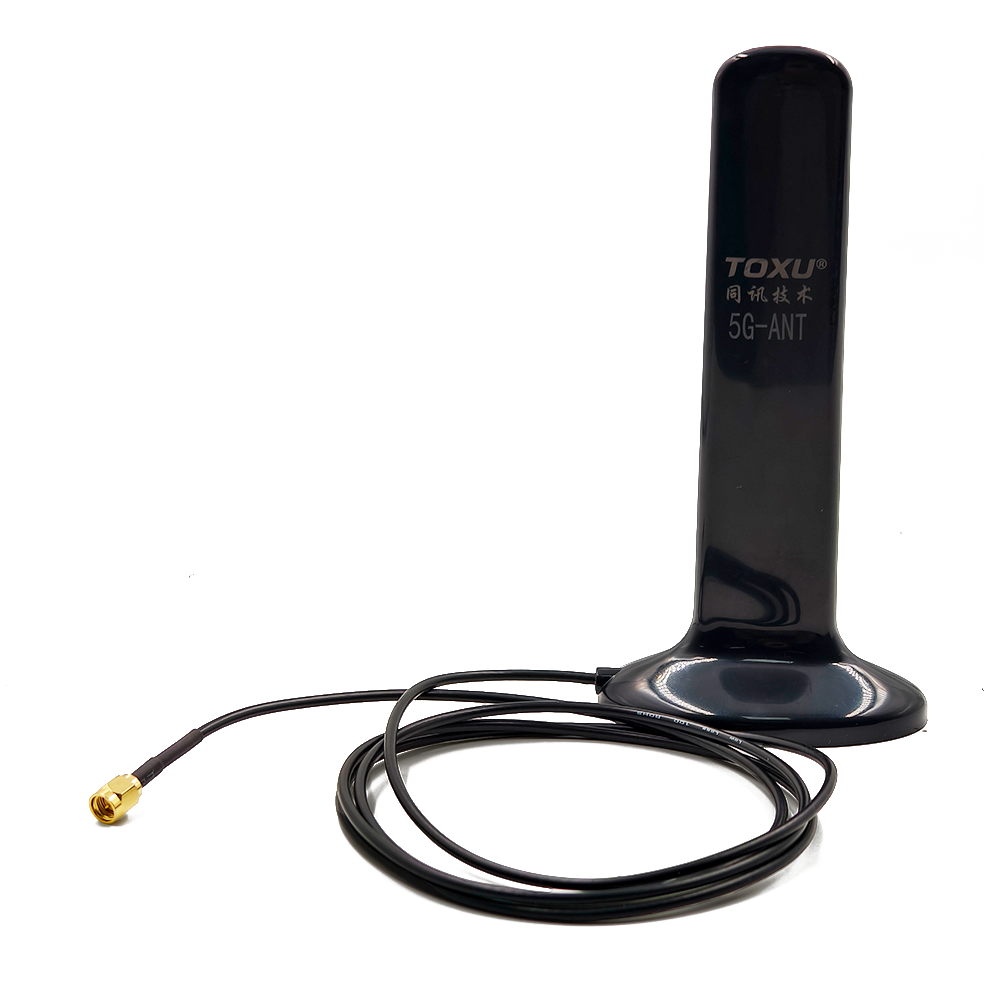

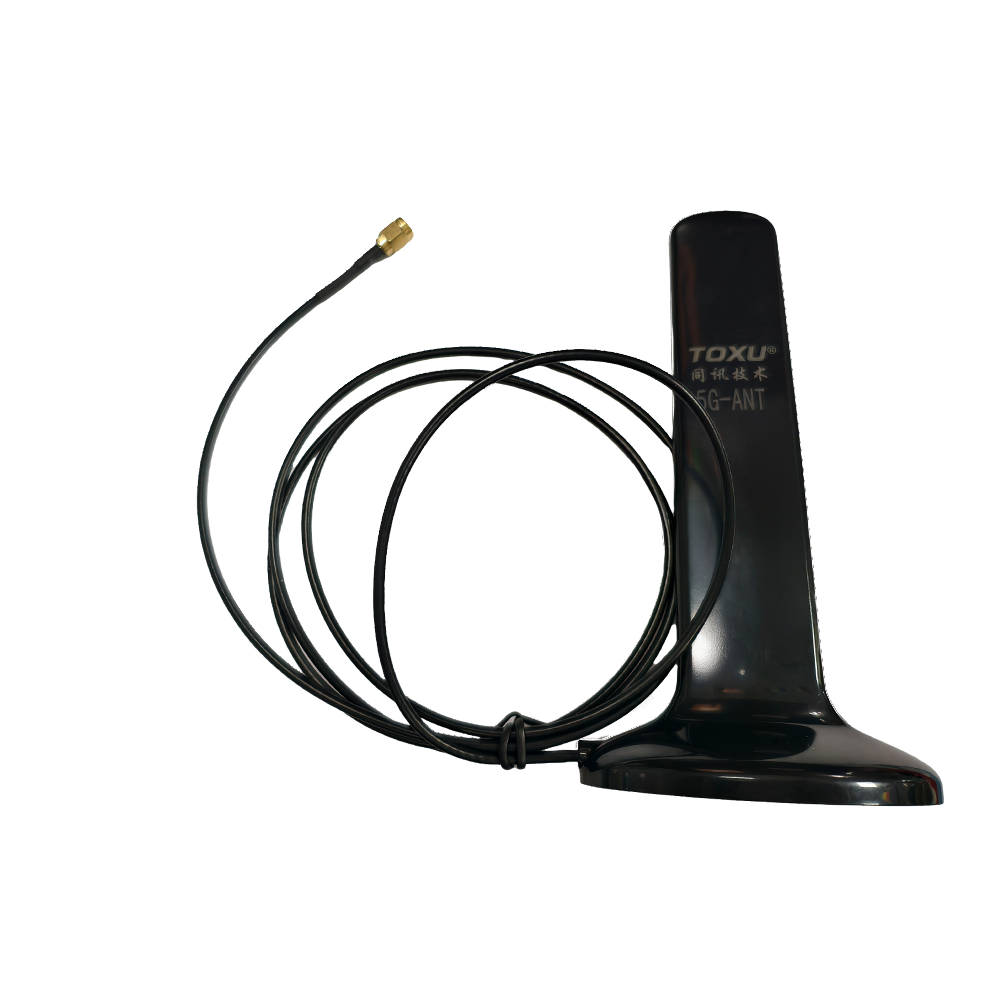

The KC.GA.00056 features a vertical blade housing with an integrated magnetic base and screw hole. It is supplied with a 1.63m LMR100 low-loss coaxial cable and SMA male connector, allowing flexible antenna placement relative to the connected router, gateway, CPE, or equipment enclosure.

With IP54 ingress protection, the antenna offers basic protection against dust and water splashes. The final installation environment and protection requirements should still be evaluated according to the complete customer system.

Key Features

690–960MHz and 1710–5000MHz Coverage

Supports multiple 4G LTE and selected sub-6GHz 5G frequency bands within the specified operating ranges.

Magnetic and Screw-Hole Installation

The integrated magnetic base supports quick placement on suitable metal surfaces, while the screw hole provides an additional installation option according to the equipment structure.

2dBi Antenna Gain

Provides 2dBi gain for compatible cellular signal transmission and reception across the specified operating frequency ranges.

Omnidirectional Radiation Pattern

The omnidirectional design supports signal coverage around the antenna when it is installed vertically in a suitable operating environment.

1.63m LMR100 Low-Loss Cable

The supplied LMR100 coaxial cable provides flexible routing and allows the antenna to be positioned separately from the communication equipment.

SMA Male RF Connection

The SMA male connector supports connection to compatible cellular routers, CPE devices, gateways, and wireless communication terminals with a 50Ω RF interface.

IP54 Housing Protection

The antenna housing provides IP54-rated protection against limited dust ingress and water splashes under the specified test conditions.

Custom Antenna Configuration

TOXU can customize the operating frequency, coaxial cable type, cable length, RF connector, antenna housing, and mounting structure according to the customer’s equipment and project requirements.

Technical Specifications

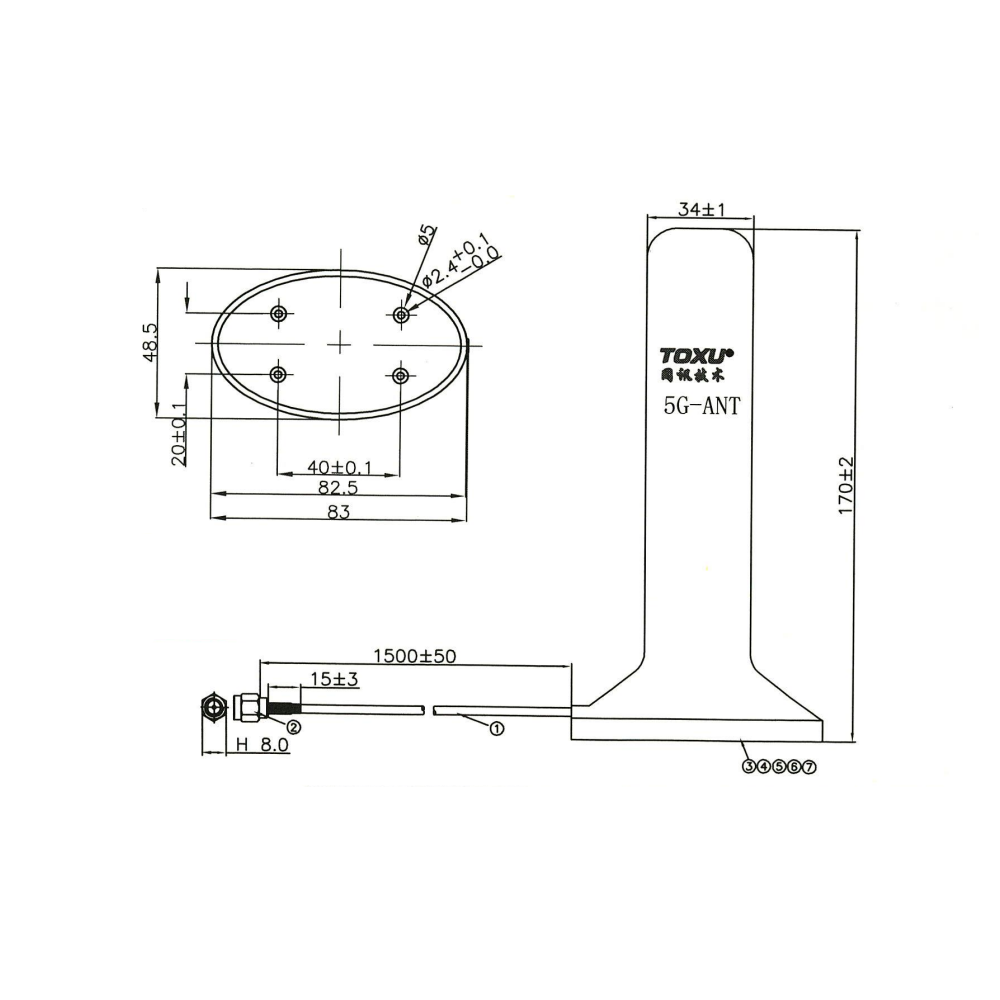

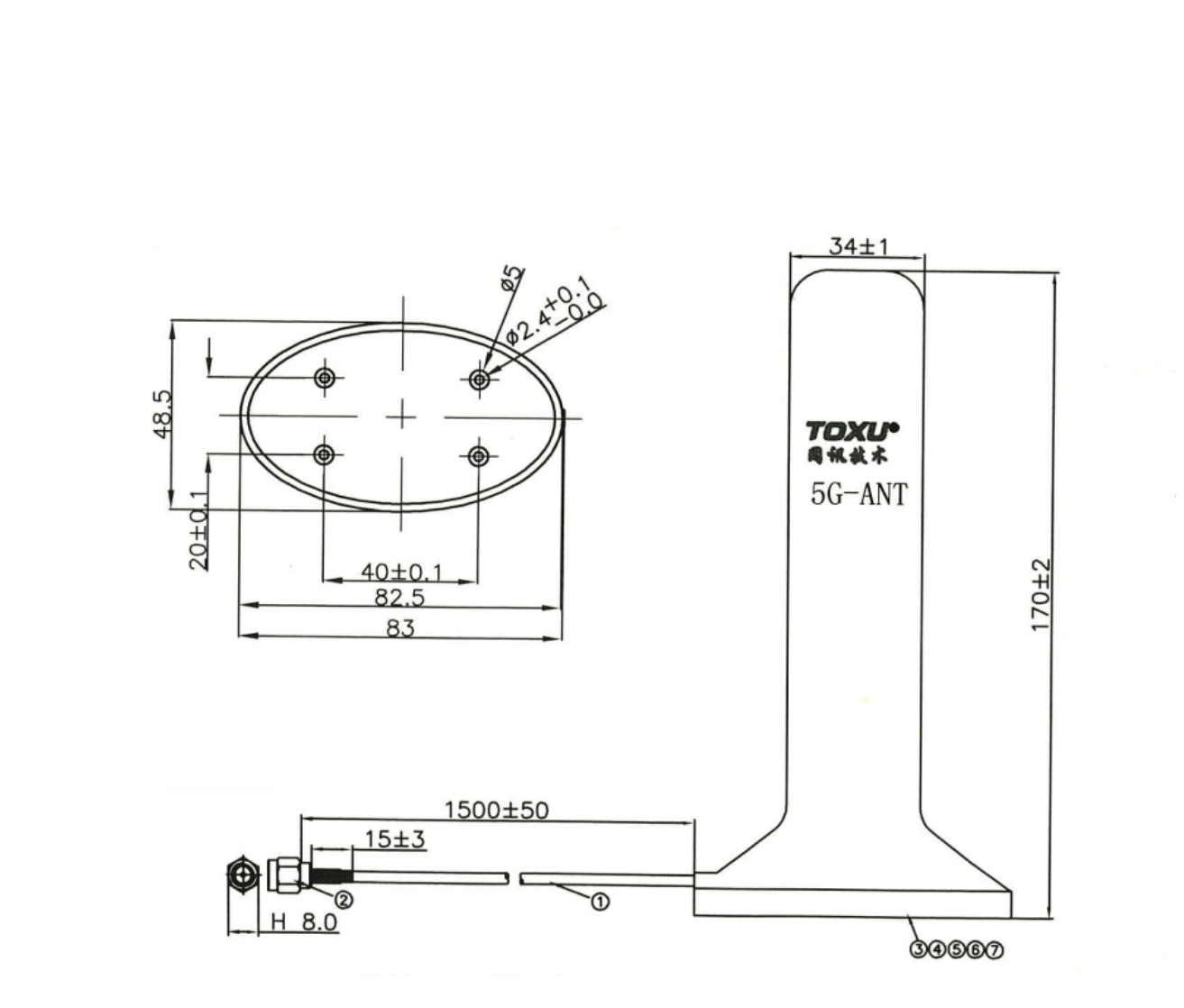

Dimension Drawing

Please refer to the dimension drawing below for the antenna housing, magnetic base, screw-hole position, and mechanical dimensions.

Mechanical dimensions, cable length, connector type, and mounting structure can be customized according to the customer’s equipment and installation requirements.

Applications

• 4G LTE Cellular Routers

• Sub-6GHz 5G Routers

• Customer Premises Equipment

• Industrial Cellular Gateways

• IoT Communication Terminals

• Wireless Access Equipment

• Remote-Monitoring Systems

• Security and Surveillance Equipment

• Industrial Automation Equipment

• Smart Vending and Payment Terminals

• Vehicle Communication Equipment

• Cellular Backup Communication Systems

System Integration

The KC.GA.00056 can be connected to compatible 4G LTE routers, sub-6GHz 5G routers, CPE terminals, cellular modules, industrial gateways, and IoT communication equipment equipped with a 50Ω SMA interface.

The integrated magnetic base allows quick installation on a suitable flat metal surface. The screw hole can also be used when the customer’s equipment requires a more secure mechanical installation.

For stable installation and RF performance, the mounting surface should be clean, flat, and sufficiently large. Installation directly on plastic, glass, or non-magnetic materials requires an additional metal mounting plate or bracket.

The 1.63m LMR100 cable allows the antenna to be positioned away from the connected device. Excessive cable bending, compression, or routing near high-current circuits and strong interference sources should be avoided.

Actual antenna performance depends on the operating band, communication module, installation position, surrounding metal structure, cable routing, RF matching, and operating environment.

Before ordering, customers should confirm the required cellular bands, communication module or router model, SMA connector type and polarity, cable length, installation environment, and number of cellular antenna ports. A 2×2 or 4×4 MIMO device normally requires multiple antennas.

Why Choose TOXU

TOXU provides cellular antenna design, RF tuning, coaxial cable assembly, connector integration, prototype development, testing, and mass-production support for wireless communication equipment manufacturers.

Our engineering team can customize the antenna frequency, housing structure, cable type, cable length, RF connector, mounting method, and RF performance according to the customer’s communication module and installation environment.

TOXU also provides RF cable assemblies, RF connectors, PCBA manufacturing, and product assembly services, supporting customers from antenna selection and sample verification to complete communication hardware integration.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports engineering verification, quality control, and stable volume production for industrial, IoT, communication, and automotive-related projects.

FAQ

Q: Which frequency ranges does the KC.GA.00056 support?

A: The standard antenna supports 690–960MHz and 1710–5000MHz.

Q: Is this antenna suitable for both 4G LTE and 5G equipment?

A: It can be used with compatible 4G LTE and sub-6GHz 5G equipment operating within the specified frequency ranges. The equipment bands should be confirmed before ordering.

Q: Is this a 2.4GHz and 5GHz Wi-Fi antenna?

A: No. The standard KC.GA.00056 is specified as a cellular antenna covering 690–960MHz and 1710–5000MHz. It should not be listed as a dedicated dual-band Wi-Fi antenna.

Q: How is the antenna installed?

A: It features a magnetic mounting base with a screw hole. It can be placed on a suitable metal surface or mechanically secured according to the equipment structure.

Q: Can it be installed directly on a plastic enclosure?

A: The magnetic base cannot attach directly to plastic. A suitable metal plate, bracket, or screw-based installation structure would be required.

Q: Can one antenna be used with a MIMO router?

A: One antenna connects to one RF port. A 2×2 or 4×4 MIMO router normally requires two or four antennas according to its antenna-port configuration.

Q: Can the cable length and connector be customized?

A: Yes. TOXU can customize the coaxial cable type, cable length, RF connector, housing, and mounting structure according to the customer’s equipment.

Q: What information should be provided before ordering?

A: Please provide the required cellular bands, router or communication module model, connector type and polarity, cable length, mounting method, installation environment, MIMO configuration, and expected order quantity.
