Overview

The TOXU TX-A151 is an outdoor omnidirectional cellular antenna designed for compatible 4G LTE and 5G NR communication equipment.

The antenna covers 700-2700MHz and 3300-6000MHz, supporting integration with cellular routers, industrial gateways, wireless terminals, monitoring equipment, and other compatible communication systems.

The TX-A151 provides 5dBi gain, no more than 1.9 VSWR, 50 Ohm impedance, and vertical polarization. Its omnidirectional radiation pattern provides horizontal 360-degree signal coverage when the antenna is installed vertically.

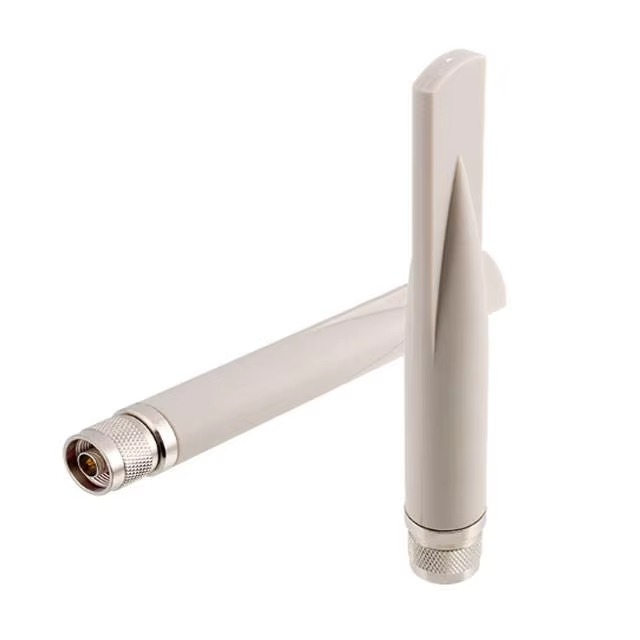

The antenna uses a rigid white ABS housing and measures approximately 176 x 21mm. N Male and N Female connector configurations are available according to the equipment-side RF interface.

Key Features

700-2700MHz and 3300-6000MHz Coverage

The TX-A151 covers the specified frequency ranges for compatible 4G LTE and 5G NR communication equipment.

5dBi Antenna Gain

The listed antenna gain is 5dBi for the specified product configuration.

Omnidirectional Radiation

The antenna provides horizontal 360-degree signal coverage when correctly installed in a vertical position.

No More Than 1.9 VSWR

The specified voltage standing wave ratio is no more than 1.9.

50 Ohm Impedance

The TX-A151 uses a nominal impedance of 50 Ohm for integration with compatible RF equipment.

Vertical Polarization

The antenna uses vertical polarization for compatible cellular communication applications.

Outdoor ABS Housing

The rigid white ABS enclosure protects the internal antenna structure and supports outdoor equipment installation.

N Male or N Female Connector

The connector configuration can be selected according to the equipment-side RF interface.

176 x 21mm Compact Structure

The listed antenna dimensions are approximately 176 x 21mm.

Technical Specifications

Applications

• 4G LTE Routers

• 5G NR Gateways

• Cellular Modems

• Industrial Wireless Gateways

• Outdoor Communication Terminals

• Remote-Monitoring Equipment

• Telemetry Systems

• Industrial IoT Equipment

• Wireless Security Equipment

• Compatible Cellular CPE

System Integration

Before ordering, confirm that the connected equipment operates within 700-2700MHz or 3300-6000MHz.

The connector configuration must match the equipment-side RF interface. N Male and N Female connectors have different connection structures and should be confirmed before production.

The TX-A151 uses vertical polarization and should normally be installed vertically to support its omnidirectional radiation pattern.

The operating frequency, connector type, connector gender, mounting structure, and available installation space should be confirmed before installation.

Why Choose TOXU

TOXU provides antenna design, RF tuning, connector integration, RF cable processing, prototype verification, testing, and volume-production support for communication equipment manufacturers and system integrators.

Our product range includes 4G LTE and 5G NR antennas, GNSS antennas, embedded antennas, combination antennas, ISM and LoRa antennas, VHF and UHF antennas, fiberglass antennas, RF cable assemblies, RF connectors, PCBA manufacturing, GNSS modules, and receiver boards.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports customized production, engineering verification, quality control, and stable delivery for overseas B2B projects.

FAQ

Q: Which frequency ranges does the TX-A151 cover?

A: The TX-A151 covers 700-2700MHz and 3300-6000MHz.

Q: Does the antenna support both 4G LTE and 5G NR?

A: It supports compatible 4G LTE and 5G NR equipment operating within the specified frequency ranges.

Q: What is the antenna gain?

A: The specified antenna gain is 5dBi.

Q: Is the antenna omnidirectional?

A: Yes. It provides horizontal 360-degree signal coverage when correctly installed in a vertical position.

Q: Which connectors are available?

A: N Male and N Female connector configurations are available according to the equipment interface.

Q: What are the antenna dimensions?

A: The listed antenna dimensions are approximately 176 x 21mm.

Q: Does the antenna have a confirmed IP rating?

A: The current specification does not state a specific IP rating. Please contact TOXU if a defined waterproof rating is required for your project.

Q: Can the connector or mounting structure be customized?

A: Connector and mounting configurations can be evaluated according to the equipment interface and project requirements.
