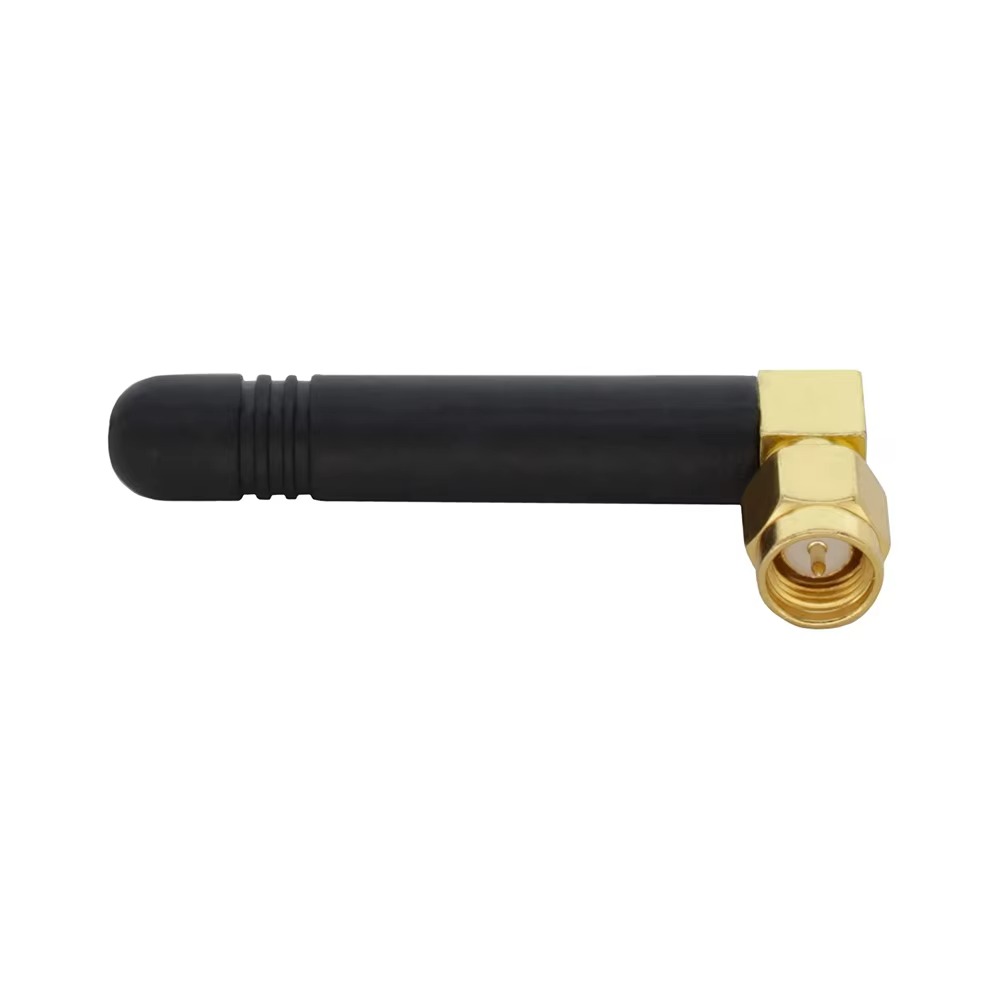

Overview

The TOXU TX-A130 is a compact external cellular antenna designed for compatible wireless communication equipment operating within 698-960MHz and 1710-2700MHz.

The antenna provides 2dBi gain, ≤2.0 VSWR, vertical polarization, and a nominal impedance of 50Ω. Its wide frequency coverage supports integration with compatible cellular routers, modems, gateways, communication terminals, and industrial wireless equipment.

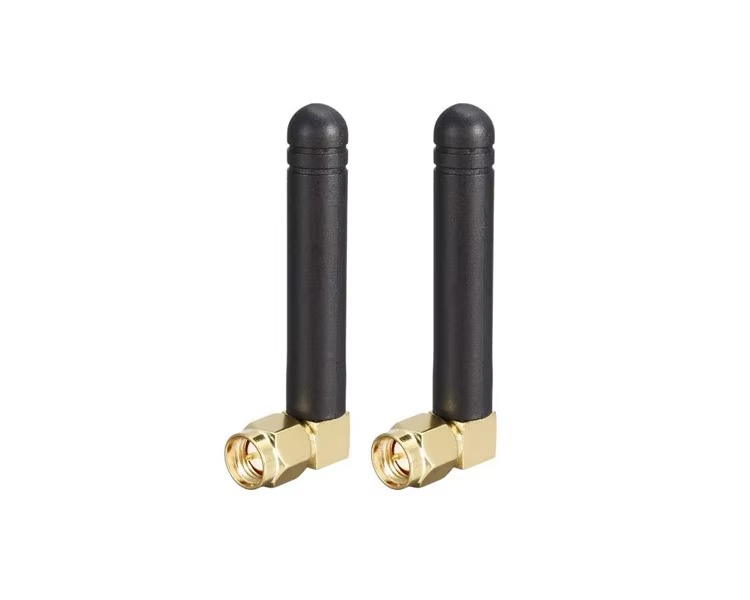

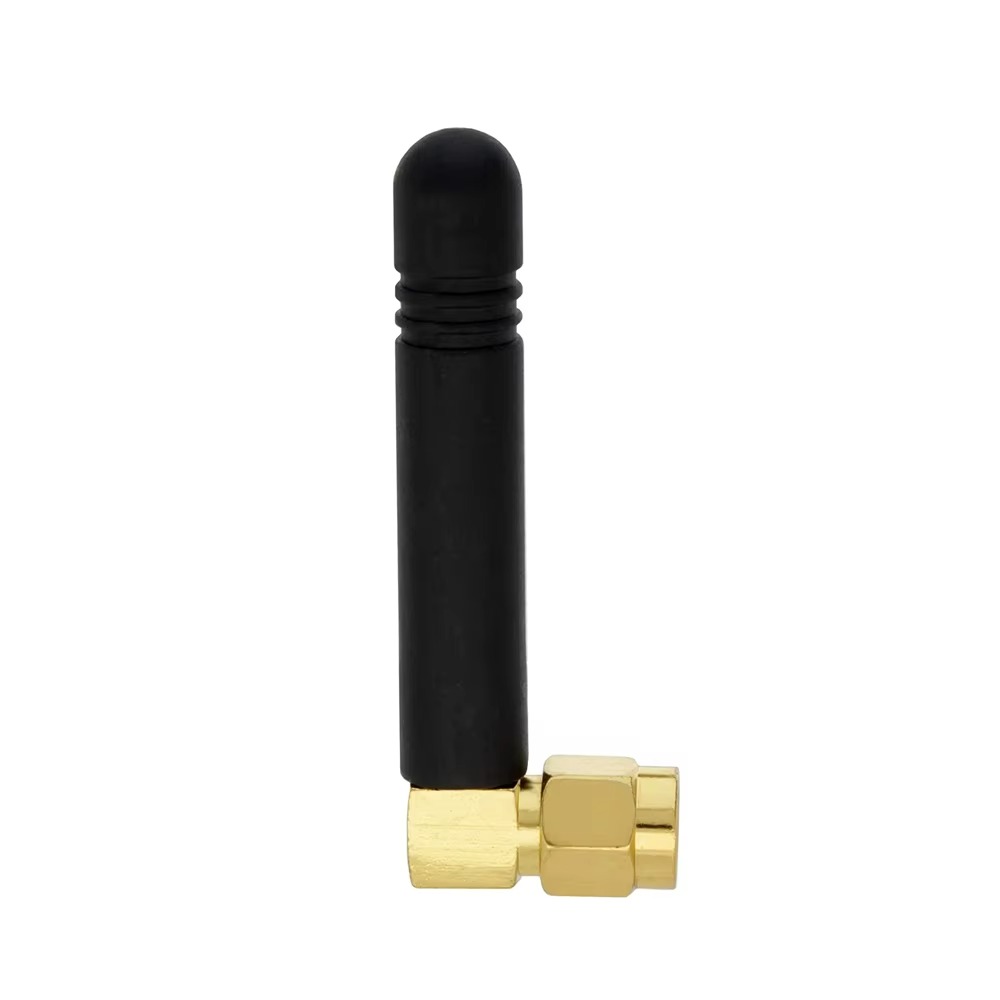

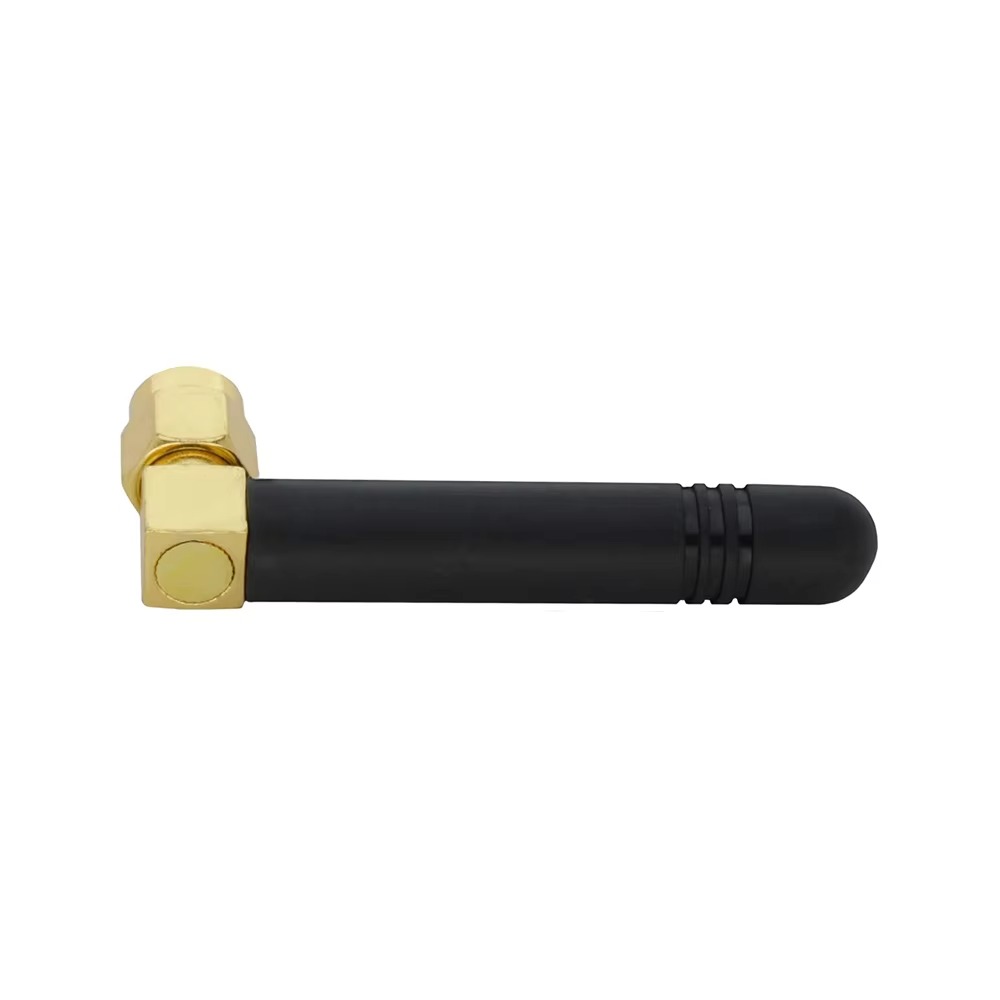

The TX-A130 uses a right-angle adjustable structure, allowing the antenna position to be adapted according to the equipment interface and available installation space.

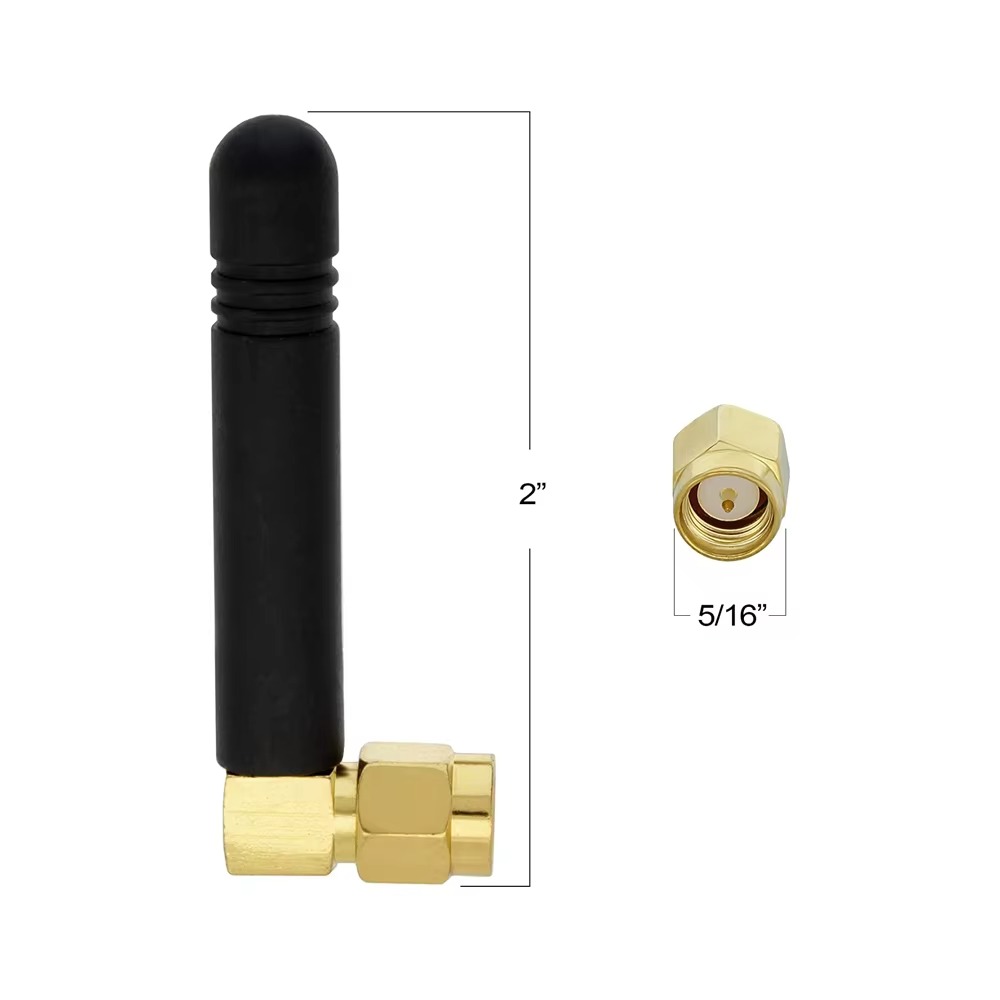

The standard configuration features a 50Ω SMA male connector for direct connection to compatible SMA female antenna ports. The antenna body measures approximately 50mm in length and uses a compact black external housing.

Key Features

698-960MHz and 1710-2700MHz Coverage

The TX-A130 covers two specified cellular frequency ranges for compatible wireless communication equipment.

2dBi Antenna Gain

The listed antenna gain is 2dBi for the specified product configuration.

≤2.0 VSWR

The specified voltage standing wave ratio is no more than 2.0.

Vertical Polarization

The antenna uses vertical polarization for compatible cellular communication applications.

50Ω RF Impedance

The TX-A130 uses a nominal impedance of 50Ω for integration with compatible RF equipment.

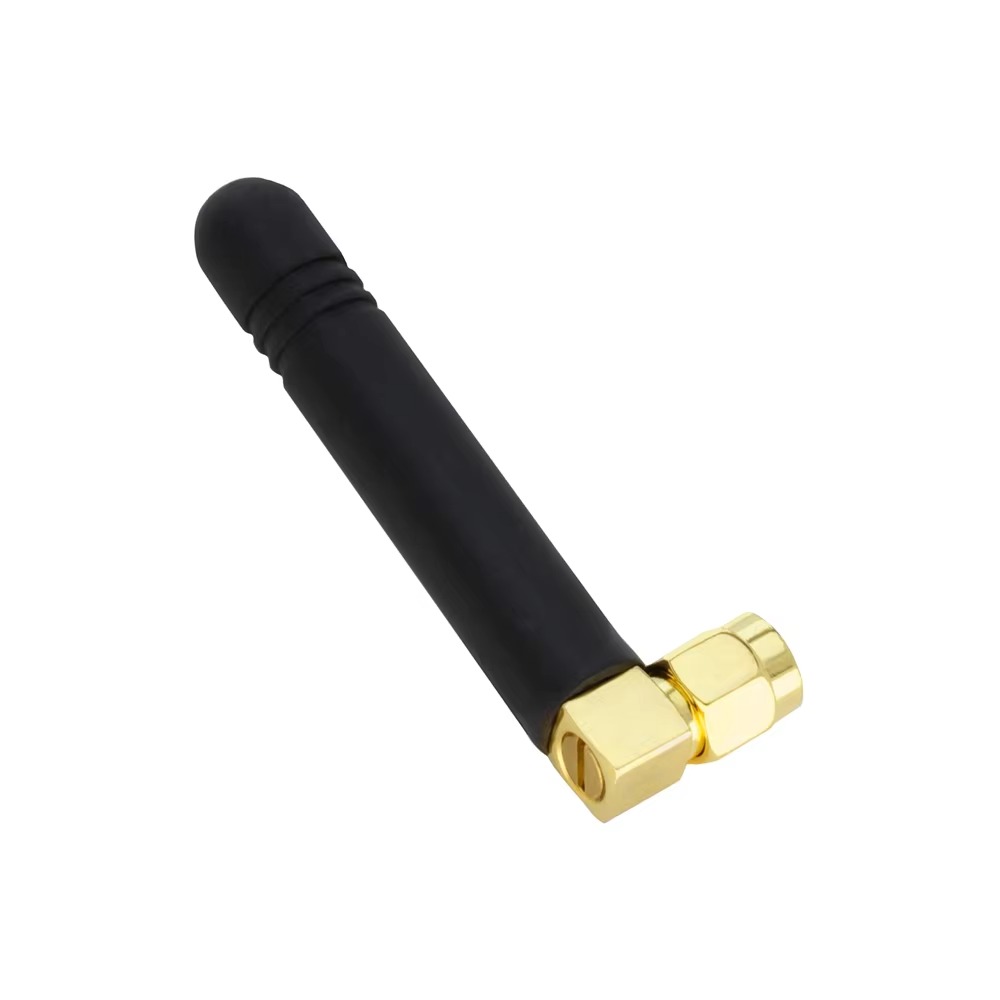

Right-Angle Adjustable Structure

The adjustable antenna structure supports angled installation according to the equipment interface and available installation space.

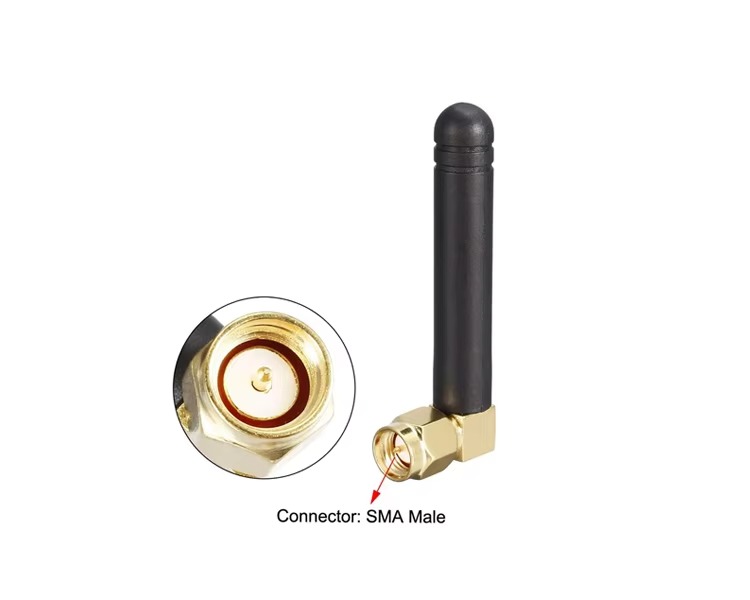

SMA Male Connector

The standard configuration uses an SMA male connector for direct connection to a compatible SMA female antenna interface.

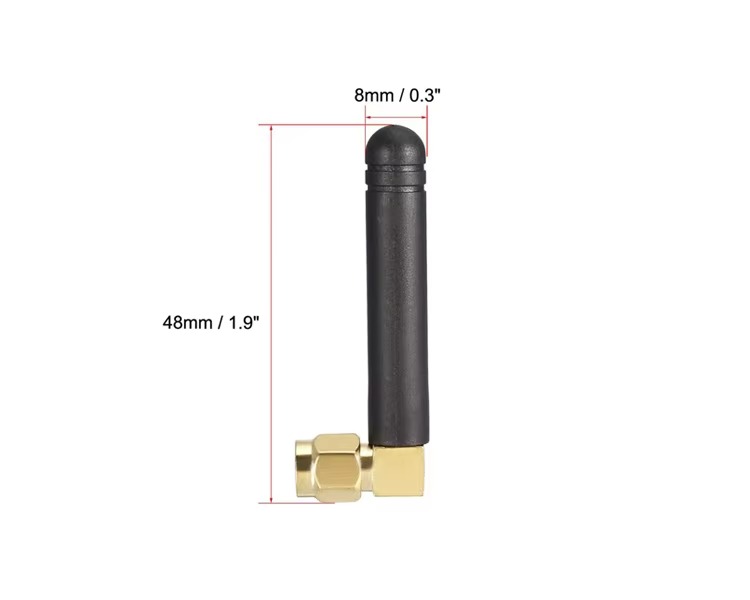

Compact 50mm Antenna Body

The antenna body measures approximately 50mm in length, supporting installation on compact wireless equipment.

50W Maximum Input Power

The listed maximum input power is 50W.

-40°C to +85°C Operating Temperature

The specified operating temperature range is -40°C to +85°C.

Technical Specifications

Applications

• Cellular Routers

• Wireless Modems

• Industrial Cellular Gateways

• Wireless Communication Terminals

• Remote-Monitoring Equipment

• Telemetry Terminals

• Industrial IoT Equipment

• Compatible Cellular CPE

System Integration

Before ordering, confirm that the connected equipment operates within 698-960MHz or 1710-2700MHz.

The standard TX-A130 uses an SMA male connector and therefore requires a compatible SMA female antenna interface.

The antenna should be positioned according to its vertical polarization and adjusted to suit the equipment structure and available installation space.

The frequency range, RF impedance, connector type, connector gender, and equipment interface should be confirmed before installation.

Why Choose TOXU

TOXU provides antenna design, RF tuning, RF cable processing, connector integration, prototype verification, testing, and volume-production support for communication equipment manufacturers and system integrators.

Our product range includes cellular antennas, GNSS antennas, embedded antennas, combination antennas, VHF and UHF antennas, fiberglass antennas, RF cable assemblies, RF connectors, PCBA manufacturing, GNSS modules, receiver boards, and integrated communication and positioning hardware solutions.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports engineering verification, quality control, customized production, and stable delivery for overseas B2B projects.

FAQ

Q: Which frequency ranges does the TX-A130 cover?

A: The TX-A130 covers 698-960MHz and 1710-2700MHz.

Q: What is the antenna gain?

A: The specified gain is 2dBi.

Q: What is the specified VSWR?

A: The specified VSWR is ≤2.0.

Q: What is the antenna impedance?

A: The nominal impedance is 50Ω.

Q: Which connector does the antenna use?

A: The standard configuration uses an SMA male connector.

Q: What is the antenna length?

A: The antenna body measures approximately 50mm in length.

Q: What is the operating temperature range?

A: The specified operating temperature range is -40°C to +85°C.
