Overview

The TOXU TX-A24 is a foldable external paddle antenna developed for cellular cameras, wireless routers, industrial gateways, tracking terminals, remote-monitoring equipment, and other devices requiring a direct-mounted external antenna.

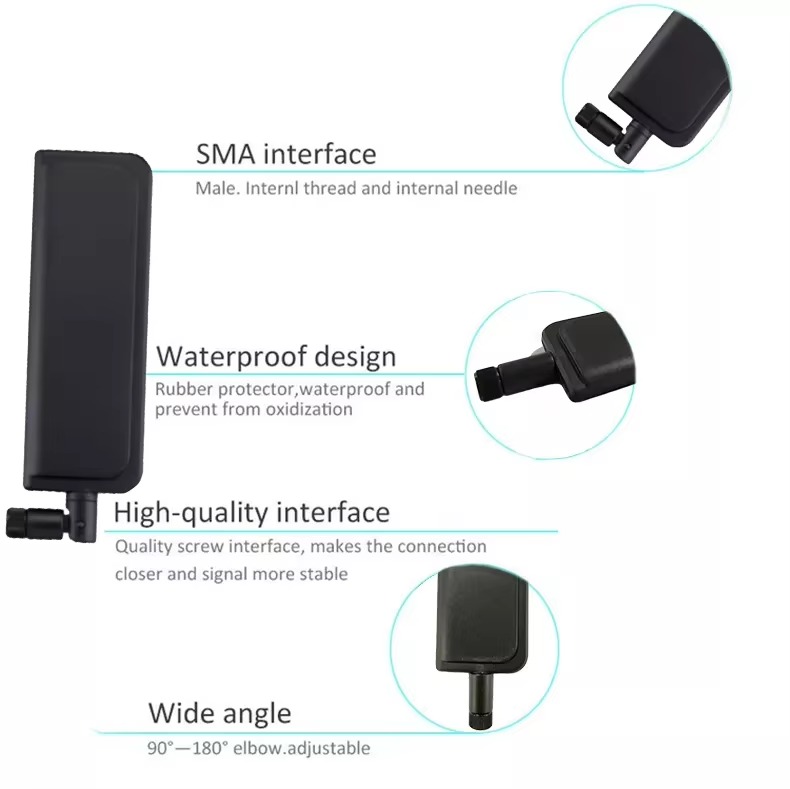

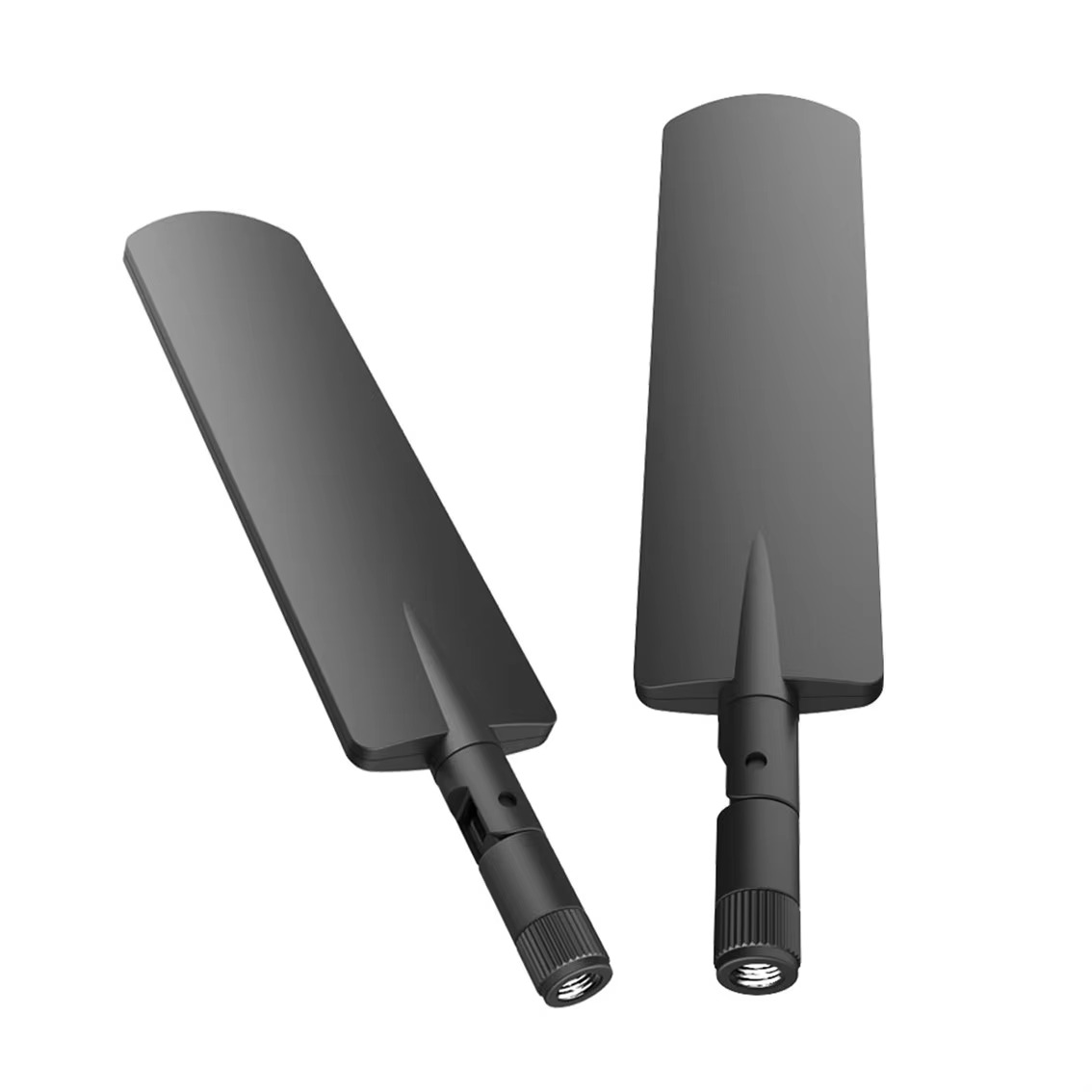

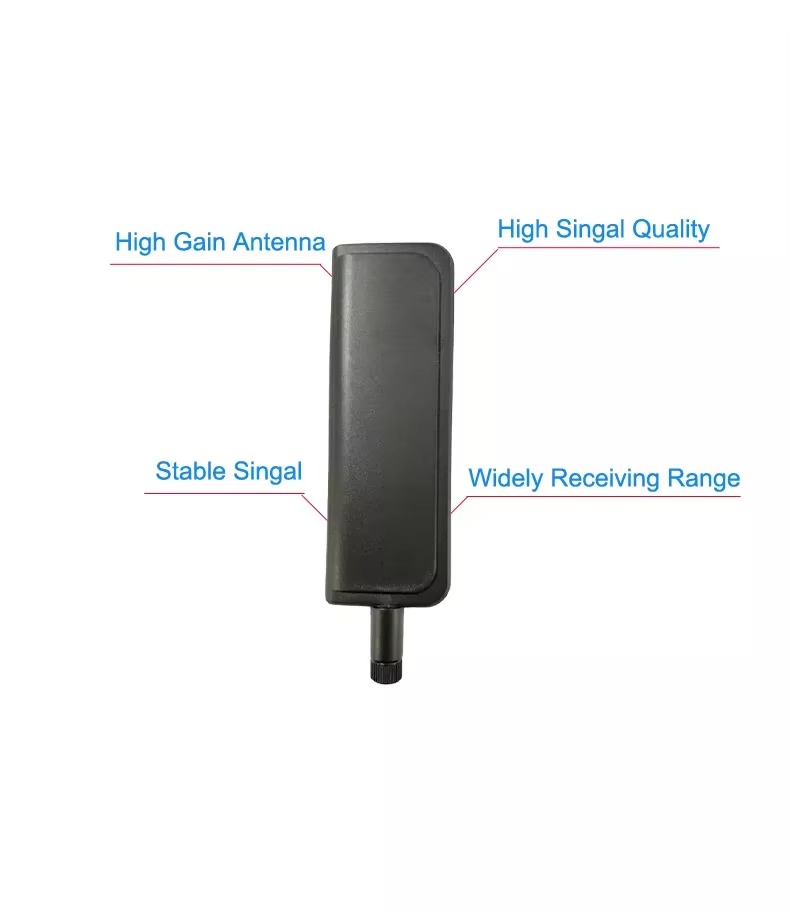

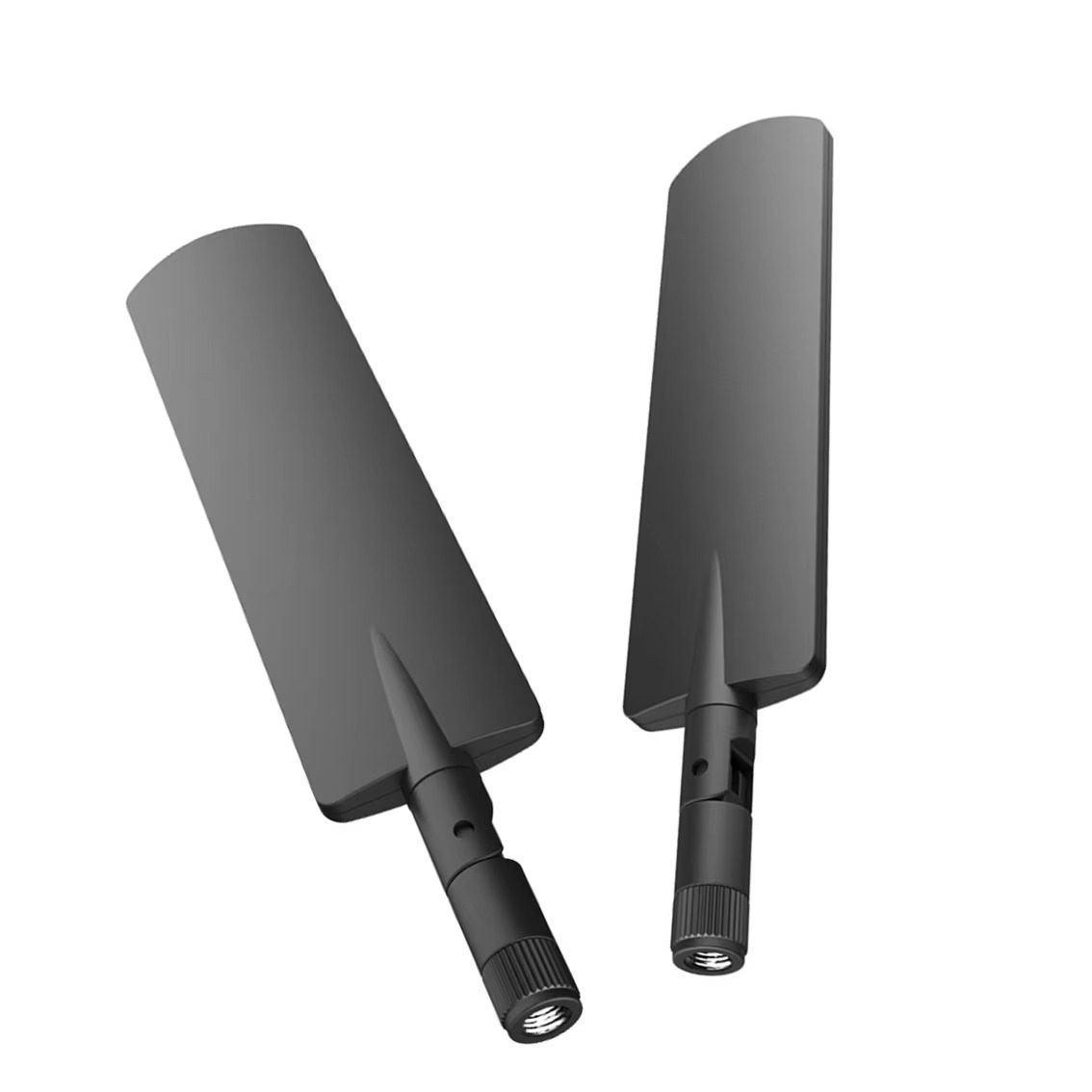

The antenna uses an SMA male connector and an adjustable joint, allowing the paddle body to be positioned according to the equipment installation direction. Its slim housing helps simplify integration with cameras, routers, gateways, trackers, and industrial wireless terminals.

The TX-A24 features an IP67-rated housing for applications where resistance to dust and moisture is required. Final protection performance depends on correct connector installation and the sealing structure of the connected equipment.

Different frequency configurations can be evaluated for compatible 4G LTE, cellular, 2.4GHz WiFi, or 5.8GHz WiFi equipment. The required operating frequency must be confirmed before ordering because antenna matching differs between cellular and WiFi applications.

TOXU supports frequency tuning, connector configuration, housing customization, RF verification, prototype development, and volume-production support according to the customer’s wireless module and equipment structure.

Key Features

Application-Specific Frequency Configuration

The antenna can be configured for compatible cellular or WiFi applications according to the required operating frequency and equipment platform.

IP67-Rated External Housing

The housing is designed for equipment requiring protection against dust and moisture in outdoor or industrial operating environments.

Foldable Paddle Structure

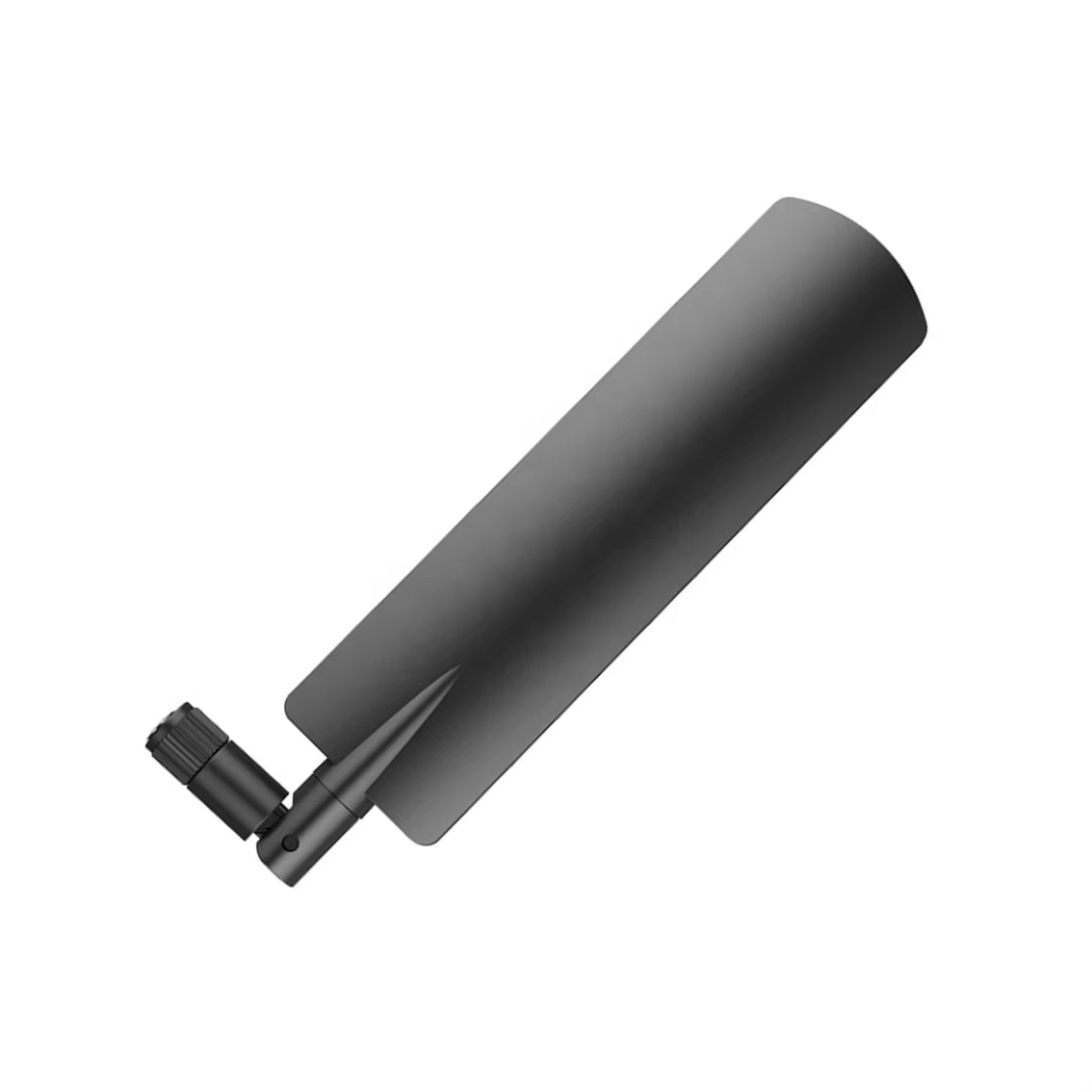

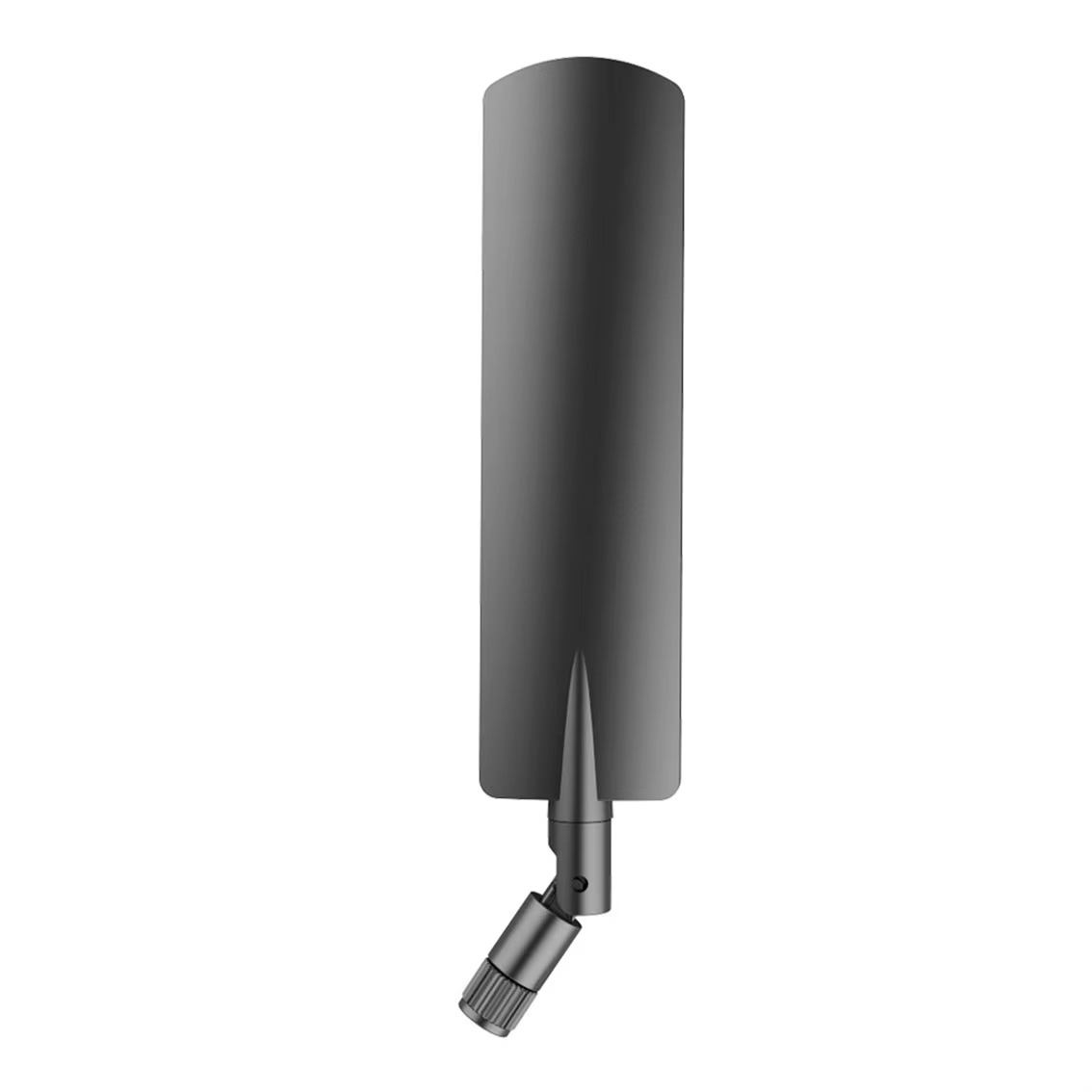

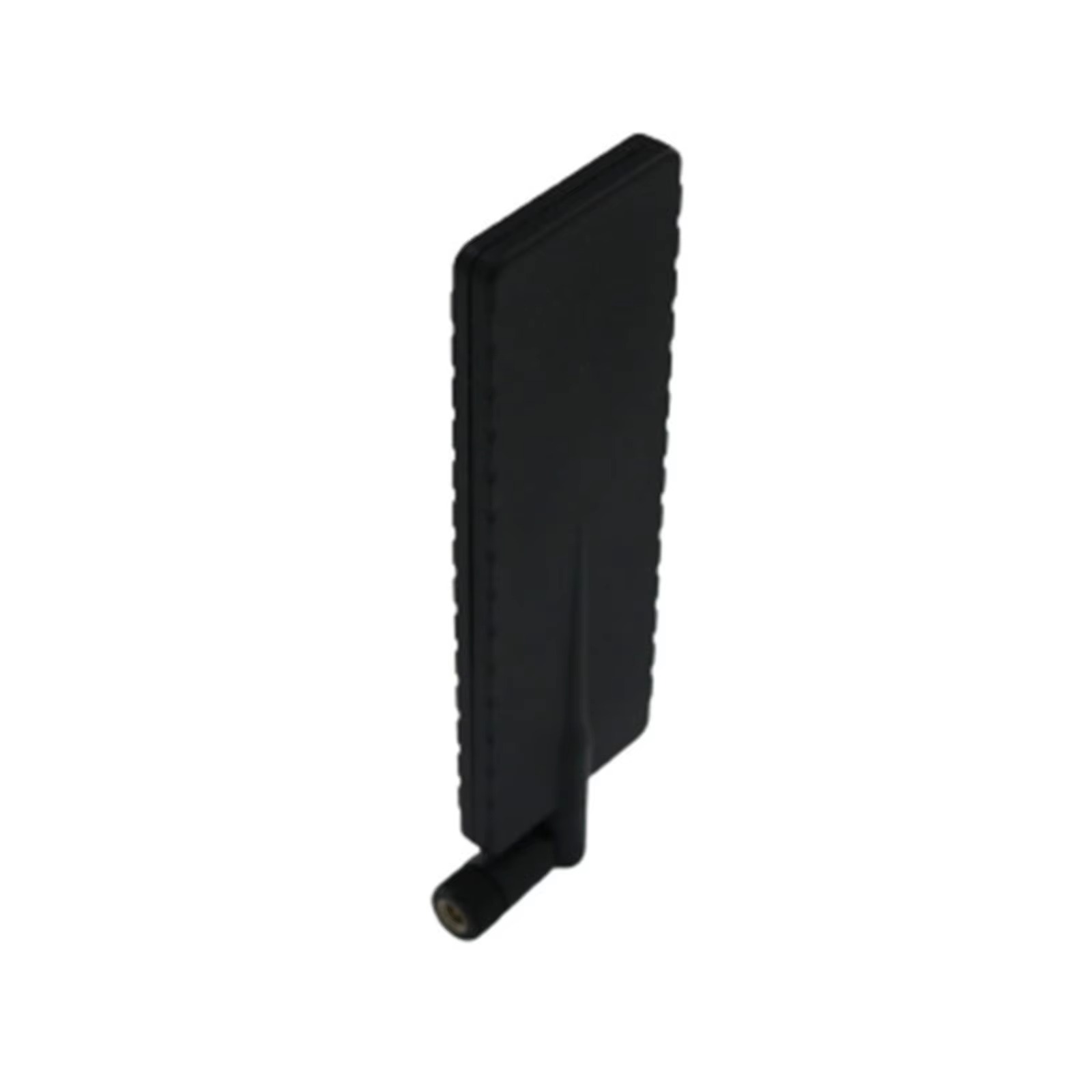

The adjustable antenna joint supports flexible positioning after installation and helps accommodate different equipment orientations.

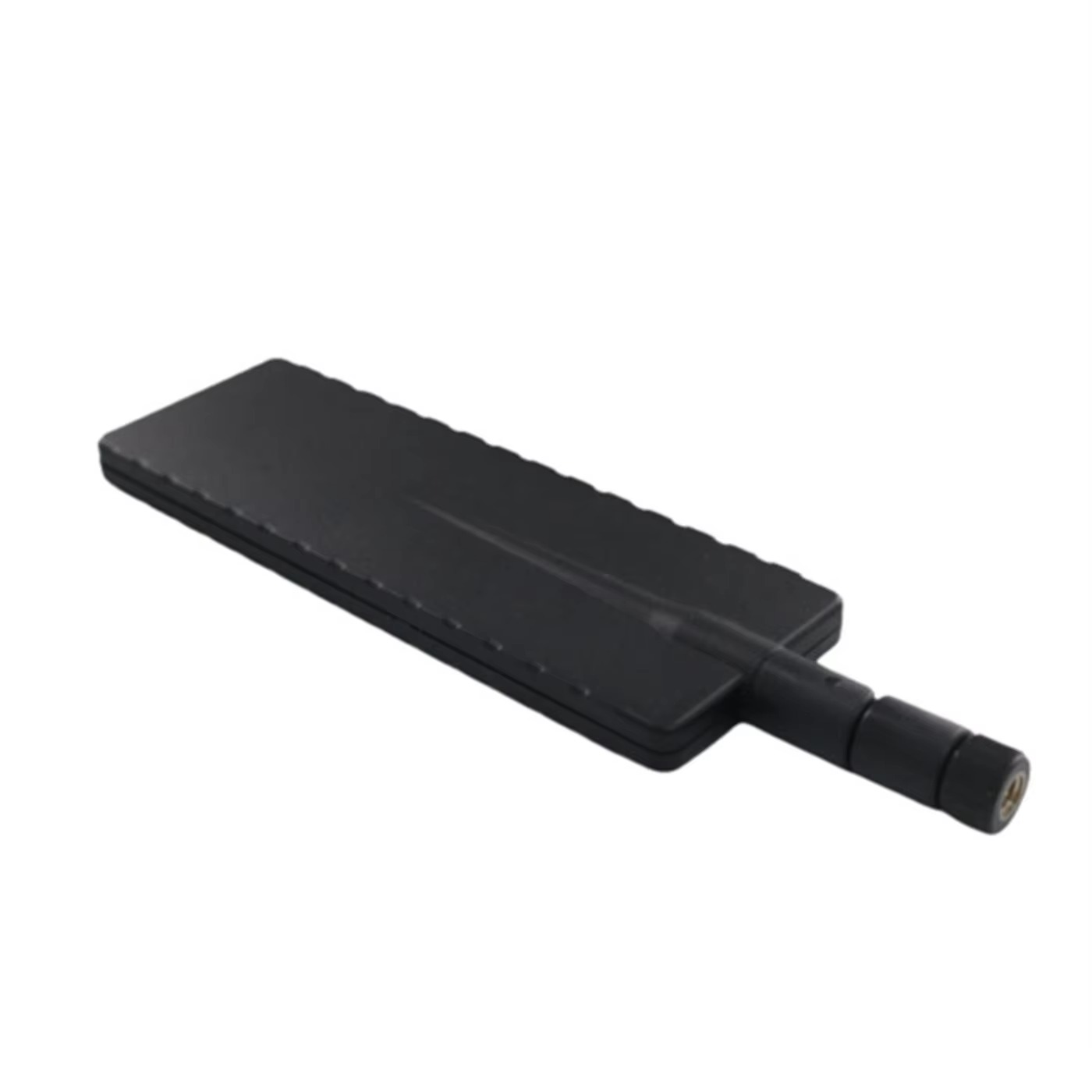

SMA Male Connector

The standard SMA male connector allows direct installation on compatible cellular cameras, routers, gateways, trackers, and wireless terminals.

Compact 142mm Paddle Body

The antenna body measures approximately 142mm in length, 49mm in width, and 10mm in thickness.

Direct Equipment Installation

The antenna does not require an external RF cable in its standard configuration and connects directly to the equipment antenna port.

OEM and ODM Configuration

TOXU can evaluate frequency tuning, connector type, housing structure, color, branding, packaging, and other project-specific requirements.

Technical Specifications

The frequency range, gain, VSWR, polarization, and other RF parameters must be confirmed according to the selected antenna version and approved specification. Cellular and WiFi configurations require separate matching and verification.

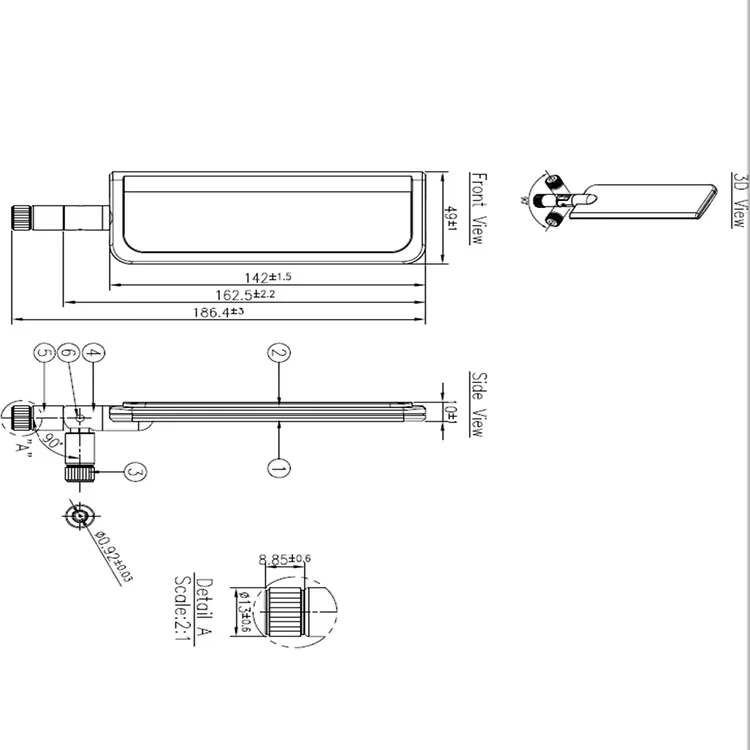

Dimension Drawing

The TX-A24 uses a slim foldable paddle structure with a 142 ±1.5mm antenna body, 49 ±1mm width, and 10 ±1mm thickness. The overall extended length is approximately 186.4 ±3mm.

All dimensions are shown in millimeters. Customers should verify the equipment interface, surrounding clearance, folding direction, and connector installation space before confirming the final mechanical configuration.

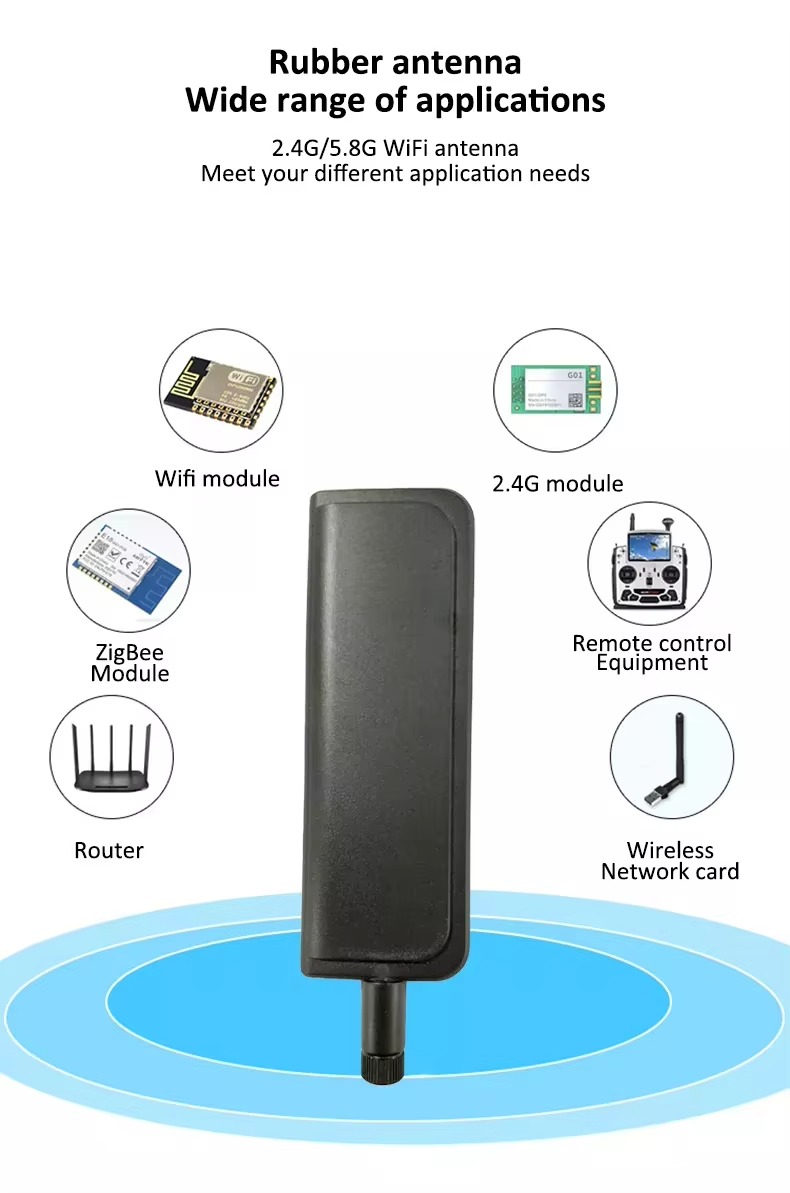

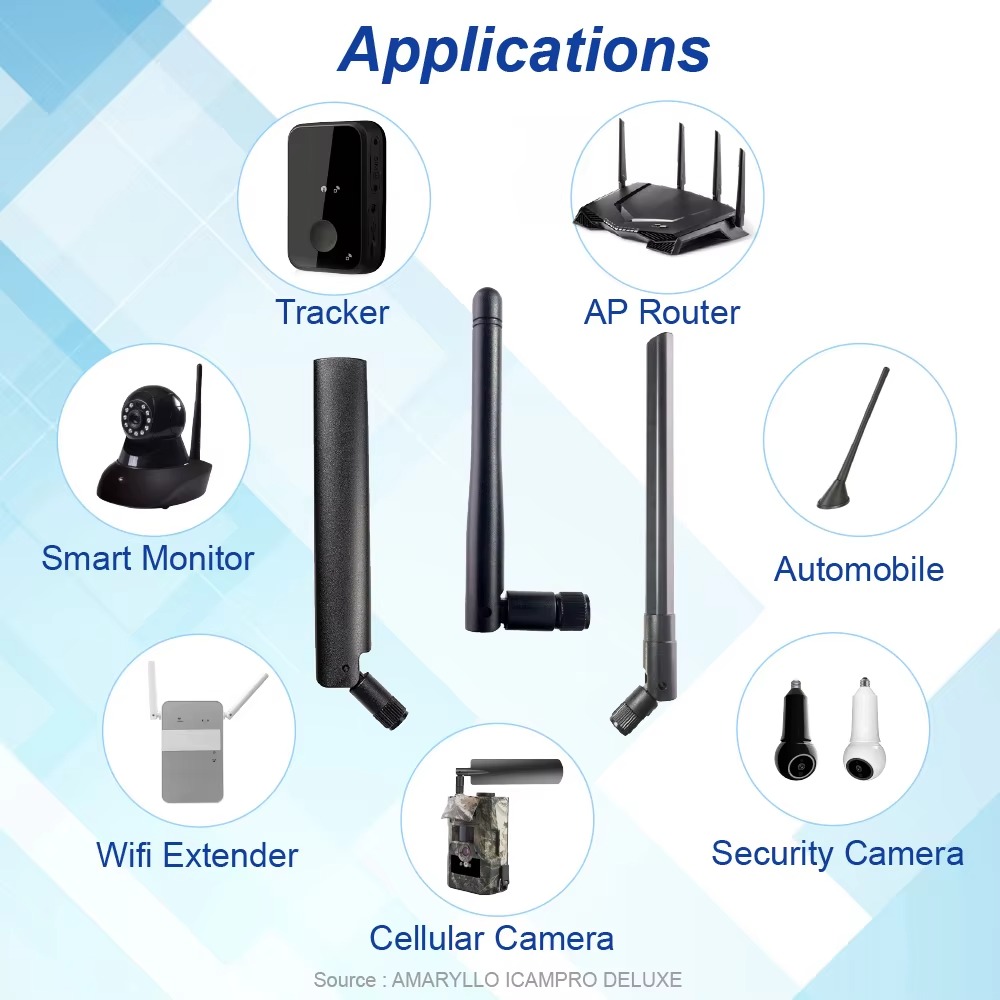

Applications

• Cellular Security Cameras

• Wildlife and Trail Cameras

• 4G LTE Routers

• Industrial Cellular Gateways

• Wireless Tracking Terminals

• Remote-Monitoring Equipment

• Industrial IoT Devices

• Wireless Modems

• Outdoor Communication Terminals

• Telemetry Equipment

• Compatible WiFi Routers and Gateways

The applicable equipment depends on the selected frequency configuration. The wireless module frequency and equipment connector must be confirmed before ordering.

System Integration

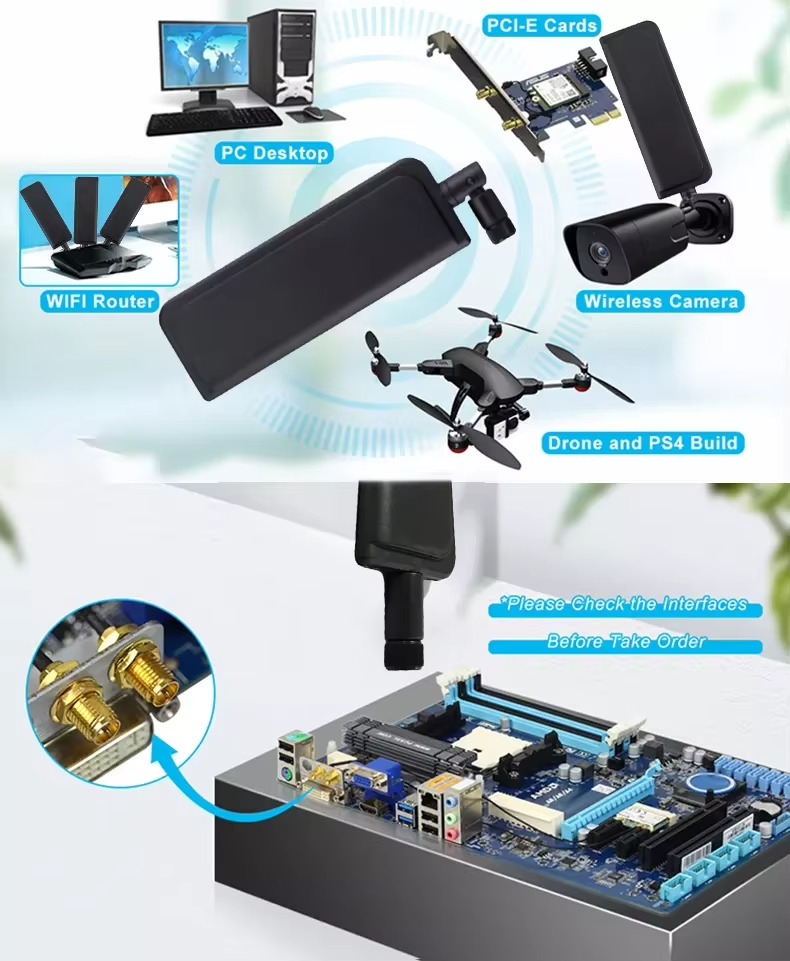

The TX-A24 connects directly to compatible equipment through its SMA male connector. Before ordering, customers should verify that the equipment uses the correct SMA interface and provides sufficient space for the antenna body and folding joint.

For cellular applications, the exact modem bands and regional network frequencies should be provided. General descriptions such as “4G” or “5G” are not sufficient for final antenna matching because different modules and operators use different frequency bands.

For WiFi applications, customers should confirm whether the equipment operates at 2.4GHz, 5GHz, or both. Cellular and WiFi versions may require different internal antenna designs even when they use the same external housing.

The antenna should be positioned away from large metal surfaces, motors, power supplies, high-current circuits, and other sources of electromagnetic interference whenever possible.

Actual wireless performance depends on antenna matching, module output power, receiver sensitivity, equipment enclosure, installation orientation, surrounding obstacles, network coverage, and the operating environment.

Customization Support

Frequency Tuning

TOXU can evaluate antenna matching according to the required cellular or WiFi bands, wireless module, PCB layout, equipment enclosure, and installation environment.

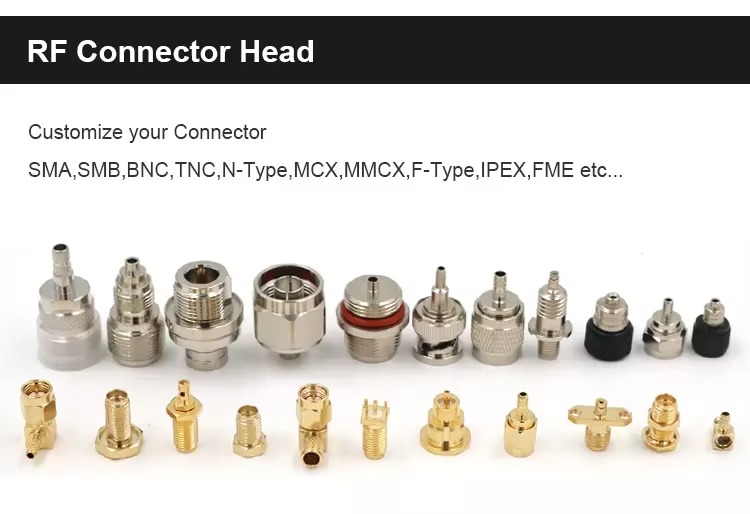

Connector Configuration

The standard configuration uses an SMA male connector. Alternative RF connector arrangements can be evaluated according to the equipment interface and project quantity.

Mechanical Customization

Housing color, branding, packaging, joint structure, and other mechanical requirements can be evaluated for suitable OEM and ODM projects.

Prototype and RF Verification

TOXU supports prototype development, network-analyzer testing, equipment-side verification, and final sample approval before mass production.

Volume-Production Support

After sample approval, TOXU supports antenna assembly, RF inspection, quality control, customized packaging, and stable volume delivery.

Why Choose TOXU

TOXU provides antenna design, RF tuning, connector integration, prototype verification, testing, and volume-production support for cellular, WiFi, IoT, industrial, automotive-related, and wireless communication equipment manufacturers.

Our engineering team can evaluate antenna performance according to the customer’s operating bands, wireless module, PCB layout, equipment enclosure, RF connector, installation position, and actual application environment.

In addition to external cellular and WiFi antennas, TOXU provides GNSS antennas, embedded antennas, combination antennas, RF cable assemblies, RF connectors, PCBA manufacturing, GNSS modules, receiver boards, and hardware integration services.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports engineering verification, quality control, customized production, and stable delivery for overseas B2B projects.
