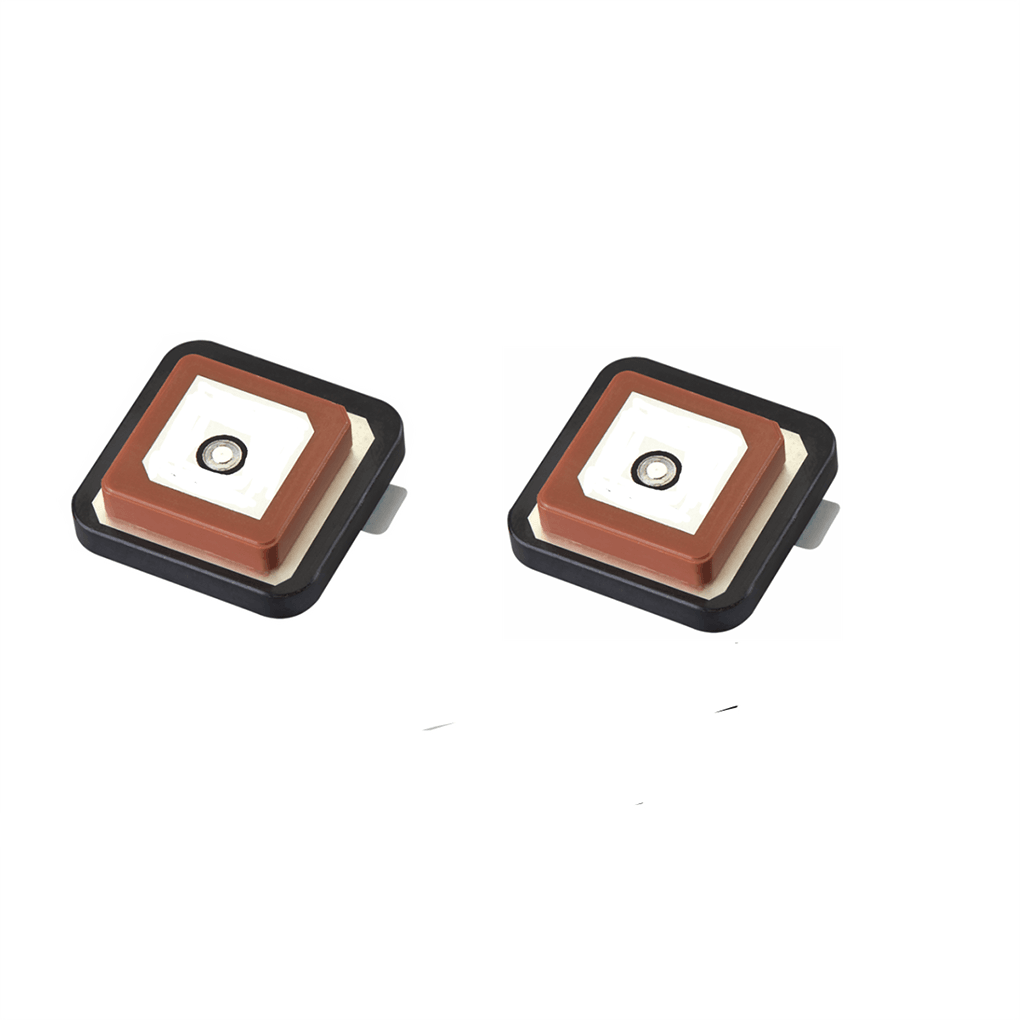

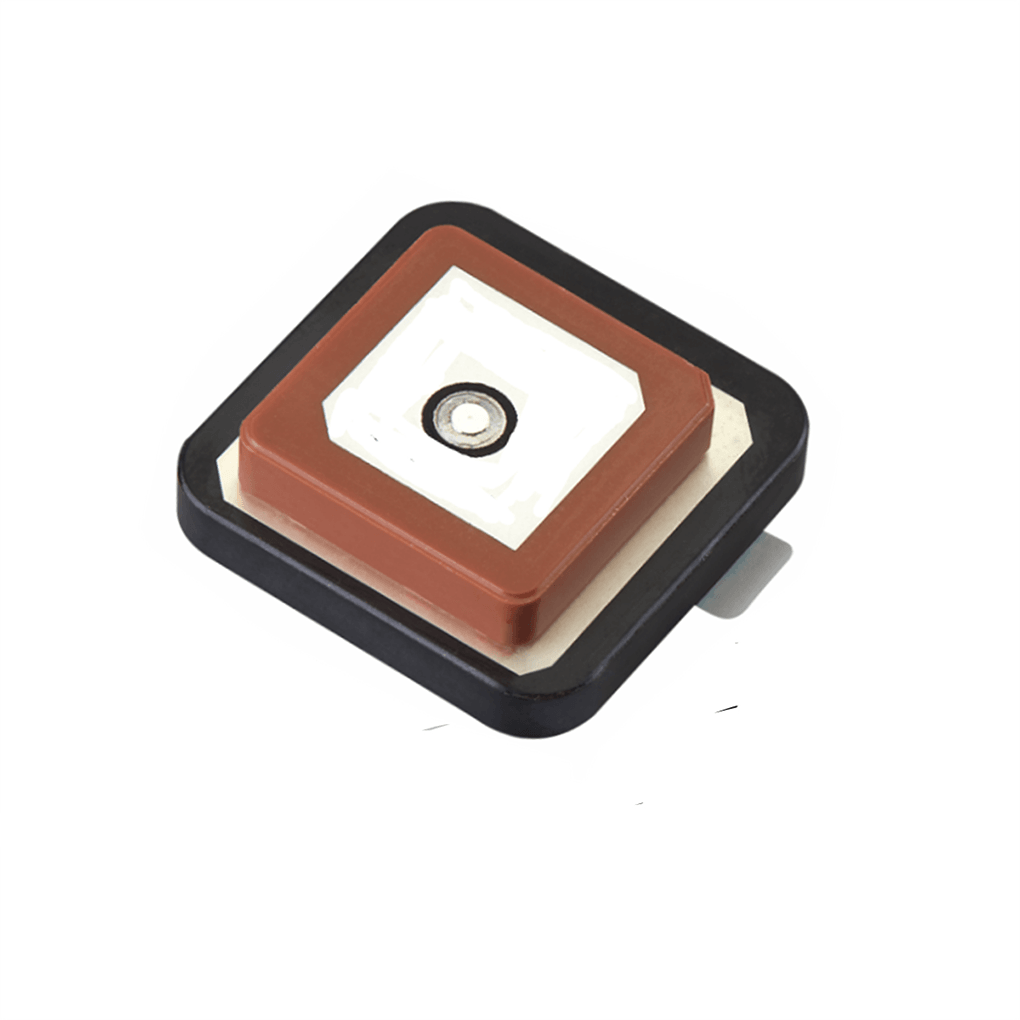

Build-in High precision GPS Positioning L1L5 25*18*8 Ceramic Antenna

-This positioning antenna is the most popular one for car navigation and autonomous driving

-Drones, black box equipment

-Telematics ODB device

- Wireless GSM, LTE devices

-Car, motorcycle, animal, container tracking equipment

-Location-based IoT devices


GNSS CERAMIC ANTENNA LIST.pdf

Z25401840F1176&1575(1+0) GNSS Ceramic antenna datasheet.pdf


Leave a message Contact

Fill in your email address

Or you can continue to download without filling in

Product Description

1)Enhanced Performance: The high-precision manufacturing process allows for precise control of the antenna’s dimensions and material properties, resulting in improved performance in terms of signal reception, transmission, and radiation pattern.

2)Miniaturization: Stacked ceramic antennas can be designed with smaller form factors while maintaining high performance, making them suitable for integration into compact electronic devices such as smartphones, wearables, and IoT devices.

3)Durability: The use of ceramic materials provides excellent mechanical strength


CharacteristicsSpecification
Frequency Range1575MHz,1176MHz

Bandwidth

(10dB return loss)

10MHz min. @S11 -10 dB
Zenith Gain1176MHZ0 dBic( ground base50mm*50mm
1575.42 MHz
PolarizationR.H.C.P.
Axial ratio3.0 dB Typ.
Storage Temperature-40 ~ +85°C
Relative Humidity20 ~ 95% RH
Recommended Storage conditionStore in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max.
Dimension25*18*8mm
