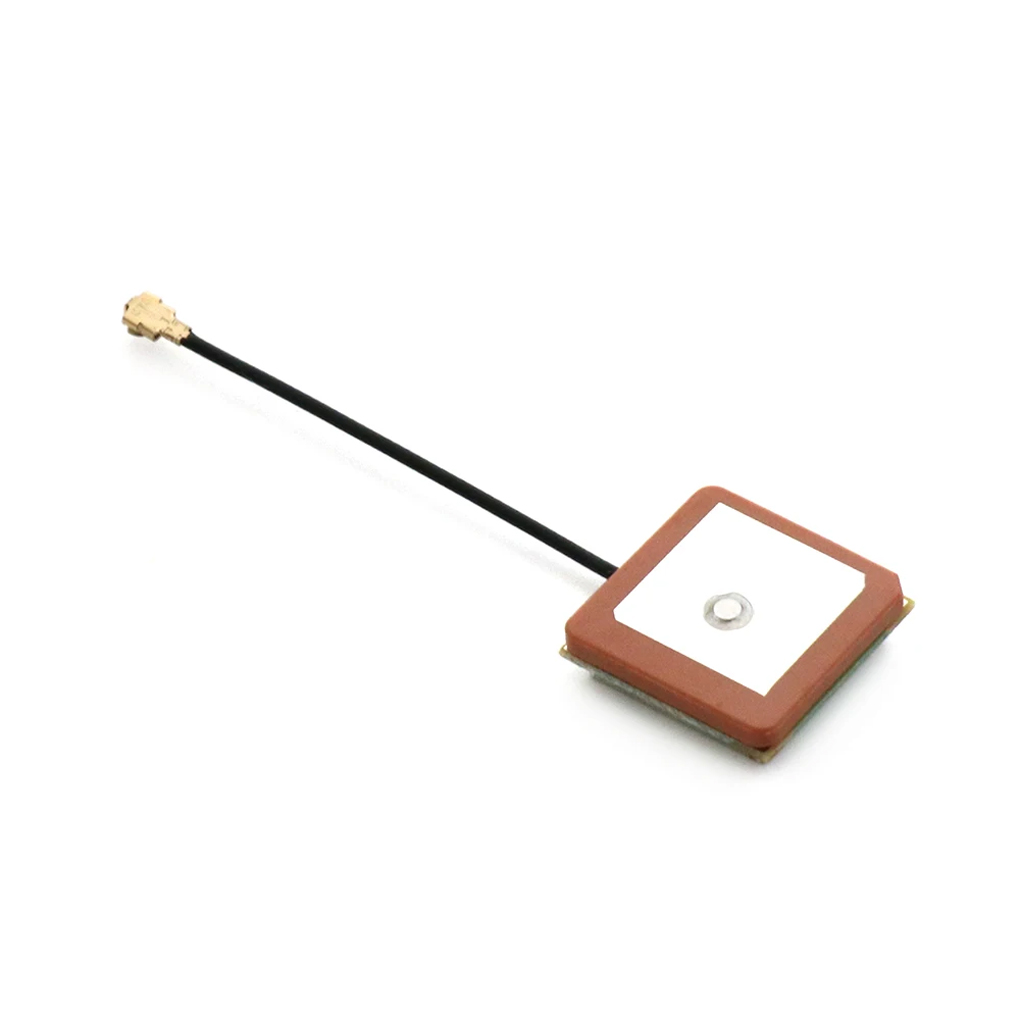

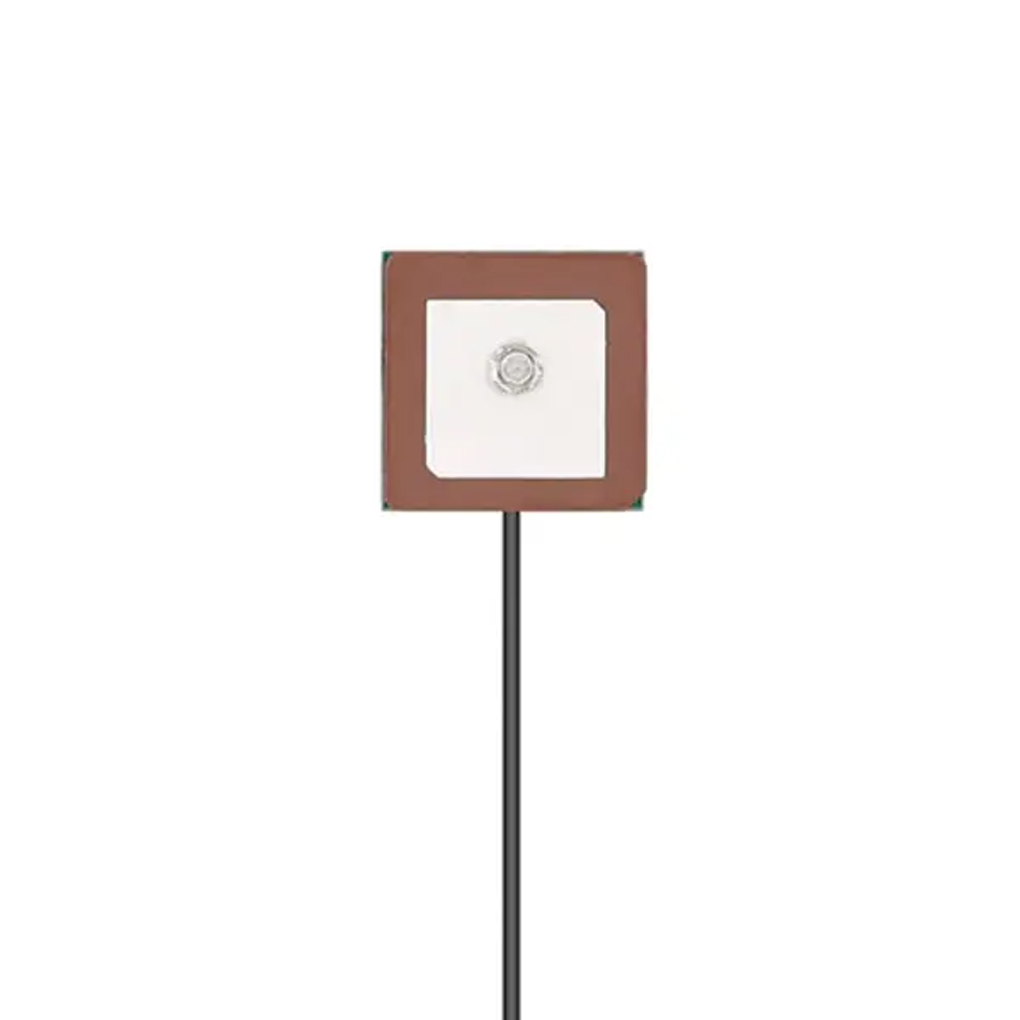

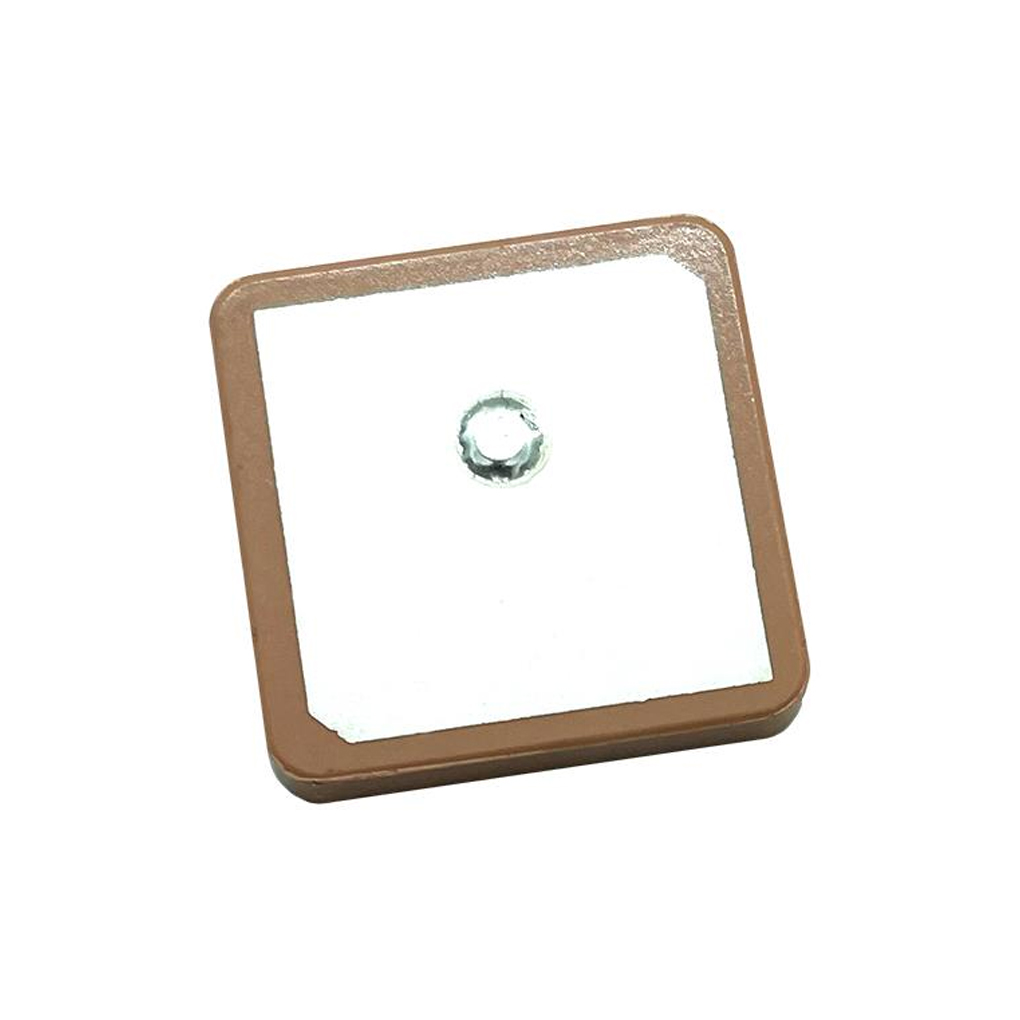

Build-in GPS Positioning 18*18*4 Ceramic Antenna for vehicle

-This positioning antenna is the most popular one for car navigation and autonomous driving

-Drones, black box equipment

-Telematics ODB device

- Wireless GSM, LTE devices

-Car, motorcycle, animal, container tracking equipment

-Location-based IoT devices


GNSS CERAMIC ANTENNA LIST.pdf


Leave a message Contact

Fill in your email address

Or you can continue to download without filling in

Product Description

1.Reliable and consistent Performance:  This antenna features high gain, ultra-low signal loss, wide beamwidth and low elevation satellite tracking capabilities.

2.Ceramic antennas take up little space and have better performance

3.It occupies less space, has low cost, does not require separate antenna assembly, is not easy to be damaged by touch, and is easy to assemble.


CharacteristicsSpecification
Frequency Range1575MHz,1602MHz
Center Frequency1575 MHz

Bandwidth

(10dB return loss)

15MHz min. @S11 -10 dB
Zenith Gain1602.5625MHZ0 dBic（ ground base50mm*50mm
1575.42 MHz
PolarizationR.H.C.P.
Axial ratio3.0 dB Typ.
Storage Temperature-40 ~ +85°C
Relative Humidity20 ~ 95% RH
Recommended Storage conditionStore in room condition as listed below: Temperature -20°C ~ +45°C, Humidity 80% Max.
Dimension18*18*4mm
