Overview
The multi-function GPS WiFi combo antenna solution is the direct and innovative response to this problem. It is not merely a single antenna but an integrated antenna system, often housed within a single module like the common "shark-fin" enclosure, that consolidates multiple RF front-ends into one cohesive unit. At its core, this solution typically combines:
GNSS (Global Navigation Satellite System): For receiving signals from GPS (USA), GLONASS (Russia), Galileo (EU), and BeiDou (China) constellations for positioning and navigation.
Wi-Fi (2.4 GHz & 5 GHz bands): For creating an in-vehicle hotspot, enabling passenger device connectivity, and supporting Over-The-Air (OTA) updates for the vehicle's software.
Cellular (4G LTE, 5G): The primary link for telematics, emergency calls (eCall), real-time traffic, streaming services, and V2X communication.
Bluetooth (2.4 GHz band): For short-range communication with smartphones for hands-free calls and audio streaming.
SDARS (Satellite Digital Audio Radio Service - e.g., SiriusXM): For subscription-based satellite radio entertainment.
The "combo" aspect is crucial. It refers to the intelligent co-location and co-design of these disparate antenna elements, along with the necessary electronics to manage signal isolation, amplification, and distribution. The primary goal is to provide a single, streamlined, and aesthetically pleasing component that delivers best-in-class performance for all its supported services, thereby simplifying vehicle design, improving aerodynamic efficiency, and reducing assembly complexity. This solution has become the nerve center for a vehicle's connectivity, acting as the critical interface between the car's internal systems and the vast digital ecosystem outside.

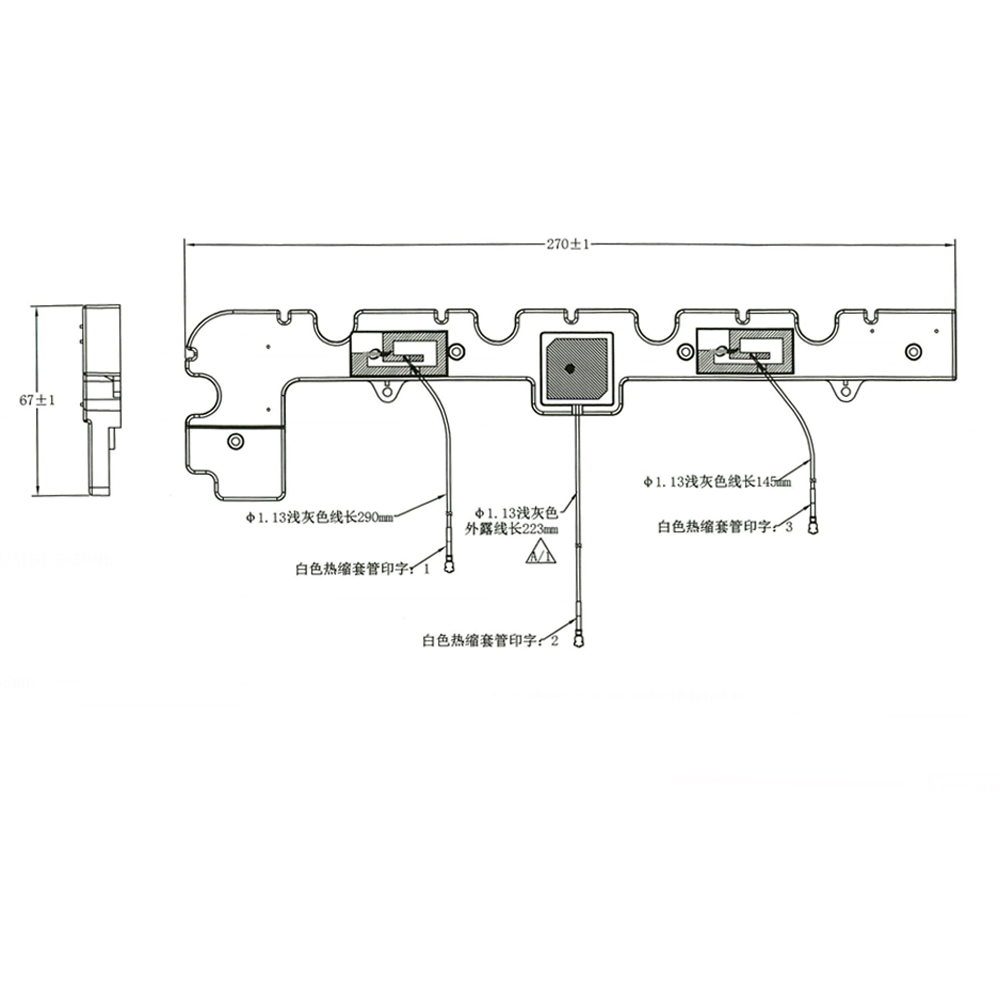

Design and Construction
Designing a multi-function combo antenna is one of the most challenging tasks in RF engineering for the automotive sector. It involves a complex balancing act of electromagnetic performance, physical constraints, thermal management, and cost-effectiveness. The construction is a layered and sophisticated process.

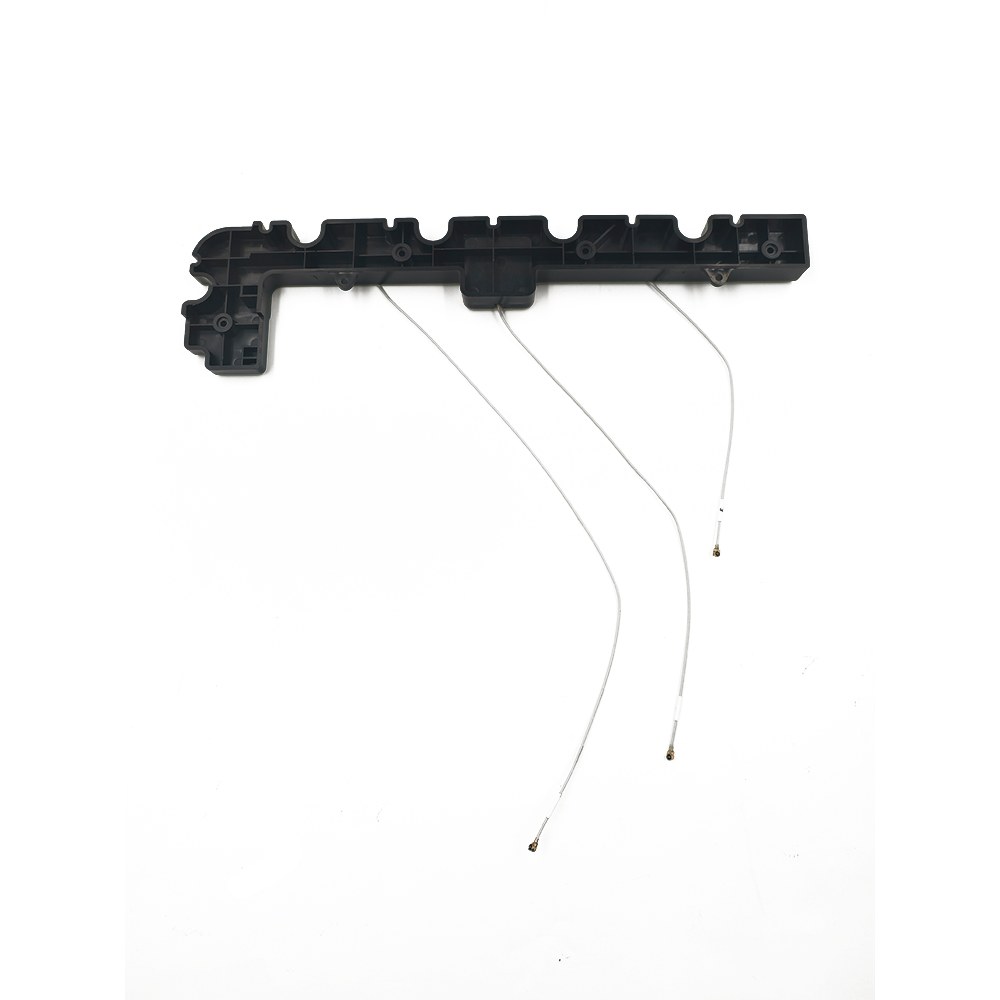

1. The Radiating Elements:
Within a single module, multiple antenna elements must be designed for different frequencies:

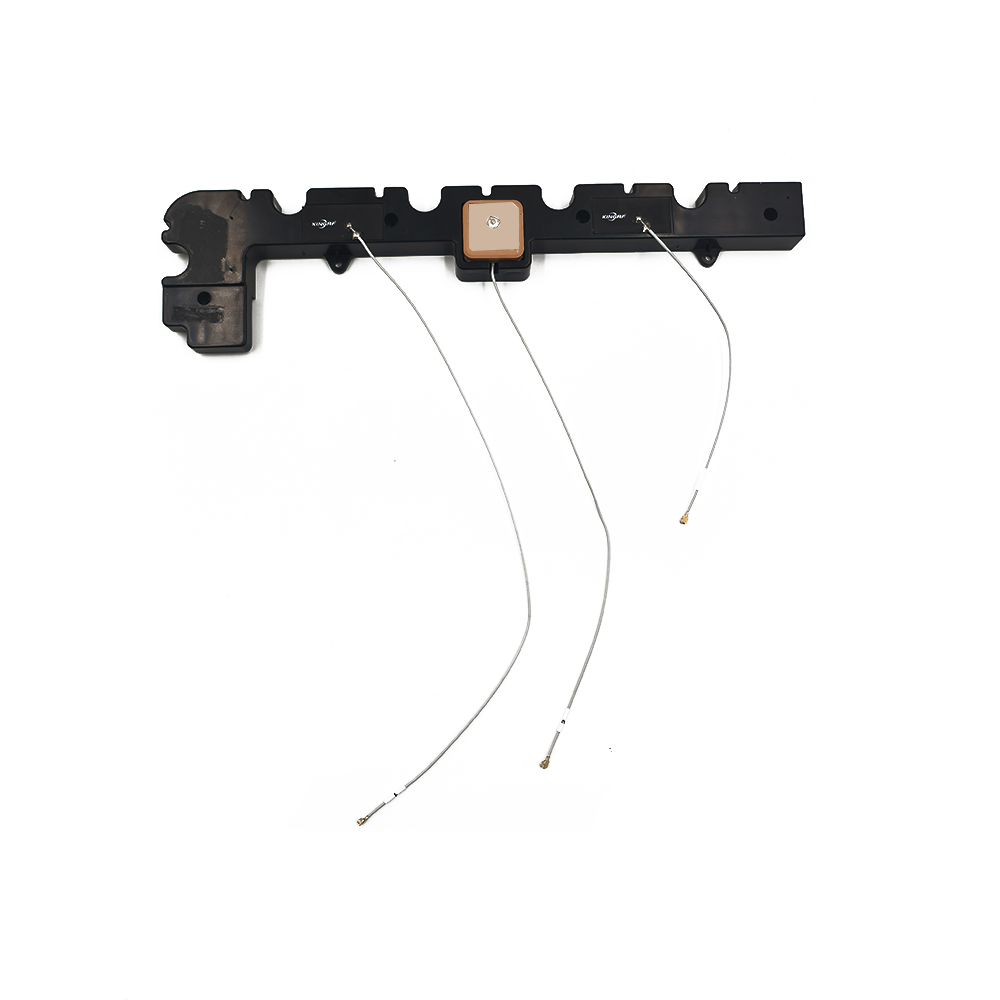

GNSS Antenna: Typically a high-quality patch antenna, often based on a ceramic substrate, tuned for the L-band (1.5-1.6 GHz). It is designed for a hemispherical radiation pattern to see the sky and is critically shielded to minimize interference from the vehicle's own electronics and other nearby antennas.
Cellular Antenna: Usually a printed antenna element (e.g., a PIFA - Planar Inverted-F Antenna) or an array of elements designed to cover a wide range of frequencies from 600 MHz to 6 GHz (encompassing 4G and 5G bands). These often require more complex patterns to achieve good omnidirectional coverage.
Wi-Fi/Bluetooth Antenna: These operate in the 2.4 GHz and 5 GHz ISM bands. They are often printed traces on the antenna's PCB. Multiple elements are frequently used to enable Multiple-Input Multiple-Output (MIMO) technology, which is essential for high data rates and link reliability.
2. The Challenge of Isolation and Coexistence:
The paramount design challenge is isolation. Placing multiple transmitters and receivers in close proximity creates a high risk of interference. For example:
A powerful 5G cellular transmission can easily desensitize or "block" the extremely sensitive GNSS receiver, effectively jamming the navigation system.
Wi-Fi transmissions can interfere with Bluetooth operation and vice versa, as they share the 2.4 GHz band.
To mitigate this, designers employ several techniques:
Physical Separation: Positioning the most disruptive elements (like cellular transmitters) as far as possible from the most sensitive receivers (like GNSS) within the limited module space.
Frequency Selective Surfaces (FSS) and Filtering: Integrating sophisticated band-pass and band-stop filters directly into the antenna feed lines or using specialized materials that act as electromagnetic shields for specific frequencies. This allows desired signals to pass while blocking interfering ones.
Ground Plane Segmentation: Using clever PCB layout techniques to create separate ground regions for different antennas to prevent coupling through the common ground.
3. The Low-Noise Amplifier (LNA) and Amplification:
The weak GNSS signals require immediate amplification. Therefore, an LNA is integrated directly into the GNSS section of the module to boost the signal before it travels down the cable to the receiver, overcoming cable losses. Similarly, the cellular and Wi-Fi paths may use amplifiers to ensure strong transmit power and receive sensitivity.
4. Housing and Materials:
The entire assembly is housed in a radome, typically the "shark-fin" shape, which is aerodynamically optimized and made from materials like Polycarbonate/ABS blends or Polyetherimide (PEI) that are RF-transparent, durable, and can withstand harsh automotive conditions (UV exposure, extreme temperatures, vibration, car washes). The base of the module is a large ground plane, usually made of die-cast zinc or aluminum, which is crucial for shaping the radiation patterns of the antennas and providing a stable mounting surface to the vehicle's roof.
5. Connectivity: The FAKRA and AQSD Revolution:
A combo antenna has multiple outputs. Traditionally, each service required its own coaxial cable with a FAKRA connector (color-coded: blue for GNSS, green for cellular, etc.), leading to a complex wiring harness. The latest trend is the use of FAKRA-Advanced (FAKRA A) or Automotive Qualified SDV (AQSD) connectors. These new standards consolidate multiple RF signals into a single, multi-pin connector, drastically reducing cable complexity, weight, and cost. Some advanced systems even use a single coaxial cable that carries multiple signals via frequency division multiplexing.
Working Principles
The working principle of a multi-function combo antenna is one of simultaneous reception, transmission, and intelligent signal management. It functions as a central RF hub.
1. Signal Reception (Downlink):
GNSS: The GNSS patch antenna captures extremely low-power signals from satellites orbiting over 20,000 km away. The LNA immediately amplifies these signals to overcome the attenuation of the coaxial cable. The signal is then sent to the GNSS receiver module, which calculates the time of arrival for signals from multiple satellites to triangulate the vehicle's position.
Cellular/Wi-Fi: The cellular and Wi-Fi antennas receive data packets from cell towers and Wi-Fi access points. These signals are also amplified if necessary and routed to their respective modems (telematics unit, Wi-Fi module) for demodulation and processing.
2. Signal Transmission (Uplink):
Cellular/Wi-Fi: When the vehicle needs to send data—such as telematics information, an emergency eCall, or data from a connected phone—the modems generate an RF signal. This signal is passed up the cable to the combo antenna, where the cellular or Wi-Fi radiating element transmits it as an electromagnetic wave to the nearest tower or access point.
Bluetooth: Functions similarly to Wi-Fi but for very short-range, low-power communication with devices inside the car.
3. The Critical Role of Isolation and Filtering (Signal Coexistence):
The real "intelligence" of the system lies in its ability to operate all these functions concurrently without self-jamming. This is managed through a combination of hardware and software:
Hardware Filtering: As mentioned, passive filters are the first line of defense. They ensure that strong transmit energy from the cellular radio is blocked from entering the delicate GNSS receiver path, allowing both to operate at the same time.
Coexistence Algorithms: Modern telematics units use sophisticated software algorithms that monitor the status of all radios. In critical scenarios, if interference is detected, the algorithm can dynamically schedule transmissions. For example, it might momentarily pause a large cellular data upload if it coincides with a critical GNSS positioning calculation, or it can shift Wi-Fi channels to avoid Bluetooth interference. This electronic coordination is essential for maintaining the integrity of all wireless links.
Advantages and Challenges
-
Advantages:
Design Simplification and Aesthetics: Replaces an array of unsightly antennas with a single, sleek, and aerodynamic module (the shark-fin), which is now an industry standard accepted by consumers.
Improved Performance through Co-Design: When designed correctly, integrated antennas can perform better than disparate ones. The shared ground plane and controlled environment can lead to more optimized and consistent radiation patterns.
Reduced Assembly Complexity and Cost: A single module with one wiring harness (especially with AQSD) is faster and cheaper to install on the assembly line than multiple individual antennas, reducing labor and potential assembly errors.
Optimized Aerodynamics: A single shark-fin has a significantly lower drag coefficient than multiple whip or mast antennas, contributing marginally to improved fuel efficiency or electric vehicle range.
Centralized Diagnostics: A unified system can more easily monitor the health and performance of all antenna elements, enabling proactive diagnostics.
Challenges:
Electromagnetic Interference (EMI): This remains the single biggest technical hurdle. Ensuring perfect isolation between powerful transmitters and highly sensitive receivers in a small volume requires expensive materials, complex filters, and advanced engineering, driving up R&D costs.
Performance Compromises: Integration inevitably involves trade-offs. The ideal location for a cellular antenna (on the roof for omnidirectional coverage) is also the ideal location for GNSS. However, their proximity forces compromises in element design to manage coupling, which can slightly degrade peak performance compared to a perfectly isolated, standalone antenna.
Thermal Management: Housing multiple amplifiers (LNAs, cellular PAs) in a sealed, black plastic module on a hot car roof can lead to high operating temperatures, which can affect component reliability and performance.
Complexity and Cost of Design: While manufacturing and assembly costs are lower, the initial design, simulation, prototyping, and testing phase is immensely more complex and expensive than for a single antenna.
Standardization: The rapid evolution of wireless standards (e.g., the transition from 4G to 5G, new Wi-Fi 6/6E bands) can make it difficult to design a "future-proof" module, potentially necessitating a redesign for new vehicle models.
Applications and Future Trends
-
Applications:
Telematics and eCall: The cellular link provides constant connectivity for emergency services, stolen vehicle tracking, and remote diagnostics.
In-Vehicle Infotainment (IVI) and Hotspots: Wi-Fi and Bluetooth provide connectivity for passengers' devices, enabling streaming video, gaming, and internet access on the go.
Over-the-Air (OTA) Updates: The high-bandwidth cellular and Wi-Fi connections are essential for delivering large software updates to the vehicle's various electronic control units (ECUs) seamlessly, without a dealership visit.
V2X (Vehicle-to-Everything) Communication: As this technology rolls out, the combo antenna will be the critical hardware interface for communication between vehicles (V2V) and with infrastructure (V2I) to improve safety and traffic flow.
Advanced Driver-Assistance Systems (ADAS): While high-precision RTK systems are used for autonomy, the standard GNSS in a combo antenna provides vital location context for ADAS features like adaptive cruise control and lane-keeping.
Future Trends:
Integration of More Functions: Future modules will integrate even more technologies, such as dedicated antennas for C-V2X, ADAS radar sensors, and even lidar localization aids.
Active Antenna Systems (AAS) and Beamforming: 5G technology utilizes phased arrays that can electronically steer beams toward cell towers, dramatically improving signal strength and data rates. Integrating these complex arrays into the shark-fin is a key future trend.
Smart Surfaces and "Antenna-in-Panel": The next evolution is moving antennas from a central fin to being seamlessly integrated into other car parts, such as the windshield, rear window, spoiler, or bumpers, using conductive inks and films. This makes the antenna virtually invisible.
Standardization on AQSD: The automotive industry will fully transition to Advanced connectors and multiplexing systems to handle the growing number of RF signals with reduced cabling.
AI-Powered Coexistence: Advanced artificial intelligence will be used to predict and manage RF interference in real-time, dynamically allocating resources and spectrum to ensure optimal performance for all connected services.
Conclusion
The multi-function GPS WiFi combo antenna solution is far more than a simple convenience; it is a foundational technology that enables the modern connected vehicle ecosystem. It elegantly solves the critical problem of RF proliferation by consolidating a multitude of essential wireless services into a single, robust, and efficient module. Through sophisticated engineering that tackles the immense challenges of isolation and coexistence, it ensures that navigation, communication, and entertainment systems can all function harmoniously without compromise.
As vehicles continue their evolution towards full autonomy and deeper connectivity, the role of this integrated antenna system will only grow in importance. It will need to support higher data rates, lower latencies, and more simultaneous connections, all while becoming smaller, cheaper, and more seamlessly integrated into the vehicle's design. From its inception as a solution to a clutter problem, the combo antenna has become the indispensable and central pillar of the vehicle's digital identity, the vital link that tethers the car to the cloud and to the world around it.
