Overview
The basic helical antenna, famously analyzed by John Kraus in the 1940s, can operate in two distinct modes. The first is the normal mode, where the helix's diameter and pitch are small compared to the wavelength, and it radiates a pattern similar to a short dipole, broadside to its axis. The second, and more renowned, is the axial mode. Here, the helix's circumference is on the order of one wavelength, and it functions as a directional antenna, radiating a beam along its axis with circular polarization. The classic axial-mode helix is a superb antenna: it offers wide bandwidth, high gain, and inherent circular polarization, making it a staple for satellite ground stations, such as those for weather satellites and amateur radio.
However, the traditional axial-mode helix has limitations. Its radiation pattern is directional, meaning it must be pointed toward the satellite or signal source. For applications requiring omnidirectional coverage—specifically, the ability to see the entire sky hemisphere to communicate with satellites in various orbital positions—the standard helix is inadequate. This is where the quadrifilar helix antenna (QHA), or four-arm helical antenna, makes its entrance.
The defining innovation of the QHA is its use of four helical arms, fed with specific phase relationships (typically 0°, 90°, 180°, and 270°), which allows it to synthesize a cardioid-shaped radiation pattern. This pattern is a single, broad lobe that provides near-hemispherical coverage, with maximum gain at the horizon and good coverage up to the zenith. This is the ideal pattern for a satellite terminal on a moving platform (like a car, plane, or ship) or for a ground-based terminal that must track satellites in low Earth orbit (LEO) as they traverse the sky. Unlike a phased array, it achieves this without any moving parts or complex electronic beamforming networks.

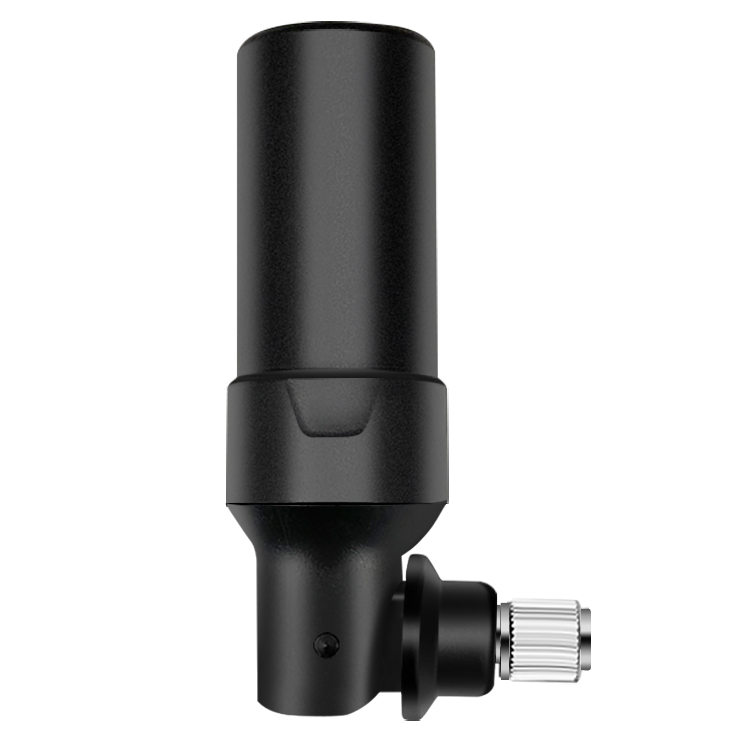

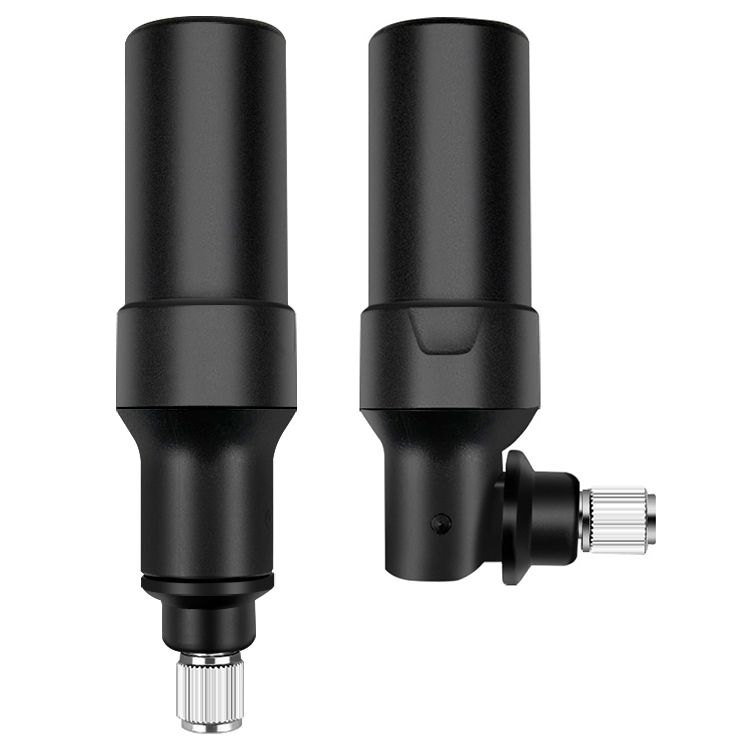

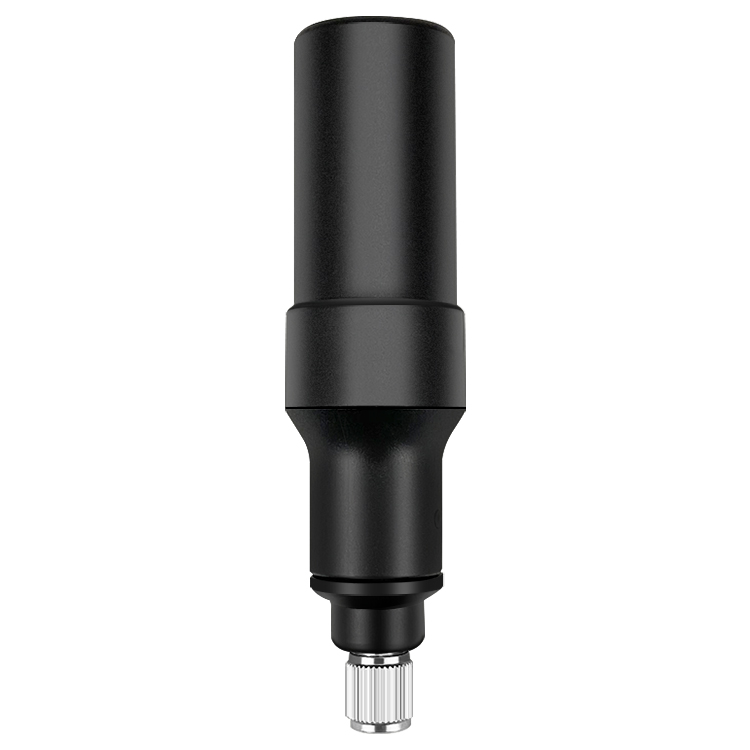

The "compact" variant of the QHA addresses another key challenge: size. A traditional QHA, with each arm being a quarter-wavelength or longer, can be physically large at lower microwave frequencies (like the L-band used for GPS, ~1.5 GHz). Through clever design techniques such as top-loading, meandering, or embedding the arms into a dielectric medium, designers can significantly reduce the antenna's footprint and height while preserving its favorable radiation characteristics. This miniaturization is absolutely critical for integration into modern portable devices, UAVs (drones), and automotive systems.
The primary application that propelled the compact QHA to prominence is Global Navigation Satellite System (GNSS) reception, including GPS, GLONASS, Galileo, and BeiDou. Its ability to receive right-hand circularly polarized (RHCP) signals with a wide beamwidth and excellent rejection of multipath signals (which often become left-hand polarized upon reflection) makes it superior to many patch antenna designs for high-precision applications. Furthermore, its phase center is exceptionally stable, a critical requirement for techniques like Real-Time Kinematic (RTK) positioning, which rely on precise carrier-phase measurements.
Beyond navigation, compact QHAs are the antenna of choice for satellite communication (Satcom) terminals, particularly for L-band services like Inmarsat and Iridium. They provide the robust, omni-directional link necessary for voice and data transmission from mobile platforms anywhere on the globe.
In summary, the compact four-arm helical antenna is a sophisticated evolution of a classic design. It masterfully solves the problem of providing hemispherical coverage, inherent circular polarization, and a stable phase center in a mechanically robust and increasingly miniaturized form factor. It is the unsung hero enabling reliable, global connectivity and precision navigation from moving platforms, representing a perfect marriage of electromagnetic theory and practical engineering ingenuity.
Design and Construction
The design and construction of a compact four-arm helical antenna is a meticulous process that balances electromagnetic performance with physical constraints. Unlike a simple wire antenna, the QHA is a system where the geometry of each element, the feeding network, and the supporting structure are all intricately linked to its overall function. This section deconstructs the antenna's anatomy, exploring its various forms, materials, and the techniques used to achieve a compact design.
Fundamental Geometry and Types
A QHA consists of four identical helical elements, or arms, arranged symmetrically around a common axis. These arms are typically wound on a cylindrical or conical surface. There are two primary mechanical configurations:
Volute Type (Cylindrical): This is the most common structure. The four arms are wound as constant-diameter helices on a cylindrical form. This design is easier to manufacture and provides a very symmetrical radiation pattern.
Conical Type: Here, the arms are wound on a conical surface, with the diameter of the helix increasing from the top to the bottom. The conical QHA often offers a wider bandwidth and a more optimized radiation pattern for specific applications, though its construction is more complex.
Each arm has a specific length, which is a key design parameter. The most common and performant design is the half-wavelength QHA, where the total length of each conductor arm is approximately λ/2. This length is resonant and contributes to the desired cardioid radiation pattern. Other designs, like the quarter-wavelength variant, are used for further miniaturization but often with a trade-off in bandwidth.
The Feeding Network: The Heart of the Operation
The magic of the QHA lies not just in its arms but in how they are fed. To radiate the desired cardioid pattern, the four arms must be excited with signals of equal amplitude but with a sequential 90-degree phase difference. This is achieved through a phasing network.
This network is typically a printed circuit board (PCB) located at the base of the antenna. It consists of power dividers and delay lines (often configured as a rat-race hybrid or branch-line coupler) that take a single 50-ohm input and produce four outputs with the correct 0°, 90°, 180°, and 270° phase progression. The precision of this network is paramount; any amplitude or phase imbalance will distort the radiation pattern, degrade the axial ratio, and reduce antenna performance. In many compact commercial QHAs, this phasing network and a Low-Noise Amplifier (LNA) are integrated into a single module at the antenna's base.
Construction Materials and Techniques
Arm Conductors: The helical arms are typically made of copper or silver-plated copper. They can be formed from solid wire, tubular material, or etched as metal traces on a flexible substrate that is then wrapped around a form.
Dielectric Support Structure: The arms are wound onto a supporting structure, or "former." This can be made from a low-loss dielectric material like PTFE (Teflon), polystyrene, or polycarbonate. The dielectric constant of this material (εr > 1) effectively reduces the guided wavelength, allowing for a physically smaller antenna—a key technique for miniaturization. The former provides crucial mechanical rigidity and ensures the precise geometric arrangement of the arms is maintained.
Ground Plane: A ground plane is often used at the base of the antenna. Its size and shape influence the lower elevation angle performance of the radiation pattern. A well-designed ground plane can help to sharpen the pattern's nadir (the null opposite the peak) and improve gain at low elevations.
Techniques for Miniaturization (Making it "Compact")
A full-size half-wavelength QHA for L-band (1.5 GHz) would be nearly 10 cm tall, which is too large for many modern applications. Several techniques are employed to reduce its size:
Dielectric Loading: As mentioned, encasing the arms or using a high-εr former reduces the physical size of the resonant structure. This is the most common technique.
Arm Meandering (Serpentining): Instead of a smooth helix, the arms are meandered or zig-zagged. This increases the electrical path length along the conductor, allowing it to achieve resonance at a lower frequency for a given physical height.
Top-Loading: Adding a capacitive "hat" or disk at the end of the arms effectively increases their electrical length, similar to the technique used in old AM radio towers. This allows for shorter arm lengths.
Lumped Element Loading: Incorporating discrete inductors or capacitors into the arms can be used to tune the antenna to resonance, but this often reduces bandwidth and efficiency and is less common in high-performance designs.
Balun and Impedance Matching
The standard QHA has a nominal input impedance at its feed point of approximately 50 ohms, but this can be influenced by the proximity of the phasing network and the enclosure. A balun (balanced-to-unbalanced transformer) is often integrated into the design to ensure a clean transition from the unbalanced coaxial feed line to the balanced nature of the helical structure, suppressing unwanted common-mode currents on the feed cable that can distort the pattern.
In conclusion, the construction of a compact QHA is a multi-disciplinary effort involving precision machining of dielectrics, careful fabrication of conductors, and the design of a high-frequency RF phasing network. It is a system where mechanical integrity is as important as electrical design, and where advanced techniques are employed to pack the performance of a large antenna into a small, robust package suitable for the harsh environments of mobile and aerospace applications.
Working Principles
The design and construction of a compact four-arm helical antenna is a meticulous process that balances electromagnetic performance with physical constraints. Unlike a simple wire antenna, the QHA is a system where the geometry of each element, the feeding network, and the supporting structure are all intricately linked to its overall function. This section deconstructs the antenna's anatomy, exploring its various forms, materials, and the techniques used to achieve a compact design.
Fundamental Geometry and Types
A QHA consists of four identical helical elements, or arms, arranged symmetrically around a common axis. These arms are typically wound on a cylindrical or conical surface. There are two primary mechanical configurations:
Volute Type (Cylindrical): This is the most common structure. The four arms are wound as constant-diameter helices on a cylindrical form. This design is easier to manufacture and provides a very symmetrical radiation pattern.
Conical Type: Here, the arms are wound on a conical surface, with the diameter of the helix increasing from the top to the bottom. The conical QHA often offers a wider bandwidth and a more optimized radiation pattern for specific applications, though its construction is more complex.
Each arm has a specific length, which is a key design parameter. The most common and performant design is the half-wavelength QHA, where the total length of each conductor arm is approximately λ/2. This length is resonant and contributes to the desired cardioid radiation pattern. Other designs, like the quarter-wavelength variant, are used for further miniaturization but often with a trade-off in bandwidth.
The Feeding Network: The Heart of the Operation
The magic of the QHA lies not just in its arms but in how they are fed. To radiate the desired cardioid pattern, the four arms must be excited with signals of equal amplitude but with a sequential 90-degree phase difference. This is achieved through a phasing network.
This network is typically a printed circuit board (PCB) located at the base of the antenna. It consists of power dividers and delay lines (often configured as a rat-race hybrid or branch-line coupler) that take a single 50-ohm input and produce four outputs with the correct 0°, 90°, 180°, and 270° phase progression. The precision of this network is paramount; any amplitude or phase imbalance will distort the radiation pattern, degrade the axial ratio, and reduce antenna performance. In many compact commercial QHAs, this phasing network and a Low-Noise Amplifier (LNA) are integrated into a single module at the antenna's base.
Construction Materials and Techniques
Arm Conductors: The helical arms are typically made of copper or silver-plated copper. They can be formed from solid wire, tubular material, or etched as metal traces on a flexible substrate that is then wrapped around a form.
Dielectric Support Structure: The arms are wound onto a supporting structure, or "former." This can be made from a low-loss dielectric material like PTFE (Teflon), polystyrene, or polycarbonate. The dielectric constant of this material (εr > 1) effectively reduces the guided wavelength, allowing for a physically smaller antenna—a key technique for miniaturization. The former provides crucial mechanical rigidity and ensures the precise geometric arrangement of the arms is maintained.
Ground Plane: A ground plane is often used at the base of the antenna. Its size and shape influence the lower elevation angle performance of the radiation pattern. A well-designed ground plane can help to sharpen the pattern's nadir (the null opposite the peak) and improve gain at low elevations.
Techniques for Miniaturization (Making it "Compact")
A full-size half-wavelength QHA for L-band (1.5 GHz) would be nearly 10 cm tall, which is too large for many modern applications. Several techniques are employed to reduce its size:
Dielectric Loading: As mentioned, encasing the arms or using a high-εr former reduces the physical size of the resonant structure. This is the most common technique.
Arm Meandering (Serpentining): Instead of a smooth helix, the arms are meandered or zig-zagged. This increases the electrical path length along the conductor, allowing it to achieve resonance at a lower frequency for a given physical height.
Top-Loading: Adding a capacitive "hat" or disk at the end of the arms effectively increases their electrical length, similar to the technique used in old AM radio towers. This allows for shorter arm lengths.
Lumped Element Loading: Incorporating discrete inductors or capacitors into the arms can be used to tune the antenna to resonance, but this often reduces bandwidth and efficiency and is less common in high-performance designs.
Balun and Impedance Matching
The standard QHA has a nominal input impedance at its feed point of approximately 50 ohms, but this can be influenced by the proximity of the phasing network and the enclosure. A balun (balanced-to-unbalanced transformer) is often integrated into the design to ensure a clean transition from the unbalanced coaxial feed line to the balanced nature of the helical structure, suppressing unwanted common-mode currents on the feed cable that can distort the pattern.
In conclusion, the construction of a compact QHA is a multi-disciplinary effort involving precision machining of dielectrics, careful fabrication of conductors, and the design of a high-frequency RF phasing network. It is a system where mechanical integrity is as important as electrical design, and where advanced techniques are employed to pack the performance of a large antenna into a small, robust package suitable for the harsh environments of mobile and aerospace applications.
Advantages and Challenges
-
The compact quadrifilar helical antenna offers a unique set of performance advantages that make it the antenna of choice for demanding applications. However, achieving this performance comes with inherent challenges related to its complexity, cost, and design sensitivity. This section provides a balanced analysis of its strengths and weaknesses.
Advantages
Near-Hemispherical Coverage: Its primary advantage is the cardioid-shaped radiation pattern. This provides consistent gain across the entire upper hemisphere, from horizon to zenith. This is superior to a microstrip patch antenna, which typically has lower gain at low elevation angles, making the QHA better at acquiring and tracking satellites near the horizon.
Excellent Axial Ratio and Multipath Rejection: The QHA inherently produces very pure circular polarization (low axial ratio) across its wide beamwidth. Combined with the deep null beneath the antenna, this provides exceptional rejection of multipath signals. Multipath, caused by signals reflecting off the ground or buildings, is a primary source of error in GNSS positioning. The QHA's null towards the ground and its rejection of LHCP reflected signals significantly mitigate this error.
Stable Phase Center: The geometrical symmetry of the QHA results in a phase center that is very stable with respect to the angle of arrival of the signal. This is arguably its most critical advantage for high-precision GNSS applications like surveying, agriculture, and scientific monitoring, where millimeter-level accuracy is required.
Inherent Circular Polarization without Complex Patches: Unlike a patch antenna that requires corners to be truncated or dual feeds to achieve CP, the QHA generates its circular polarization naturally through its structure and phasing network. This often translates into a wider axial ratio bandwidth.
Wide Bandwidth: While compact designs are somewhat bandwidth-limited, a well-designed QHA offers wider impedance and axial ratio bandwidth than a similarly sized ceramic patch antenna. This makes it more suitable for multi-band GNSS and Satcom applications that require operation across L-band and S-band.
Robustness: The structure, when potted or housed in a radome, is very robust and resistant to vibration, shock, and environmental factors like rain and ice. This makes it ideal for aerospace, marine, and automotive applications.
Challenges and Limitations
Design and Manufacturing Complexity: This is the most significant drawback. The QHA is a complex assembly of multiple parts: the helical arms, the dielectric former, the phasing network PCB, and often an integrated LNA. Its performance is highly sensitive to mechanical tolerances. This complexity translates directly into higher cost compared to a simple ceramic patch antenna. It is not a low-cost, surface-mount component.
Size and Profile: Despite being "compact," a QHA is almost always larger and taller than an equivalent-performance ceramic patch antenna. While dielectric loading reduces size, a high-performance L-band QHA might still be 5-8 cm in height and 10-15 cm in diameter, whereas a patch antenna can be under 1 cm tall. This can make integration into sleek consumer devices like phones impossible.
Bandwidth vs. Size Trade-off: The techniques used for miniaturization (dielectric loading, meandering) generally reduce the operating bandwidth. Designing a very small QHA that covers all GNSS bands (L1, L2, L5) is a significant engineering challenge.
Sensitivity to Assembly and Proximity Effects: The antenna's performance can be degraded by errors in the phasing network (component tolerances), imprecise arm placement, or the proximity of the housing and other objects. The integration into a device must be carefully modeled and tested, as nearby metal can detune the antenna and distort its perfect pattern.
Power Handling (for Transmit): While excellent for receive applications, the compact design and use of lumped elements in the phasing network can limit the power handling capability for transmit applications. High power can heat and damage the integrated components.
Weight: Typically, a QHA is heavier than a patch antenna due to its dielectric former, larger structure, and additional components.
In conclusion, the compact four-arm helical antenna is a premium component. Its advantages are all performance-related: unparalleled pattern coverage, multipath rejection, and phase center stability. Its challenges are all related to economics and integration: cost, size, and complexity. Therefore, its use is justified in applications where performance is the paramount concern and where size and cost are secondary considerations. It is the antenna of choice for high-precision GNSS, professional Satcom terminals, and mission-critical aerospace systems, but it is typically overkill and too expensive for standard consumer navigation.
Applications and Future Trends
-
The unique performance characteristics of the compact QHA have cemented its role in a range of critical applications where reliability and accuracy are non-negotiable. Furthermore, emerging trends in satellite technology are creating new opportunities and demands for this antenna design. This section explores its current uses and its evolving future.
Established Applications
High-Precision GNSS Receivers: This is the flagship application. The QHA is the industry standard antenna for:
Geodetic Surveying: RTK and PPP base stations and rovers used for land surveying, construction, and civil engineering.
Precision Agriculture: Guidance systems for tractors and harvesters, and for variable rate application (VRA) of seeds and fertilizer.
Scientific Monitoring: Monitoring crustal deformation for seismology, volcanic studies, and plate tectonics research. Its phase stability is crucial here.
Unmanned Aerial Vehicles (UAVs): For drones used in mapping, surveying, and precision agriculture, where accurate positioning is essential for autonomous flight and data geotagging.
Satellite Communication (Satcom) Terminals:
Mobile Satellite Services (MSS): Terminals for L-band services like Inmarsat (BGAN, IsatPhone) and Iridium (NEXT). These provide global voice and data connectivity for maritime, aeronautical, and land-mobile users. The QHA's omni-directional pattern is essential for maintaining a link while the platform (ship, plane, vehicle) is moving.
Satellite Messaging and IoT: Devices like Garmin inReach or RockSTAR use QHAs to connect to satellite constellations for SOS and messaging services from remote areas.
Aviation and Aerospace:
General Aviation: Used for GPS navigation and Satcom links in aircraft.
Spacecraft: Used on satellites themselves as telemetry, tracking, and command (TT&C) antennas, and on launch vehicles.
Military and Defense: Used in secure communications, jamming-resistant GPS receivers (SAASM, M-Code), and man-pack satellite terminals due to their robustness and reliability.
Future Trends and Innovations
The antenna landscape is not static. Several key trends are shaping the future development of the QHA:
Demand for Multi-Band/Multi-Constellation Operation: The future of GNSS and Satcom lies in leveraging multiple frequencies (L1, L2, L5, S-band) and constellations. Future QHAs will need to be designed for even wider bandwidth to cover these services without a increase in size. This will drive research into new dielectric materials and more advanced arm geometries (e.g., thicker arms, multi-turn designs).
The Rise of LEO Megaconstellations: The explosion of LEO satellites for internet (Starlink, OneWeb, Kuiper) and IoT (Swarm, Lacuna) presents a new challenge. While user terminals for broadband internet use high-gain steerable dishes or phased arrays, the QHA remains perfectly suited for omnidirectional command and control links for these satellites and for low-data-rate IoT devices that need a simple, robust connection to the constellation.
Further Miniaturization and Integration: The push for smaller, lighter, and more integrated systems will continue. We will see more QHAs where the phasing network and LNA are not just a separate PCB but are fully integrated into the antenna's base structure using Low Temperature Co-fired Ceramic (LTCC) or other advanced multi-layer PCB technologies. This reduces size, improves reliability, and lowers assembly cost.
Active and Electronically Steered Variants: While the classic QHA is passive and fixed, future developments may incorporate active elements. Imagine a QHA with a simple switchable phasing network that can slightly tilt or shape its pattern electronically to better track a satellite cluster or null out a specific source of interference, all while maintaining its fundamental hemispherical coverage.
Additive Manufacturing (3D Printing): 3D printing of dielectric forms with embedded conductive traces could revolutionize QHA manufacturing. This would allow for the creation of complex, customized shapes (like conical or spherical helices) that are difficult or expensive to machine with traditional methods, potentially optimizing performance and reducing unit cost for low-volume production.
In summary, the compact four-arm helical antenna is far from a legacy technology. Its fundamental advantages are becoming more, not less, relevant in a world increasingly dependent on robust and precise satellite links. While it will always face competition from cheaper patches and more advanced phased arrays, its niche is secure. It will continue to evolve, becoming more integrated and wider-band, to serve as a critical enabling technology for the next generation of global connectivity and precision navigation.
Conclusion
In the diverse ecosystem of antenna designs, the compact four-arm helical antenna occupies a distinct and vital niche. It is not a universal solution; its complexity and cost preclude it from the mass consumer market dominated by ceramic patch antennas. Instead, it is a precision instrument, the antenna of choice for applications where performance, reliability, and accuracy are the primary drivers and where compromises are not acceptable.
Its value proposition rests on three unparalleled strengths: its hemispherical cardioid radiation pattern, which provides consistent gain to satellites at all elevation angles; its excellent axial ratio, which ensures efficient reception of circularly polarized signals and strong rejection of multipath interference; and its exceptionally stable phase center, which is the bedrock of high-precision GNSS techniques. No other antenna type combines these three attributes as effectively in a single, mechanically robust package.
The journey of the QHA from a novel concept to a critical component in aerospace, defense, and geomatics is a story of engineering refinement. Designers have successfully tackled its inherent challenge—size—through innovative techniques like dielectric loading and meandering, creating "compact" versions that retain the core performance advantages while being practical for integration into vehicles, aircraft, and portable equipment.
The future of the QHA is not one of obsolescence but of continued evolution and specialization. The explosive growth in satellite constellations, both for navigation and communication, will sustain and even increase demand for its unique capabilities. It will remain the gold standard for high-precision GNSS and robust mobile Satcom. Future advancements will focus on extending its bandwidth to cover new signals, further integrating its supporting electronics, and exploring novel manufacturing techniques to make it more accessible.
In conclusion, the compact four-arm helical antenna is a testament to the principle that optimal engineering is about choosing the right tool for the job. For the vast majority of devices, a simple patch antenna is sufficient. But for the critical tasks of mapping our world, navigating the skies and seas, and maintaining communication from the most remote corners of the globe, the quadrifilar helix remains an indispensable and enduring solution. It is a powerful reminder that in the world of RF design, the pursuit of optimal performance often requires embracing elegant complexity.
