Overview
GNSS technology operates by receiving signals from multiple satellite constellations, including GPS (United States), GLONASS (Russia), Galileo (Europe), and BeiDou (China). These satellites continuously transmit signals containing information about their position and time. By simultaneously receiving signals from at least four satellites, a GNSS receiver equipped with an appropriate antenna can calculate the precise location of a point on Earth's surface through a process known as trilateration. In the context of smart farming, this technology is used to guide agricultural machinery, map fields, monitor crop growth, and manage resources with unprecedented precision.
The agricultural environment poses unique challenges for GNSS antennas. Farms are often located in open areas, exposed to harsh weather conditions such as rain, snow, strong sunlight, and extreme temperatures. Additionally, the presence of agricultural machinery, fertilizers, and pesticides can also affect the performance and durability of the antennas. Therefore, agricultural GNSS antennas are specifically designed and constructed to withstand these environmental factors while maintaining high - performance signal reception. They represent a blend of advanced antenna design, robust material selection, and intelligent signal processing, all tailored to the specific requirements of modern farming.
The adoption of agricultural GNSS antennas is not only transforming traditional farming methods but also driving the development of new agricultural technologies. As the smart farming industry continues to expand, the demand for more sophisticated and reliable GNSS antennas is expected to increase, further fueling innovation in this field.
Design and Construction
The design and construction of an agricultural GNSS antenna for smart farming are carefully tailored to meet the unique demands of the agricultural environment. The process involves a combination of antenna engineering, material science, and an understanding of farming operations to create an antenna that is both effective and durable.
Antenna Element Design
The antenna element, the core component responsible for capturing GNSS signals, is typically designed using either printed circuit board (PCB) technology or ceramic materials. PCB antennas are popular due to their cost - effectiveness and ease of integration. The antenna pattern is etched onto a thin dielectric substrate, and its shape, size, and configuration are optimized through electromagnetic simulations to resonate at the specific frequencies of GNSS signals, mainly in the L - band range (e.g., 1.575 GHz for GPS L1 band). These simulations help ensure maximum gain, radiation efficiency, and impedance matching, allowing for efficient signal reception.
Ceramic antennas, on the other hand, leverage the high dielectric constant of ceramic materials. A precisely manufactured ceramic substrate with consistent electrical properties serves as the base, and a metallic patch is deposited on its surface. The design of the metallic patch is calculated to resonate at the desired GNSS frequencies, enabling the antenna to achieve good performance in a compact size. Ceramic antennas are often preferred in applications where space is limited or where higher performance is required, such as on autonomous agricultural robots or high - end farming equipment.
Integration with Agricultural Equipment
Agricultural GNSS antennas need to be integrated seamlessly with various farming equipment. For tractors and other large machinery, the antenna is usually mounted on the roof or at a high point to ensure unobstructed signal reception. Special mounting brackets and fixtures are designed to securely attach the antenna while minimizing vibrations and movement that could affect signal quality. In some cases, the antenna may be integrated into the cab of the tractor, with careful consideration given to the placement to avoid interference with other electronic components.
For smaller devices such as drones used in farming for tasks like crop spraying and monitoring, the antenna must be lightweight and compact. Miniature ceramic or PCB antennas are often used, and they are integrated into the drone's frame in a way that does not compromise the drone's aerodynamics or stability. Additionally, the antenna's connection to the drone's navigation system is carefully designed to ensure reliable signal transmission.
Materials and Enclosure
The choice of materials for an agricultural GNSS antenna is crucial to withstand the harsh farm environment. The antenna elements and associated components are made from materials with high conductivity, such as copper or gold, to ensure efficient signal transmission and reception. The dielectric substrates in PCB antennas or the ceramic materials in ceramic antennas are selected for their stable electrical properties over a wide range of temperatures and humidity levels commonly found on farms.
The antenna enclosure is constructed from durable materials that can resist environmental factors. Engineering plastics, such as polycarbonate or ABS, are often used due to their strength, resistance to UV radiation, and ability to withstand impact. Some enclosures may also be made of metal alloys for added durability, especially in applications where the antenna is more likely to be exposed to physical damage, such as on equipment used in rough terrain.
Sealing and waterproofing are important aspects of the enclosure design. O - rings and other sealing mechanisms are used to prevent moisture, dust, and dirt from entering the antenna, which could damage the internal components. The enclosure may also be designed to be resistant to chemicals commonly used in farming, such as fertilizers and pesticides, to ensure the antenna's long - term reliability.
Manufacturing and Quality Control
During the manufacturing process, precision techniques are employed to ensure the quality and performance of the agricultural GNSS antenna. For PCB antennas, photolithography and etching processes are used to create the intricate antenna patterns with high precision. In the case of ceramic antennas, thin - film deposition techniques are used to deposit the metallic patches accurately.
Rigorous quality control measures are implemented at every stage of production. This includes testing the antenna's electrical properties, such as gain, radiation pattern, and impedance matching, using specialized test equipment. Environmental testing is also conducted to ensure the antenna can withstand the harsh conditions of the farm, including exposure to extreme temperatures, humidity, and vibration. Only antennas that meet strict performance and reliability standards are approved for use in smart farming applications.
Design and Construction
The design and construction of an agricultural GNSS antenna is a study in engineering for extreme reliability and performance under duress. Every aspect, from the internal components to the external housing, is chosen to withstand the agricultural environment while delivering pristine signal reception.
1. Radiating Element: The Heart of the System:

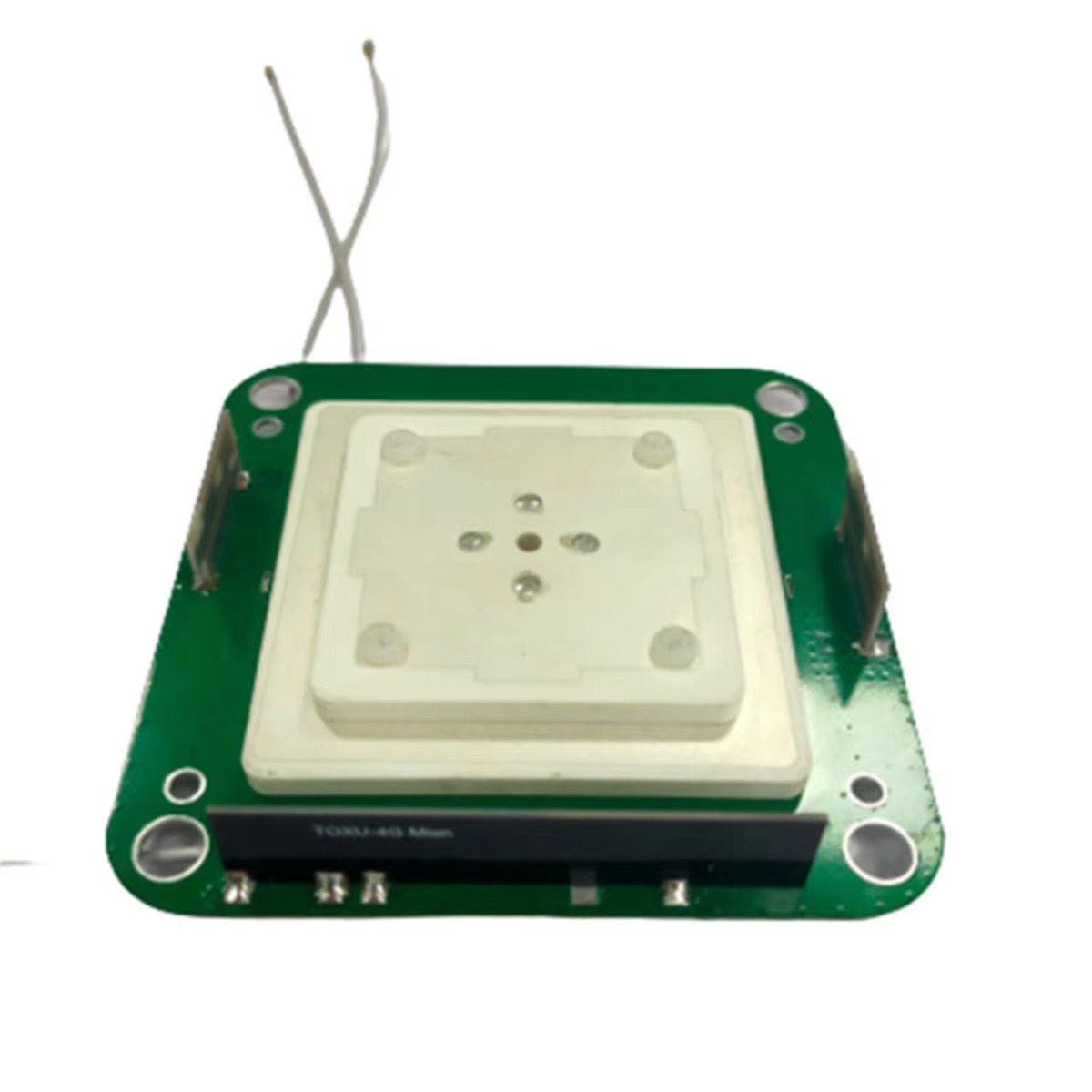

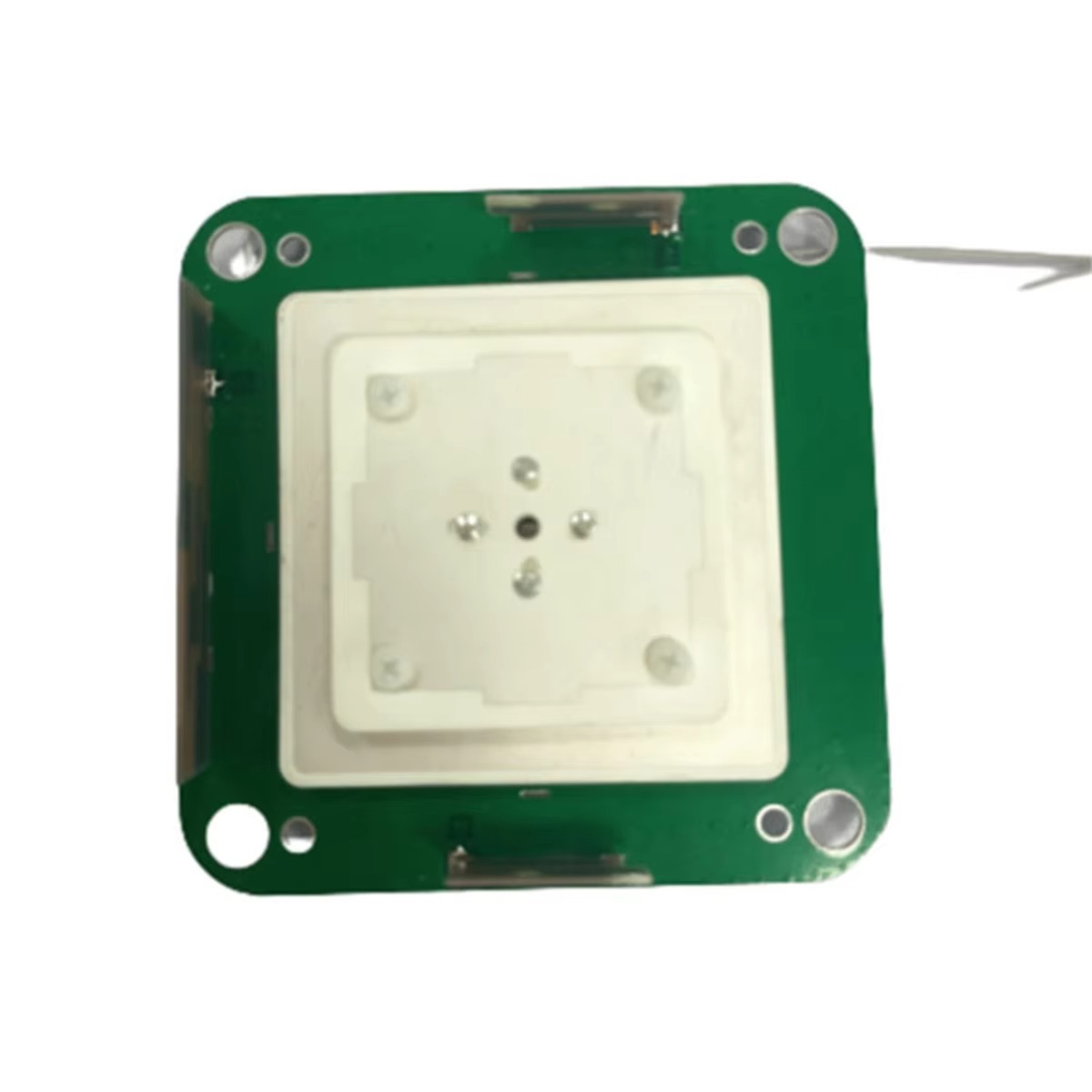

The core of the antenna is the element that actually captures the radio waves from satellites. Most high-precision agricultural antennas use a patch antenna design.
Material and Design: The patch is typically a ceramic substrate with a metal radiating element etched onto it. The ceramic has a high dielectric constant, allowing the antenna to be made physically small while remaining electrically tuned to the GNSS frequencies (e.g., L1 at 1575.42 MHz, L2 at 1227.60 MHz, L5 at 1176.45 MHz).
Polarization: GNSS satellites transmit Right-Hand Circularly Polarized (RHCP) signals. The patch antenna is specifically designed to be sensitive only to RHCP waves, which provides a significant advantage: it naturally rejects reflected signals. When a RHCP signal bounces off a building, the ground, or the tractor itself, its polarization reverses to Left-Hand Circular Polarization (LHCP). The antenna is largely deaf to these multipath signals, which are a primary source of positional error.
2. Ground Plane:
A critical and often overlooked component is the ground plane, a conductive surface located beneath the radiating patch. Its size and quality are paramount. A proper ground plane:
Establishes a stable and well-defined phase center. This is the virtual point from which the signal appears to originate. For RTK-level accuracy, the phase center must remain consistent regardless of the angle from which the signal arrives. Any movement or instability of the phase center introduces error into the position calculation.
Shapes the antenna's radiation pattern, directing gain upwards towards the sky (where the satellites are) and reducing sensitivity to low-angle signals and noise originating from the horizon, which are often multipath reflections or interference.
In many agricultural antennas, the vehicle's roof itself can act as a ground plane, but dedicated antennas include their own integrated ground plane to ensure consistent performance regardless of the mounting surface.
3. Low-Noise Amplifier (LNA):
The signals from GNSS satellites are incredibly weak by the time they travel over 20,000 km to Earth. The LNA is the first active component in the chain, and its job is to amplify these faint signals without adding significant noise. A high-quality, low-noise figure LNA is essential for acquiring and tracking satellites, especially in obstructed views or under foliage. The LNA is typically located directly within the antenna housing to amplify the signal before any loss can occur in the coaxial cable running to the receiver.
4. Bandpass Filtering:
To prevent out-of-band interference from cellular networks, radio transmitters, and other machinery from overloading the sensitive receiver, a bandpass filter is integrated into the antenna. This filter allows only the specific GNSS frequencies (L1, L2, L5) to pass through, rejecting all other RF energy.
5. Ruggedized Enclosure and Radome:
The external housing is what makes an agricultural antenna "agricultural."
Radome: The top dome is made of a material that is virtually transparent to RF signals (low dielectric loss tangent), such as high-quality polycarbonate or ceramic-filled plastics. It must be resistant to UV degradation to prevent yellowing and weakening over years of sun exposure.
Housing: The base is typically made from robust, corrosion-resistant materials like die-cast aluminum or hardened plastics. It is sealed to a high Ingress Protection (IP) rating, such as IP67 or IP69K, meaning it is completely dust-tight and can withstand immersion in water and high-pressure, high-temperature jet washing.
Mounting and Cabling: The antenna is designed with robust mounting options (e.g., strong magnetic bases, bolt-through holes) to resist vibration and shock. The cable connection is a sealed, weatherproof port, often using TNC or SMA connectors, and the cable itself is reinforced to resist abrasion, chemicals (fuels, oils, fertilizers), and chewing by rodents.
This combination of high-electrical-performance internals and nearly indestructible externals creates a device capable of delivering continuous, precise positioning from the heart of a dust-choked harvest to the cab of a sprayer bouncing through a rough field.
Working Principles
The working principles of an agricultural GNSS antenna for smart farming are based on the fundamental concepts of satellite communication and signal processing, adapted to the specific requirements of the agricultural environment. The process begins with the antenna element capturing the weak radio - frequency signals transmitted by GNSS satellites. These signals, which carry essential information for determining position, time, and velocity, travel through space at the speed of light and reach the antenna on Earth with very low power.
Once the signals are received by the antenna element, they are passed through a series of amplification and filtering stages. The first component in the signal chain is usually a low - noise amplifier (LNA). The LNA's primary function is to boost the strength of the weak GNSS signals while adding as little noise as possible to the signal. This amplification is essential because the signals received from the satellites are extremely weak, and any additional noise could degrade the accuracy of the positioning.
After amplification, the signals are processed by a matching network. The matching network's role is to match the impedance of the antenna element to the impedance of the subsequent signal processing components, such as the GNSS receiver. By ensuring proper impedance matching, maximum power transfer is achieved, and signal reflections are minimized, resulting in better signal reception and more accurate positioning calculations.
The processed signals are then sent to the GNSS receiver. The receiver uses the time - of - arrival (TOA) or time - difference - of - arrival (TDOA) of the signals from multiple satellites to calculate the distance between the antenna (and thus the farming equipment or location on the field) and each satellite. By knowing the speed of light and the time it takes for the signals to travel from the satellites to the antenna, the receiver can determine the range to each satellite. Using the principle of trilateration, the receiver combines the range measurements from at least four satellites to calculate the precise location of the antenna in three - dimensional space (latitude, longitude, and altitude).
In smart farming applications, this location information is used in various ways. For example, in precision planting, the GNSS - derived location data guides the planting equipment to ensure seeds are sown at the correct spacing and depth across the field. In crop spraying, the location information helps the spraying equipment apply pesticides or fertilizers only where needed, reducing waste and environmental impact. Additionally, the location data can be used to create detailed maps of the field, monitor crop growth over time, and analyze soil conditions, all of which contribute to more efficient and sustainable farming practices.
Advantages and Challenges
-
Advantages
One of the most significant advantages of agricultural GNSS antennas in smart farming is improved precision and efficiency. By enabling accurate positioning of agricultural machinery, these antennas allow for more precise operations such as planting, fertilizing, and harvesting. This precision reduces overlap and gaps in tasks, leading to more efficient use of resources like seeds, fertilizers, and pesticides. For example, in precision planting, seeds can be sown at optimal spacing, maximizing crop yields while minimizing seed waste. Similarly, in spraying operations, the right amount of chemicals can be applied only where necessary, reducing costs and environmental pollution.
Increased productivity is another major benefit. With the help of GNSS - equipped machinery, farmers can cover larger areas of land in less time while maintaining high - quality work. Autonomous or semi - autonomous farming equipment guided by GNSS antennas can operate continuously, even in challenging conditions or during nighttime, increasing the overall productivity of the farm. This is especially important during peak farming seasons when time is of the essence for tasks like planting and harvesting.
Cost savings are also achieved through the use of agricultural GNSS antennas. By optimizing the use of resources, farmers can reduce input costs. For instance, precise fertilization based on GNSS - derived soil data can ensure that only the required amount of fertilizer is applied, saving money on unnecessary purchases. Additionally, the reduced wear and tear on machinery due to more accurate operations can extend the lifespan of the equipment, further reducing long - term costs.
Enhanced environmental sustainability is a crucial advantage. Precision farming enabled by GNSS antennas minimizes the overuse of chemicals and water. By applying pesticides and fertilizers only where needed, the runoff of these substances into the environment is reduced, protecting soil, water, and air quality. This sustainable approach to farming is not only beneficial for the environment but also helps farmers meet growing regulatory requirements and consumer demands for environmentally friendly agricultural products.
Challenges
Despite their numerous advantages, agricultural GNSS antennas face several challenges in the context of smart farming. One of the primary challenges is signal interference. In agricultural areas, there may be various sources of electromagnetic interference, including power lines, communication towers, and other electronic devices used on the farm. Additionally, natural phenomena such as thunderstorms can also disrupt GNSS signals. Interference can lead to inaccurate positioning, which can negatively impact farming operations. To address this, farmers may need to invest in anti - jamming technologies or ensure proper antenna placement to minimize interference.
Another challenge is related to the cost of implementation. High - quality agricultural GNSS antennas, along with the necessary receivers and associated equipment, can be expensive. For small - scale farmers, the initial investment may be a significant barrier to adoption. Additionally, the cost of maintaining and upgrading the equipment over time can also be a concern. This cost factor may limit the widespread use of GNSS - based smart farming technologies, especially in regions with limited financial resources.
Technical complexity is also an issue. Operating and maintaining GNSS - equipped farming equipment requires a certain level of technical knowledge. Farmers may need to be trained on how to use the equipment, interpret the data, and troubleshoot any issues that arise. This can be a challenge, especially for older farmers or those with limited technical skills. Moreover, the integration of GNSS technology with other farming systems and software can be complex, requiring seamless compatibility to ensure smooth operation.
Environmental factors, despite the antennas being designed to withstand harsh conditions, can still pose problems. Extreme weather events such as heavy storms, hurricanes, or dust storms can damage the antennas or disrupt signal reception. In addition, the long - term exposure to sunlight, moisture, and temperature fluctuations can cause wear and tear on the antenna components, reducing their performance over time. Regular maintenance and replacement of components may be required to ensure the continued reliable operation of the GNSS antennas.
Applications and Future Trends
-
Applications
Agricultural GNSS antennas have a wide range of applications in smart farming. In precision planting, these antennas guide planters to sow seeds at precise locations and depths across the field. By using pre - mapped field data and real - time GNSS positioning, farmers can ensure uniform seed distribution, which is essential for optimal crop growth and yield. This technology also allows for the planting of different crop varieties in specific areas of the field based on soil conditions and other factors.
For precision fertilization and spraying, GNSS antennas enable the accurate application of fertilizers, pesticides, and herbicides. Soil sensors can be used in conjunction with GNSS to map soil nutrient levels and other characteristics. Based on this data, the farming equipment can apply the right amount of chemicals only where needed, reducing waste and environmental impact. In addition, variable - rate application systems, controlled by GNSS, can adjust the application rate in real - time as the equipment moves across the field.
GNSS - equipped drones are increasingly used in smart farming for tasks such as crop monitoring and spraying. Drones can quickly cover large areas of farmland, capturing high - resolution images and data using onboard sensors. The GNSS antenna on the drone ensures accurate positioning, allowing for precise mapping of crop health, identification of pest infestations, and targeted spraying of affected areas.
In livestock management, GNSS technology can be used to track the movement of animals. Collars or tags equipped with GNSS antennas can provide real - time location information about the livestock, enabling farmers to monitor their grazing patterns, prevent wandering, and quickly locate animals in case of emergencies. This technology also helps in optimizing pasture utilization and improving animal welfare.
Future Trends
Looking ahead, several future trends are expected to shape the development of agricultural GNSS antennas for smart farming. One significant trend is the integration of multiple satellite navigation systems. In addition to the existing GPS, GLONASS, Galileo, and BeiDou, new satellite constellations may emerge in the future. Future agricultural GNSS antennas will be designed to receive signals from multiple GNSS simultaneously, providing greater redundancy and enhanced accuracy, especially in areas with limited satellite visibility or in the presence of interference.
The use of artificial intelligence (AI) and machine learning (ML) in conjunction with GNSS technology is another emerging trend. AI and ML algorithms can analyze the vast amounts of data collected by GNSS - equipped sensors in the field, such as soil data, crop images, and weather information. These algorithms can then provide farmers with actionable insights, such as predicting crop yields, identifying disease outbreaks early, and optimizing farming operations. The integration of AI and ML with GNSS antennas will make smart farming even more intelligent and autonomous.
Advancements in materials science will also play a crucial role. New materials with improved electrical properties, durability, and resistance to environmental factors will be developed for antenna construction. For example, flexible and stretchable materials may be used to create antennas that can be easily integrated into wearable devices for livestock or conform to the shape of irregular farming equipment. Additionally, self - healing materials could be used to repair minor damages to the antenna enclosure, increasing its lifespan.
The miniaturization of antenna components is an ongoing trend. As technology progresses, agricultural GNSS antennas will become smaller, lighter, and more energy - efficient. This will enable their integration into a wider range of farming devices, including small - scale sensors, autonomous robots, and smart irrigation systems. Miniaturized antennas will also reduce the overall cost and complexity of smart farming equipment, making it more accessible to farmers.
Conclusion
In conclusion, agricultural GNSS antennas are a cornerstone of smart farming, enabling precise positioning and navigation that are essential for modern, efficient, and sustainable agriculture. Through advanced design and construction, innovative working principles, and a wide range of applications, these antennas have brought about significant improvements in farming operations, including increased precision, productivity, cost savings, and environmental sustainability.
However, challenges such as signal interference, high costs, technical complexity, and environmental factors still need to be addressed. Overcoming these challenges will require continuous research and development, collaboration between the agricultural and technology sectors, and the development of more user - friendly and cost - effective solutions.
As the future of smart farming unfolds, trends such as multi - GNSS integration, the use of AI and ML, advancements in materials science, and miniaturization are set to further enhance the capabilities of agricultural GNSS antennas. Continued innovation in this field will not only revolutionize the way we farm but also contribute to meeting the growing global demand for food in a more sustainable and efficient manner. The agricultural GNSS antenna will undoubtedly continue to play a central role in shaping the future of agriculture.
