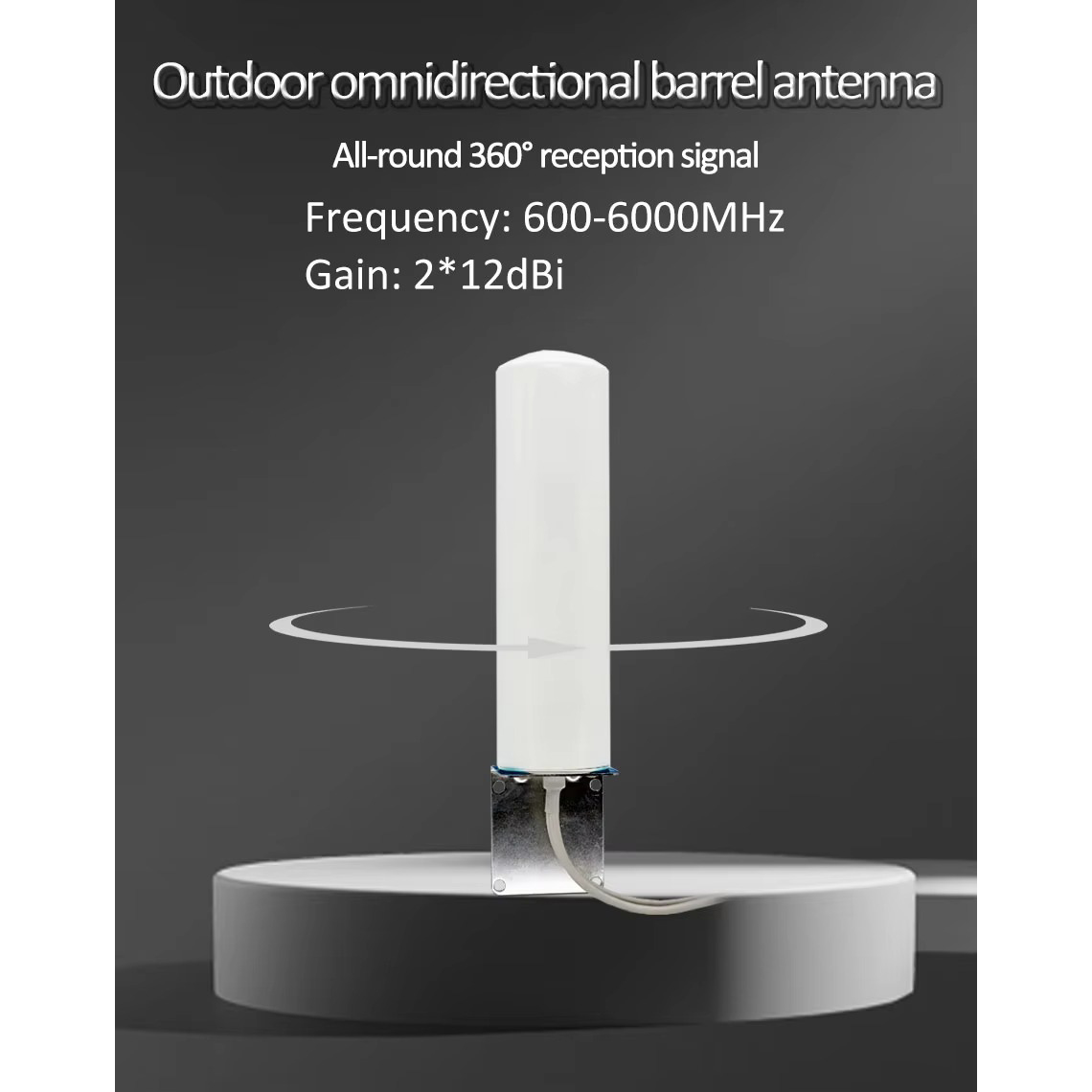

| Item | Specifications | |

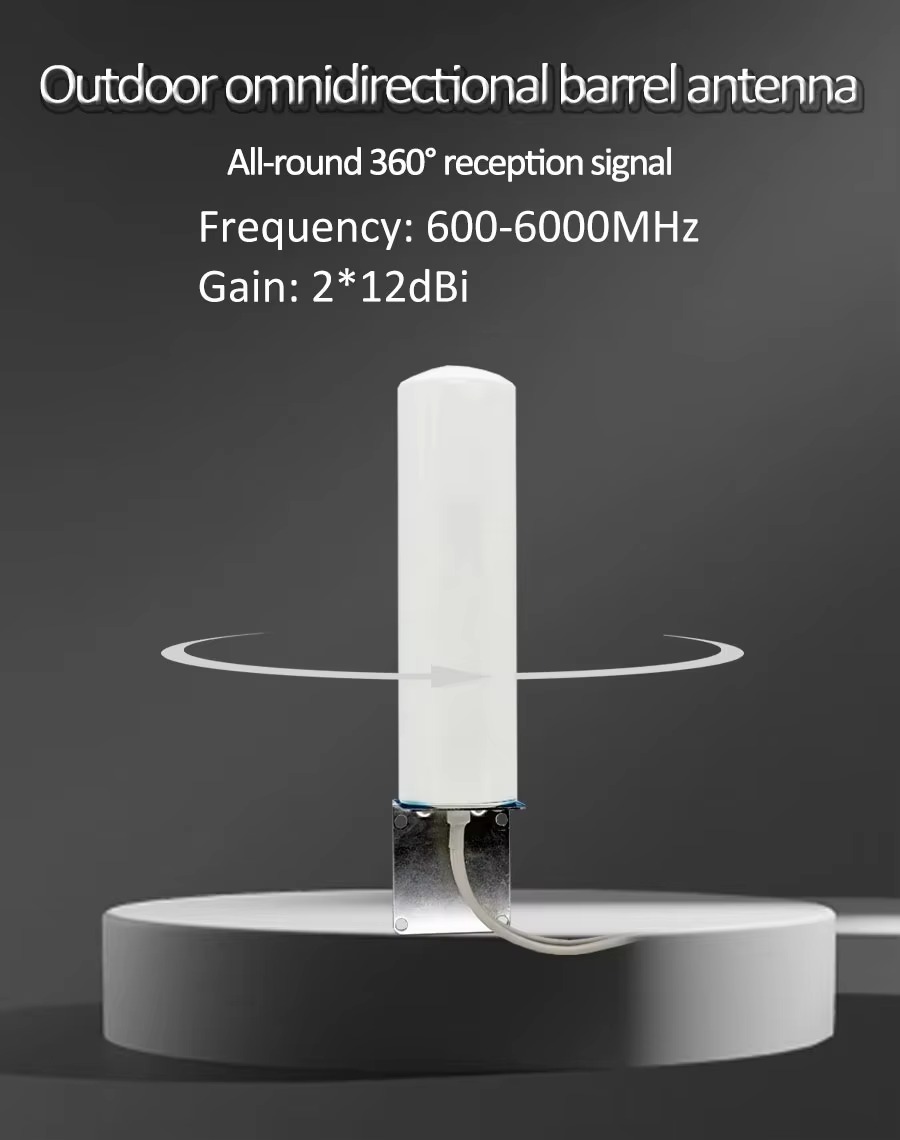

| Antenna | Frequency Range | 600-6000MHz or customizable |
| Gain | 10-12dBi | |
| V.S.W.R | ≤2.0 | |
| Impendance | 50Ω | |

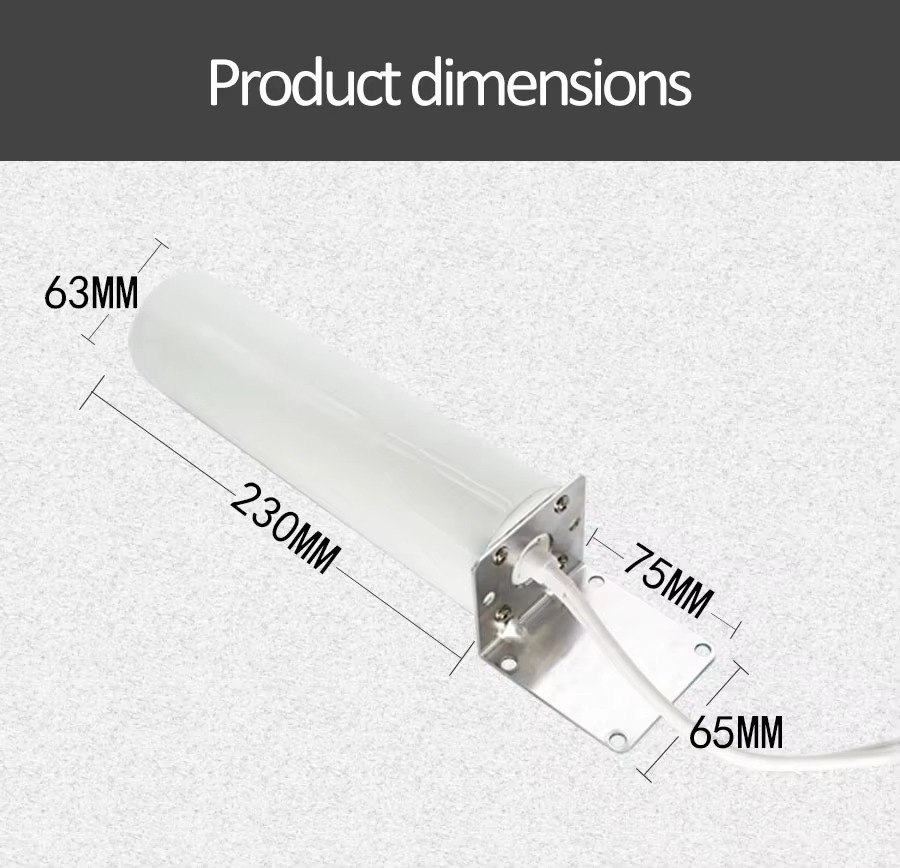

| Antenna size | 230*63MM | |
| Polarization | Vertical | |
| Mechanical | Inner Material | Copper tube |

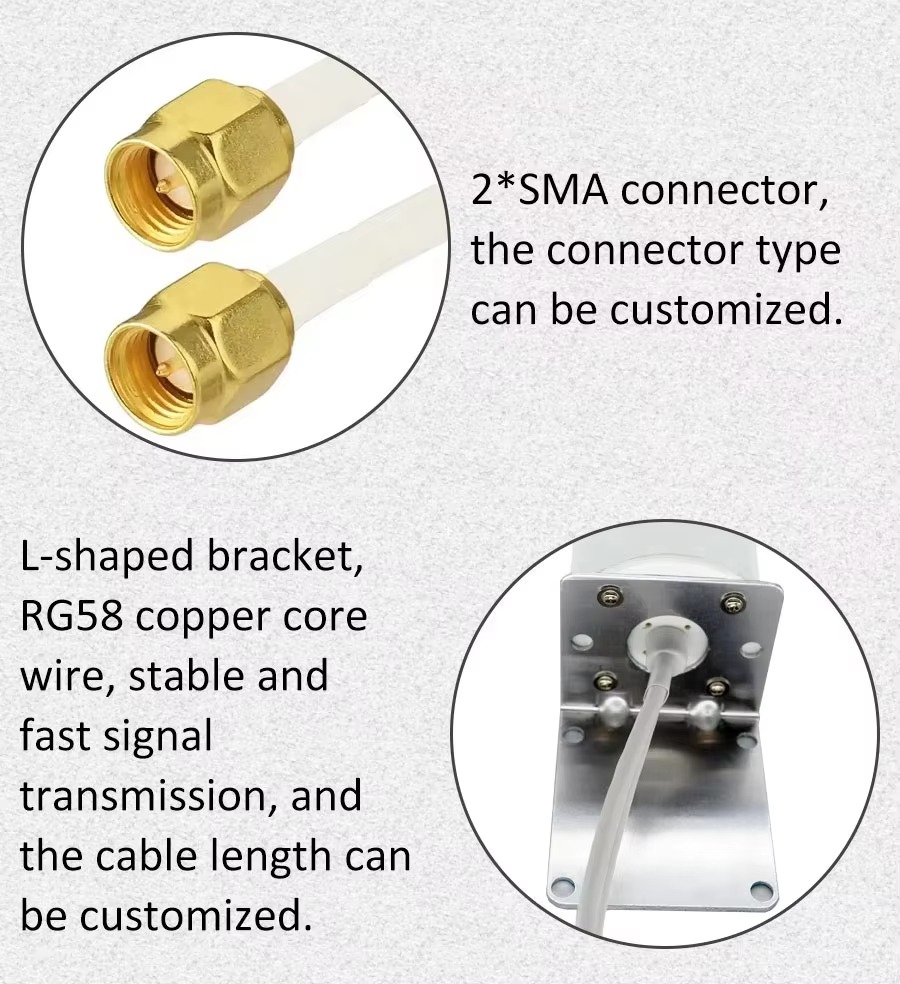

| Connector type | SMA male Connector or customizable | |

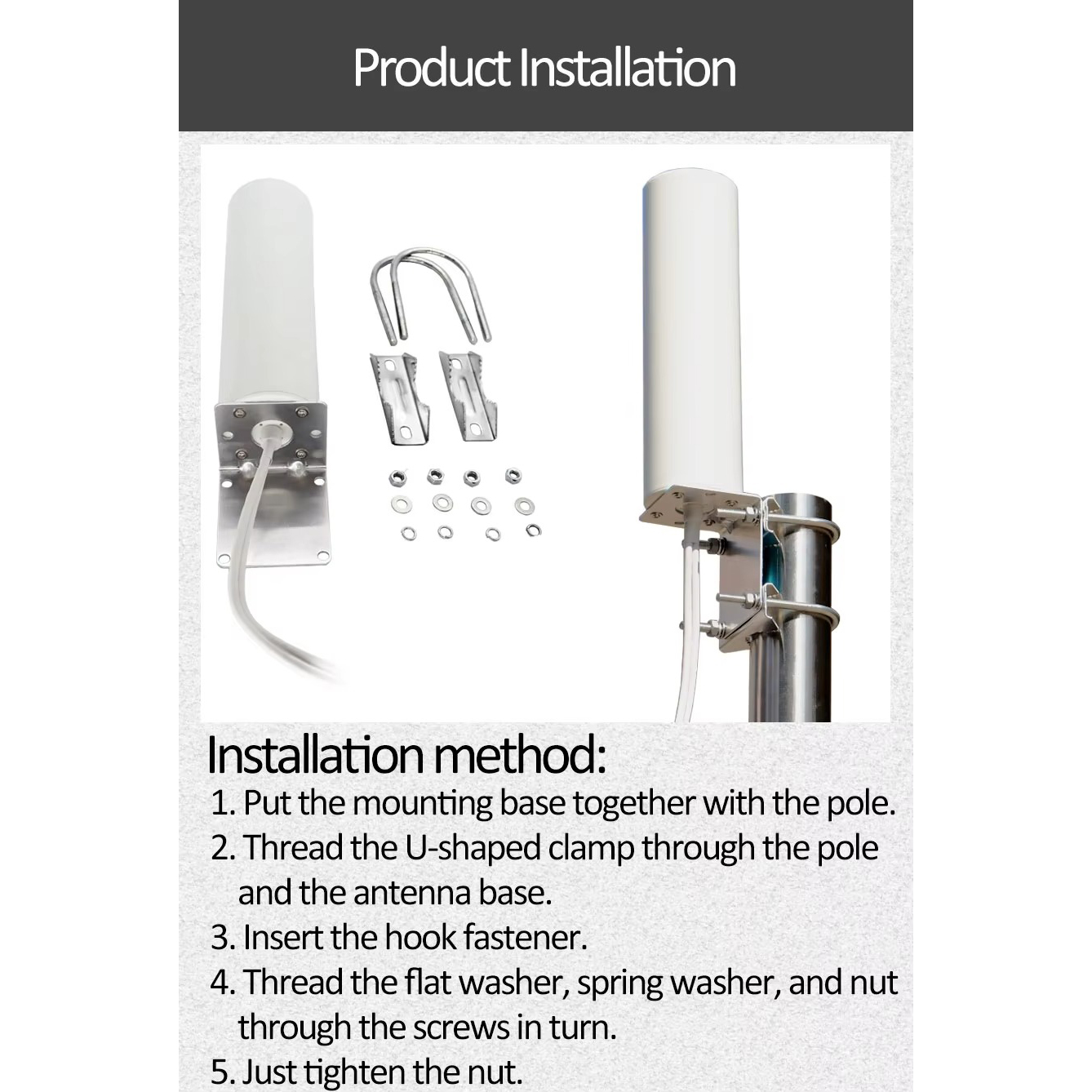

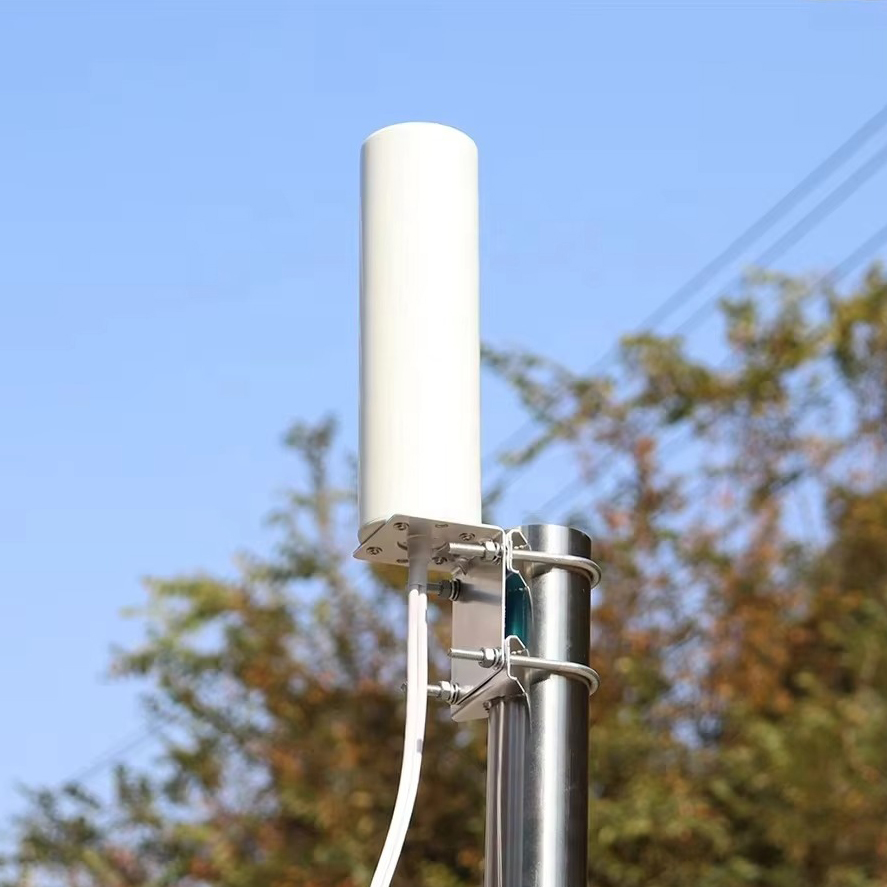

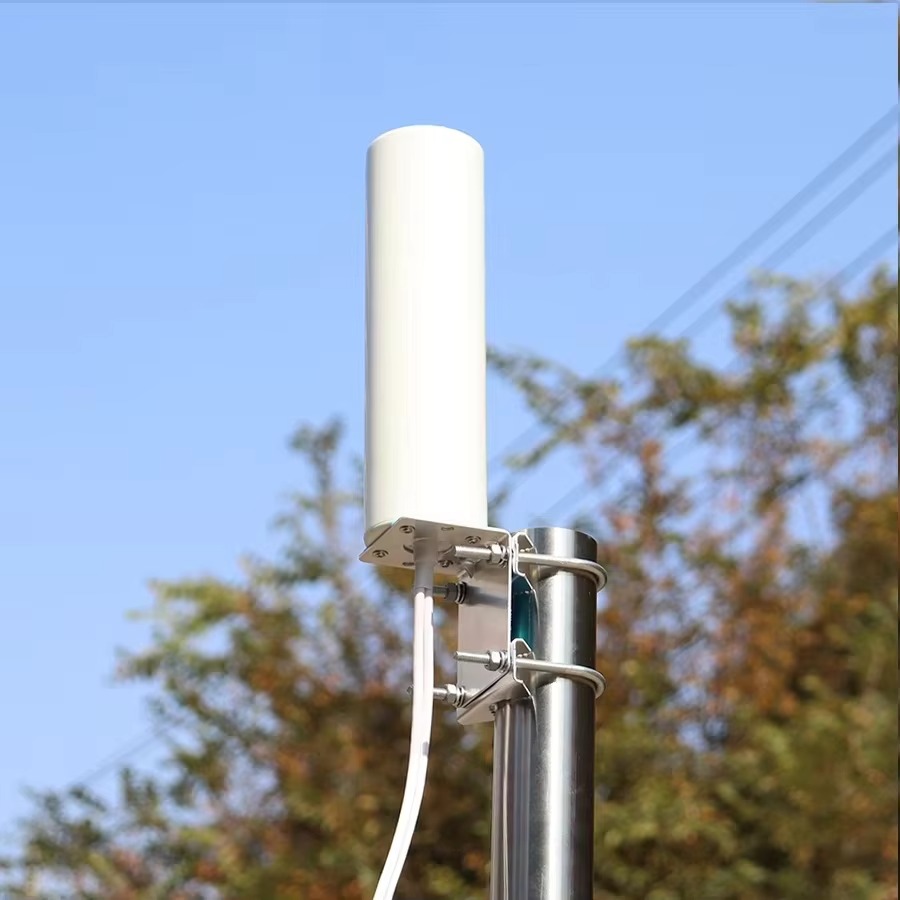

| Mounting Method | Fixed Wall Mount | |
| Environmental | Operating Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ | |
| Environmentally Friendly | ROHS Compliant | |
