Overview

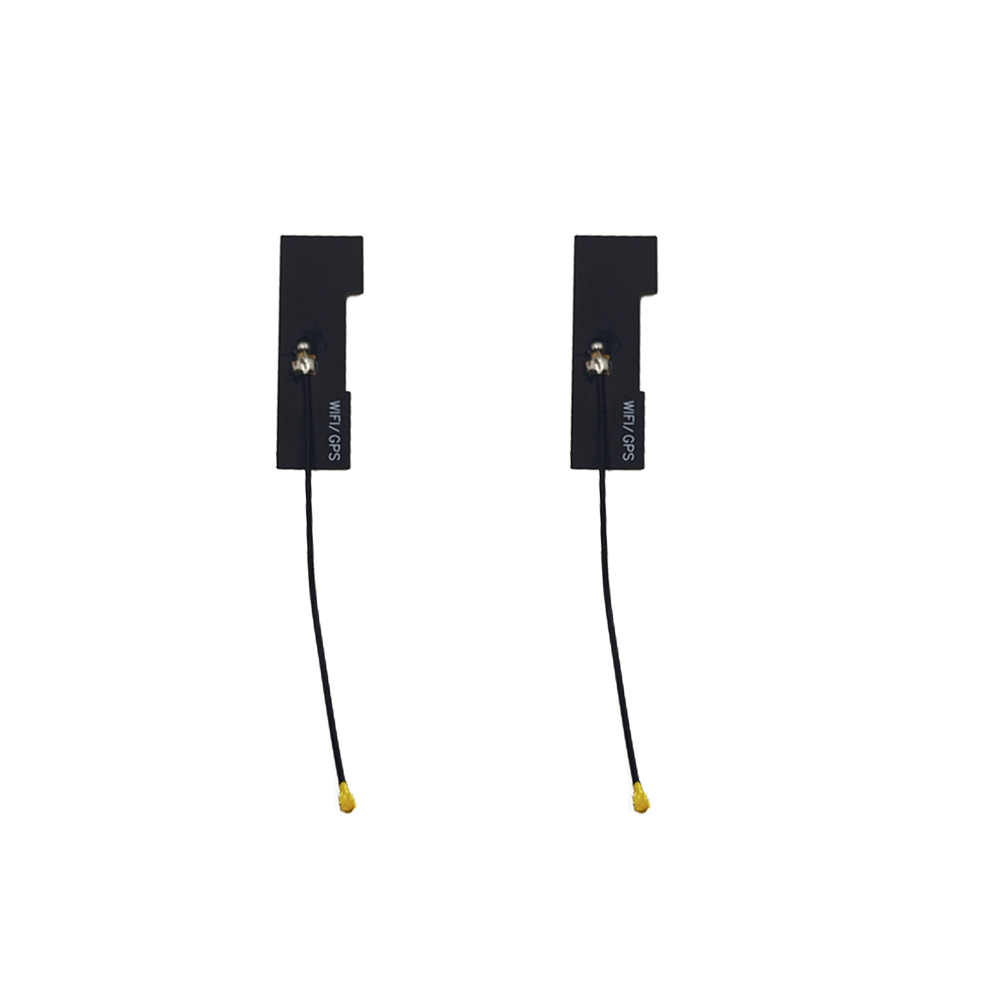

The TOXU KC.IA.00267 is a compact WiFi, Bluetooth and GPS FPC internal antenna designed for embedded wireless products.

This antenna integrates multiple wireless frequency bands including 2.4GHz WiFi/Bluetooth, 5.8GHz WiFi and GPS 1575.42MHz, providing a flexible RF solution for automotive electronics, communication equipment and smart home applications.

Key Features

WiFi Bluetooth GPS Multi-Band Support

Supports WiFi/Bluetooth 2400-2500MHz, WiFi 5150-5850MHz and GPS 1575.42MHz frequency bands.

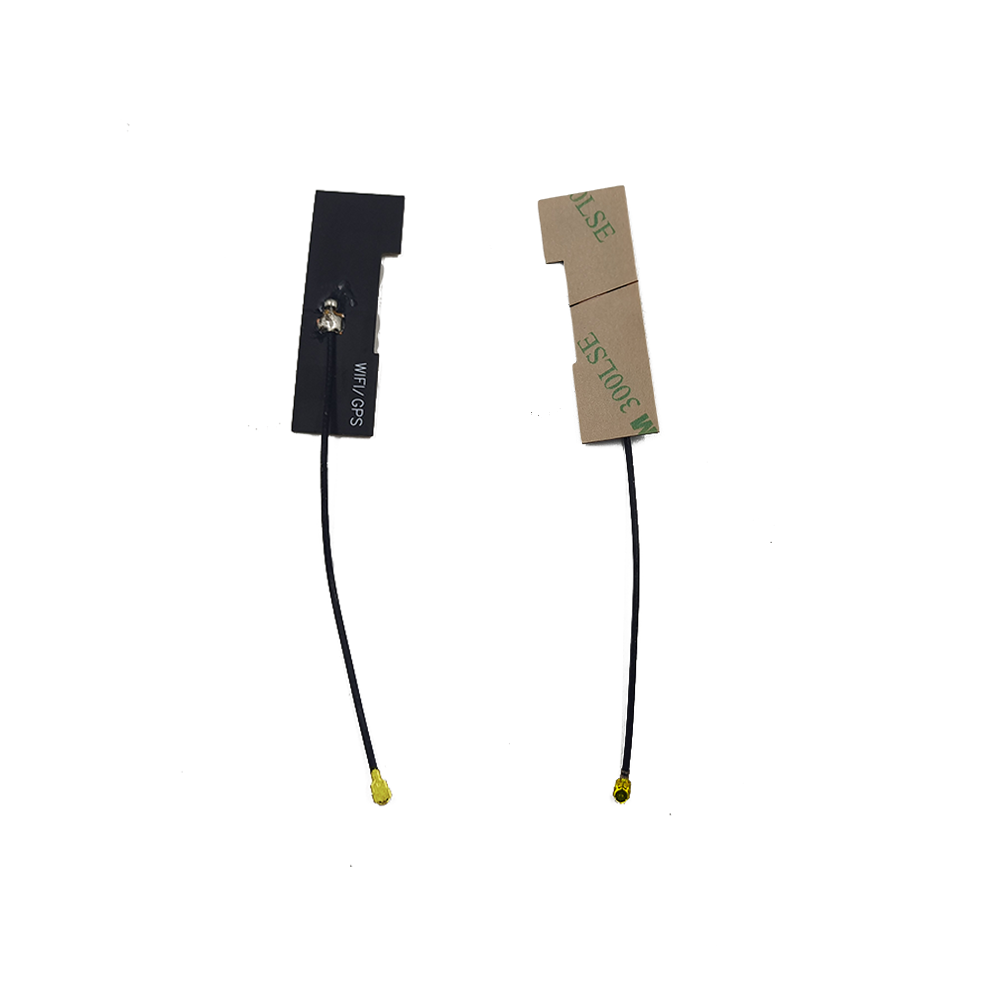

Compact FPC Antenna Design

Flexible PCB structure enables easy installation inside compact electronic devices.

50Ω RF Matching

Designed with standard 50Ω impedance for compatibility with wireless modules and RF systems.

IPEX-1 Connector Integration

Equipped with IPEX-1 connector and RF cable assembly for quick connection with embedded modules.

Custom Antenna Development

TOXU supports customized antenna tuning, cable length adjustment and mechanical design optimization.

Technical Specifications

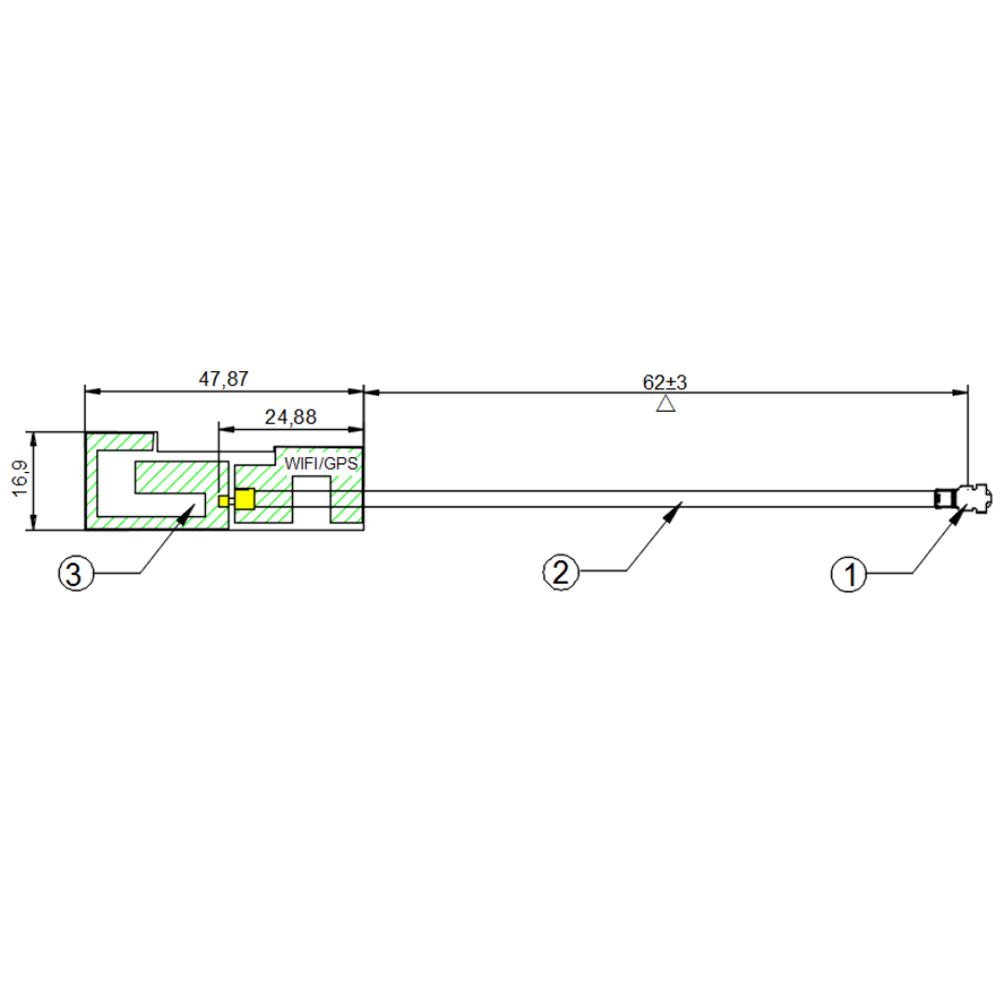

Dimension Drawing

KC.IA.00267 adopts a compact FPC antenna structure with integrated RF cable and IPEX-1 connector. The antenna dimensions and cable length can be customized according to customer requirements.

Applications

Automotive Electronics

Suitable for vehicle electronic systems requiring wireless communication and GPS positioning functions.

Smart Home Devices

Applicable for connected home products with WiFi, Bluetooth and positioning requirements.

Industrial Embedded Equipment

Suitable for compact devices requiring integrated RF antenna solutions.

System Integration

TOXU provides integrated RF hardware solutions including FPC antennas, GNSS antennas, communication antennas and RF cable assemblies.

From antenna design optimization to prototype development and mass production, TOXU supports flexible OEM and ODM cooperation.

Why Choose TOXU

Professional RF Engineering

Support antenna design, RF tuning, testing and production optimization.

Flexible Customization

Support customized frequency bands, mechanical structures, connectors and cable specifications.

Factory Manufacturing Capability

Provide complete antenna and RF cable assembly solutions from prototype samples to mass production.

FAQ

Can KC.IA.00267 be customized?

Yes. TOXU supports customized antenna dimensions, cable length and RF performance adjustment.

Which connector is used?

This antenna uses an IPEX-1 connector.

What applications can use this antenna?

It is suitable for automotive electronics, smart home devices and embedded wireless equipment.
