Overview

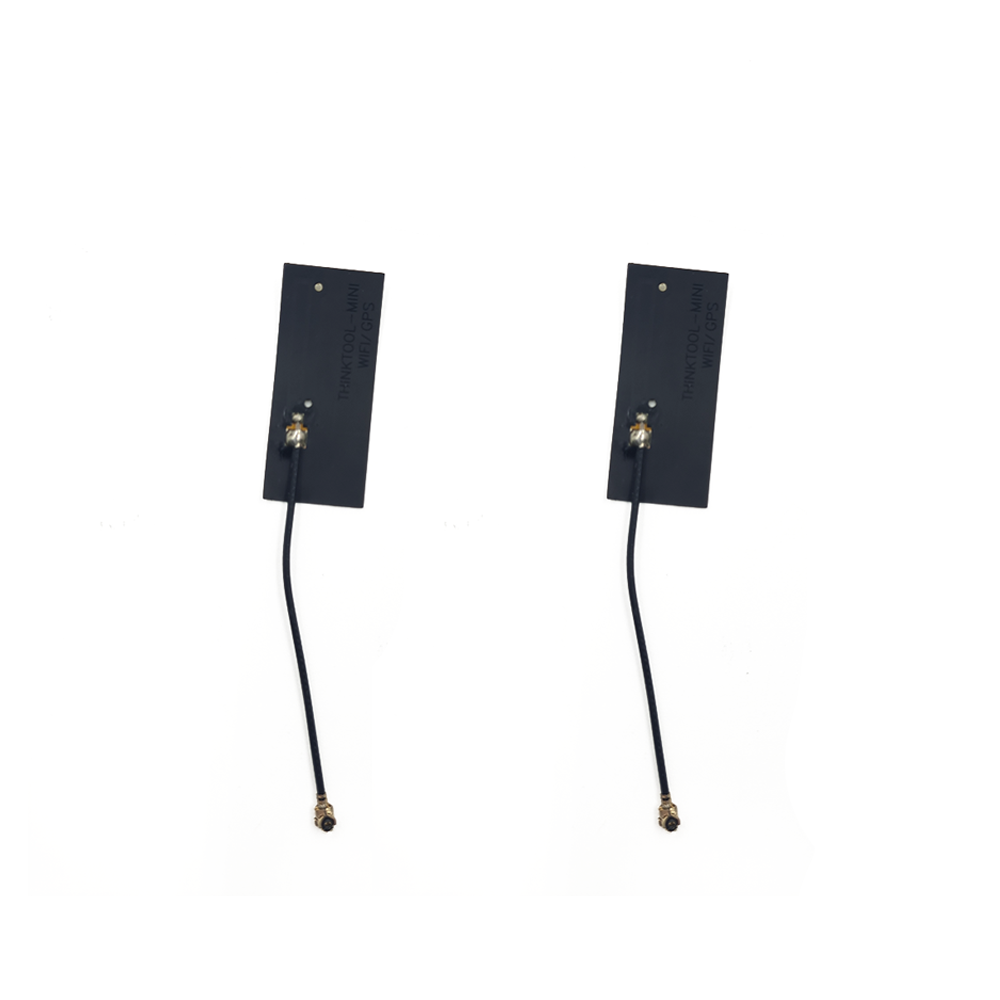

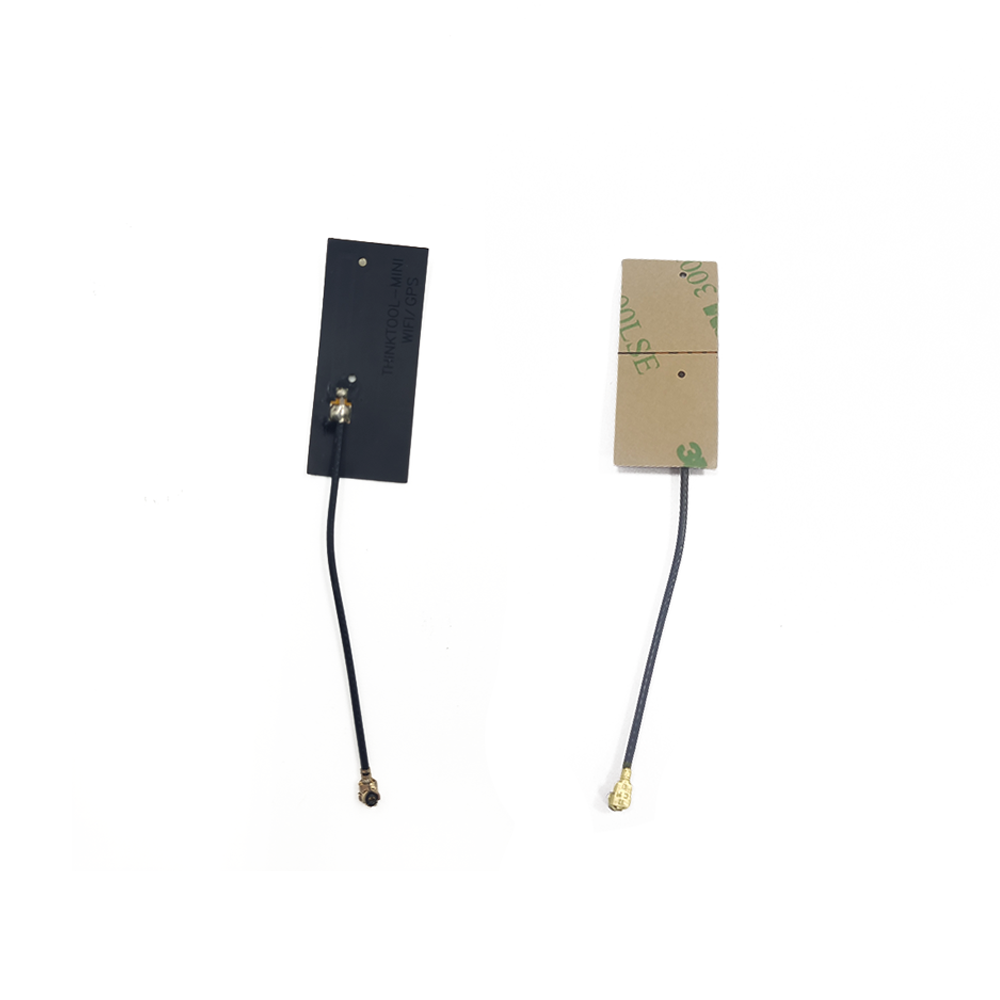

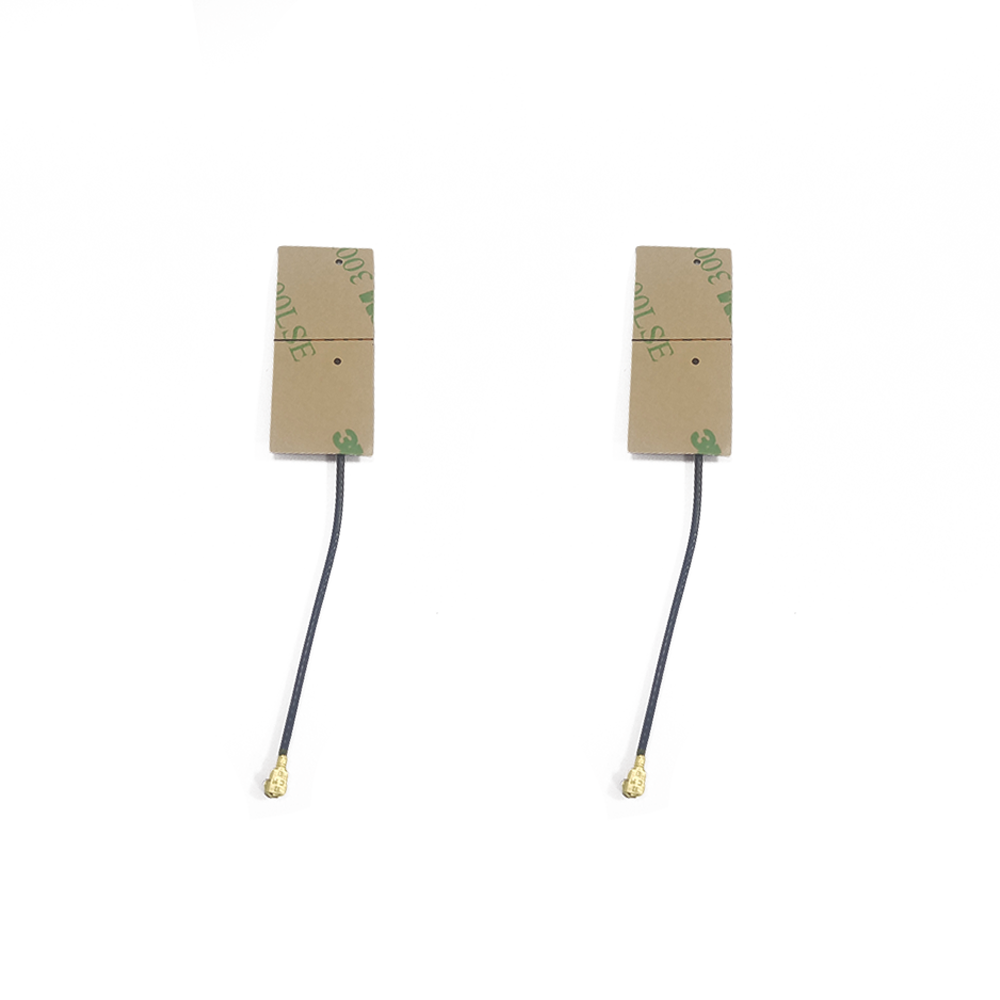

The TOXU KC.IA.00206 is a customized WiFi and GNSS FPC internal antenna designed for wireless communication and positioning applications.

Supporting WiFi 2.4GHz/5.8GHz, GPS and BeiDou frequency bands, KC.IA.00206 integrates multiple RF functions into a compact flexible antenna structure for space-limited electronic devices.

With stable RF performance, IPEX connector and RF1.13 cable assembly, this antenna provides a flexible integration solution for automotive electronics, smart devices and industrial applications.

Key Features

Multi-Band WiFi and GNSS Support

Supports WiFi 2.4GHz, WiFi 5.8GHz, GPS and BeiDou frequency bands for integrated wireless communication and positioning applications.

Flexible FPC Antenna Structure

The flexible PCB antenna design enables easy installation inside compact electronic devices with limited space.

Compact Embedded Design

Designed for embedded applications requiring integrated antenna solutions with reliable RF performance.

IPEX Connector with RF Cable Assembly

Equipped with RF1.13 cable and IPEX connector for convenient connection with wireless modules and electronic systems.

OEM & ODM Support

TOXU supports customized antenna frequency, size, cable length, connector type and RF performance optimization.

Technical Specifications

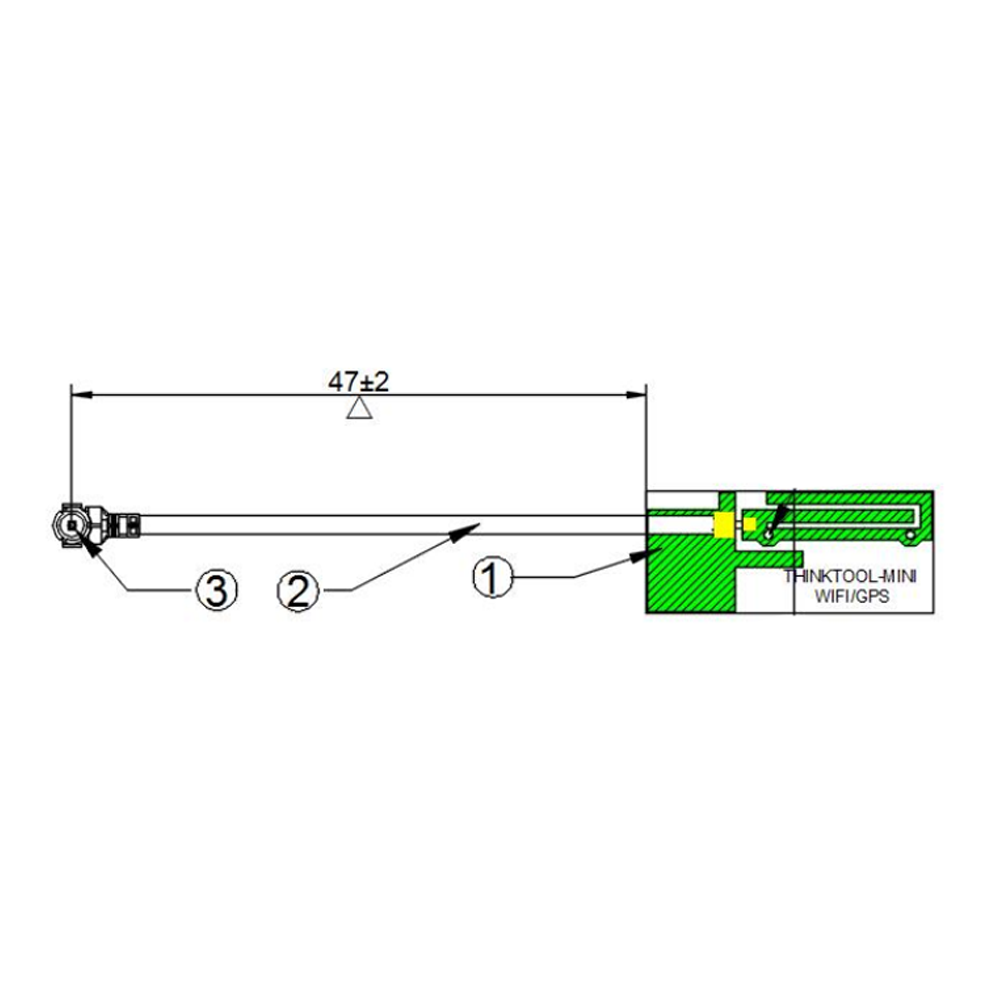

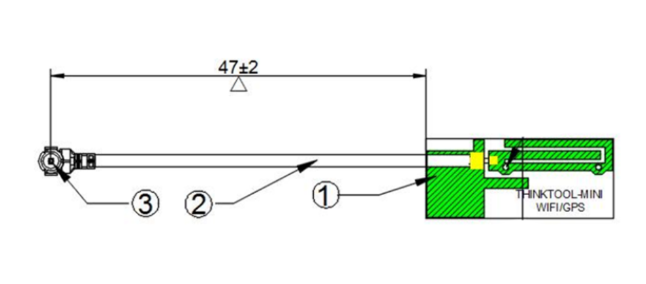

Dimension Drawing

Mechanical dimensions and antenna structure are available according to the product drawing.

Applications

Automotive Electronics

Suitable for vehicle communication terminals, navigation equipment and embedded automotive systems.

Smart Devices

Used in compact electronic devices requiring WiFi connectivity and GNSS positioning functions.

Industrial Equipment

Applicable for industrial terminals, wireless control devices and IoT equipment.

Communication Systems

Provides integrated antenna solutions for wireless communication applications.

System Integration

TOXU provides complete RF hardware solutions from antenna design to system integration.

WiFi/GNSS Module
↓
FPC Internal Antenna
↓
RF Cable Assembly
↓
Electronic Device System

TOXU supports antenna matching, RF optimization, prototype validation and mass production for customer projects.

Complete GNSS Solution Support

GNSS Antenna Matching

TOXU provides matched GNSS antennas including ceramic antennas, patch antennas and RTK antennas for optimized positioning performance.

RF Cable Assembly

TOXU provides customized RF cable assemblies with different connectors for GNSS and wireless system integration.

Connector Solution

TOXU provides RF connector solutions including SMA, MMCX, MCX, FAKRA and customized connectors.

Hardware Customization

TOXU supports PCB design, RF tuning, prototype validation and mass production.

Why Choose TOXU

Complete RF Hardware Capability

TOXU integrates antenna design, RF engineering, cable assembly, connector solutions and hardware manufacturing capabilities.

OEM & ODM Development Support

TOXU supports customized antenna development from prototype design to mass production.

Integrated Hardware Solution

From RF components to complete hardware integration, TOXU provides reliable solutions for global customers.

FAQ

Can TOXU customize WiFi and GNSS antennas?

Yes. TOXU supports customized frequency bands, antenna dimensions, cable length, connector types and RF performance optimization.

Can TOXU provide matching cables and connectors?

Yes. TOXU provides RF cable assemblies and connector solutions including customized designs for wireless and GNSS applications.

Can TOXU support mass production?

Yes. TOXU provides prototype development, RF validation and mass production support for customized antenna projects.
