Overview

The TOXU KC.IA.00216 is a GPS and WiFi FPC internal antenna designed for compact embedded electronic devices requiring wireless communication and positioning capability.

Supporting GPS 1575MHz, WiFi 2.4GHz and WiFi 5.8GHz frequency bands, KC.IA.00216 provides a flexible antenna solution for automotive electronics, communication equipment and smart home devices.

Key Features

GPS & Dual-Band WiFi Support

Supports GPS 1575MHz, WiFi 2400-2500MHz and WiFi 5150-5850MHz frequency bands for integrated positioning and wireless connectivity.

Flexible FPC Structure

The flexible PCB antenna design enables convenient installation inside compact electronic devices.

Optimized RF Performance

Provides stable VSWR performance and reliable wireless signal transmission with optimized antenna tuning.

Compact Embedded Solution

Designed for products with limited internal space, including automotive electronics and smart connected devices.

Custom Engineering Support

TOXU provides antenna customization including frequency adjustment, mechanical modification, cable selection and connector customization.

Technical Specifications

Dimension Drawing

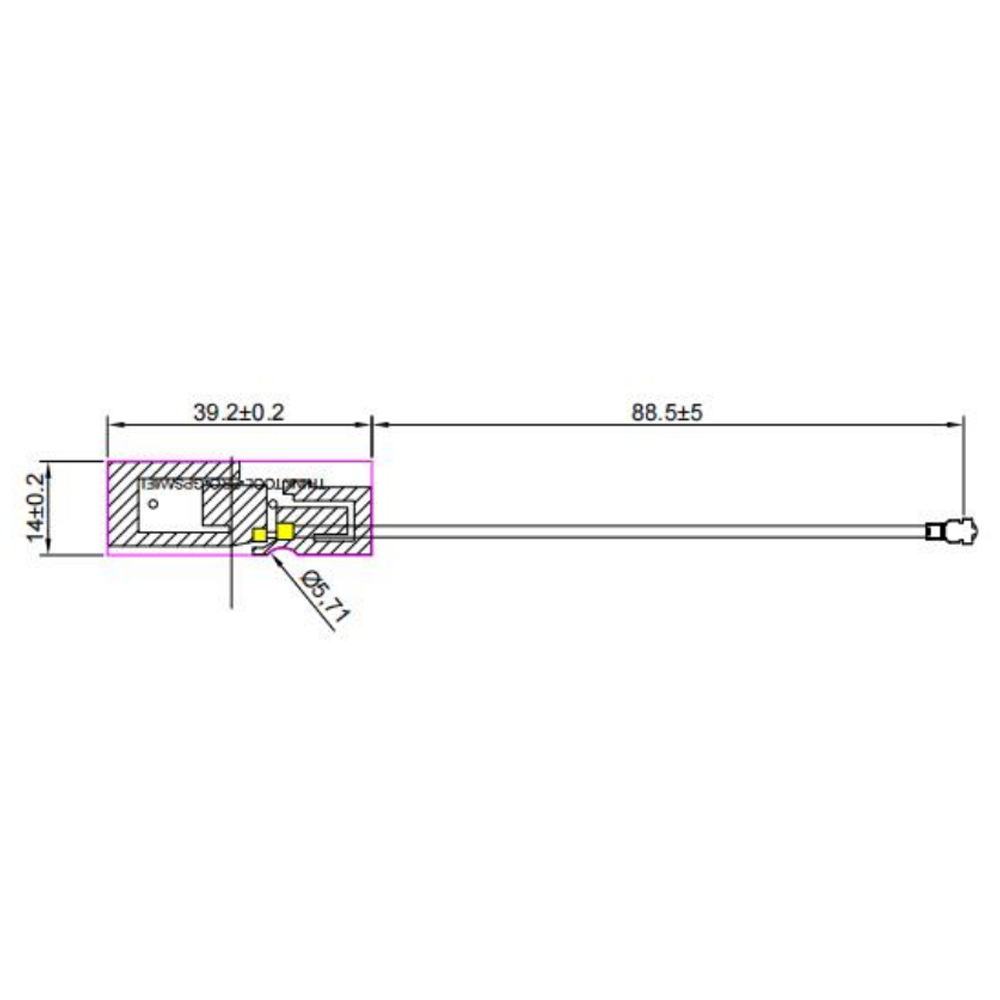

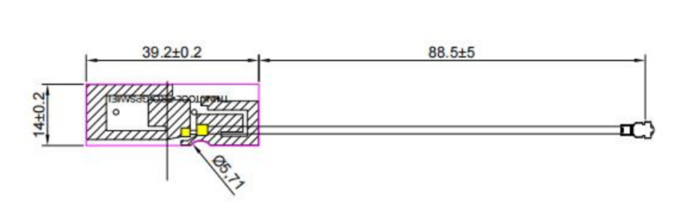

The mechanical drawing shows the FPC antenna structure with RF1.13 cable assembly. Customized dimensions are available according to customer requirements.

Applications

Automotive Electronics

Suitable for vehicle communication terminals, navigation devices and embedded automotive systems.

Smart Home Devices

Applicable for smart terminals and connected electronic products requiring GNSS and WiFi connectivity.

Industrial Wireless Equipment

Used in compact industrial devices requiring reliable internal antenna solutions.

System Integration

TOXU provides integrated RF hardware solutions including GNSS antennas, communication antennas, RF cable assemblies, connectors, GNSS modules and customized antenna development.

From RF design optimization to prototype validation and mass production, TOXU supports customers with complete hardware solutions.

Why Choose TOXU

Professional Antenna Development Capability

TOXU supports antenna design, RF tuning, prototype development and mass production for global customers.

Complete RF Supply Chain

Integrated capability covering antennas, RF cable assemblies, connectors and related hardware solutions.

OEM & ODM Manufacturing

Flexible customization service for different product structures and application requirements.

FAQ

Can KC.IA.00216 be customized?

Yes. TOXU supports customization of antenna size, cable length, connector type and RF performance.

What devices can use this antenna?

It is suitable for automotive electronics, communication devices, smart home products and embedded wireless systems.

Can TOXU provide complete RF solutions?

Yes. TOXU provides antennas, RF cable assemblies, connectors and GNSS-related hardware solutions.
