Overview

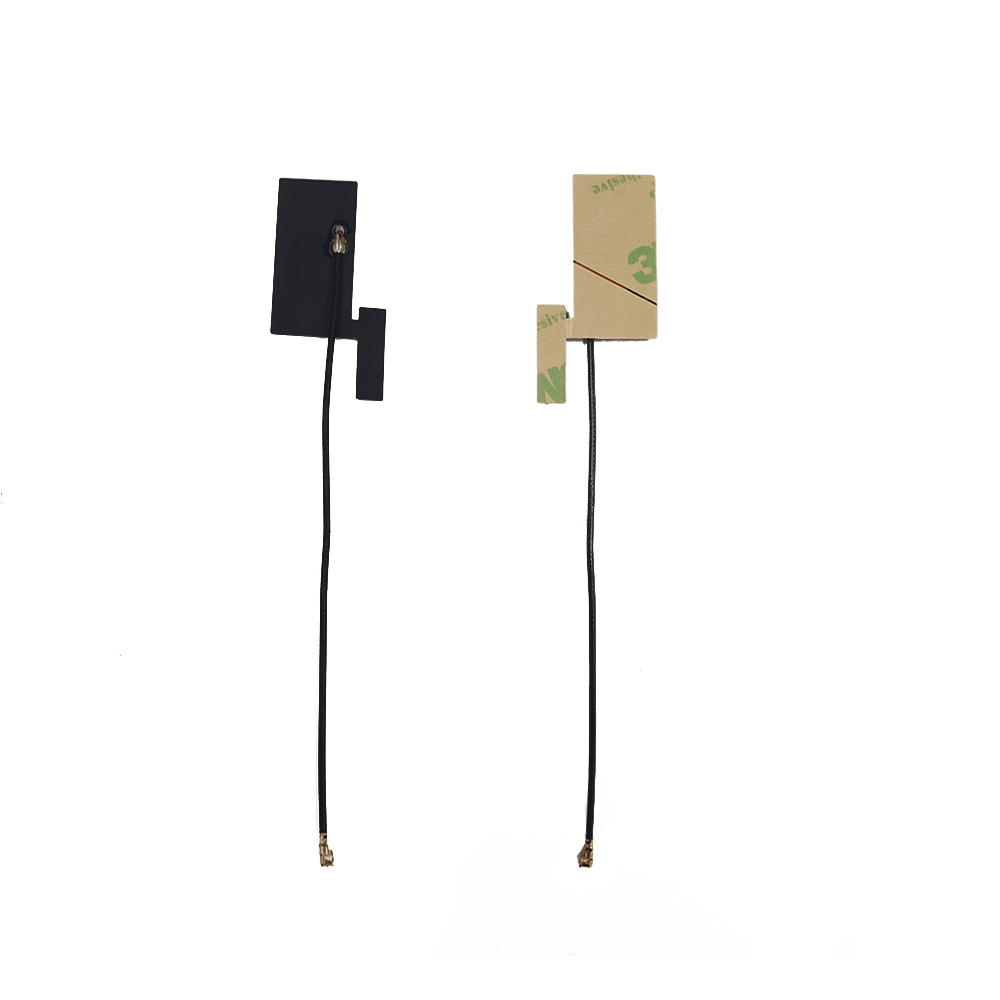

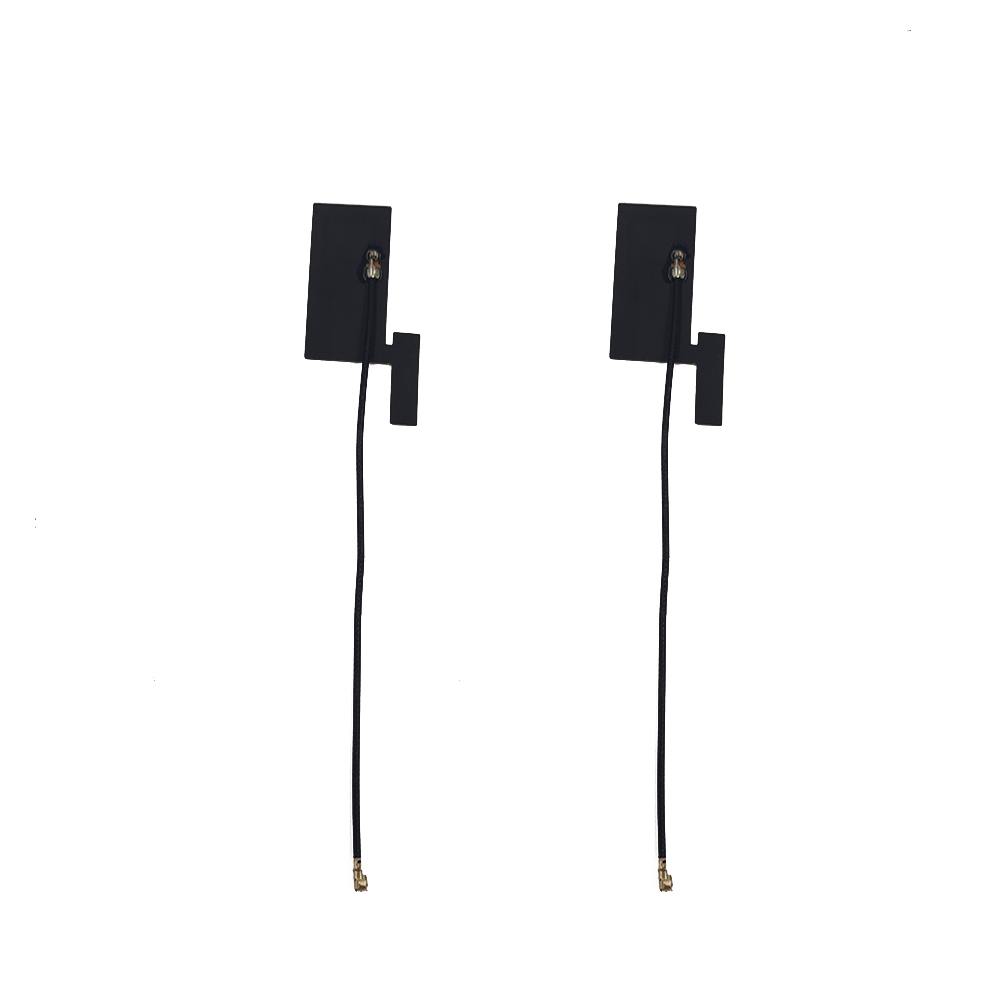

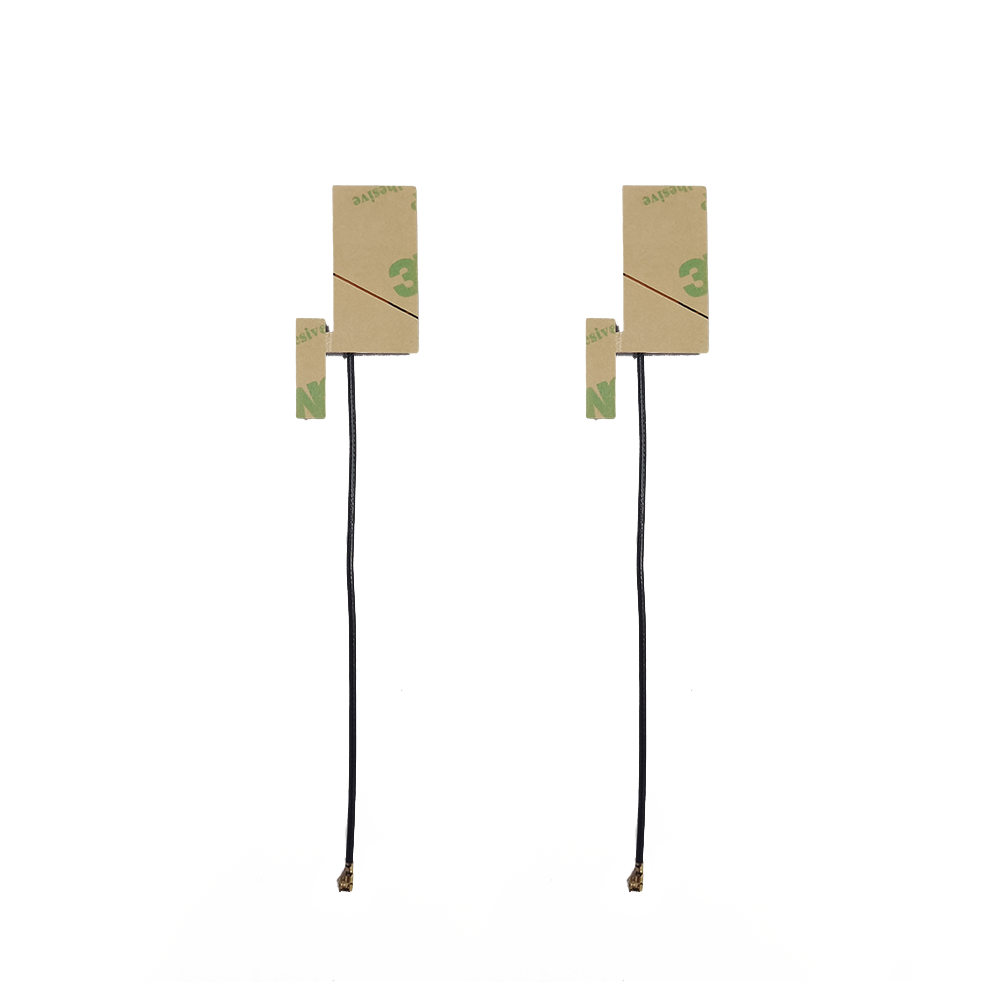

The TOXU KC.IA.00343 is a compact GPS and WiFi FPC internal antenna designed for embedded wireless applications.

This antenna integrates GPS positioning frequency and dual-band WiFi communication capability, covering 1575.42MHz GPS, 2.4GHz WiFi and 5.8GHz WiFi frequency bands.

With flexible FPC structure, compact size and IPEX connector design, KC.IA.00343 is suitable for automotive electronics, communication equipment and smart home applications.

Key Features

GPS + Dual-Band WiFi Integration

Supports GPS 1575.42MHz and WiFi 2400-2500MHz / 5150-5850MHz frequency bands.

Compact FPC Antenna Design

Flexible PCB structure provides easy installation inside compact electronic devices.

50Ω Impedance Matching

Designed for compatibility with standard RF modules and wireless communication systems.

IPEX RF Connector

Equipped with IPEX connector and RF coaxial cable for simple integration.

Custom RF Tuning Support

TOXU provides antenna customization including frequency optimization, cable length and mechanical adjustment.

Technical Specifications

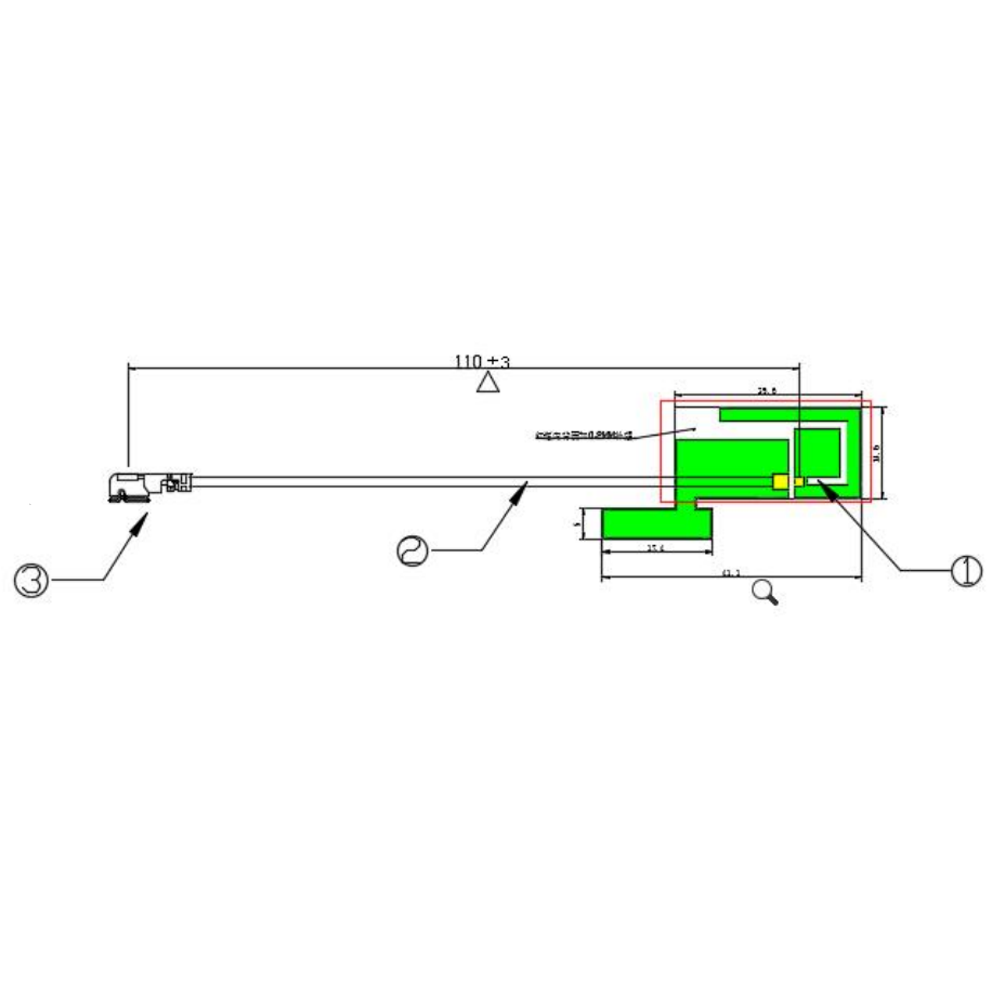

Dimension Drawing

KC.IA.00343 adopts a compact FPC antenna structure with integrated RF cable and IPEX connector. The antenna size and cable length can be customized according to customer requirements.

Applications

Automotive Electronics

Suitable for vehicle electronic systems requiring GPS positioning and wireless communication.

Smart Home Devices

Applicable for connected devices requiring WiFi communication and positioning functions.

Industrial Embedded Equipment

Suitable for compact wireless terminals and embedded systems.

System Integration

TOXU provides complete RF hardware solutions including FPC antennas, GNSS antennas, communication antennas and RF cable assemblies.

From RF design optimization to prototype validation and mass production, TOXU supports OEM and ODM projects.

Why Choose TOXU

RF Engineering Capability

Support antenna simulation, RF tuning, testing and production optimization.

Flexible Customization

Support customized dimensions, cable specifications and connector options.

Factory Manufacturing

Provide reliable antenna manufacturing from prototypes to volume production.

FAQ

Can KC.IA.00343 be customized?

Yes. TOXU supports customized antenna structure, cable length and RF performance adjustment.

Which wireless bands does this antenna support?

It supports GPS 1575.42MHz, WiFi 2.4GHz and WiFi 5.8GHz bands.

Which connector is used?

The antenna uses an IPEX connector.
