Overview

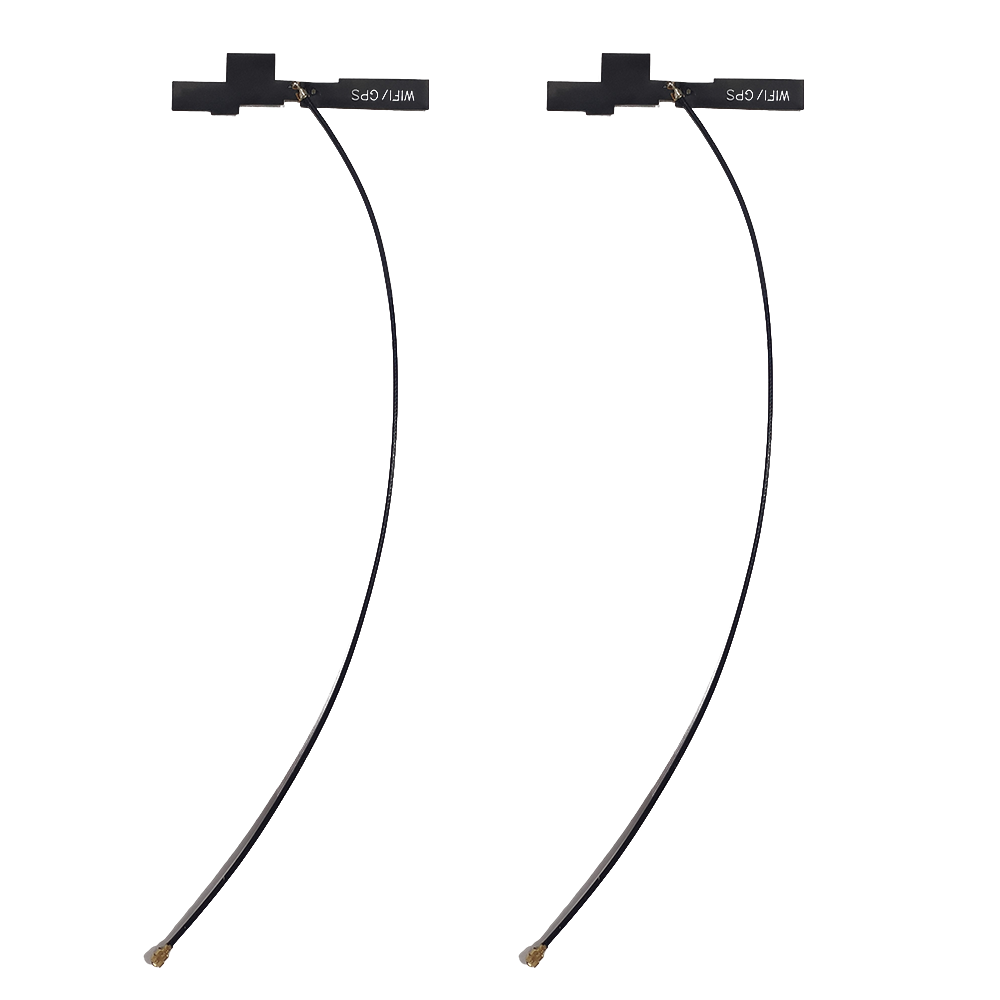

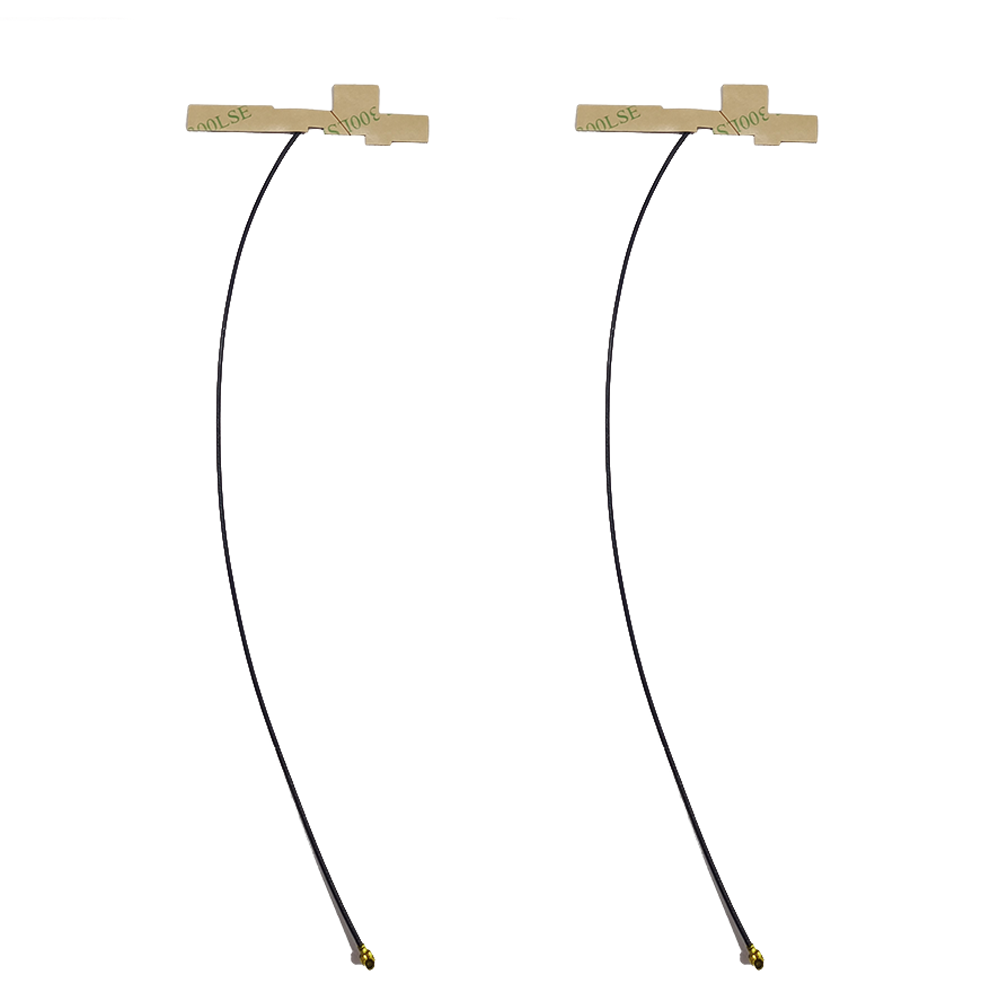

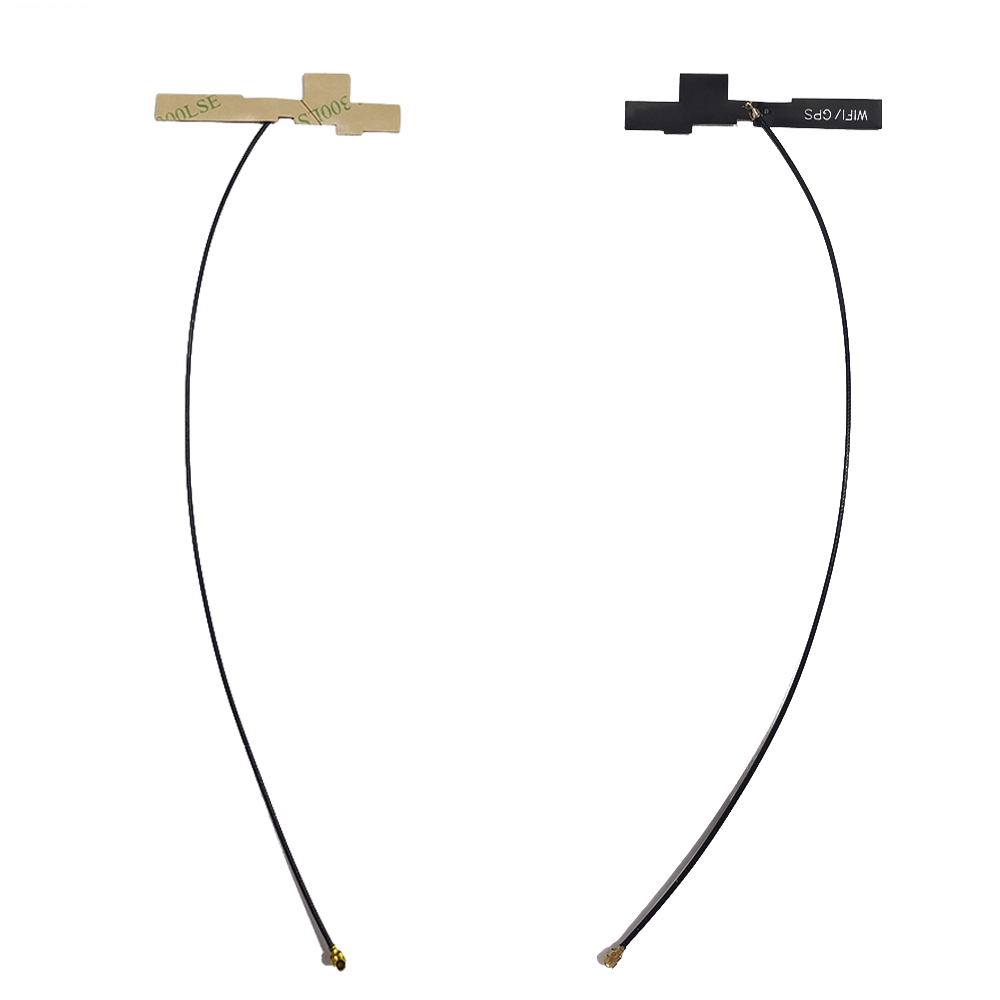

The TOXU KC.IA.00241 is a GPS and WiFi dual-band FPC internal antenna designed for embedded electronic products requiring positioning and wireless communication functions.

With support for GPS 1575.42MHz, WiFi 2.4GHz and WiFi 5.8GHz bands, this compact antenna provides a flexible solution for automotive electronics, communication equipment and smart home applications.

Key Features

GPS & WiFi Multi-Band Coverage

Supports GPS 1575.42MHz, WiFi 2400-2500MHz and WiFi 5150-5850MHz frequency bands for integrated wireless applications.

Compact FPC Structure

Flexible PCB antenna design helps reduce installation space requirements and supports embedded product integration.

50Ω Impedance Matching

Designed with standard 50Ω impedance for compatibility with common RF systems.

IPEX RF Cable Assembly

Integrated with RF cable and IPEX connector for convenient connection with wireless modules.

Customized Antenna Solution

TOXU provides antenna customization including mechanical adjustment, cable length modification and RF optimization.

Technical Specifications

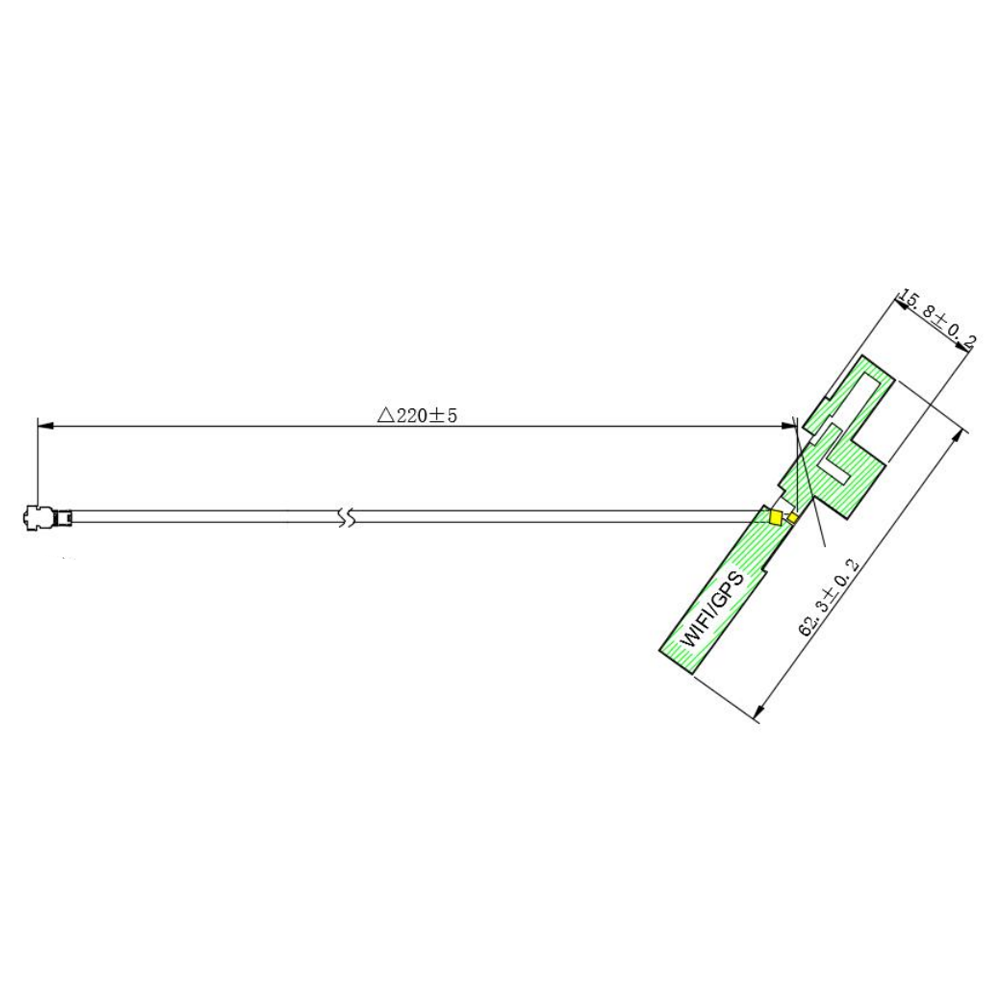

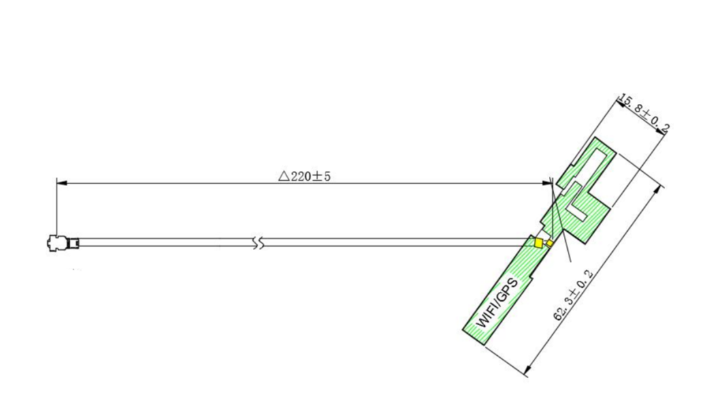

Dimension Drawing

The KC.IA.00241 mechanical drawing shows the FPC antenna structure with RF cable assembly and IPEX connector. Customized dimensions and cable lengths are available according to customer requirements.

Applications

Automotive Electronics

Suitable for embedded vehicle communication systems and automotive wireless devices.

Smart Home Devices

Applicable for connected home products requiring GPS positioning and WiFi communication.

Industrial Embedded Equipment

Designed for compact electronic devices requiring internal antenna integration.

System Integration

TOXU provides complete RF hardware solutions including GNSS antennas, communication antennas, RF cable assemblies, connectors and customized antenna development.

From antenna design optimization to prototype validation and mass production, TOXU supports customers with flexible OEM and ODM services.

Why Choose TOXU

RF Engineering Capability

Professional support for antenna design, RF tuning, testing and production.

Flexible Customization

Support customized frequency bands, mechanical structures, cable lengths and connectors.

Integrated Manufacturing

Provide antenna, RF cable assembly and related hardware solutions from prototype to mass production.

FAQ

Can KC.IA.00241 be customized?

Yes. TOXU supports customization based on customer mechanical and RF requirements.

What connector is used for this antenna?

KC.IA.00241 uses an IPEX connector with RF cable assembly.

What applications are suitable for this antenna?

It is suitable for automotive electronics, communication equipment and smart home devices.
