Overview

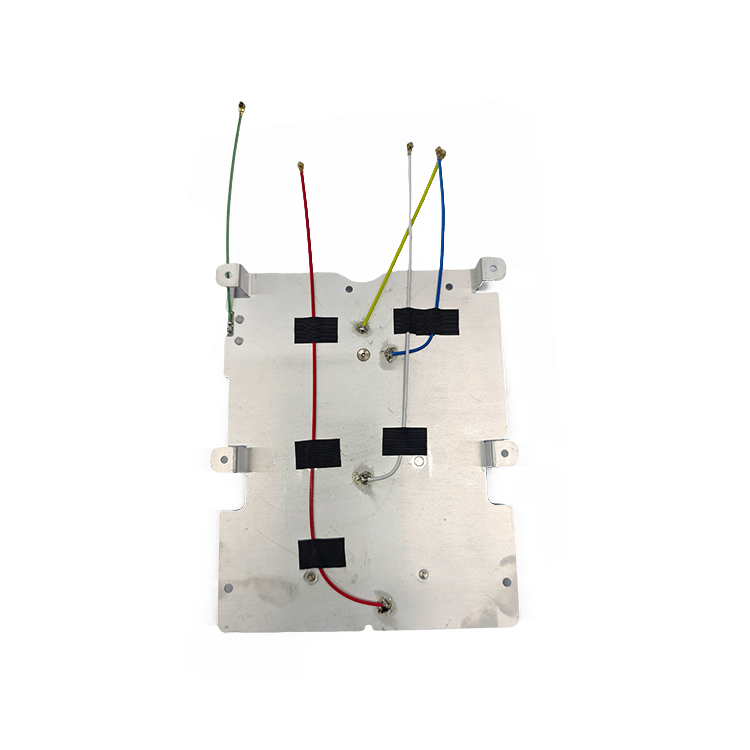

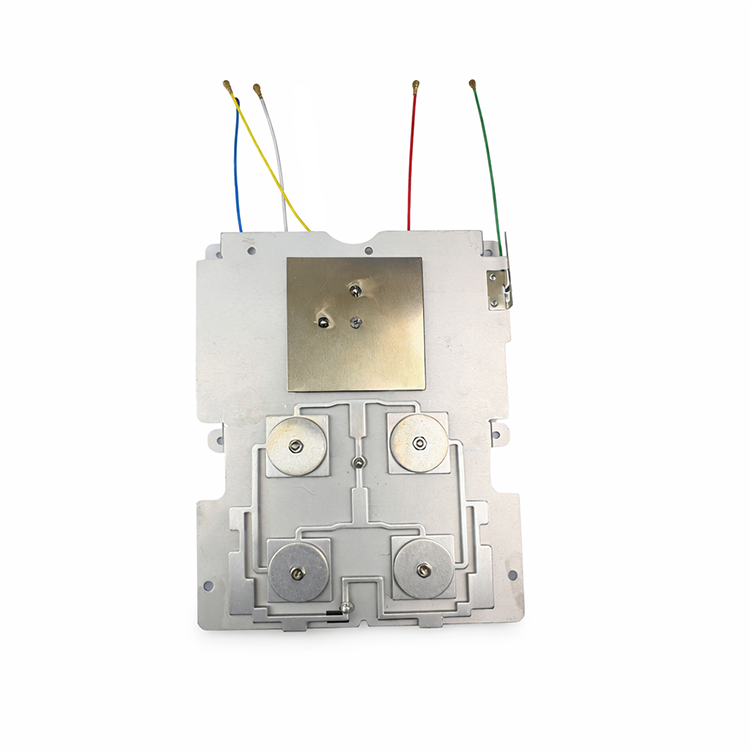

The TOXU KC.WX.00063 is a multi-port embedded PIFA antenna assembly designed for compatible Wi-Fi and Bluetooth equipment.

The antenna assembly covers 2400-2500MHz and 5150-5850MHz, supporting compatible 2.4GHz Wi-Fi, 5GHz Wi-Fi, and Bluetooth wireless functions.

Five separate antenna cables with IPEX-I connectors are integrated into one internal antenna structure, helping equipment manufacturers simplify antenna installation in products requiring multiple Wi-Fi or Bluetooth antenna connections.

The complete assembly measures approximately 156 x 126 x 23.8mm and is intended for internal installation inside compatible wireless equipment, industrial devices, access terminals, routers, gateways, and other connected hardware.

Final RF performance depends on the equipment enclosure, PCB layout, ground structure, cable routing, antenna position, surrounding metal parts, and other internal electronic components. Sample testing inside the complete device is recommended before volume ordering.

Key Features

Dual-Band Wi-Fi Coverage

Covers 2400-2500MHz and 5150-5850MHz for compatible 2.4GHz and 5GHz Wi-Fi equipment.

Bluetooth Compatibility

The 2400-2500MHz operating range supports integration with compatible Bluetooth communication hardware.

Five Independent Antenna Ports

Five RF cable connections are provided for equipment requiring multiple internal Wi-Fi or Bluetooth antenna channels.

Embedded PIFA Structure

The PIFA antenna design is intended for internal equipment installation and integration into space-limited wireless devices.

IPEX-I Cable Connections

Each antenna cable uses an IPEX-I connector for connection to compatible wireless modules or equipment RF interfaces.

Integrated Antenna Assembly

Multiple antenna elements, RF cables, and connectors are combined into one assembly to simplify sourcing and equipment installation.

Project Customization Support

Cable length, connector type, antenna arrangement, label, and packaging can be evaluated according to equipment requirements and order quantity.

Technical Specifications

Applications

• Dual-Band Wi-Fi Equipment

• Bluetooth-Enabled Devices

• Wireless Routers and Gateways

• Industrial Wireless Terminals

• Network Communication Equipment

• Smart Home Control Equipment

• IoT Gateways and Controllers

• Wireless Access Terminals

• Embedded Computing Equipment

• Customized Wireless Hardware

System Integration

The KC.WX.00063 can be integrated into compatible wireless equipment using the following configuration:

KC.WX.00063 Antenna Assembly → Five IPEX-I Connections → Wi-Fi or Bluetooth Module → Main Control System

Before ordering, confirm the number of RF ports, operating frequency bands, connector interface, available installation space, and antenna arrangement required by the wireless module.

The five antenna cables should be connected according to the equipment RF-port definition. Cable identification and port allocation should be confirmed before assembly.

The antenna elements should be installed away from metal shields, batteries, motors, high-current wiring, displays, cooling components, and other structures that may block or disturb wireless signals.

Cable routing should avoid excessive bending, compression, and repeated pulling. The IPEX-I connectors must be aligned correctly during installation to prevent damage to the connector or module RF interface.

Sample testing with the actual enclosure, PCB, wireless module, cable routing, antenna position, and intended operating environment is recommended before volume production.

Why Choose TOXU

TOXU supplies Wi-Fi and Bluetooth antennas, GNSS antennas, cellular antennas, internal antennas, external antennas, RF cable assemblies, coaxial connectors, communication modules, and receiver hardware for equipment manufacturers and system integrators.

Our team can assist with frequency confirmation, antenna selection, connector identification, installation evaluation, cable configuration, and sample testing.

For volume-order projects, TOXU can evaluate customized cable lengths, connector types, antenna arrangements, product labels, and packaging.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports antenna assembly, RF testing, cable processing, quality control, and stable volume-order delivery.

FAQ

Q: What frequency bands does KC.WX.00063 support?

A: It covers 2400-2500MHz and 5150-5850MHz for compatible 2.4GHz Wi-Fi, 5GHz Wi-Fi, and Bluetooth equipment.

Q: Does 5GHz mean that this is a 5G cellular antenna?

A: No. The 5GHz specification refers to the Wi-Fi frequency band, not 5G NR cellular communication.

Q: How many antenna ports are included?

A: The assembly includes five separate RF cable connections.

Q: What connector does the antenna use?

A: The available specification states that the five cables use IPEX-I connectors.

Q: Is this an external antenna?

A: No. It is a PIFA antenna assembly intended for embedded installation inside compatible wireless equipment.

Q: Can it support Wi-Fi MIMO?

A: The five-port structure can be evaluated for equipment using multiple antenna channels. However, actual MIMO compatibility depends on the wireless module, port allocation, antenna isolation, installation arrangement, and complete-device testing.

Q: Can the cable length and connector be customized?

A: Cable length, connector type, antenna arrangement, label, and packaging can be evaluated according to project requirements and order quantity.

Q: Is complete-device testing necessary?

A: Yes. The enclosure, PCB ground, nearby metal parts, cable routing, and installation position can affect antenna performance. Testing inside the actual device is recommended before volume ordering.
