Overview

The TOXU KC.WX.00081 is a 6-port embedded Wi-Fi antenna assembly integrating two 2.4GHz antenna elements, two 5GHz antenna elements and two 6GHz antenna elements on one aluminum reflector plate.

The three supported frequency ranges are 2400-2500MHz, 5150-5925MHz and 5825-7125MHz. This multi-band structure supports integration with compatible wireless routers, gateways, access points and other equipment requiring multiple Wi-Fi antenna channels.

Each antenna element uses an independent RF cable and IPEX-I connector. The assembly provides six separate RF connections, allowing the corresponding 2.4GHz, 5GHz and 6GHz antenna channels to connect to compatible wireless module interfaces.

The 2.4GHz antenna channels use RF1.37 coaxial cables, while the 5GHz and 6GHz antenna channels use RF1.13 coaxial cables. Different cable colors and lengths help identify the corresponding antenna connections during equipment assembly.

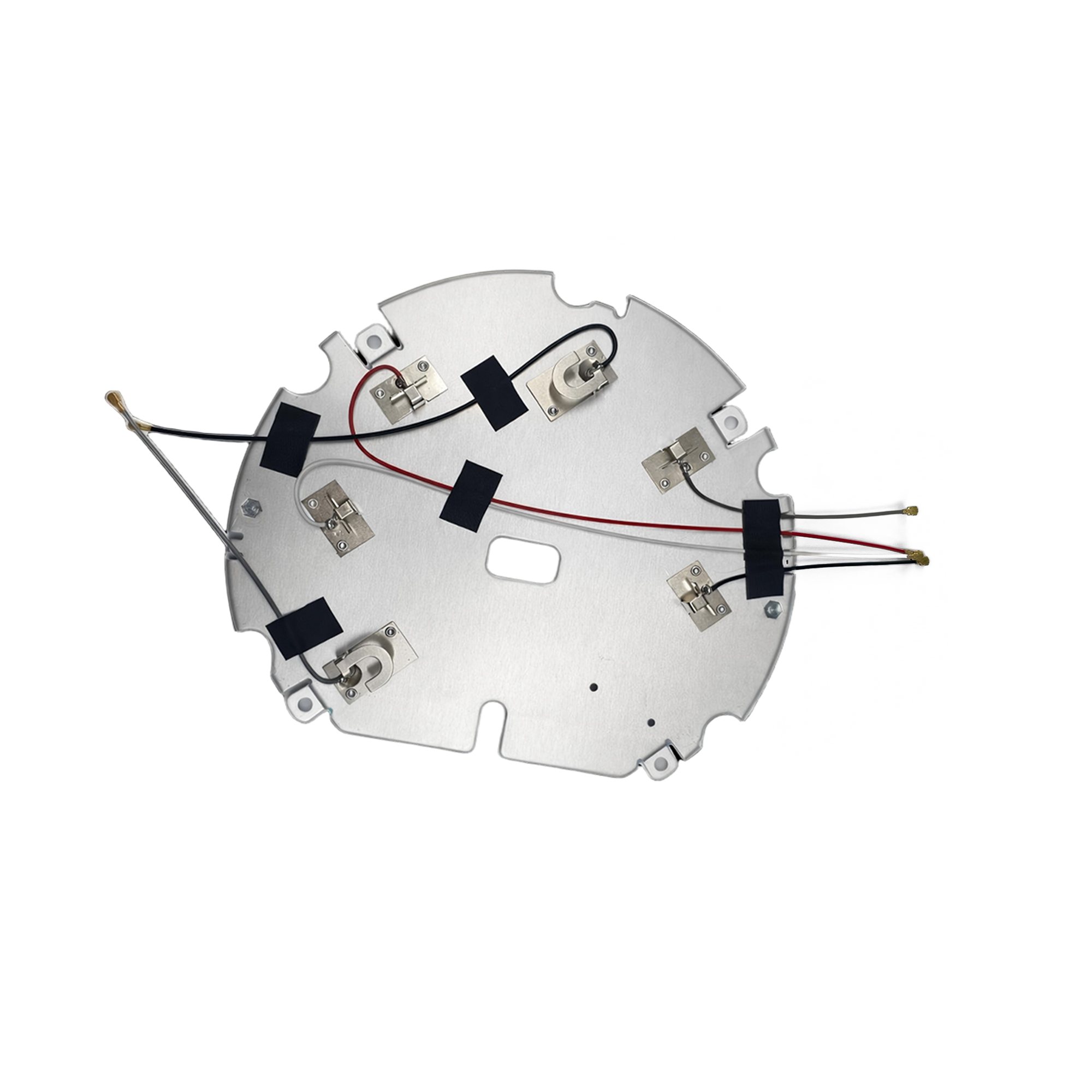

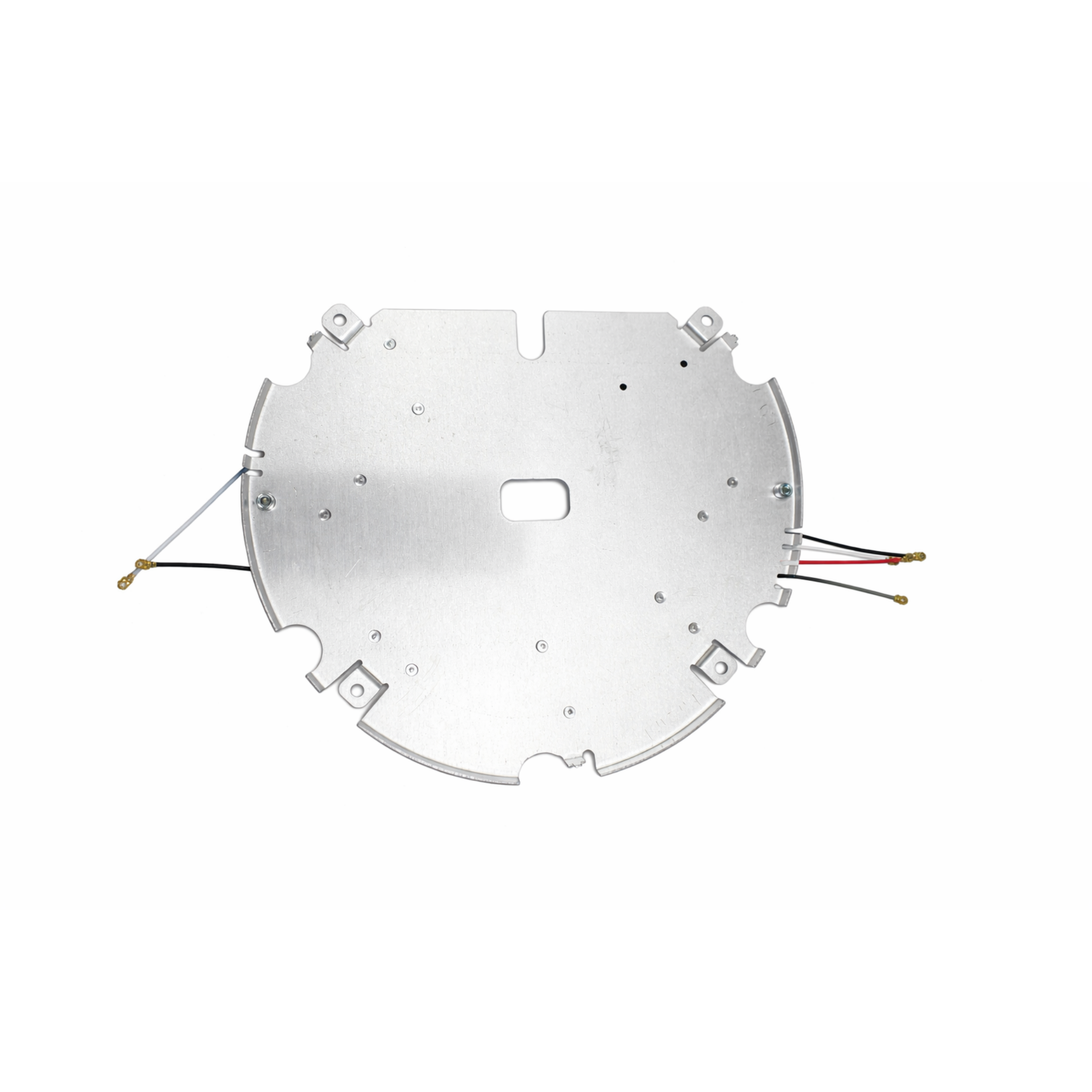

The antenna elements are riveted to a nickel-plated aluminum 5052 reflector plate. The complete structure measures approximately 175 x 147.5 x 17.1mm, excluding the extended cable length.

Final RF performance depends on the wireless module, enclosure, PCB ground, installation position, antenna spacing, cable routing and surrounding components. Sample testing inside the complete equipment is recommended before volume production.

Key Features

Tri-Band Wi-Fi Coverage

Covers 2400-2500MHz, 5150-5925MHz and 5825-7125MHz for compatible 2.4GHz, 5GHz and 6GHz wireless equipment.

Six Independent RF Ports

Provides two antenna channels for each frequency section, with a total of six independent RF cable connections.

Multi-Antenna Configuration

The 2 x 2.4GHz, 2 x 5GHz and 2 x 6GHz configuration supports equipment requiring multiple antenna channels for compatible wireless communication systems.

Embedded Reflector Plate Structure

Multiple antenna elements are integrated on one metal reflector plate for internal installation inside compatible wireless equipment.

Independent IPEX-I Connections

Each antenna channel uses a separate IPEX-I connector for connection to the corresponding RF port of a compatible wireless module.

Color-Coded RF Cables

Black, red, gray and white cables are used to help identify the different antenna channels during equipment assembly.

Aluminum 5052 Reflector Plate

The antenna elements are mechanically secured to a 1mm thick nickel-plated aluminum 5052 reflector plate.

Project Customization Support

Frequency range, cable length, connector type, reflector plate structure, antenna arrangement, cable identification, label and packaging can be evaluated for volume-order projects.

Technical Specifications

Applications

Tri-Band Wireless Routers

Wi-Fi Access Points

Wireless Gateways

Network Communication Equipment

Industrial Wireless Terminals

Embedded Computing Equipment

Smart Home Control Equipment

Multi-Band IoT Gateways

Wireless Control Systems

Customized Wi-Fi Hardware

System Integration

The KC.WX.00081 can be connected to compatible multi-band wireless equipment using six independent RF ports:

2 x 2.4GHz Antenna Cables -> 2.4GHz Wireless Module RF Ports

2 x 5GHz Antenna Cables -> 5GHz Wireless Module RF Ports

2 x 6GHz Antenna Cables -> 6GHz Wireless Module RF Ports

Before installation, confirm the RF-port definition of the wireless module. The six antenna cables must be connected to their corresponding frequency-band interfaces according to the equipment design.

Cable color alone should not be used as the only basis for port identification. Frequency labels, cable lengths and the approved assembly drawing should be checked before connection.

The reflector plate must be installed in the specified position inside the equipment. Changes to its location, orientation or distance from surrounding components may affect impedance matching, efficiency, isolation and radiation performance.

Avoid excessive cable bending, compression and repeated pulling. The IPEX-I connectors must be aligned vertically during installation to avoid damaging the antenna connector or module RF interface.

Sample testing should be completed with the actual wireless module, enclosure, PCB, display, battery, power supply, cable routing and final installation position before volume production.

Packaging Information

The current packaging document specifies 120 PCS per carton. Final shipment quantity, carton weight and packaging configuration should be confirmed according to the actual production order.

Why Choose TOXU

TOXU supplies Wi-Fi antennas, Bluetooth antennas, cellular antennas, GNSS antennas, combination antennas, RF cable assemblies, coaxial connectors, communication modules and receiver hardware for equipment manufacturers and system integrators.

Our team can assist with frequency confirmation, antenna arrangement, connector selection, cable configuration, installation evaluation, sample preparation and complete-device RF testing.

For volume-order projects, TOXU can evaluate customized frequency ranges, cable lengths, connector types, reflector plate structures, antenna arrangements, cable identification, labels and packaging.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports antenna production, RF cable processing, mechanical assembly, quality control and stable volume-order delivery.

FAQ

Q: What frequency bands does KC.WX.00081 support?

A: It covers 2400-2500MHz, 5150-5925MHz and 5825-7125MHz for compatible 2.4GHz, 5GHz and 6GHz wireless equipment.

Q: How many antenna ports are included?

A: The assembly includes six independent antenna ports, with two ports for each frequency section.

Q: Does it use one shared RF cable?

A: No. Each antenna element has an independent coaxial cable and IPEX-I connector.

Q: Can this antenna be used for Wi-Fi 6E or Wi-Fi 7 equipment?

A: The antenna covers compatible 2.4GHz, 5GHz and 6GHz frequency ranges. Final compatibility depends on the wireless module, supported regional channels, RF-port configuration and complete-device testing.

Q: Does this specification confirm MIMO performance?

A: The six-port structure supports equipment requiring multiple antenna channels. However, actual MIMO performance depends on antenna isolation, module configuration, installation position and complete-device RF testing.

Q: What connectors are used?

A: All six antenna cables use IPEX-I connectors.

Q: Are all six cables the same length?

A: No. Different cable lengths are used according to the frequency section and antenna position. Refer to the technical specification table and approved drawing before installation.

Q: Is this an external antenna?

A: No. It is a reflector plate antenna assembly designed for internal installation inside compatible wireless equipment.

Q: Can the cable lengths and antenna arrangement be customized?

A: Yes. Cable length, connector type, frequency range, reflector plate structure, antenna arrangement, cable identification, label and packaging can be evaluated according to project requirements and order quantity.

Q: Is complete-device testing required?

A: Yes. Final performance is affected by the wireless module, PCB, enclosure, surrounding metal parts, installation position and cable routing. Testing inside the actual equipment is recommended before volume production.
