Overview

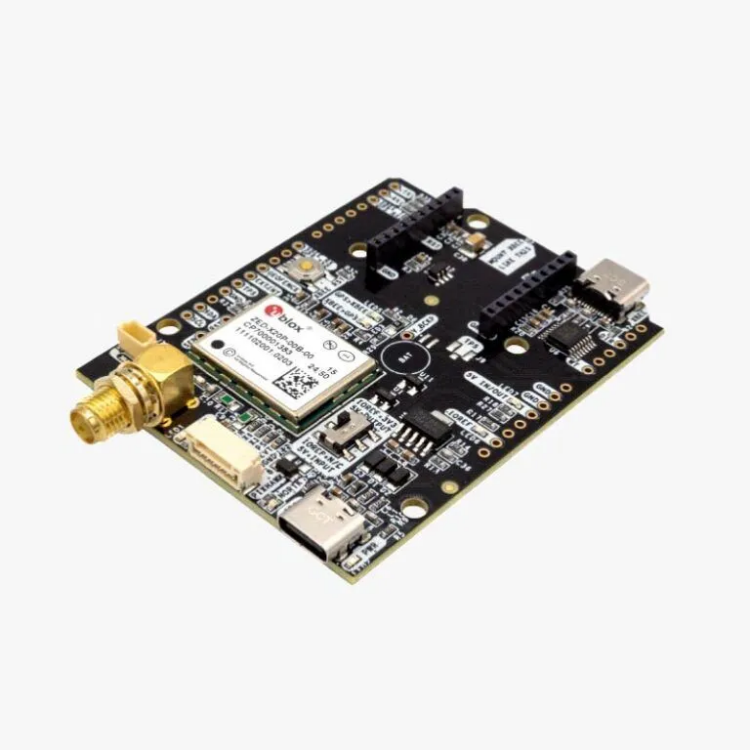

The TOXU TX-X20P-RTK01 RTK GNSS Receiver Board integrates the u-blox ZED-X20P GNSS module, designed for applications requiring reliable multi-frequency satellite positioning performance.

The u-blox ZED-X20P supports multi-constellation GNSS reception including GPS, GLONASS, Galileo, BeiDou and QZSS, providing stable positioning capability for professional navigation systems.

With compact hardware design, USB Type-C, UART and SPI communication interfaces, the TX-X20P-RTK01 enables flexible integration into UAVs, robotics platforms, autonomous navigation systems and industrial equipment.

Key Features

u-blox ZED-X20P GNSS Module

Integrated with the u-blox ZED-X20P GNSS module for advanced positioning applications.

Multi-Frequency GNSS Capability

Supports multi-frequency GNSS signals for improved positioning stability and satellite tracking performance.

Multi-Constellation Support

Supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems.

RTK GNSS Positioning

Supports RTK positioning with horizontal accuracy of 1 cm + 1 ppm according to module specification.

Compact Integration Design

The compact receiver board design allows easy integration into embedded navigation systems.

Technical Specifications

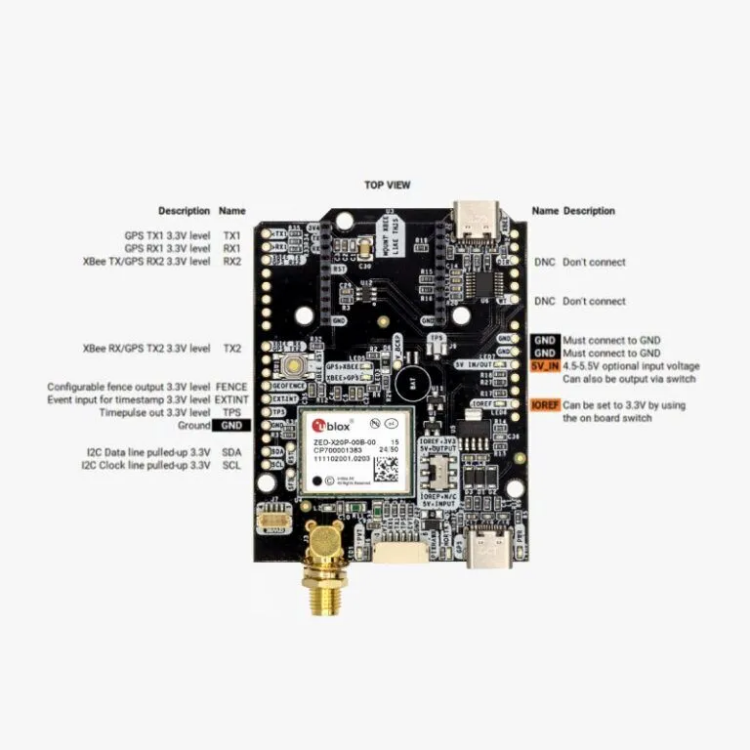

Hardware Interface

The TX-X20P-RTK01 provides multiple interfaces for integration with embedded positioning systems.

• USB Type-C Interface

• UART Interface

• SPI Interface

• SMA GNSS Antenna Connector

Applications

• UAV Navigation Systems

• Robotics Platforms

• Autonomous Navigation Systems

• Surveying Equipment

• Precision Agriculture Systems

System Integration

The TX-X20P-RTK01 can be integrated with embedded controllers, industrial computers and autonomous platforms through USB, UART and SPI communication interfaces.

GNSS Antenna → u-blox ZED-X20P RTK GNSS Board → Controller / Computer → Navigation System

Why Choose TOXU

• GNSS hardware development and integration capability

• RF antenna and positioning solution experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used in this board?

A1: The TX-X20P-RTK01 integrates the u-blox ZED-X20P GNSS module.

Q2: Which satellite systems are supported?

A2: It supports GPS, GLONASS, Galileo, BeiDou and QZSS.

Q3: Does this board support RTK positioning?

A3: Yes, it supports RTK GNSS positioning applications.

Q4: What interfaces are available?

A4: It provides USB Type-C, UART and SPI interfaces.
