Overview

The TOXU TX-ZZED-F9P is a compact RTK GNSS receiver board developed around the u-blox ZED-F9P multi-band GNSS module. It is designed for OEM integration, secondary development and professional positioning-system applications.

The receiver supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems across L1 and L2 GNSS bands.

With valid RTK correction data, suitable satellite visibility, correct antenna installation and proper system configuration, the TX-ZZED-F9P supports positioning accuracy of 0.01 m + 1 ppm CEP in RTK mode.

The 43 × 43 mm receiver board provides two UART interfaces, USB Type-C, SPI, I²C, PPS and TTL-level RTCM connectivity. These interfaces support integration with flight controllers, robotic controllers, embedded computers, data radios and other navigation equipment.

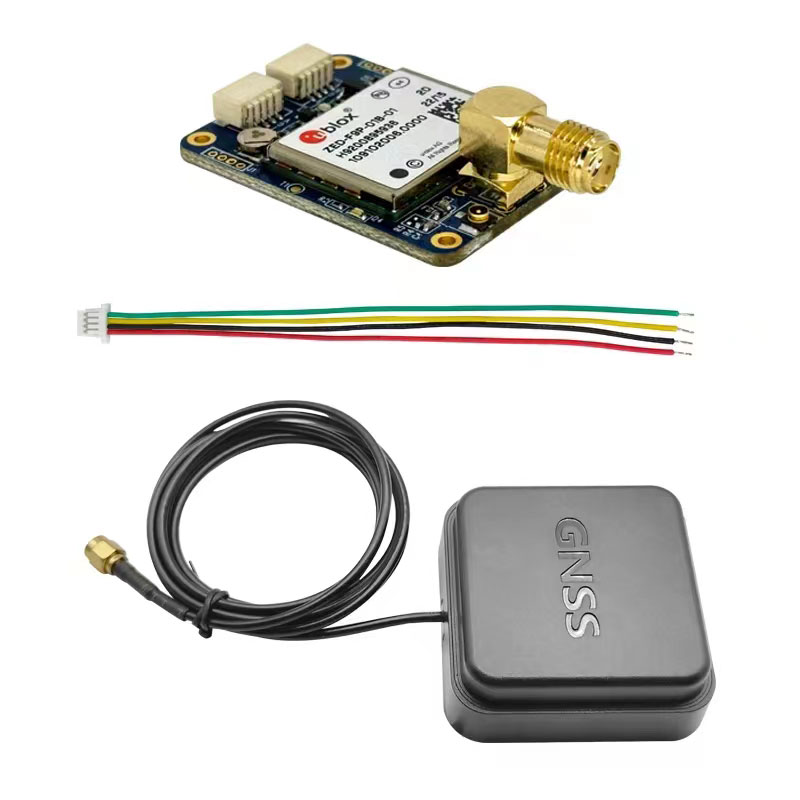

An SMA female connector supports connection to an external active GNSS antenna. The standard configuration shown includes the receiver board, connection cable and an active GNSS antenna with a typical gain of 28 dB.

The TX-ZZED-F9P supports NMEA, UBX and RTCM data formats, making it suitable for UAV navigation, robotic positioning, surveying, mapping and precision agriculture.

Key Features

u-blox ZED-F9P RTK GNSS Module

The receiver board integrates the u-blox ZED-F9P multi-band GNSS module to provide RTK positioning capability for professional navigation systems.

L1 and L2 Multi-Band Reception

Supports L1 and L2 GNSS bands for multi-band satellite reception and RTK positioning.

Multi-Constellation GNSS Support

Supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems for broader satellite availability.

Centimeter-Level RTK Positioning

Supports positioning accuracy of 0.01 m + 1 ppm CEP in RTK mode when valid correction data and suitable operating conditions are available.

Multiple Communication Interfaces

Provides UART × 2, USB Type-C, SPI, I²C, PPS and TTL-level RTCM connectivity for flexible system development and integration.

NMEA, UBX and RTCM Support

Supports standard NMEA navigation output, u-blox UBX protocol and RTCM correction data.

External Active GNSS Antenna

The SMA female antenna connector supports an external active GNSS antenna. The antenna included in the configuration shown provides a typical gain of 28 dB.

High Receiver Sensitivity

Provides a specified tracking sensitivity of −167 dBm and acquisition sensitivity of −148 dBm.

Compact 43 × 43 mm Design

The compact receiver-board structure supports integration into UAVs, robots, agricultural equipment and customized positioning terminals.

Flexible Power Supply

Supports a 3.3 V DC power input or a 5 V supply through the USB interface.

Wide Operating Temperature Range

The board is specified for operation from −40°C to +85°C.

Technical Specifications

Applications

UAV Navigation

Provides multi-band RTK GNSS data for compatible UAV flight controllers and autonomous navigation platforms.

Robotics and Autonomous Systems

Supports precise outdoor positioning for robots, unmanned ground vehicles and other autonomous platforms.

Surveying and Mapping

Can be integrated into customized surveying and mapping equipment requiring RTK correction input and centimeter-level positioning.

Precision Agriculture

Suitable for agricultural guidance, machine positioning, field mapping and other GNSS-based precision agriculture systems.

Industrial Positioning

Can be integrated into industrial controllers and positioning terminals through UART, USB, SPI or I²C interfaces.

RTK Base and Rover Development

Supports the development of customized RTK base-station and rover equipment when configured with suitable correction links and system software.

System Integration

The TX-ZZED-F9P can be integrated into an RTK rover system using an external active GNSS antenna and RTCM correction data supplied through a compatible communication link.

A typical receiver connection is:

GNSS Satellites → Active GNSS Antenna → TX-ZZED-F9P Receiver Board → Flight Controller or Embedded Computer → Navigation System

A typical RTK correction-data path is:

RTK Base Station or NTRIP Service → Data Link → TX-ZZED-F9P Receiver Board → RTK Position Output

Correction data may be delivered through a compatible data radio, cellular communication device or host controller. The board supports NMEA, UBX and RTCM data formats for system integration.

Centimeter-level positioning requires valid correction data, suitable satellite visibility, correct antenna installation and appropriate receiver configuration. The receiver board alone does not guarantee centimeter-level accuracy in every operating environment.

Complete GNSS Solution Support

GNSS Antenna Matching

TOXU provides matched multi-band GNSS antennas, including ceramic antennas, patch antennas, mushroom antennas and RTK antennas.

RF Cable Assembly

TOXU provides customized RF cable assemblies with SMA, MMCX, MCX, FAKRA and other connector options.

Connector Solution

TOXU supports RF connector selection and customized interconnection solutions according to the receiver board, antenna and equipment structure.

GNSS Board Development

TOXU can integrate GNSS modules into customized receiver boards with customer-required interfaces, dimensions and power-supply designs.

RTK Communication Integration

TOXU can support hardware integration for RTK correction links, including interfaces for data radios, cellular communication modules and host controllers.

Hardware Customization

TOXU supports PCB design, prototype development, component sourcing, product assembly and mass production for customized GNSS positioning products.

Why Choose TOXU

Complete RTK Hardware Support

TOXU supplies GNSS receiver boards, matched antennas, RF cable assemblies and connectors for complete RTK hardware integration.

OEM and ODM Customization

Customization is available for PCB dimensions, communication interfaces, connectors, cable lengths, labeling and product packaging.

Prototype-to-Production Service

Our team supports prototype verification, component sourcing, PCB assembly, product integration and batch production.

Application-Oriented Technical Support

TOXU can assist with antenna selection, interface confirmation, RF cable matching and receiver-board integration.

Quality Management

TOXU operates under IATF 16949 and ISO 9001 quality-management systems to support consistent production and quality control.

FAQ – Frequently Asked Questions

Q: Is the TX-ZZED-F9P a GNSS module or a receiver board?

It is an RTK GNSS receiver board based on the u-blox ZED-F9P module. The complete product includes a carrier board with USB, UART and other development interfaces.

Q: Does this product support centimeter-level positioning?

Yes. It supports accuracy of 0.01 m + 1 ppm CEP in RTK mode. Valid correction data, suitable satellite visibility, proper antenna installation and correct system configuration are required.

Q: Can the board provide positioning without RTK correction data?

Yes. It can provide standard GNSS positioning without correction data, but centimeter-level RTK accuracy requires correction data from a base station or compatible NTRIP service.

Q: Is an active GNSS antenna included?

The standard configuration shown includes an active GNSS antenna with a typical gain of 28 dB. Package contents should be confirmed when placing an order.

Q: Which GNSS systems are supported?

The receiver supports GPS, GLONASS, Galileo, BeiDou and QZSS across L1 and L2 GNSS bands.

Q: What interfaces are available?

The board provides two UART interfaces, USB Type-C, SPI, I²C, PPS and TTL-level RTCM connectivity.

Q: Can it connect to a UAV flight controller?

Yes. It can connect to compatible flight controllers through the available interfaces. The voltage level, connector pinout, communication protocol and firmware configuration must be confirmed before connection.

Q: Does this board include an IMU or INS function?

No IMU or INS function is specified for this model. It is an RTK GNSS receiver board and should not be described as a GNSS/INS product.

Q: Can TOXU customize the board?

Yes. TOXU can develop customized receiver boards according to required dimensions, communication interfaces, power inputs and connector configurations.

Q: Can TOXU provide customized GNSS solutions?

Yes. TOXU provides complete GNSS hardware integration services, including customized receiver boards, GNSS antennas, RF cable assemblies, connectors and PCB hardware development.

Q: Can TOXU provide antenna and cable solutions?

Yes. TOXU provides matched GNSS antennas, RF cables and connectors to complete the positioning system solution.
