Overview

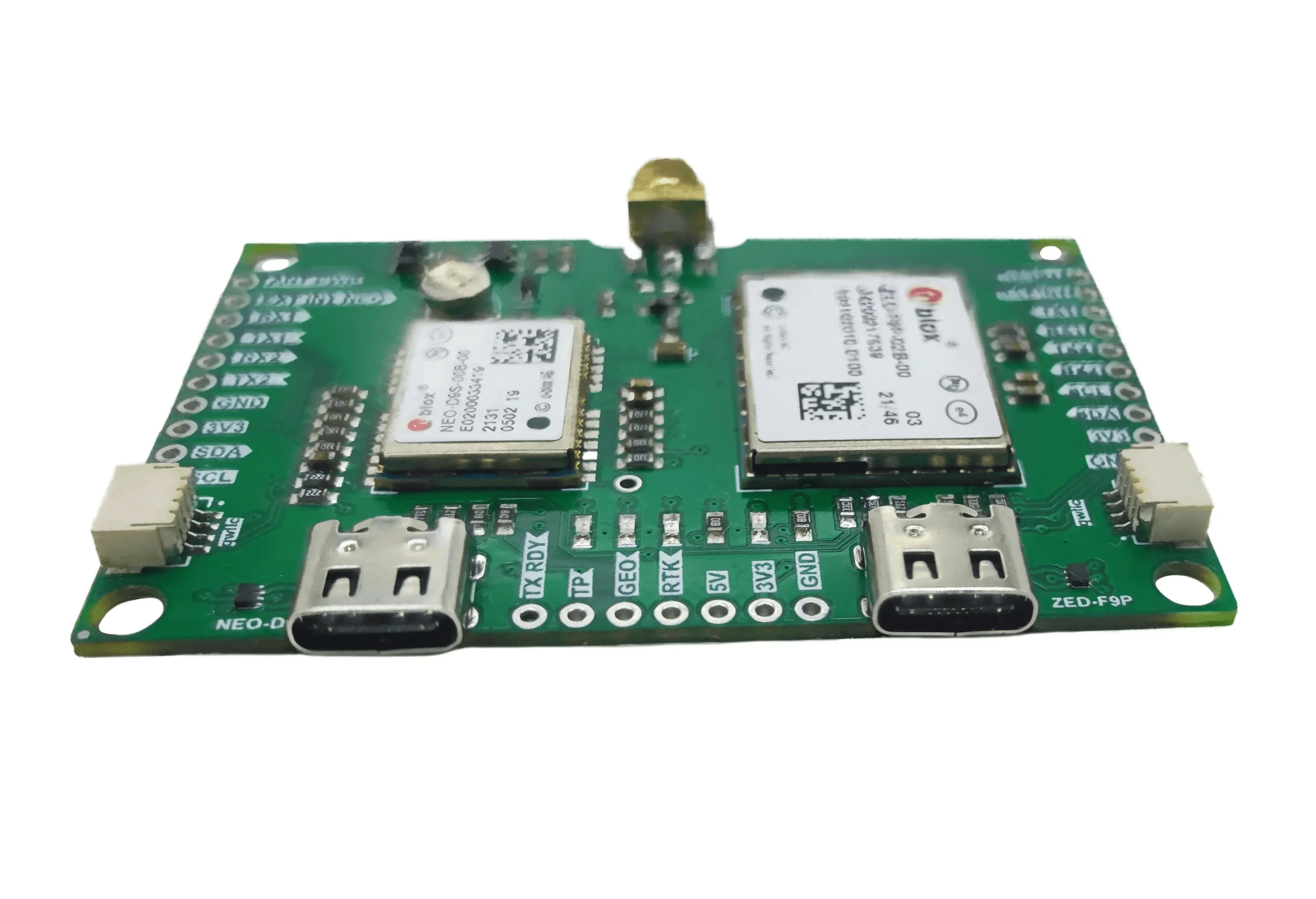

The TOXU TX-ZED-F9P RTK GNSS Receiver Board is a compact high precision positioning solution based on the u-blox ZED-F9P GNSS module.

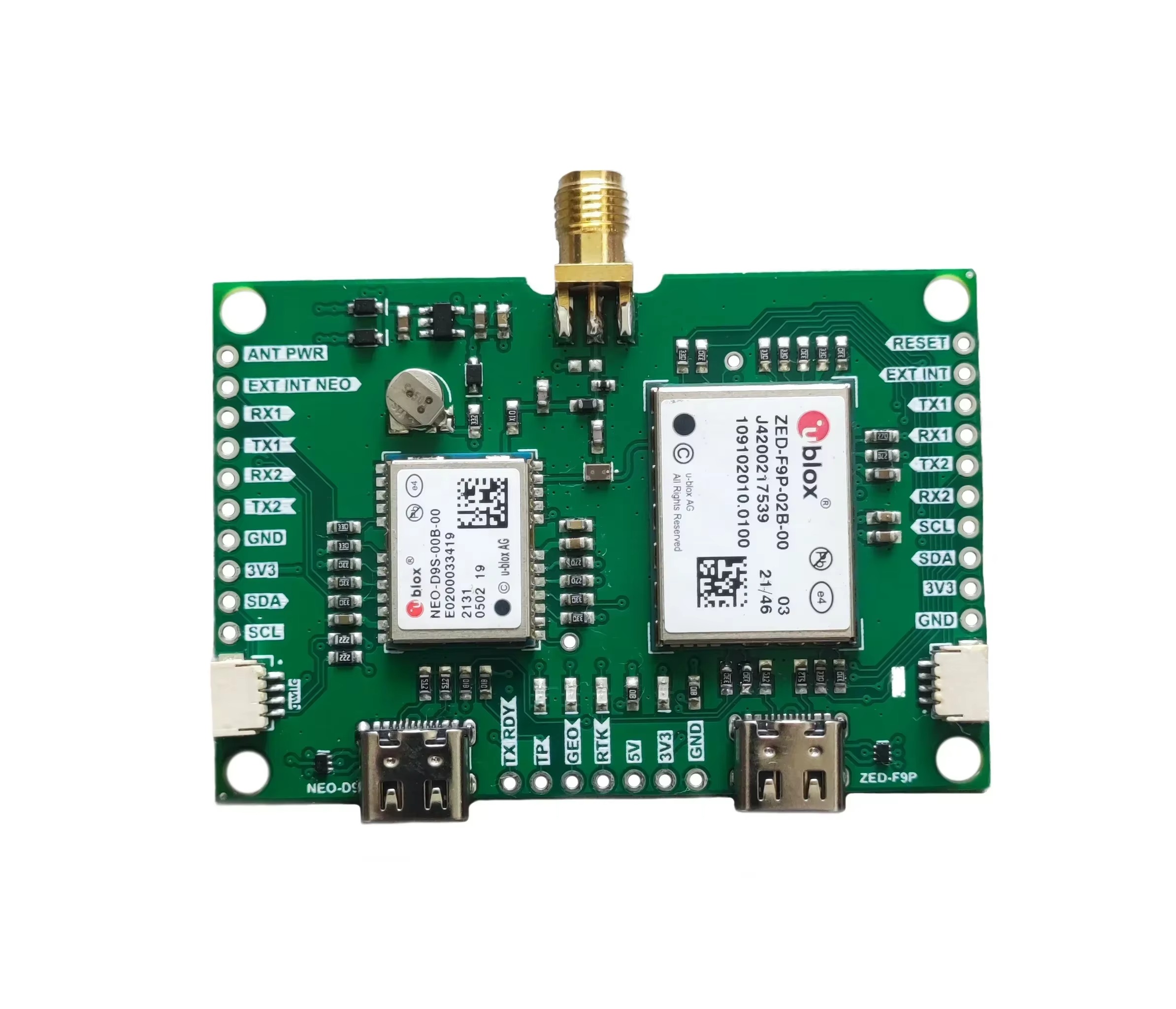

The board combines the ZED-F9P multi-frequency GNSS receiver and NEO-D9S correction data receiver to provide reliable positioning capability for professional navigation and autonomous applications.

Supporting GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems, the board is designed for integration into UAVs, robots, autonomous vehicles and industrial equipment.

Key Features

Dual Frequency RTK GNSS Support

Based on the u-blox ZED-F9P module, the board supports multi-frequency GNSS positioning for high accuracy applications.

Multi-Constellation Satellite Support

Supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite navigation systems.

Integrated Correction Data Receiver

The integrated NEO-D9S module provides correction data reception capability for RTK positioning applications.

Multiple Communication Interfaces

Provides UART, USB and SPI interfaces for convenient connection with host controllers.

Technical Specifications

Hardware Interface

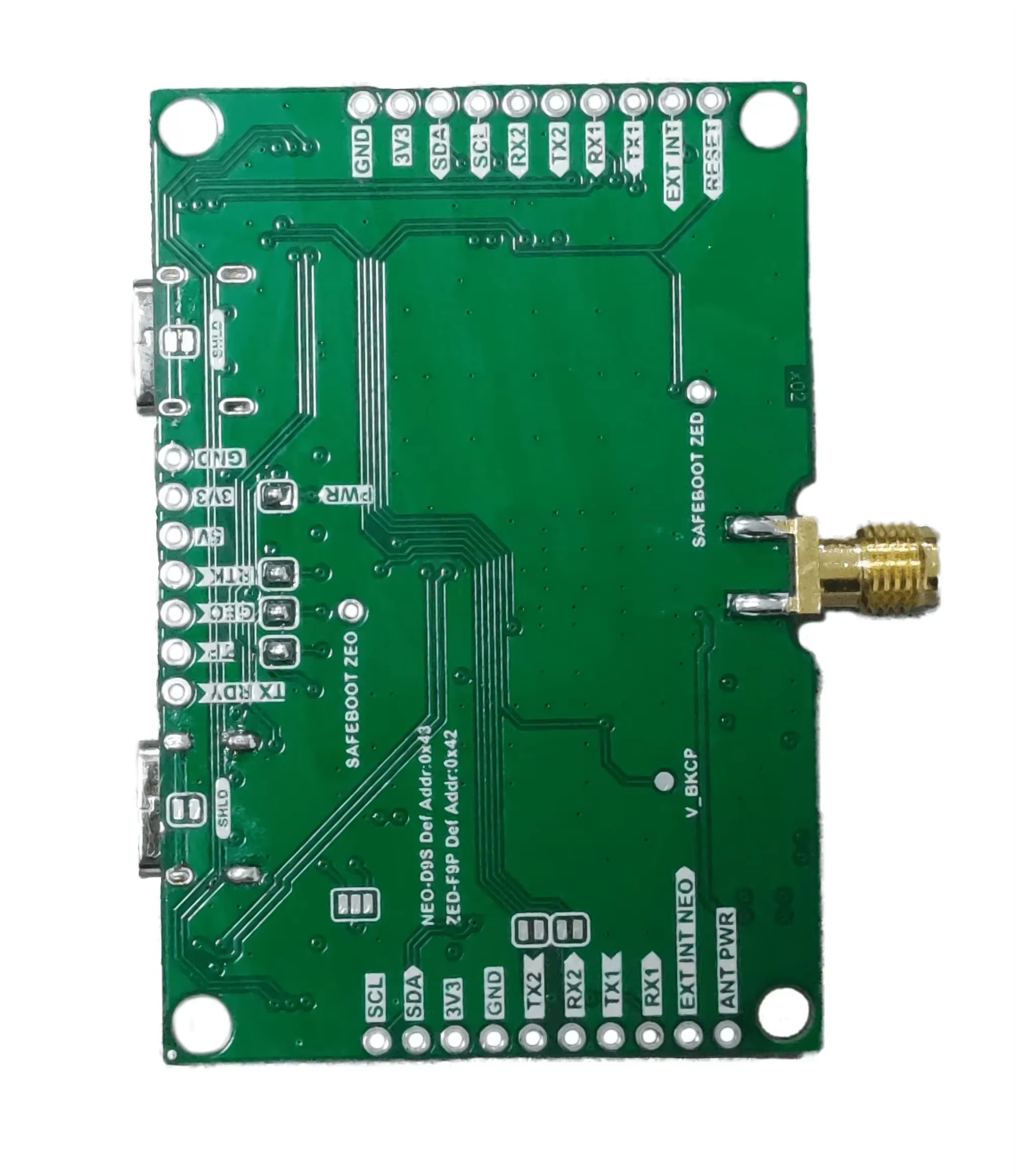

The TX-ZED-F9P GNSS receiver board provides flexible interfaces for embedded integration.

• UART communication interface

• USB interface

• SPI interface

• External GNSS antenna connection

Applications

• UAV Navigation Systems

• Robotics Platforms

• Autonomous Vehicles

• Precision Agriculture Equipment

• Industrial Positioning Systems

System Integration

The TX-ZED-F9P GNSS board can be integrated with flight controllers, embedded computers, industrial controllers and autonomous navigation systems through standard communication interfaces.

GNSS Antenna → RTK GNSS Receiver Board → Flight Controller / MCU → Navigation System

Why Choose TOXU

• GNSS positioning hardware development capability

• RF antenna and GNSS integration experience

• IATF16949 & ISO9001 certified manufacturing

• OEM/ODM customization support

• Prototype development to mass production

FAQ

Q1: What GNSS module is used on this board?

A1: The board integrates the u-blox ZED-F9P-01B GNSS module.

Q2: Which satellite systems are supported?

A2: It supports GPS, GLONASS, Galileo, BeiDou and QZSS.

Q3: What interfaces are available?

A3: UART, USB and SPI interfaces are available.

Q4: Can TOXU customize this GNSS board?

A4: Yes, TOXU provides GNSS hardware customization and integration support.
